Rasmussen 30" LC Vented Multi-Burner and Grate Hearth Kit for Evening Series Logs

Rasmussen 30" LC Vented Multi-Burner and Grate Hearth Kit for Evening Series Logs

$593.00
$593.00
Sale Sold out
Shipping calculated at checkout.
Fuel Type
Control System
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Descriptions

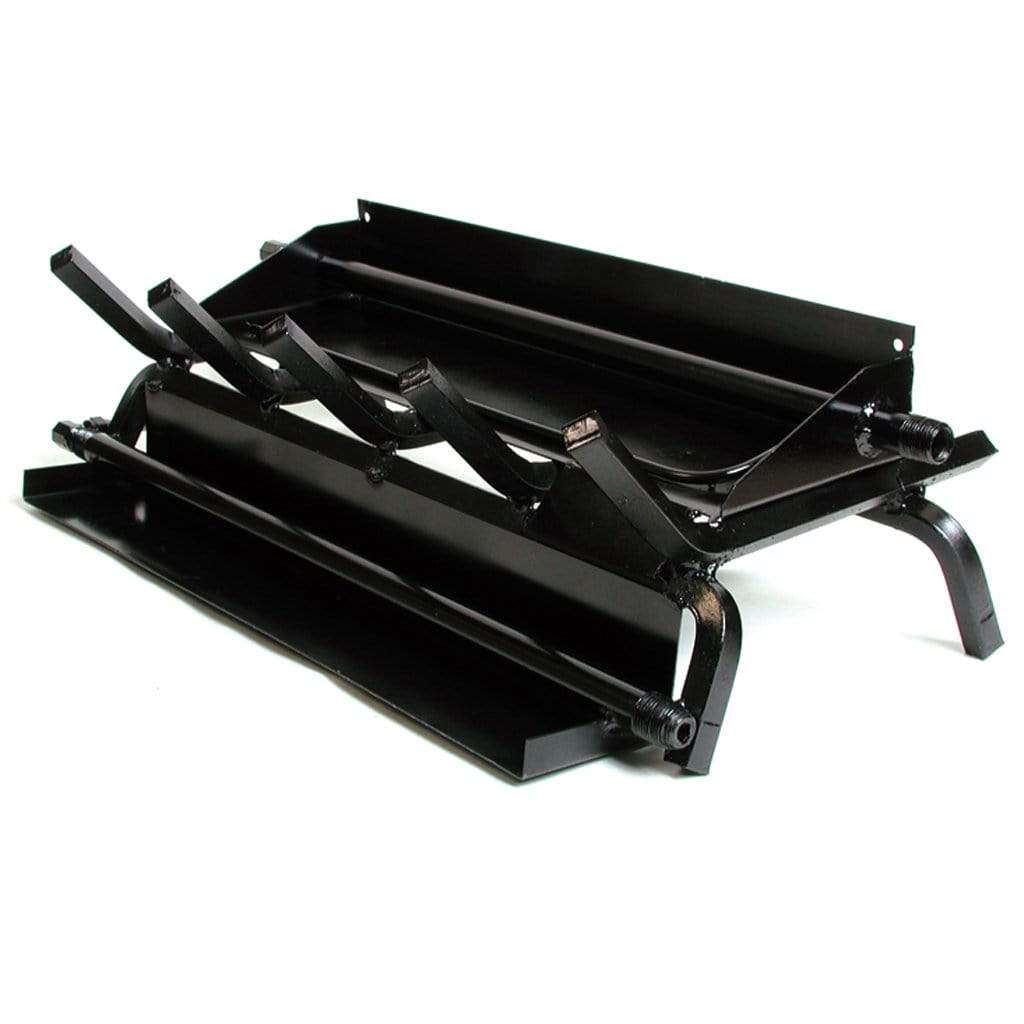

The LC & LD Burner features multi-tiered burners integrated with the log grate. Designed for use with TimberFire, and can be used with any Evening Series log sets.

  • Available in 4 Sizes: 18", 24", 30", & 36"
  • Can be used with either Natural Gas or Propane
  • Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
  • Certification: ANSI-Z21.84
Valve
Natural Gas BTU:
Propane BTU:
Match Lit
 80,000
N/A
Manual Safety Pilot
80,000
 80,000
Remote Ready
80,000
 80,000
Variable Remote
80,000
80,000
Variable Electronic Ignition
80,000
80,000
Millivolt w/Valve Vanisher
80,000
80,000
Manual Valve w/Valve Vanisher
80,000
80,000

Hearth Kits Includes: Pan Filler (Sand for Natural Gas or Volcanic Ash for Propane), Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.

NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.

Minimum Fireplace Dimensions

Match Lit
Front Width 36"
Rear Width 30"
Depth 14"
Standing Pilot
Front Width 42"
Rear Width 33"
Depth 14"
Valve Vanisher
Front Width 40.5"
Rear Width 31"
Depth 15"
