Rasmussen 18" LC Vented Multi-Burner and Grate Hearth Kit for Evening Series Logs

Rasmussen 18" LC Vented Multi-Burner and Grate Hearth Kit for Evening Series Logs

$477.00
$477.00
Sale Sold out
Shipping calculated at checkout.
Fuel Type
Control System
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Descriptions

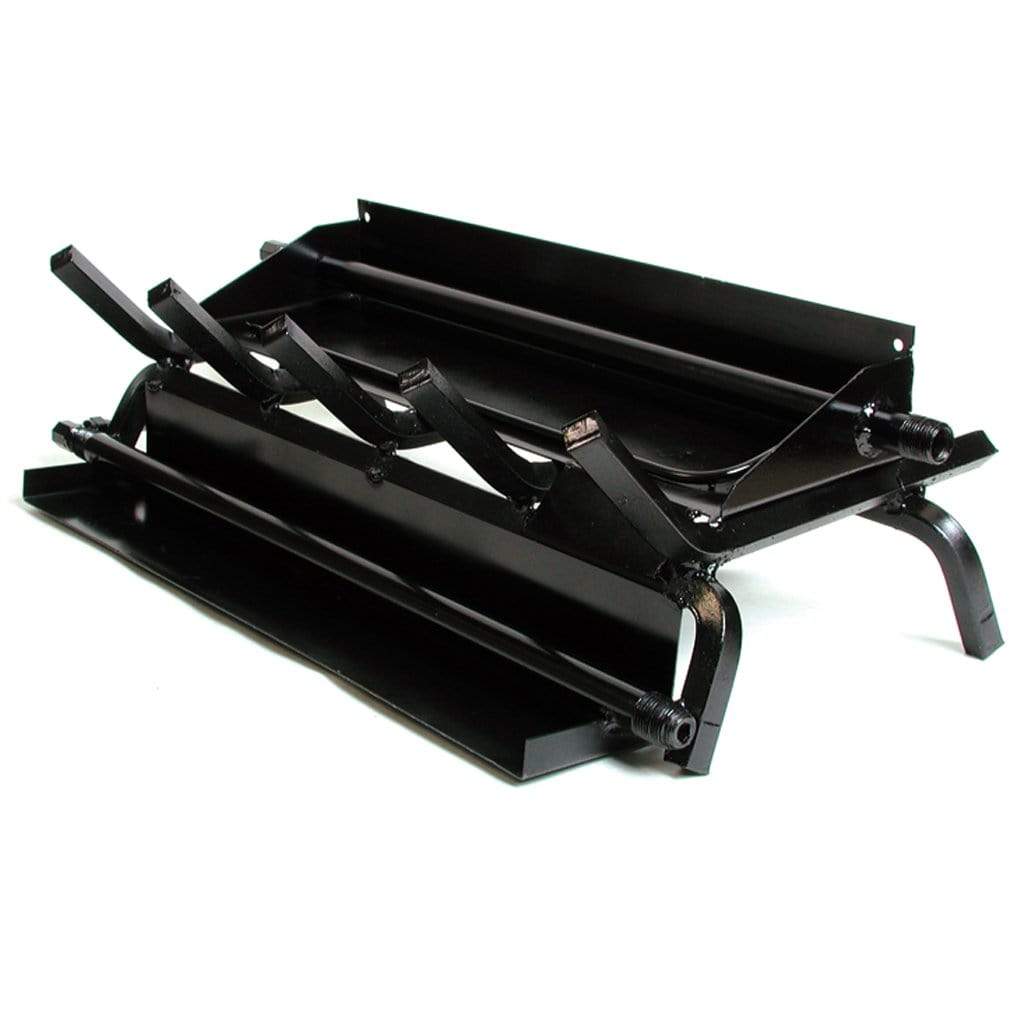

The LC & LD Burner features multi-tiered burners integrated with the log grate. Designed for use with TimberFire, and can be used with any Evening Series log sets.

  • Available in 4 Sizes: 18", 24", 30", & 36"
  • Can be used with either Natural Gas or Propane
  • Can be used for 18" 20" and 21" Gas logs
  • Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
  • Weight: 43lbs
  • Certification: ANSI-Z21.84
Valve
Natural Gas BTU:
Propane BTU:
Match Lit
 50,000
N/A
Manual Safety Pilot
50,000
 50,000
Remote Ready
50,000
 50,000
Variable Remote
50,000
50,000
Variable Electronic Ignition
50,000
50,000
Millivolt w/Valve Vanisher
50,000
50,000
Manual Valve w/Valve Vanisher
50,000
50,000

Hearth Kits Includes: Pan Filler (Sand for Natural Gas or Volcanic Ash for Propane), Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.

NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.

Minimum Fireplace Dimensions

Match Lit
Front Width 24"
Rear Width 18"
Depth 14"
Standing Pilot
Front Width 30"
Rear Width 21"
Depth 14"
Valve Vanisher
Front Width 28 1/2"
Rear Width 19"
Depth 15"
