Rasmussen 21" Flaming EmberXTRA Vented Burner and Grate Hearth Kit

Rasmussen 21" Flaming EmberXTRA Vented Burner and Grate Hearth Kit

Regular price $385.00
Regular price Sale price $385.00
Sale Sold out
Shipping calculated at checkout.
Fuel Type
Control System
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Descriptions

The FX Burner features the same main burner tube as the F, but adds dual ember booster tubes for a larger, brighter ember bed in front of the logs (2-inches more depth of embers than the F burner). It is used with our grate.

  • Available in 5 Sizes: 15", 18", 21", 24", & 30"
  • Can be used with either Natural Gas or Propane
  • Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
  • Weight: 33lbs
  • Certification: ANSI-Z21.84
Valve
Natural Gas BTU:
Propane BTU:
Match Lit
51,000
N/A
Manual Safety Pilot
51,000
35,000
Remote Ready
51,000
35,000
Variable Remote
51,000
35,000
Variable Electronic Ignition
42,000
35,000
Millivolt w/Valve Vanisher
42,000
35,000
Manual Valve w/Valve Vanisher
42,000
35,000
Millivolt Remote Ready
42,000
35,000

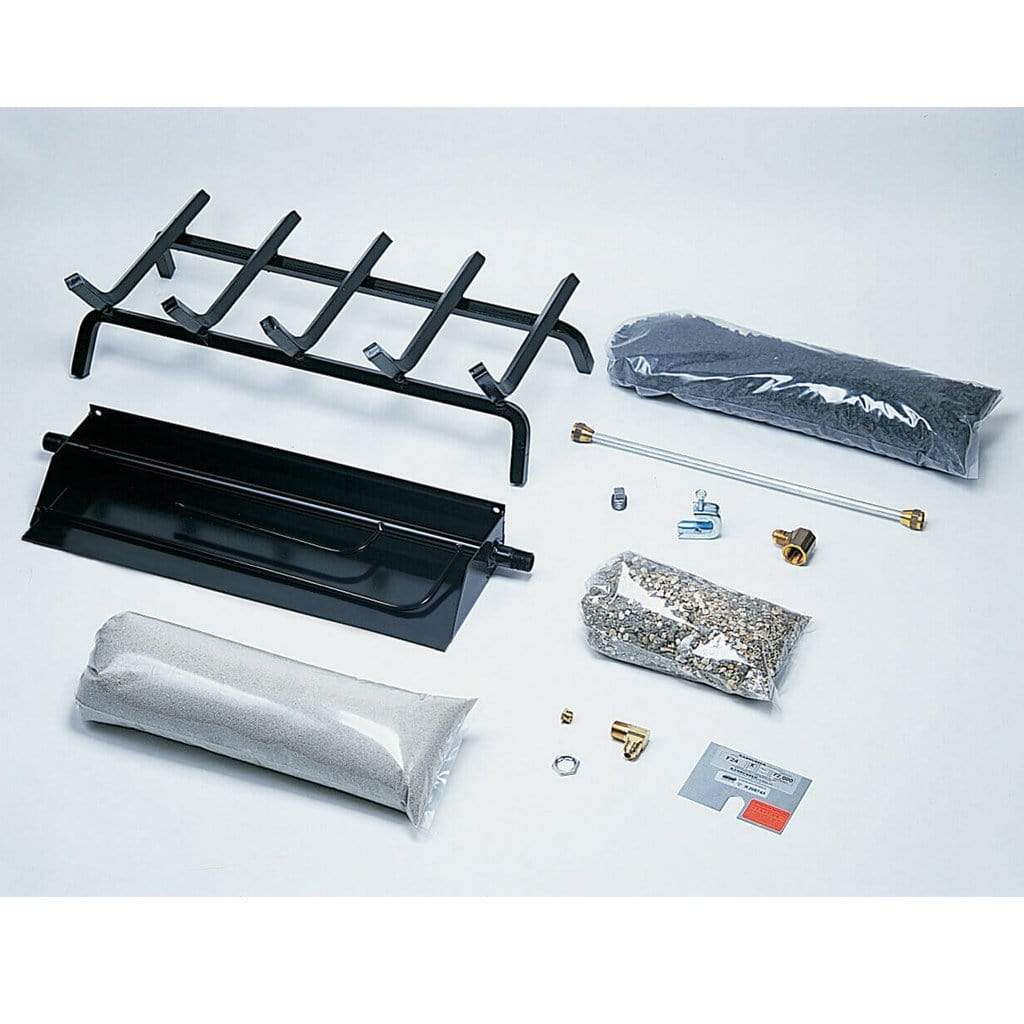

Burner Kits Includes: Burner (Sand for Natural Gas or Volcanic Ash for Propane), Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.

NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.

Minimum Fireplace Dimensions

Match Lit
Front Width 26"
Rear Width 20"
Depth 13"
Standing Pilot
Front Width 32"
Rear Width 23"
Depth 13"
Valve Vanisher
Front Width 30.5"
Rear Width 21"
Depth 15"
