SKU:B15FXH-N
Rasmussen 15" Flaming EmberXTRA Vented Burner and Grate Hearth Kit
Rasmussen 15" Flaming EmberXTRA Vented Burner and Grate Hearth Kit
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Descriptions
The FX Burner features the same main burner tube as the F, but adds dual ember booster tubes for a larger, brighter ember bed in front of the logs (2-inches more depth of embers than the F burner). It is used with our grate.
- Available in 5 Sizes: 15", 18", 21", 24", & 30"
- Can be used with either Natural Gas or Propane
- Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
- Certification: ANSI-Z21.84
|
Valve
|
Natural Gas BTU:
|
Propane BTU:
|
|
Match Lit
|
32,000
|
N/A
|
|
Manual Safety Pilot
|
32,000
|
27,000
|
|
Remote Ready
|
32,000
|
27,000
|
|
Variable Remote
|
32,000
|
27,000
|
|
Variable Electronic Ignition
|
32,000
|
20,000
|
|
Millivolt w/Valve Vanisher
|
32,000
|
21,000
|
|
Manual Valve w/Valve Vanisher
|
32,000
|
21,000
|
|
Millivolt Remote Ready
|
32,000
|
27,000
|

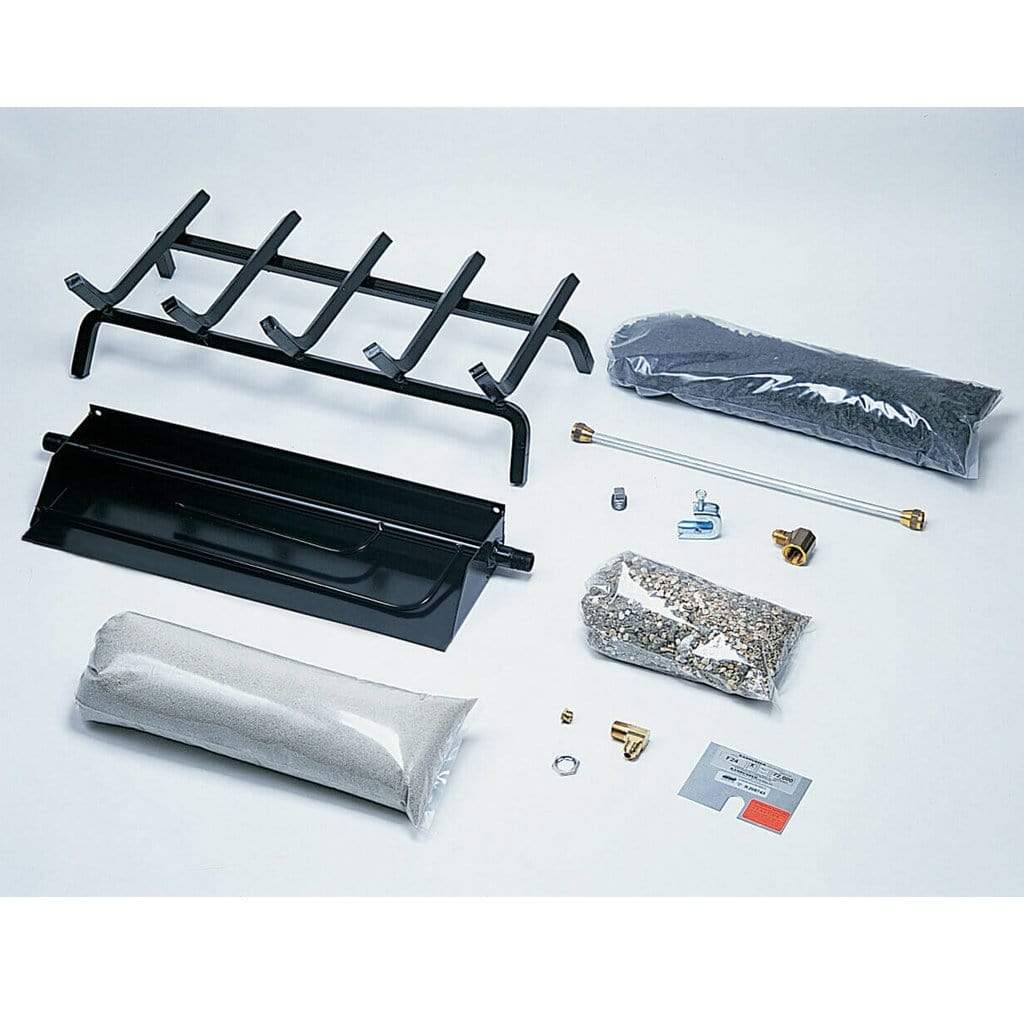

Burner Kits Includes: Burner (Sand for Natural Gas or Volcanic Ash for Propane), Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.
NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.
Minimum Fireplace Dimensions
| Match Lit | |
| Front Width | 21" |
| Rear Width | 15" |
| Depth | 15" |
| Standing Pilot | |
| Front Width | 27" |
| Rear Width | 18" |
| Depth | 15" |
| Valve Vanisher | |
| Front Width | 25.125" |
| Rear Width | 16" |
| Depth | 15" |
Downloads
