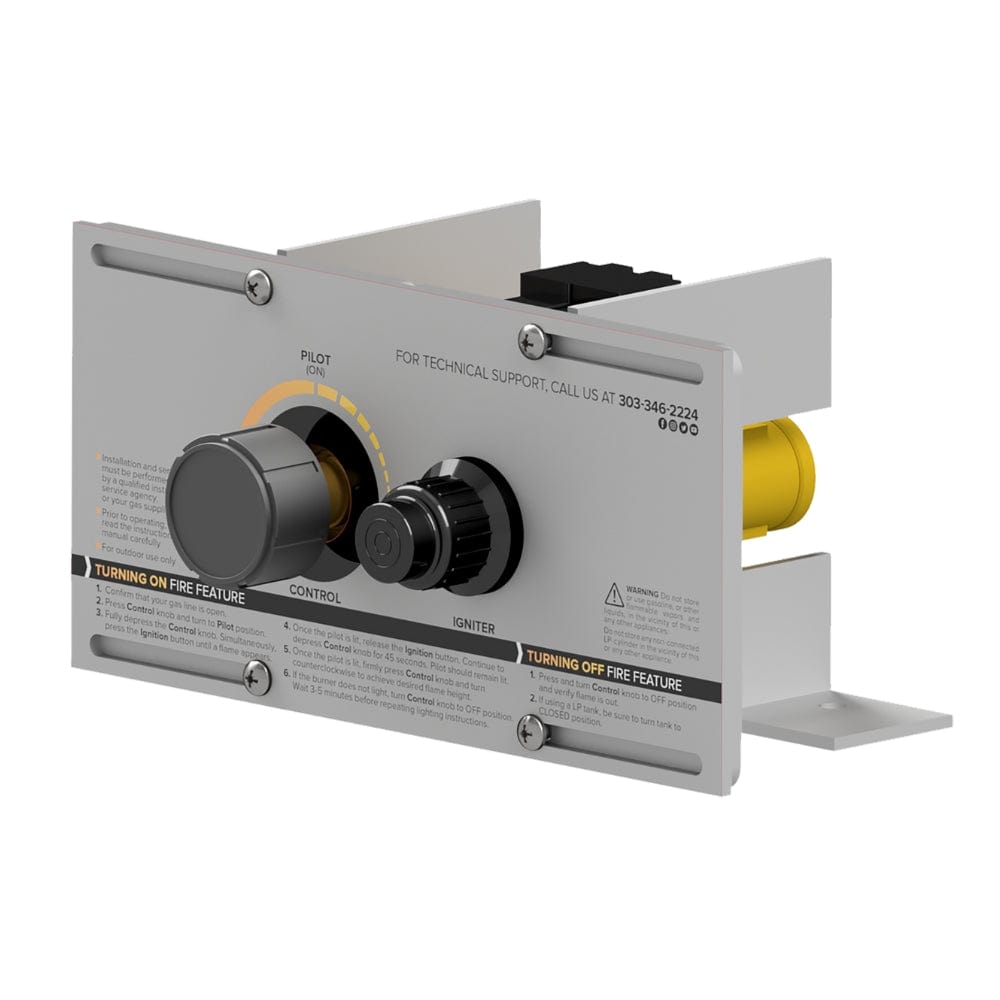

The Mercury Ignition System provides a layer of safety in the event a burner's flame is unexpectedly extinguished. This innovative new design provides a quick, automatic shutoff of gas flow and an easy reset to reignite the flame when ready to address building and safety code requirements, as well as personal safety preferences.

What's Included

• Mercury Ignition
• Spark Ignitor
• Safety Shutoff
• 3 Ft Pilot
• FIT180 (Flex Line & Key Valve Connection Fitting With (1) 1/2" x 2" Nipple)

Features

• NO ELECTRICITY REQUIRED - battery operated
• Delivers unmatched BTU output of 240K BTUs compared to only 140K BTUs from any competitor
• Provides superior gas line protection from water and debris when coupled with the WATERSTOP® fitting
• 3 year Residential and 1 year Commercial Warranty


Specifications

Item Number	MERCLP
Fuel	Liquid Propane
Ignition	Push Button
Heat Output	Up to 240K BTU

Warranty

• 3 year Residential and 1 year Commercial Warranty

Documents & Files

• Mercury Ignition User Guide
• Mercury Ignition Sell Sheet
• Mercury Electronics and Clearance
• Mercury Ignition System QA


Videos

Frequently Asked Questions

What are the dimensions of the mercury faceplate? 8" W x 4" H

What protection from water does the mercury offer? The pilot hood is expertly designed to provide enhanced protection by directing water away from the pilot components. When the WATERSTOP® fitting is incorporated on the burner, there is unparalleled protection for the system from water and debris.

Can the mercury be installed in the field? The Mercury can easily be installed on-site, to a new or existing burner system. Our comprehensive manual provides detailed installation instructions.

Does the mercury require a key valve? The Mercury uses a manual controlled gas valve that uses a control knob for turning on, lighting, controlling the flame height, and turning the system off. The control knob is used rather than a key and key valve. A key valve can be added for a redundant shut-off but is not required.

What is the mercury's warranty? The ignition is backed by a 3 year warranty on residential installations and a 1 year warranty on commercial installations.
