Warming Trends’ patented CROSSFIRE® Brass Burners are the industry-leading burner systems. Our burners deliver a taller, brighter, more natural flame with a fraction of the fuel consumed by competitors.

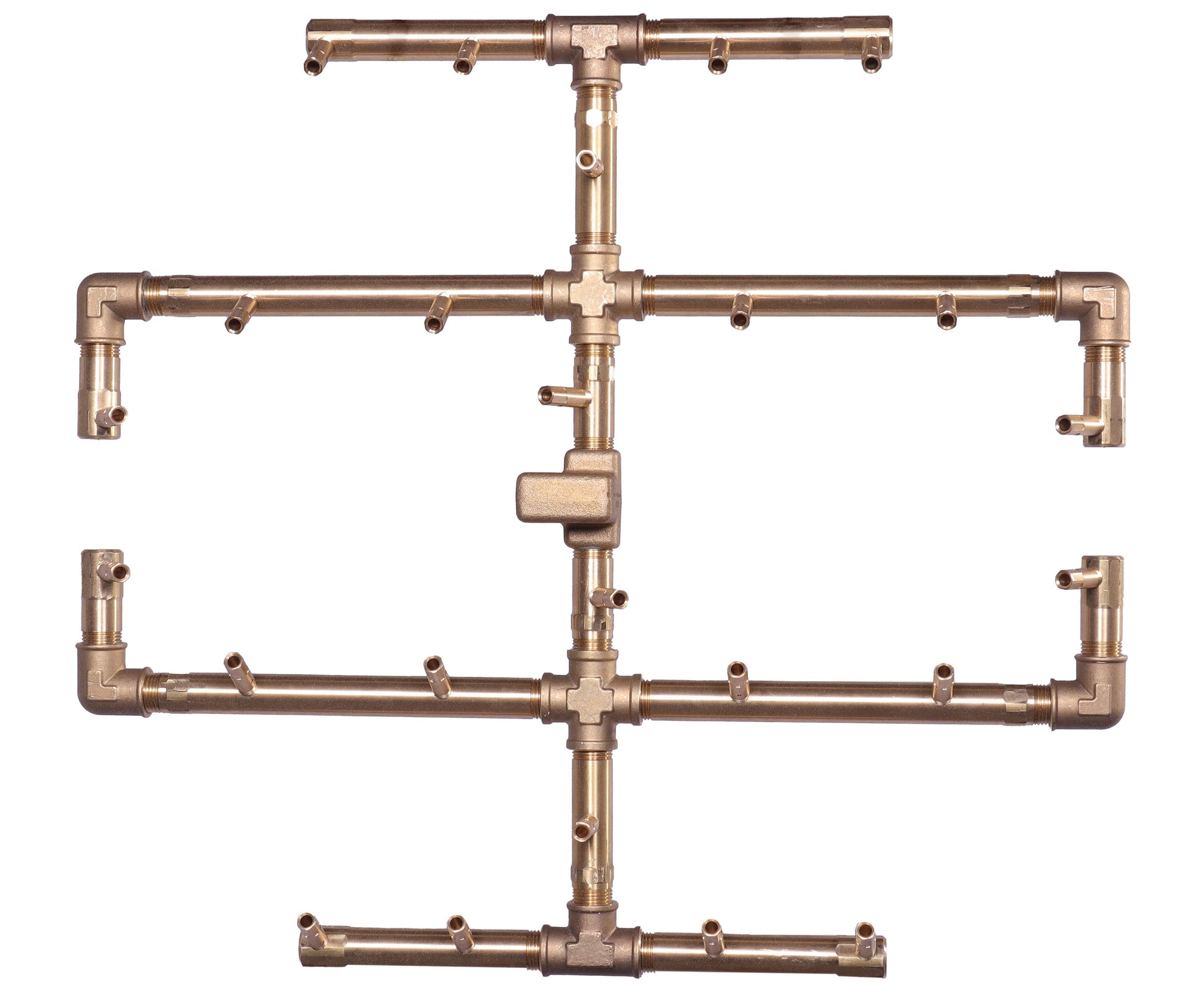

The Original burner system is designed to provide a beautiful, full flame over a broad footprint. The CFB290 is established with a specific air-to-gas mixture ratio which produces a taller, brighter flame while using a fraction of the fuel of conventional fire rings.

The WATERSTOP® is a patent-pending fitting that protects electronics and valve systems from water and debris while delivering outstanding flame performance. This new fitting also keeps the gas supply line dry and continues to allow the CROSSFIRE® brass burner to self-purge any water in the manifold.

What's Included

• 290K BTU Original Brass Burner - Natural Gas
• Double Flex Line Kit - FK2
  • (2) 36" L x 3/4" Diameter Flex Lines
  • (4) 3/4" Flared Fittings
  • (1) 3/4" Key Valve
  • (1) 3" Key
  • (1) 12" Key
  • (2) 3/4" x 3" Nipple
  • (2) 3/4" Tee
  • (1) 3/4" x 1/2" MM Reducer Fitting

Not Included (Sold Separately)

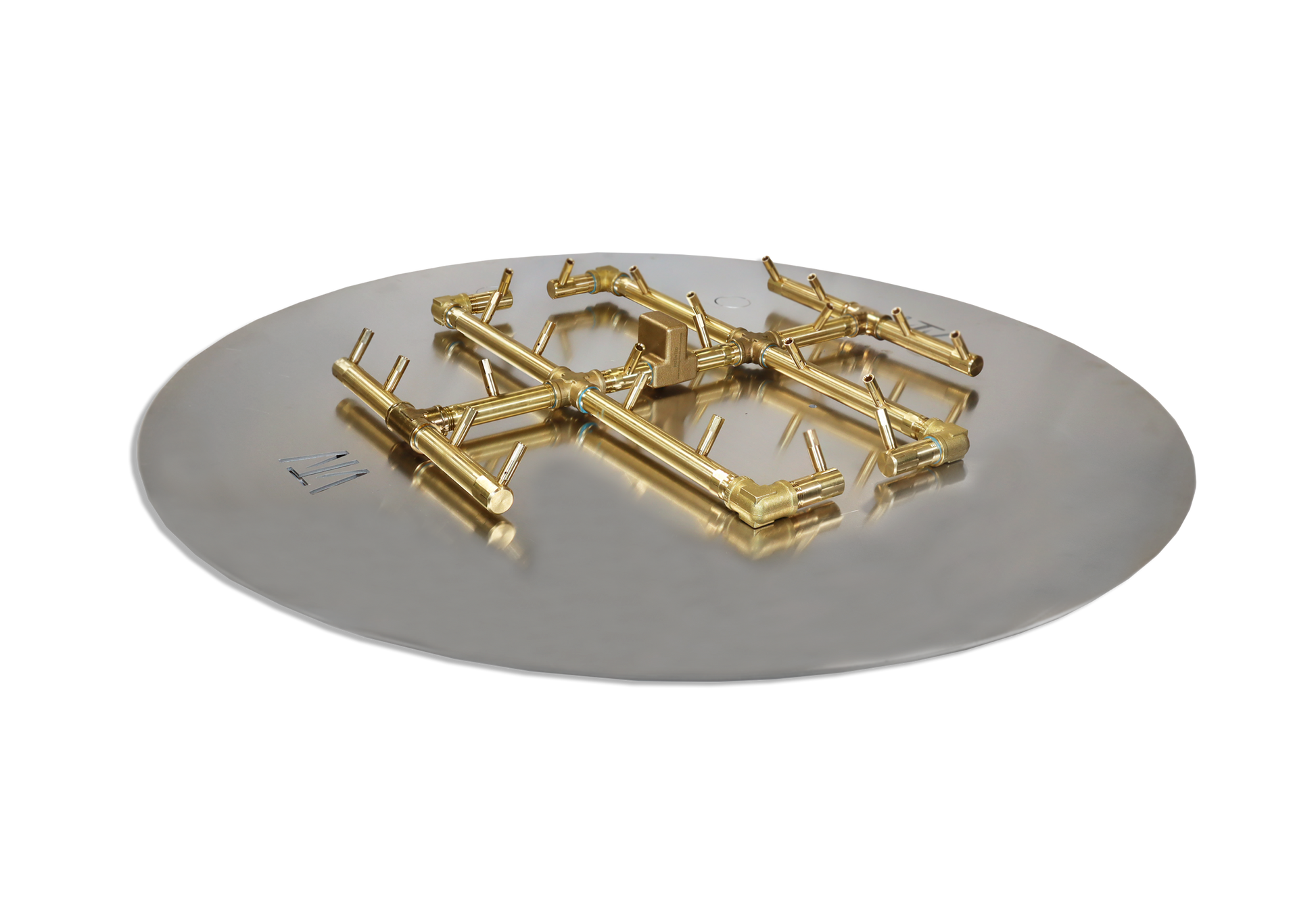

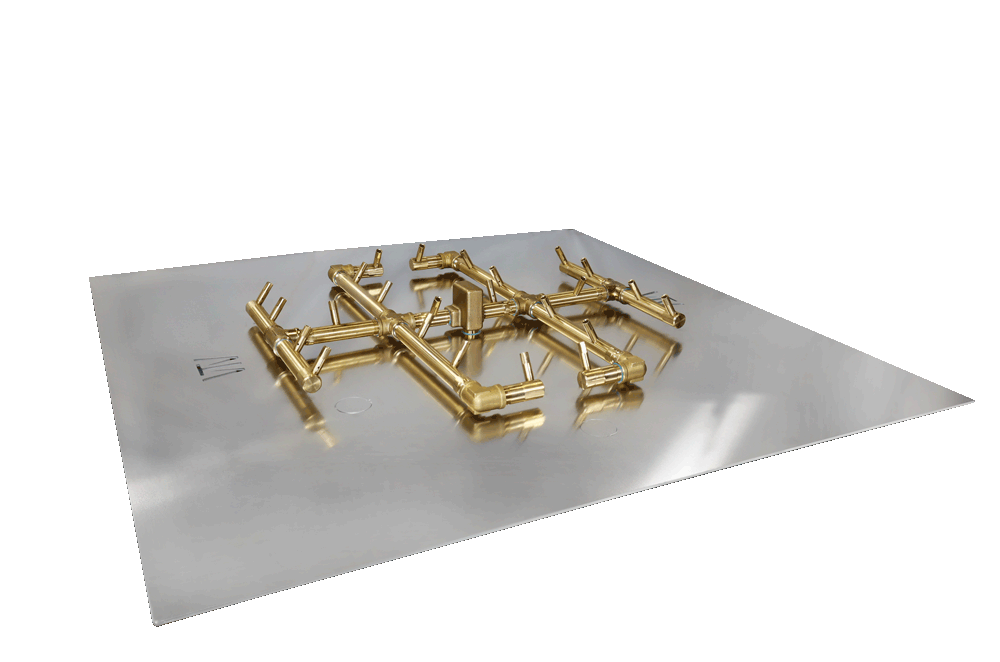

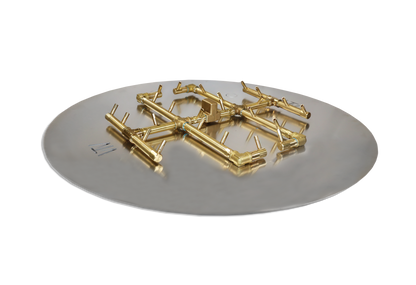

• Plate: ALPL36C (circle) or ALPL36S (square)

• Optional 6x Flexible Metal Support Collars

Features

• For 36" opening or larger

• For outdoor/ exterior use only
• Modification of product will void any certification and warranty
• Follow all installation instructions and local codes
• Recommended to be installed by a certified plumbing professional
• Made from all brass, the CFB290 is non-corrosive and comes with a Full Lifetime Warranty

Specifications

Item Number	CFB290NGFK2
Collection	ORIGINAL CFB290
BTU	290,000
Fuel Type	Natural Gas
WATERSTOP®	Yes
Dimensions	21" x 21"
Plate / Pan Size	36"

Technical Drawings & Dimensions

Warranty

Limited Lifetime Warranty We stand behind our products and construction. Corrosion-resistant, Sustainable, and rust-proof, brass allows to offer the strongest lifetime warranty in the industry.

Documents & Files

• Look Book
• Warranty Guide
• Owner's Guide and Manual
• Crossfire Burner Sell Sheet
• ICC-ES Report
• Certified Burners
• Compatibility Chart
• WATERSTOP Sell Sheet
• Commonwealth of Massachusetts
• Platinum Ignition User Guide
• Platinum Ignition Sell Sheet
• Platinum Electronics and Clearance Diagram
• Platinum CSA Certification Report

Videos

Frequently Asked Questions

Is there a standard and high capacity version of the platinum? The Platinum Ignition is certifi ed up to 680,000 BTUs. There is no need for a Standard and a High Capacity version.

What is the valve and inlet sizing? The Platinum has a 3/4" valve and gas inlet. It can be easily adapted to 1/2" manifolds.

Is there any difference between the NG and LP version of the ignition? Yes, the Pilot Assembly on the Platinum is gas specific.

Is this a dual pilot system? No, the Platinum Ignition is a single pilot system.

Will this be offered with pilot tube extensions? Yes. The Platinum comes with a two-foot pilot tube. The Pilot can be extended up to an additional 10 feet. We offer pilot tubing in one-foot increments.

What is the purpose of the led indicator light? The LED Indictator light is for troubleshooting and diagnostic purposes and will pause between blinks to allow you to diagnose the issue being encountered.

What is the voltage range of the platinum? The Platinum operates at 24 volts. The transformer is wired for 120 volts. The transformer can be used with 240 or 480 volt outlets. This will require appropriate pig tail modifi cations to be made by the electrician on site.

Does the platinum use a standing pilot? Yes, the Platinum uses a standing pilot.
