SKU:FRT6036
Warming Trends 60" Rectangular Ready-To-Finish Kit With UT230 Tree-Style Crossfire Brass Burner
Warming Trends 60" Rectangular Ready-To-Finish Kit With UT230 Tree-Style Crossfire Brass Burner
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
Bring spaces to life where friends and family can gather, relax and entertain. As your project partner, Warming Trends delivers the products you need to create outstanding spaces with AMBIANCE, LIGHT, WARMTH and WOW FACTOR.
Aluminum frames covered with concrete board, ready to be easily and quickly completed with your choice of media or veneer. Simply place on site, connect to the gas supply, add veneer, and your fire feature is complete.
What's Included
- 60" Rectangular Ready-To-Finish Kit
- UT230 Tree-Style Brass Burner
- Aluminum Frame with Concrete Board Attached
- 38" x 14" Aluminum Pan with 2" Sidewalls
- Fire Pit Vent Kit
- FK1 Flex Line Kit
- 4" Key Valve Extension
Not Included (Sold Separately)
- Ignition systems
- Fire pit cover
-
Media
Features
- Aluminum frames covered with concrete board, ready to be easily and quickly completed with your choice of stone or veneer.
- Simply place on site, connect to the gas supply, add stone or other veneer, and your fire feature is complete.
- Feature can be placed on both patios and decks - any stable flat surface will work for installation.
- Sourced and manufactured in the USA
Please Note:
- Ready-to-Finish Kits come with a Fire Pit Vent Kit (FPVK) but they do not come pre-installed as placement and installation depends on the veneer.
- Vents are to be installed by contractor on site. Key Valves (FK1 and FK2) do not come pre-installed either.
- Cover is recommended with all electronic ignitions. The warranty will be voided if a cover is not added to system.
Specifications
| Item Number | FRT6036 |
| Collection | Ready-To-Finish |
| BTU | 230,000 |
| Fuel Type | Universal (Natural Gas, Liquid Propane) |

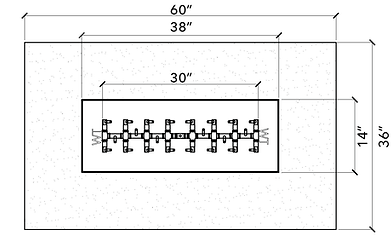

| Dimensions | 60" L x 36" W x 18" H |
Warranty
 |
Limited Lifetime Warranty We stand behind our products and construction. Corrosion-resistant, Sustainable, and rust-proof, brass allows to offer the strongest lifetime warranty in the industry. |
Documents & Files
- RTF Sell Sheet
- Platinum Ignition User Guide
- Platinum Ignition Sell Sheet
- Platinum Electronics and Clearance Diagram
- Platinum CSA Certification Report
- Mercury Ignition User Guide
- Mercury Ignition Sell Sheet
- Mercury Electronics and Clearance Diagram
Videos
Frequently Asked Questions
Platinum Ignition:
Is there a standard and high capacity version of the platinum?
The Platinum Ignition is certifi ed up to 680,000 BTUs. There is no need for a Standard and a High Capacity version. |
What is the valve and inlet sizing?
The Platinum has a 3/4" valve and gas inlet. It can be easily adapted to 1/2" manifolds. |
Is there any difference between the NG and LP version of the ignition?
Yes, the Pilot Assembly on the Platinum is gas specific. |
Is this a dual pilot system?
No, the Platinum Ignition is a single pilot system. |
Will this be offered with pilot tube extensions?
Yes. The Platinum comes with a two-foot pilot tube. The Pilot can be extended up to an additional 10 feet. We offer pilot tubing in one-foot increments. |
What is the purpose of the led indicator light?
The LED Indictator light is for troubleshooting and diagnostic purposes and will pause between blinks to allow you to diagnose the issue being encountered. |
What is the voltage range of the platinum?
The Platinum operates at 24 volts. The transformer is wired for 120 volts. The transformer can be used with 240 or 480 volt outlets. This will require appropriate pig tail modifi cations to be made by the electrician on site. |
Does the platinum use a standing pilot?
Yes, the Platinum uses a standing pilot. |
Mercury Ignition:
What are the dimensions of the mercury faceplate?
8" W x 4" H |
What protection from water does the mercury offer?
The pilot hood is expertly designed to provide enhanced protection by directing water away from the pilot components. When the WATERSTOP® fitting is incorporated on the burner, there is unparalleled protection for the system from water and debris. |
Can the mercury be installed in the field?
The Mercury can easily be installed on-site, to a new or existing burner system. Our comprehensive manual provides detailed installation instructions. |
Does the mercury require a key valve?
The Mercury uses a manual controlled gas valve that uses a control knob for turning on, lighting, controlling the flame height, and turning the system off. The control knob is used rather than a key and key valve. A key valve can be added for a redundant shut-off but is not required. |
What is the mercury's warranty?
The ignition is backed by a 3 year warranty on residential installations and a 1 year warranty on commercial installations. |
