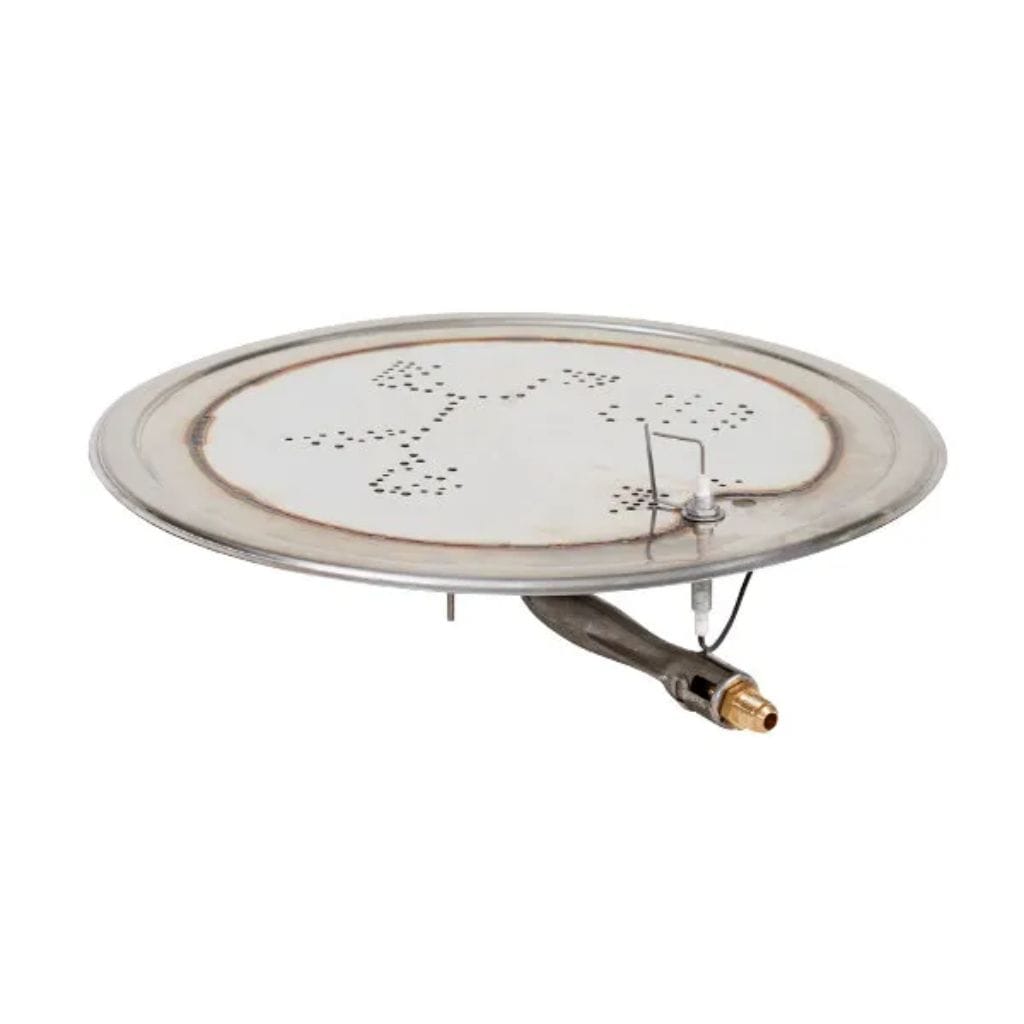

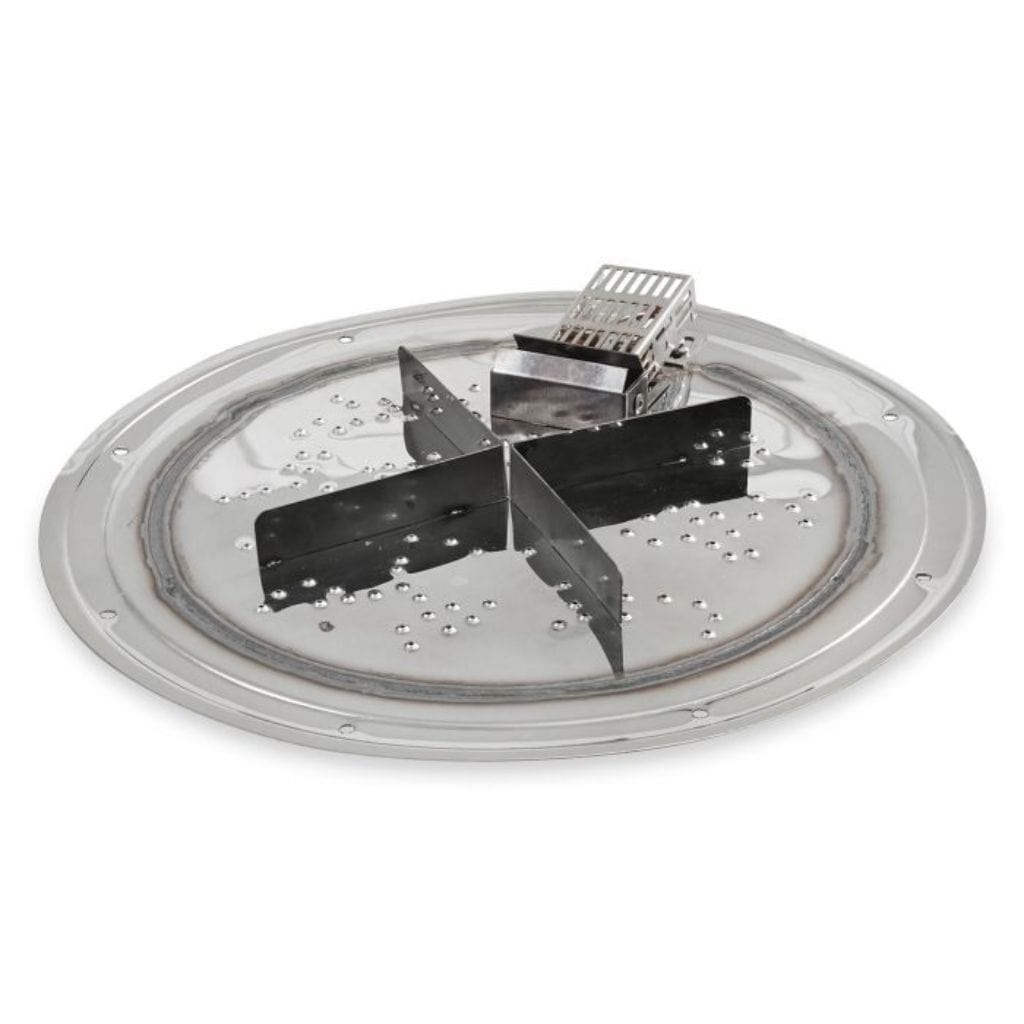

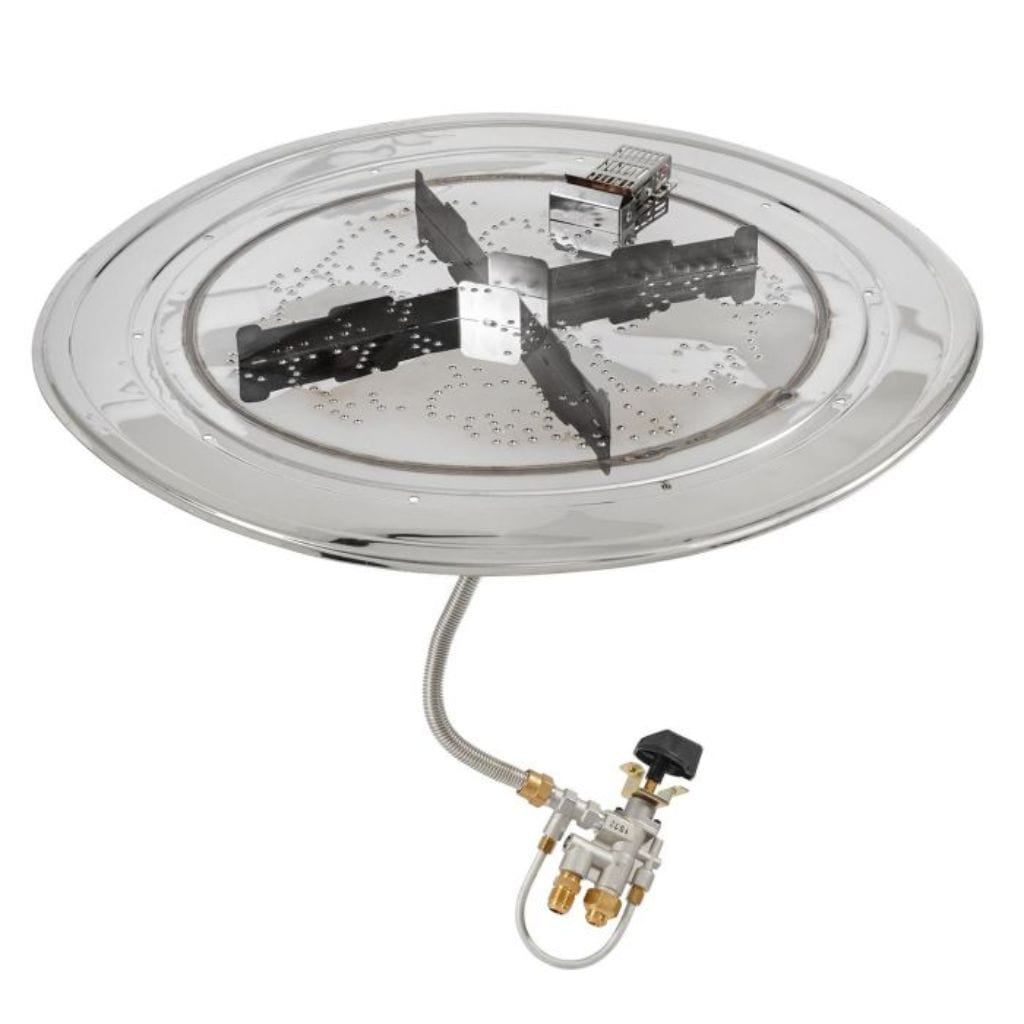

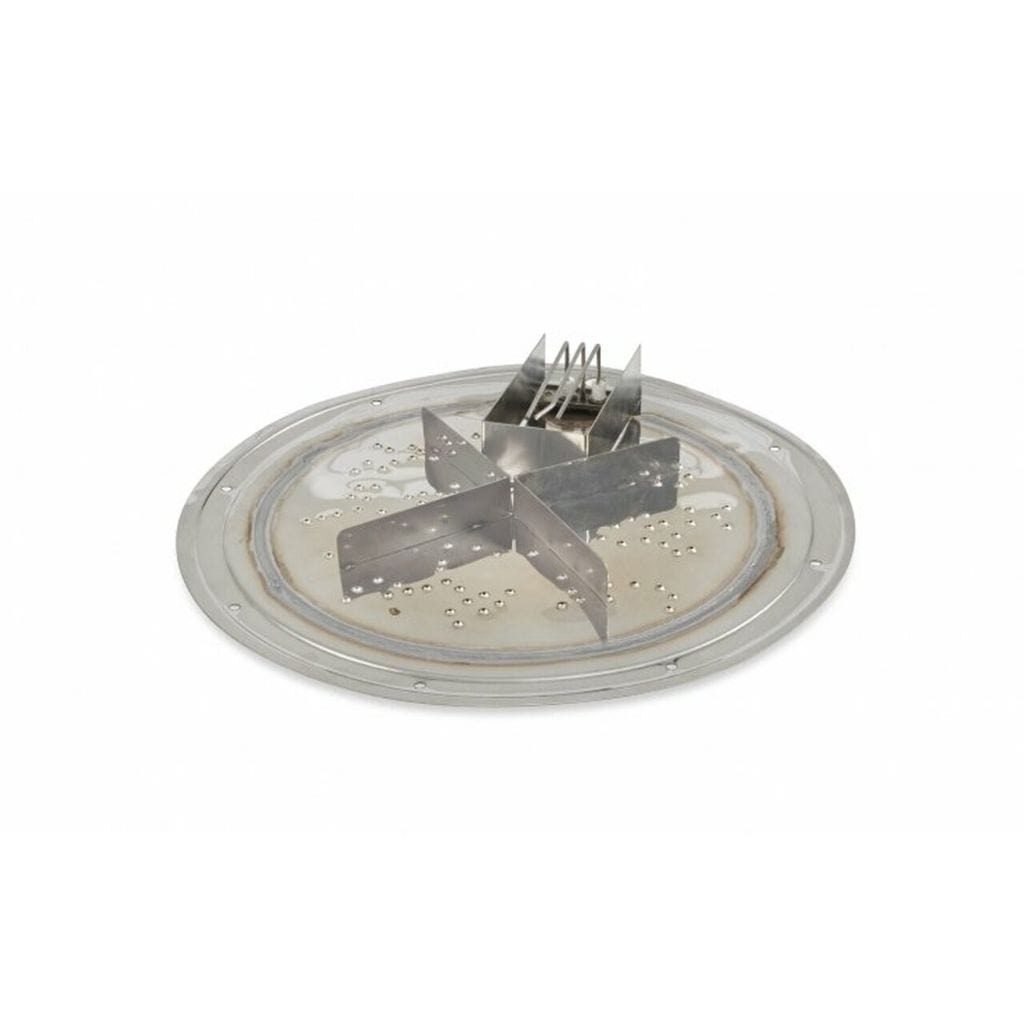

The Outdoor GreatRoom Company Round Stainless Steel Crystal Fire Gas Burner Insert

Descriptions:

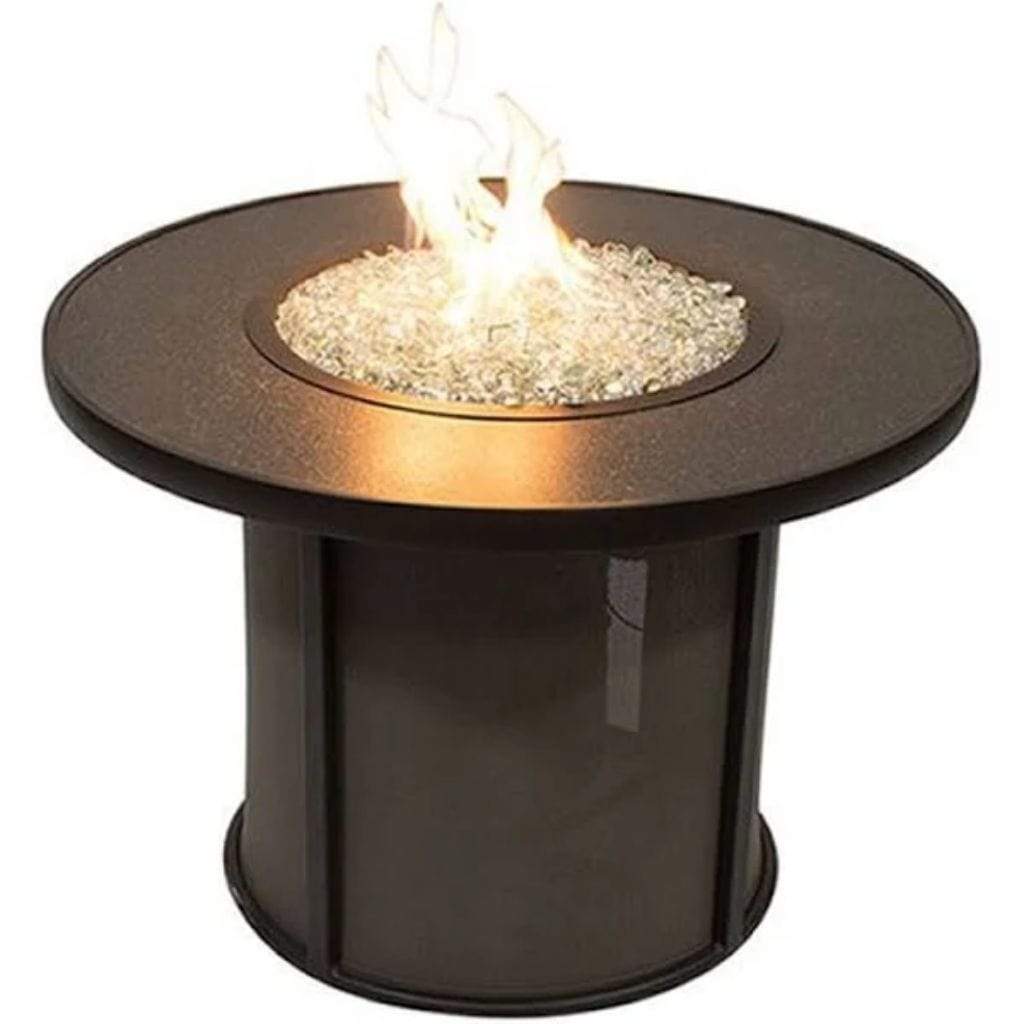

The Round Stainless Steel Crystal Fire Burner Insert is an easy-to-install solution for your exterior design project. A no-flange edge ensures the focus is on the gorgeous dancing flames. Pair with a burner plate or use alone in your DIY fire pit design to complement your landscaping or hardscaping. Made from commercial-grade #304 stainless steel for lasting strength and reliability. UL Listed for safety and quality.

 Features:

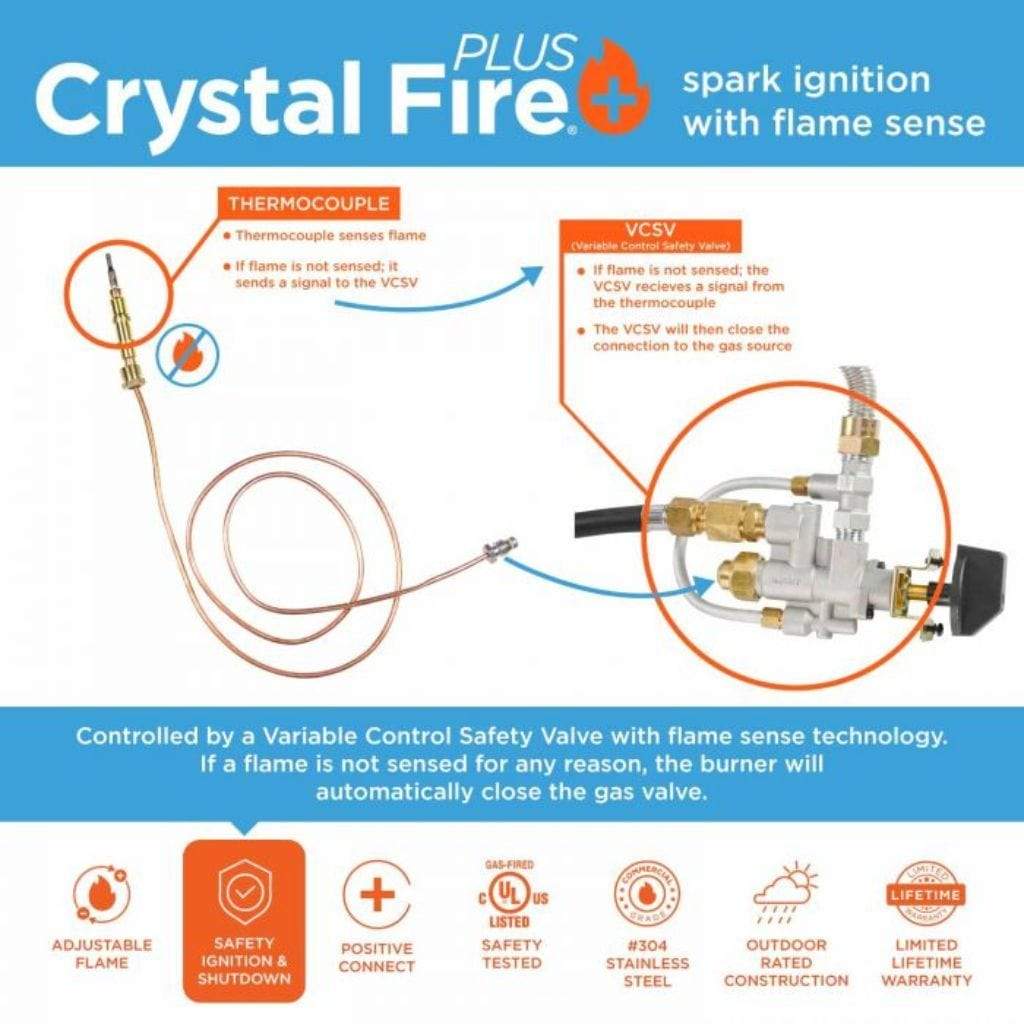

• Adjustable gas valve for flame height

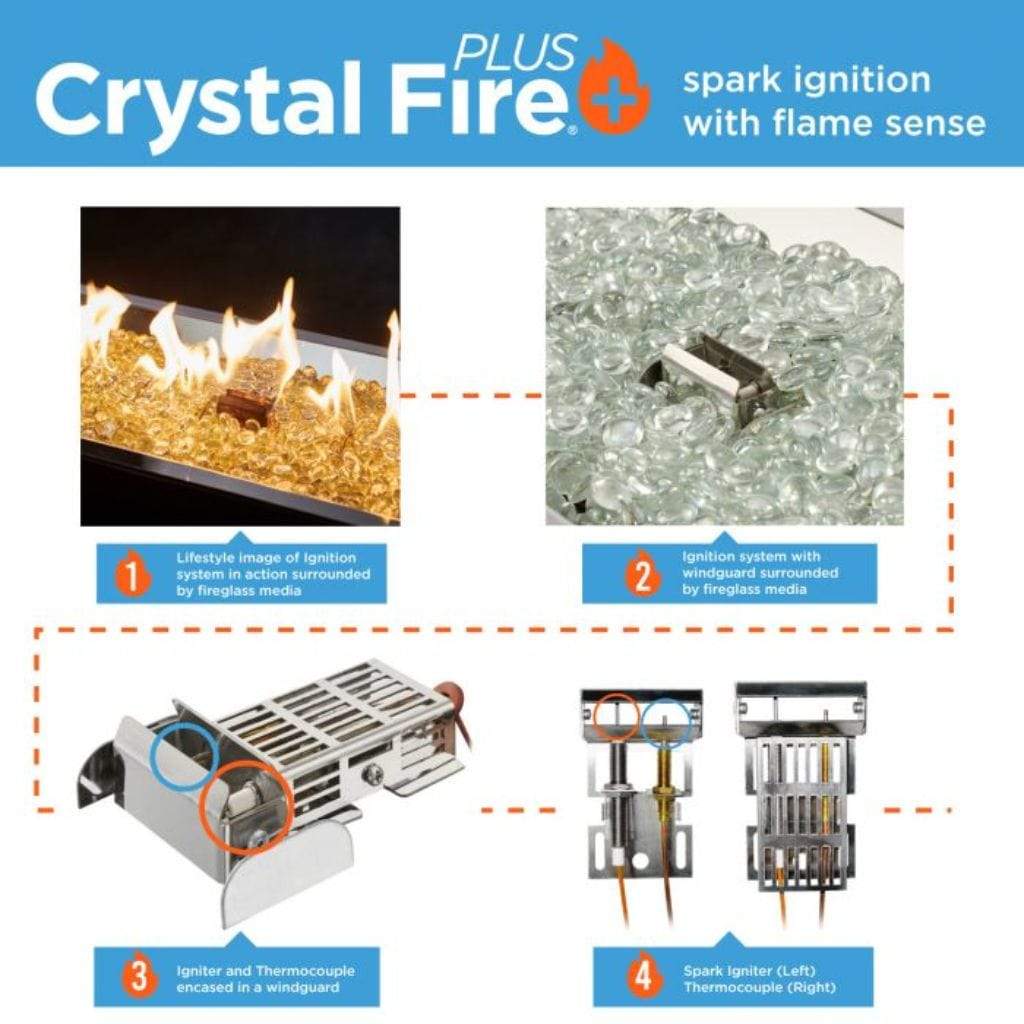

• Choose from: Manual Ignition with Battery-Operated Sparker, or Direct Spark Automatic Ignition
• The product is set up for liquid propane but can be converted for natural gas
• UL Listed
• Includes: LP hose and regulator, metal flex hose, ball valve, push button sparker system, natural gas orifice, Clear Tempered Fire Glass Gems
• 55,000 BTU's/hour
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm. For more information, visit Proposition 65 Warnings.

*Please Note:

• Optional Remote with Direct Spark Automatic Ignition sold separately
• Control panel with gas valve sold separately

Specifications:

16" Round Stainless Steel Gas Burner Insert Weight:     5 lbs Diameter: 15.88" Height:     3.5" 10 lb media glass suggested  (sold separately ) BTUs (LP): 55,000 CAD PDF: Download
28" Round Stainless Steel Gas Burner Insert Weight:      18.5 lbs Diameter:   28" Height:       4.18" 25 lb media glass suggested  (sold separately ) BTUs (LP):  105,000 BTUs (NG): 106,000



Manuals:

Crystal Fire® Plus Burner - Quick Start Guide	Download
Crystal Fire® Plus Burner Manual	Download
Direct Spark Ignition Manual	Download

 Dimensions:



Options and Accessories:



Direct Spark  Ignition Natural Gas Direct Spark Ignition Liquid Propane Direct Spark Ignition 140K BTU Natural Gas/ Liquid Propane Automatic Valve
Remote Control for Crystal Fire Direct Spark Ignition System Cannot operate with Timer Control Panels The average range of 25-30 feet
Crushed Tempered Fire Glass 2 Colors: Black and Copper 10 lb needed for 16" gas burner insert 15 lb needed for 28" gas burner insert Tempered Glass Great Accessory for any Fire pit table or Fireplace
Large Tempered Fire Glass Diamonds  2 Colors: Black and Copper 10 lb needed for 16" gas burner insert 25 lb needed for 28" gas burner insert Tempered fire glass is safe for your gas fire pit or fireplace Mix and match colors and styles to create your own unique look
Black Lava Rock  1 bag Black Lava Rock .5 cubic foot bag or approximately 20 lbs
Tumbled Lava Rock  12 lb needed for 16" gas burner insert 24 lb needed for 28" gas burner insert Rocks vary in size from .75"-1.5" Tumbled Lava Rock may appear darker when you first open the package. After it is burned and the extra moisture is released they will turn more grey.
