SKU:BI719

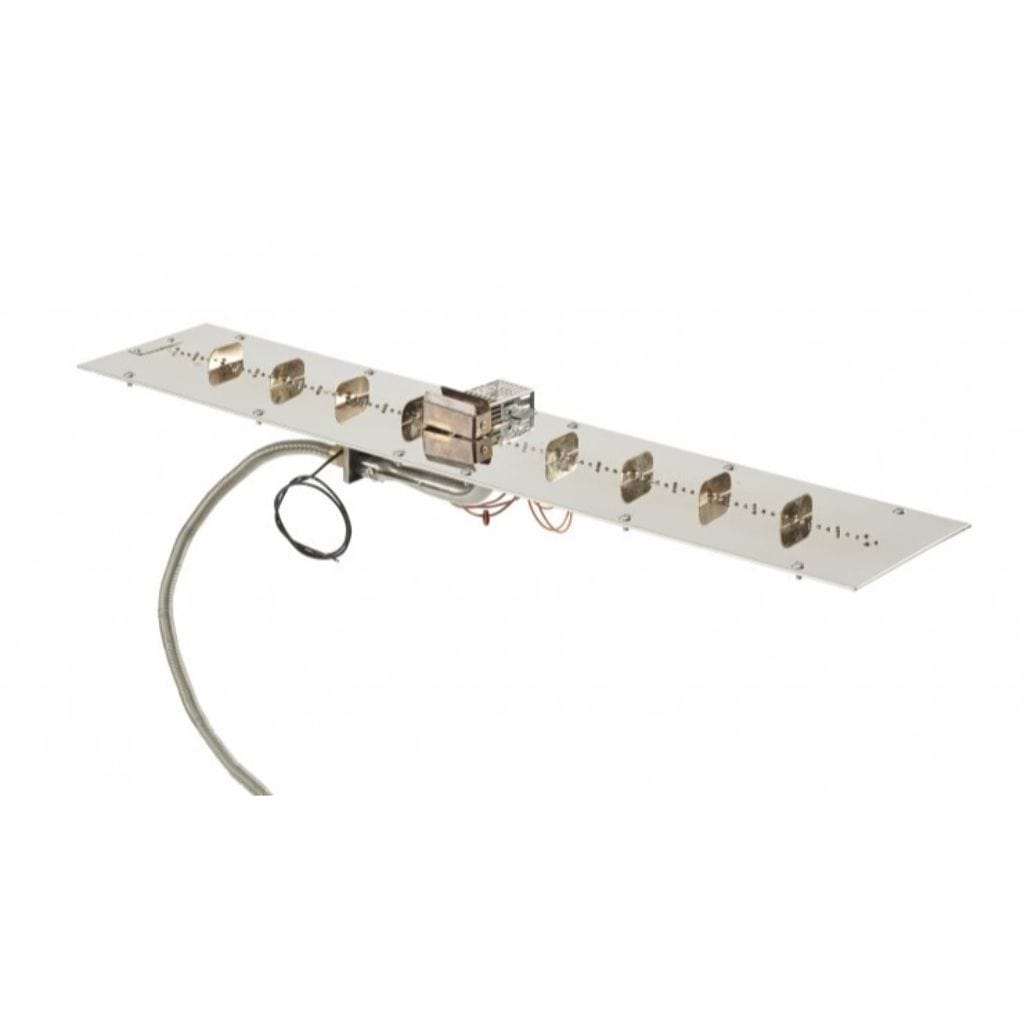

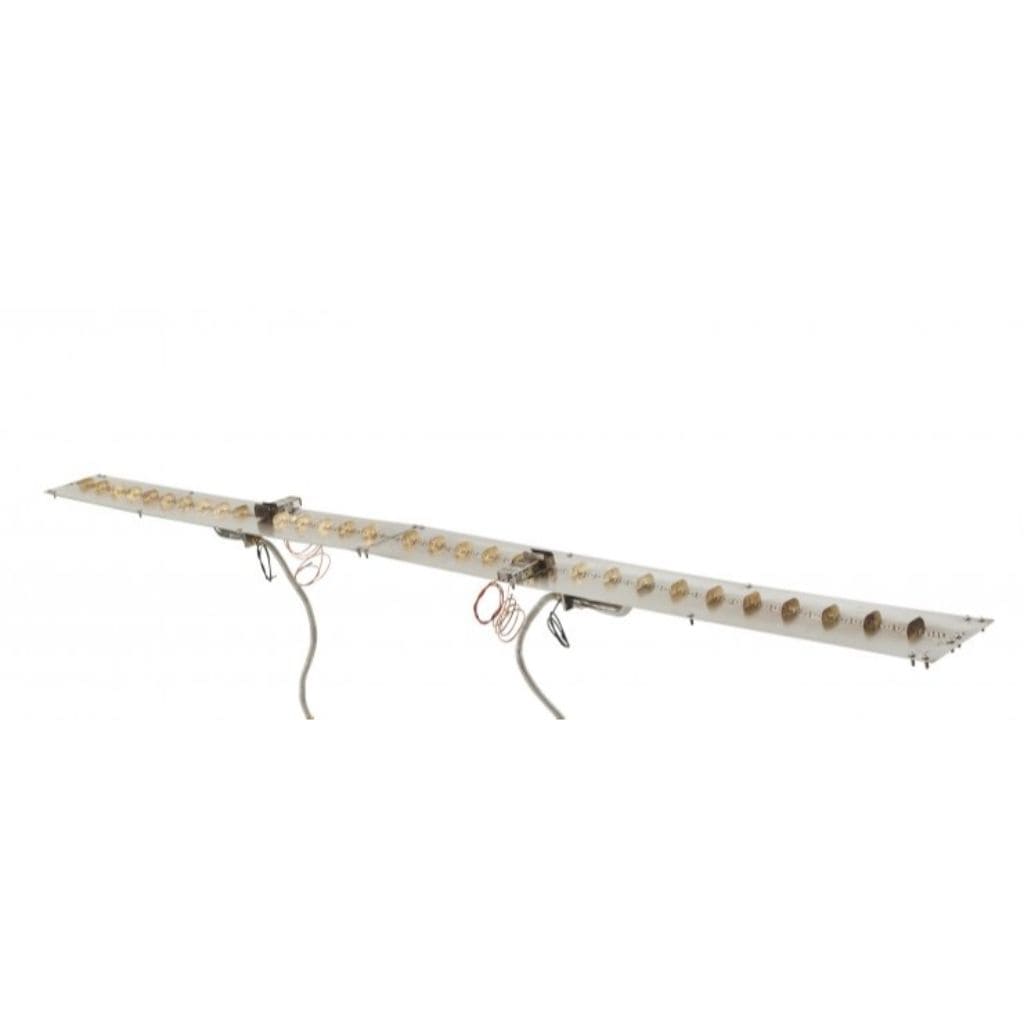

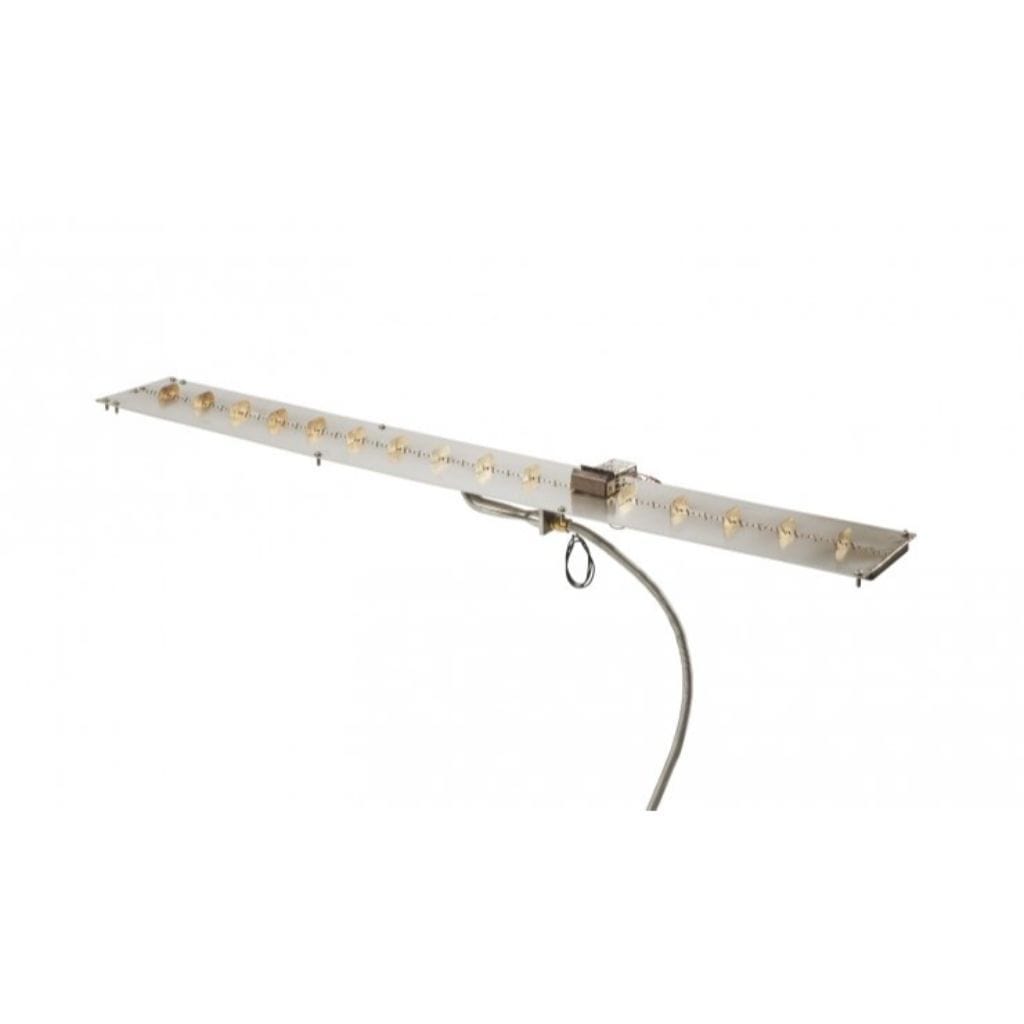

The Outdoor GreatRoom Company Linear Stainless Steel Crystal Fire Plus Gas Burner Insert

The Outdoor GreatRoom Company Linear Stainless Steel Crystal Fire Plus Gas Burner Insert

Regular price $639.00
Regular price $639.00 Sale price $639.00
Sale Sold out
Shipping calculated at checkout.
Size
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Descriptions:

Linear Crystal Fire Plus Burner Insert is an easy-to-install solution for your exterior design project. A no-flange edge ensures the focus is on the gorgeous dancing flames. Pair with a burner plate or use alone in your DIY fire pit design to complement your landscaping or hardscaping. Made from commercial-grade #304 stainless steel for lasting strength and reliability. UL Listed for safety and quality. Made in the USA.

Features:

  • Commercial-grade #304 stainless steel

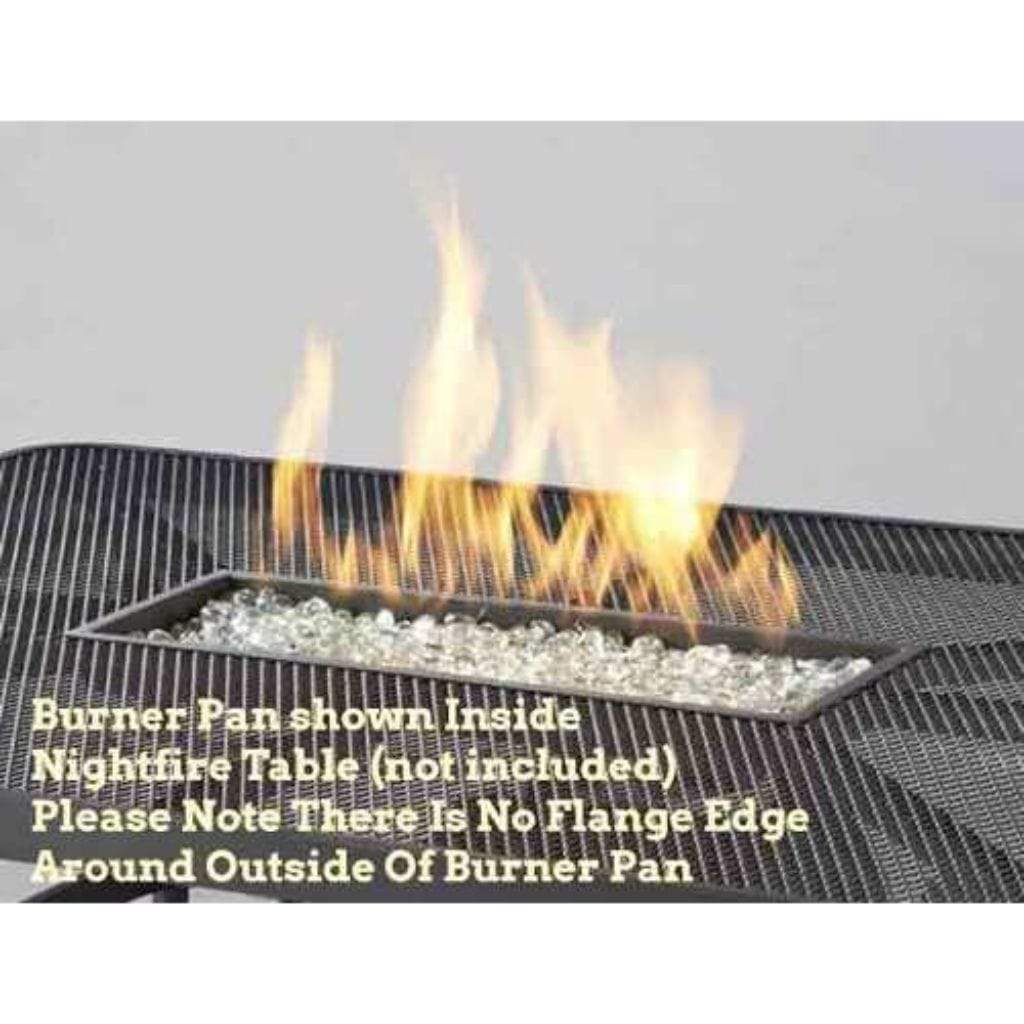

  • No flange edge around outside of burner pan
  • Fully adjustable flame height
  • Safety ignition and shutdown – will shut off the connection to gas source is the flame is extinguished for any reason
  • Provides “Positive Connect” – minimal gas connections and quick installation time as most connections made in a factory

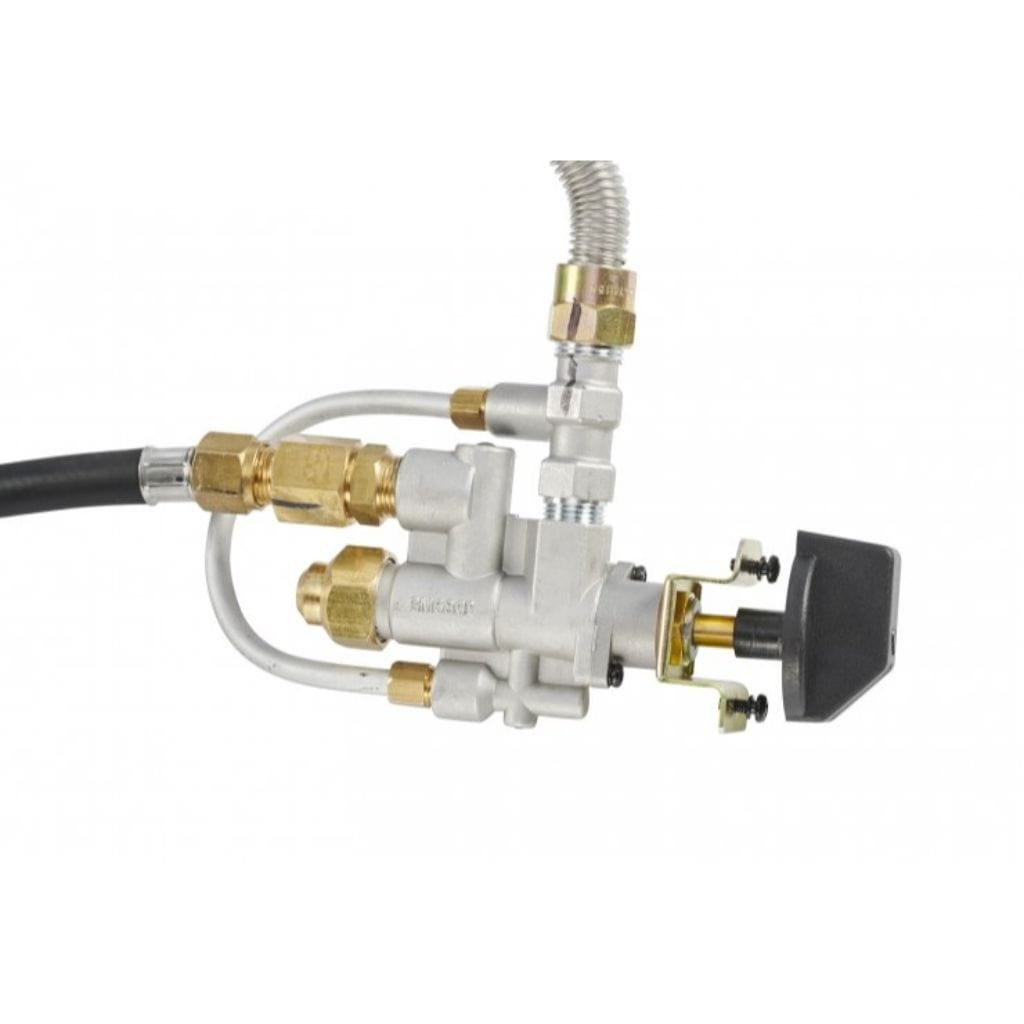

  • Choose from: Variable Control Safety Valve or Direct Spark Automatic Ignition (please specify LP or NG)
  • Comes set up for natural gas, but can be converted to liquid propane with a conversion kit - not for use with 20 lb. LP tank
  • UL and ULC Listed to ANSI Z21.97-2017 in compliance for 2020
  • Made in the USA
  • Includes: Variable Control Safety Valve, LP hose, and regulator, metal flex hose, emergency stop button (Direct Spark Ignition system only), Clear Tempered Fire Glass Gems: (10 lbs) for 7" x 19", (15 lbs) for 7" x 37", (20 lbs) for 7" x 57", (25 lbs) for 7" x 66" and 7" x 78", (30 lbs) for 7" x 90", (35 lbs) for 7" x 102", (40 lbs) for 7" x 114".
  • Allow for 2-3 week production lead time
  • Custom finishes available - contact for ordering
  • WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm. For more information, visit Proposition 65 Warnings.

*Please Note: Optional Direct Spark Ignition safety system remote and other accessories sold separately.

Manuals:

Crystal Fire® Plus Burner - Quick Start Guide Download
Crystal Fire® Plus Burner Manual Download
Direct Spark Ignition Manual Download



Specifications:

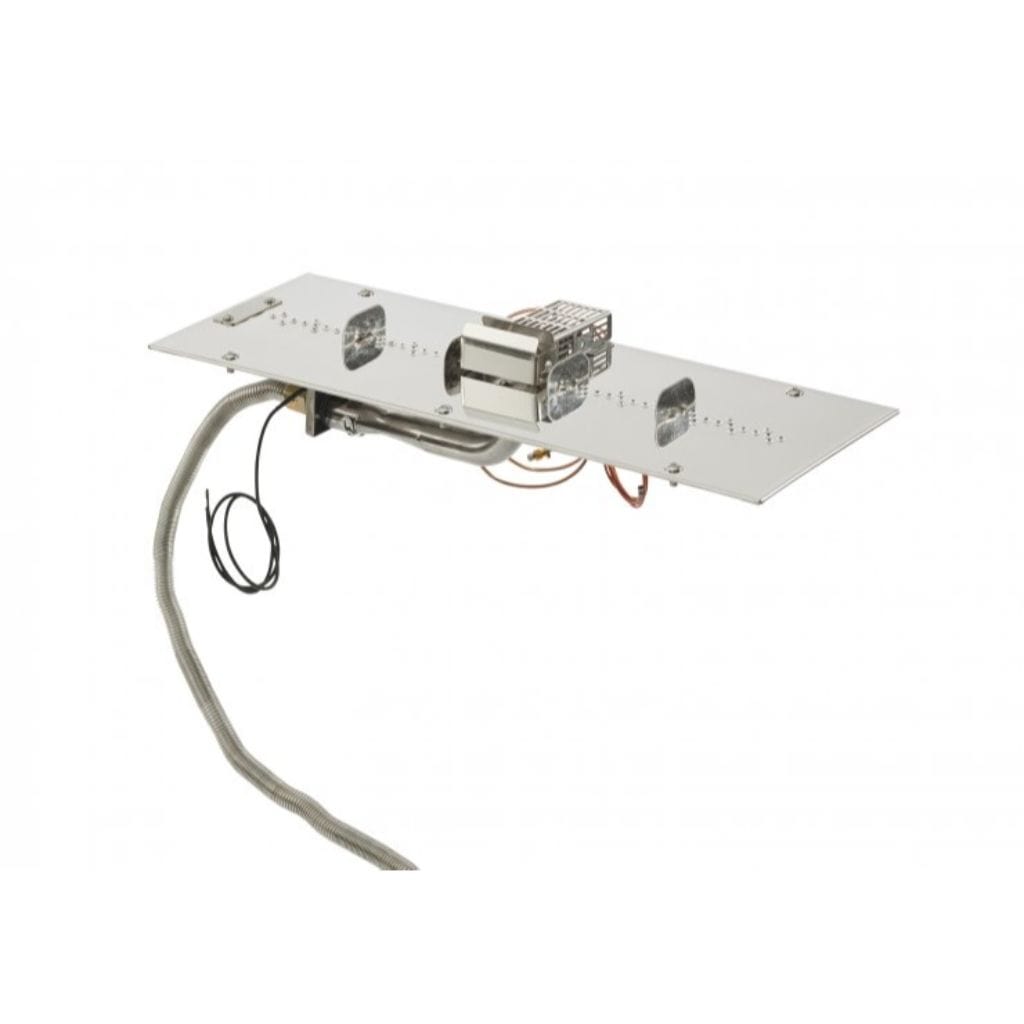

7" x 19" Rectangular Stainless Steel Crystal Fire Plus Gas Burner Insert
  • Weight:  4 lbs
  • Width:   19.5"
  • Depth:   7.25"
  • Height:  2.75"
  • 10 lb media glass  suggested (sold separately)
  • BTU's (LP): 75,000
  • CAD PDF: Download
7" x 37" Linear Stainless Steel Crystal Fire Plus Gas Burner Insert
  • Weight:  6 lbs
  • Width:    36.5"
  • Depth:    7.25"
  • Height:   2.75"
  • Glass Media
  • 15 lb media glass suggested (sold separately)
  • BTU's (LP): 100,000
  • CAD PDF: Download
7" x 57" Linear Stainless Steel Crystal Fire Plus Gas Burner Insert
  • Weight:  11.6 lbs
  • Width:    57"
  • Depth:    7.42"
  • Height:   4.15"
  • BTU's:    100,000
  • 20 lb media glass suggested (sold separately)
7" x 66" Linear Stainless Steel Crystal Fire Plus Gas Burner Insert
  • Weight:  14.3 lbs
  • Width:    66"
  • Depth:    7.42"
  • Height:   4.25"
  • BTU's:    125,000
  • 25 lb media glass suggested (sold separately)
7" x 78" Linear Stainless Steel Crystal Fire Plus Gas Burner Insert
  • Weight:  16.5 lbs
  • Width:    78"
  • Depth;    7.42"
  • Height:   4.25"
  • BTU's:    140,000
  • 25 lb media glass suggested (sold separately)
7" x 90" Linear Stainless Steel Crystal Fire Plus Gas Burner Insert
  • Weight:  18.8 lbs
  • Width:    90"
  • Depth:    7.42"
  • Height:   4.25"
  • BTU's:    165,000
  • 30 lb media glass suggested (sold separately)
7" x 102" Linear Stainless Steel Crystal Fire Plus Gas Burner Insert
  • Weight:  21 lbs
  • Width:   102"
  • Depth:   7.42"
  • Height:  4.25"
  • BTU's:   180,000
  • 35 lb media glass suggested (sold separately)
7" x 114" Linear Stainless Steel Crystal Fire Plus Gas Burner Insert
  • Weight:  23.2 lbs
  • Width:   114"
  • Depth:   7.42"
  • Height:  4.25"
  • BTU's:    200,000
  • 40 lb media glass suggested (sold separately)




Options and Accessories:

Direct Spark  Ignition
  • Natural Gas Direct Spark Ignition
  • Liquid Propane Direct Spark Ignition
  • 140K BTU Natural Gas/ Liquid Propane Automatic Valve
Remote Control for Crystal Fire Direct Spark Ignition System
  • Cannot operate with Timer Control Panels
  • The average range of 25-30 feet
Tempered Fire Glass Gems
  • Available in 5 Colors: Aqua Marine, Amber, Clear, Onyx, and Ruby
  • 10 lb needed for 7" x 19" and 7" x 37" burner insert
  • Tempered Glass
  • Great Accessory for any Fire pit table or Fireplace
Black Lava Rock
  • Available in 1 bag and 2 bags
  • Black Lava Rock
  • .5 cubic foot bag or approximately 20 lbs
    Crushed Tempered Fire Glass
    • Available 2 Colors: Black and Copper
    • 15 lb needed for 7" x 37" burner insert
    • 25 lb needed for 7" x 78" burner insert
    • Tempered Fire Glass
    • Great Accessory for any Fire pit table or Fireplace
      Large Tempered Fire Glass Diamonds

      Available in 3 colors: Black, Copper, and Clear

      • 10 lb needed for 7" x 19" insert burner
      • 15 lb needed for 7" x 37" insert burner
      • 20 lb needed for 7" x 57" insert burner
      • 25 needed for 7" x 66" insert burner
      • 30 lb needed for 7" x 90" insert burner
      • 40 lb needed for 7" x 114" insert burner
      • Tempered Fire Glass
      • Great Accessory for any Fire pit table or Fireplace
        Tumbled Lava Rock
        • 10 lb needed for 7" x 19" insert burner
        • 15 lb needed for 7" x 37" insert burner
        • 20 lb needed for 7" x 57" insert burner
        • 25 lb needed for 7" x 66" and 7" x 78" insert burner
        • 30 lb needed for 7" x 90" insert burner
        • 35 lb needed for 7" x 102" insert burner
        • 40 lb needed for 7" x 114" insert burner
        • Rocks vary in size from .75"-1.5"
