SunStar SPS Series Standard/Tough Guy Infrared Straight Tube Single Stage Heater - 125,000 BTU

Whether you need to heat your warehouse, garage, or other hard-to-heat spaces, the SunStar SPS/U Series infrared heaters provide both the field efficiency of radiant heat and the installation flexibility you need.

SunStar infrared tube heaters are ideal for complete building heat or spot heating needs. The best applications are those where doors open and close frequently and in buildings where ceiling heights are above ten feet. The flexible SunStar infrared heating system can be designed to meet any commercial or industrial heating needs.

The minimum mounting heights are shown for human comfort and uniform energy distribution for complete building applications. Mount heaters as high as possible. CSA certified. This product has 5 year limited warranty on tubes and 1 year limited warranty on unit. This product is made in USA.

TISS™ Tube Integrity Safety Shut-Off System

SunStar’s patent pending innovative safety feature for positive pressure radiant tube heaters is called the “Tube Integrity Safety System” (TISS™).

In the unlikely event of a tube failure, TISS™ has been designed to automatically shut off the heater. The revolutionary TISS™ uses a simple principle to place an electrically insulated aluminum wire in tension above the reflector. Low voltage is then continuously passed along the wire in line with the gas control circuit. If heat levels increase due to heat exchanger failure, the wire melts and the safety circuit is broken, breaking the 24 volt circuit and shutting down the heater.

Note: Since straight tubes are always hotter at the burner end than at the exhaust end, always observe the minimum recommended mounting heights shown on the specification sheet for greatest human comfort. Use SIU series instead of SIS series for spot heating applications.

Features:

• Heavy duty cast iron burner
• Maintenance-free operation
• Enclosed combustion chamber
• 100% gas shut-off safety control
• 5 year limited warranty on all tubes
• 30 second pre-purge before ignition
• Highly efficient aluminum reflectors
• Heavy duty permanently lubricated ball bearing
• Individual reflectors can rotate up to 45 degrees
• 30 second post-purge after thermostat is satisfied
• Suitable for horizontal or angle mounting up to 45 degrees

Push Through System

• Products of combustion are pushed through the combustion chamber
• No draft hoods, totally enclosed combustion chamber
• Blower motor totally enclosed in the burner box. Ideal for applications where minimal noise (less than 60 dB) is desired.
• Heavy duty permanently lubricated ball bearing, totally enclosed motor for maintenance-free operation
• 30 second pre-purge before ignition and 30 second post-purge after thermostat is satisfied
• Diaphragm air switch for proof of venting before gas flow and ignition

Gas Shut-Off Safety Control

• Burner inspection sight glass
• Step-opening redundant combination gas valve for quite ignition and added safety
• Inside or outside air for combustion
• Up to 25 ft. outside combustion air capability
• Standard outside combustion air intake
• Diagnostic Monitoring Light System

Radiant Emitter Tube System

• 4” O.D. heat treated aluminized steel combustion chamber (10’ length)
• Standard highly emissive radiant tubes (10’ lengths)
• Optional aluminized steel radiant tubes (Tough Guy Option)
• 5 year limited warranty on all tubes
• Suitable for horizontal or angle mounting up to 45°
• Up to 25 feet sidewall vent capability

Burner System

• Heavy duty cast iron burner
• Reliable direct spark ignition systems and 100% gas shut-off safety control
• Burner inspection sight glass
• Step-opening redundant combination gas valve for quiet ignition and added safety
• Inside or outside air for combustion
• Up to 25 ft. outside combustion air capability
• Standard outside combustion air intake
• Diagnostic Monitoring Light System

Reflector System

• Highly efficient aluminum reflectors
• Individual reflectors can be rotated up to 45° to direct heat where needed
• Optional end, corner, U-bend and side extension reflectors

Applications:

• Manufacturing Plants
• Warehouses

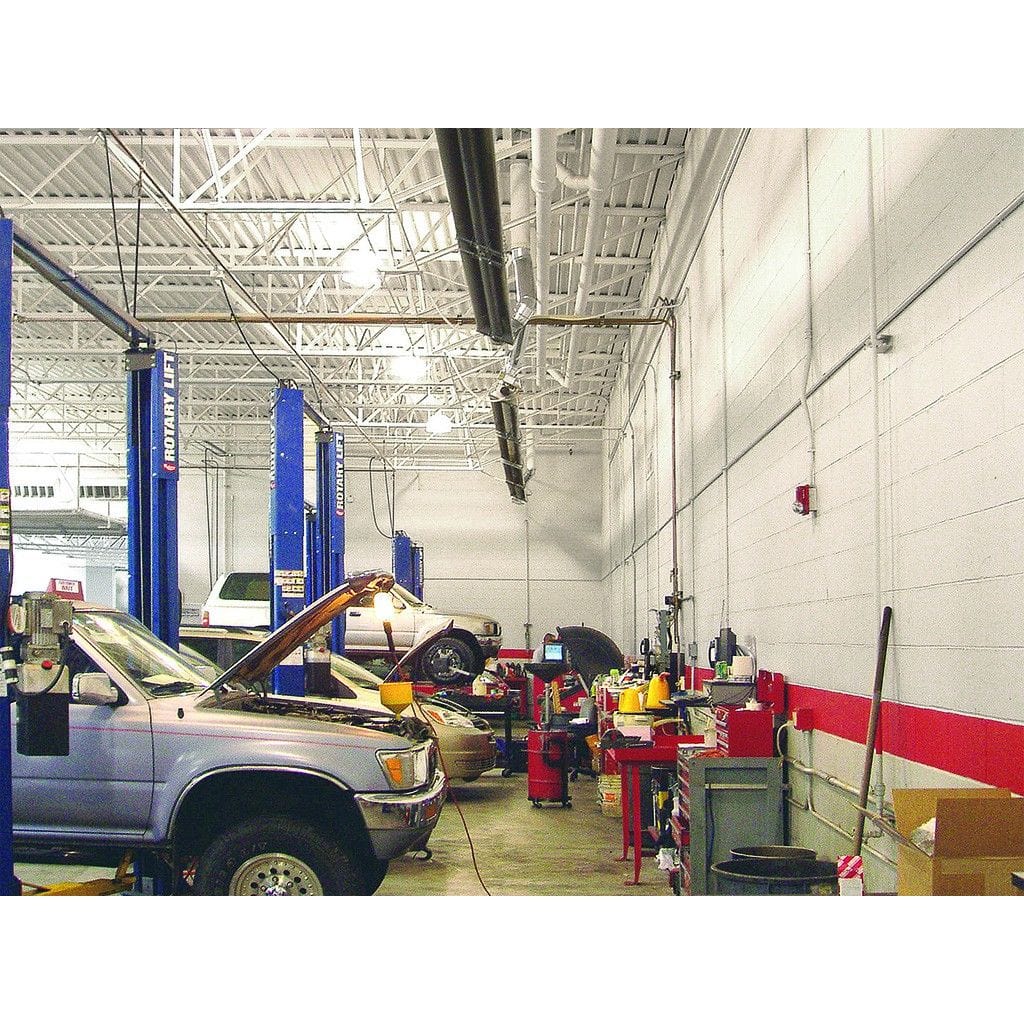

• Auto Dealerships
• Aircraft Hangars
• Loading Docks
• Weld Shops
• Car Washes
• Fire Stations
• Greenhouses
• Gymnasiums
• Garages
• Machine Shops
• Tennis Courts
• Swimming Pools
• Maintenance Shops
• Farm Buildings
• Truck Service Areas
• Auto Body Shops

SPS Clearances to Combustibles:

*Note: "When used indirect vented, minimum clearance for Ceiling must be 18 inches".

*Also Note: "Maximum clearance below reduces by 50% once you are 25 ft. downstream from the control box."

Please check Product Manual for more Information...

Dimensions:

Bottom View
End View
