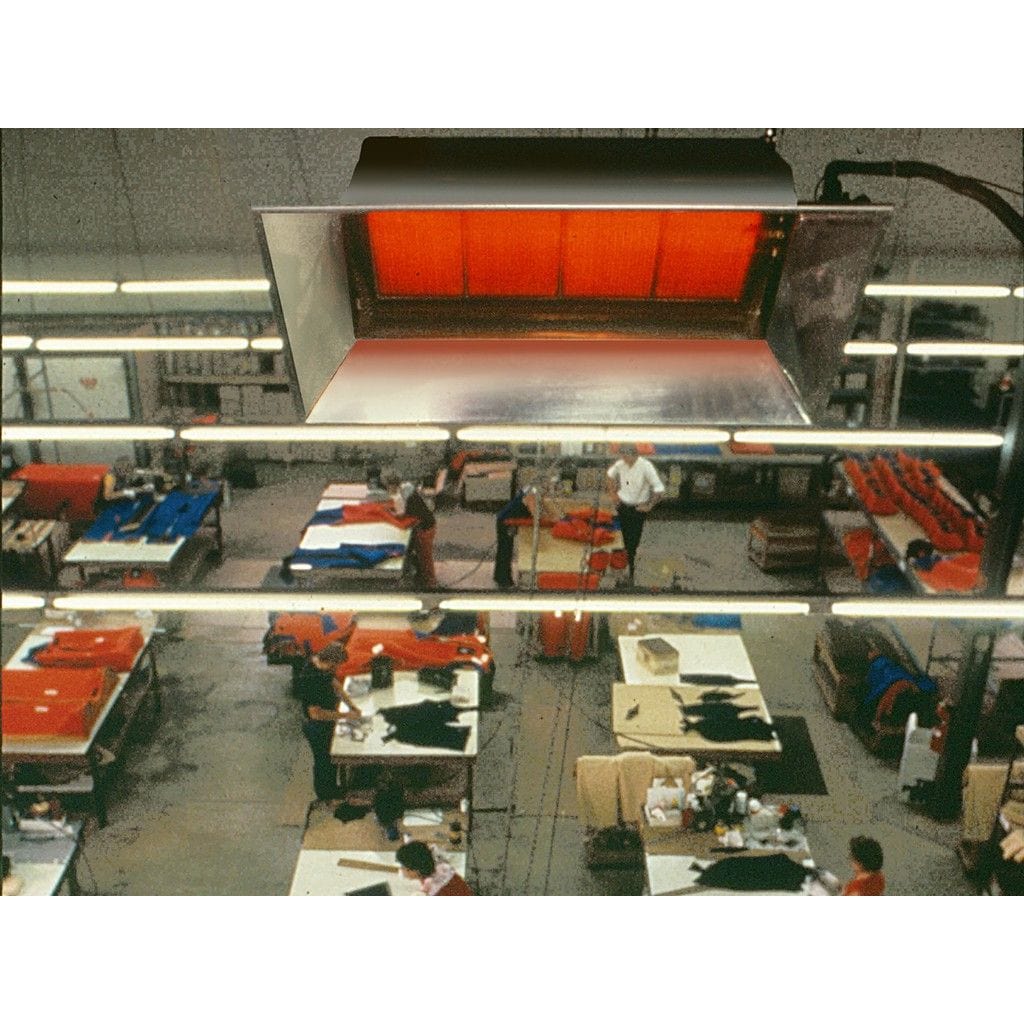

SunStar 26" StarGlo SG Series Vent Free Ceramic Infrared Gas Heater - 155,000 BTU
SunStar 26" StarGlo SG Series Vent Free Ceramic Infrared Gas Heater - 155,000 BTU
Radiant Safety Screen
-- Please Select --
SunStar Radiant Safety Screen for SG13 SG14 and SG15 Infrared Ceramic Heaters
No, Thank You
Gas Supplies Accessories
-- Please Select --
SunStar 36" Flexible Gas Connector For Ceramic & Tube Heaters
SunStar Gas Line Pressure Regulator Up To 2 PSIG for Infrared Heaters
SunStar Gas Line Pressure Regulator Above 2 PSIG for Infrared Heaters
No, Thank You
12" Chain Kit
-- Please Select --
SunStar 12' Chain Kit for All Ceramic Heaters
No, Thank You
Manual Cutoff Valve
-- Please Select --
SunStar Manual Cutoff Valve For Infrared Tube Heaters
No, Thank You
Parabolic Reflector Extension
-- Please Select --
SunStar Parabolic Reflector Extension for SG13 SG14 and SG15 Infrared Ceramic Heaters
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Ceramic Infrared Heating is the answer for spot or area heating and for total building heating needs. It is also ideal for the replacement of existing ceramic heaters.
SunStar Ceramic Heaters heat like the sun by transferring radiant heat energy directly into the area to be heated and creating a warm comfort zone at the floor level. This extremely efficient method of heating can result in fuel savings of between 30% and 50% when compared to forced air convection heating.
Ideal for spot heating large areas. Dimpled tile assembly offers increased radiant efficiency. Made with corrosion resistant aluminized steel. Aluminum reflectors maximize radiant output. Millivolt Standing Pilot Heaters do not require electrical power and operate with 100% gas shut-off safety control. Allows horizontal or angle mounting. Includes protective radiant screen. CSA certified.
Features:
- Dimpled tile assembly design for increased radiant efficiency
- Design certified for angle mounting up to 30 degrees
- Equipped with 100% gas shut-off safety control
- Constructed of aluminized steel for corrosion resistance
- Aluminum reflectors designed to maximize radiant output
- Does not require external electrical power to operate
- Certified for horizontal or angle mounting up to 30 degrees
- Great for warehouses, maintenance shops, loading docks, and more
- Includes 120/24 V Transformer. 1/2 NPT Female Gas Connection.
- Optional protective radiant screen
- Compact size for UPS shipping
- CSA design certified
Applications:
- Manufacturing Plants
- Warehouses
- Auto Dealerships
- Aircraft Hangars
- Loading Docks
- Fire Stations
- Commercial Garages
- Machine Shops
- Tennis Courts
- Maintenance Shops
- Farm Buildings
- Truck Service Areas
Specifications:
| Fuel Type | Natural Gas |
|---|---|
| Material | Aluminized Steel/Aluminum |
| Color | Stainless Steel |
| Dimensions |
|
| Weight | 58.0 lbs |
| BTU Ratings (BTU/hr) | 155,000 (NG) |
| Ignition Type | Direct Spark Ignition |
| Volts | 120 V |
| Supply Pressure |
|
| Burner Pressure |
|
| Warranty |
|
SG15 Clearances to Combustibles (Mounted Horizontally):
| Sides |
Ceiling | Below |
w/Reflector Extension |
|---|---|---|---|
| 49" | 65" | 137" | 191" |
SG15 Clearances to Combustibles (Mounted 30° Angle):
| Below | w/Reflector Extension | Front | w/Reflector Extension | Rear |
|---|---|---|---|---|
| 137" | 191" | 65" | 91" | 49" |
*Important Note: "This heater is not approved for any residential installation, including home, residential garage or recreational use(mobile homes, RV’s, campers, etc.). For residential garage applications SunStar recommends SIR Series vented tube heaters".
Please check Product Manual for more Information...
Dimensions:
| Side View |
|
| End View |  |
Downloads:
CA Residents: See Prop 65 WARNING.
Options & Accessories
Click to see Gas Supply Accessories
 |
Gas Line Pressure Regulator Up To 2 PSIG This Regulator is for use with all Tube Heaters between 1/2 and 2 psig. The maximum supply pressure to the infrared heaters is 14" WC or 1/2 psig. If your supply pressure is between 1/2 psig and 2 psig then you will need this second stage regulator. The regulator is equipped with vent limiting device and complies with ANSI standards. The regulator does not need any venting. This product has limited warranty of 1 year. This product is made in USA. |
 |
Gas Line Pressure Regulator Above 2 PSIG This Regulator is for use with all Tube Heaters between 2 and 10 psig. The maximum supply pressure to the infrared heaters is 14 " WC or 1/2 psig. If your supply pressure is above 2 psig and less than 10 psig then you will need this second stage regulator. The regulator requires venting outside the building to comply with local codes. This product has limited warranty of 1 year. This product is made in USA. |
 |
36" Flexible Gas Connector This 36" flexible gas connector is For use with all ceramic heaters. Features long-lasting stainless steel construction. This product has limited warranty of 1 year. This product is made in USA. |
Click to see Chain Kit
 |
This chain kit is used to hang heaters from the ceiling. Includes 12' of chain and 8 S-hooks. For use with all ceramic heaters.
|
Click to see Manual Cutoff Valve
 |
This Manual Cutoff Valve is for use with All Infrared Tube Heaters. Ball valve with 1/2" NPT female thread.
|
Click to see Parabolic Reflector Extension
 |
This parabolic reflector extension helps to focus the radiant energy to a smaller area by changing the reflector angle from approximately 45 degrees to 60 degrees. For use with SG13, SG14 and SG15 Series 130,000, 140,000 and 155,000 BTU Ceramic Heaters. This product has limited warranty of 1 year. This product is made in USA.
|
Click to see Radiant Safety Screen
 |
SunStar protective radiant safety screen acts as a safety net in the unlikely event that the ceramic tile assembly is broken by an outside Force. In addition it increases the overall emissivity of the radiating surface with a blackbody radiation effect. This product has limited warranty of 1 year. This product is made in USA.
|
