SKU:SIR3515N7

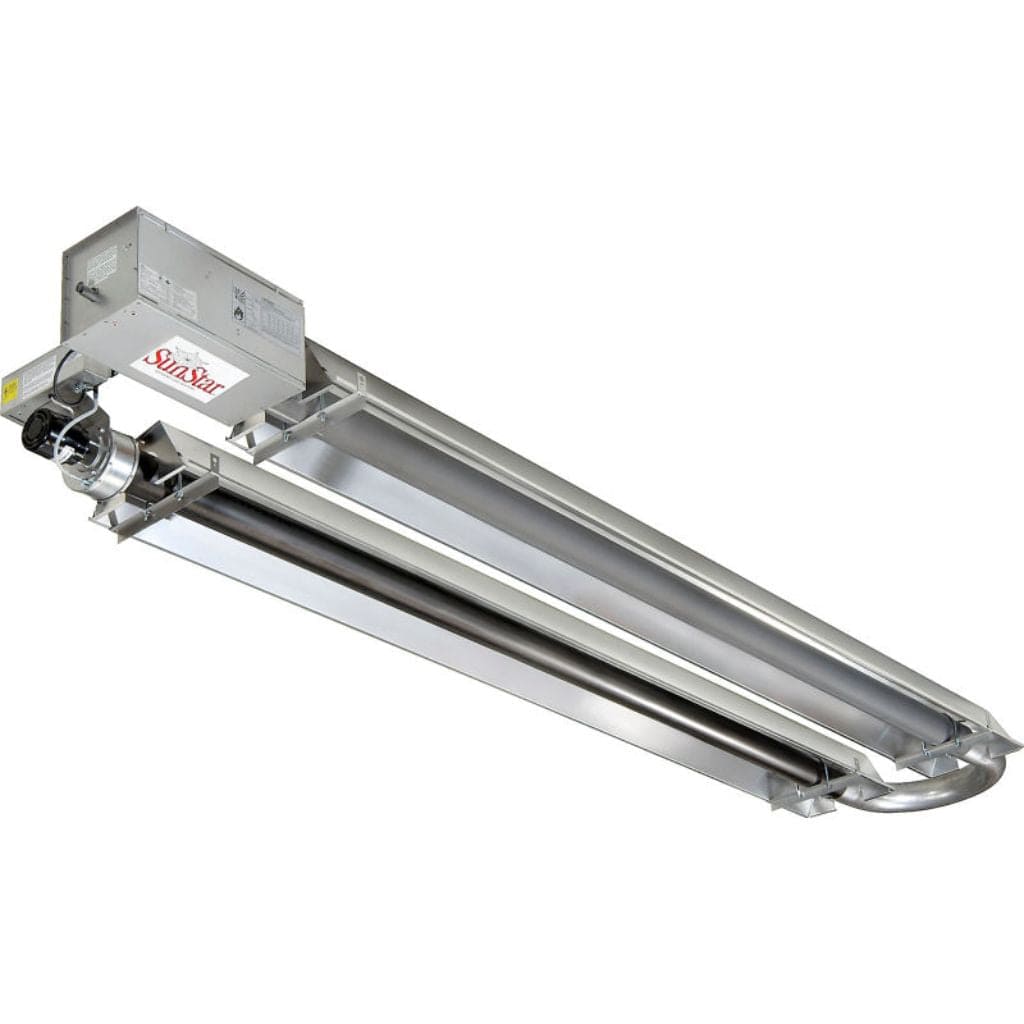

SunStar 15' SIR Series Tough Guy Infrared Straight U Tube Two Stage Heater
SunStar 15' SIR Series Tough Guy Infrared Straight U Tube Two Stage Heater
6" Vent Cap For Sidewall Or Roof Vent
-- Please Select --
SunStar 6" Vent Cap For Sidewall Or Roof Venting
No, Thank You
4" Combustion Air Termination Cap
-- Please Select --
SunStar 4" Combustion Air Termination Cap For Infrared Tube Heaters
No, Thank You
Exhaust Hood
-- Please Select --
SunStar Exhaust Hood for Straight & U Shaped Infrared Heaters
No, Thank You
Gas Supply Accessories
-- Please Select --
SunStar 36" Flexible Gas Connector For Ceramic & Tube Heaters
SunStar Gas Line Pressure Regulator Up To 2 PSIG for Infrared Heaters
SunStar Gas Line Pressure Regulator Above 2 PSIG for Infrared Heaters
No, Thank You
Thermostat Options
-- Please Select --
SunStar Two Stage Thermostat Relay Kit for Infrared Patio Heaters
SunStar Two Stage Economy Thermostat for Infrared Patio Heaters
SunStar Two Stage High Humidity Thermostat
SunStar Two Stage Digital Thermostat for Infrared Patio Heaters
No, Thank You
12" Chain Kit
-- Please Select --
SunStar 12' Chain Kit for All Ceramic Heaters
No, Thank You
8" Deflector Kit
-- Please Select --
SunStar 8" Deflector Kit For Eclipse Compact Infrared Tube Heaters
No, Thank You
60 Minute Auto Shut-Off Timer
-- Please Select --
SunStar 60 Minute Auto Shut-Off Timer
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Whether you need to heat your warehouse, garage, or other hard-to-heat spaces, the SunStar Eclipse infrared heater provides both the fuel efficiency of radiant heat and the installation flexibility you need.
The SunStar Eclipse compact tube heaters offers fuel savings of up to 50% and provides an efficient source of radiant heat for a wide variety of hard to heat spaces, the SunStar 35,000/45,000 BTU SIR Series Infrared Tube Heater with a 15' long tube provides both the fuel efficiency of radiant heat and the installation flexibility you need.
The U-tube configuration provides uniform energy distribution and the emitter tubes are made of heat treated aluminized steel. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety.
Highly efficient aluminum reflectors. Diagnostic monitoring light system. 120V supply required. CSA certified. This product has 5 year limited warranty on tubes and 1 year limited warranty on unit. This product is made in USA.
Features:
- Available in Btu sizes from 35,000 & 45,000
- Compact size – overall length is 9’2″ for ease of installation
- Efficiencies range up to 84.5%
- Models for both natural and propane gas
- Installation as low as 8′ above floor
- CSA Design Certified for Residential & Commercial Installations
- Made in USA
- Includes 36″ stainless steel gas connector.
Vacuum System
- Products of combustion are pulled through the combustion chamber for greater safety.
- Virtually eliminates the possibility of combustion gases leaking into the heated space.
Solid State Ignition System
-
Reliable electronic direct spark ignition system with 100% gas safety
shut-off control and 30-second prepurge. - Safety and efficiency assurance.
U-Tube Design
- Provides uniform emitter tube temperatures and energy distribution on the floor
- Unlike straight tube heaters which are always hotter at the burner end than at the exhaust end.
Applications:
- Residential Garages
- Vestibules
- Entryways
- Greenhouses
- Enclosed Patios
- Solariums
- Workshops
- Swimming Pools
- Farm Buildings
- Clubhouses
- Small Businesses
- Auto Garages
- Warehouses
- Print Shops
- Machine Shops
- Small Manufacturing Facilities
Specifications:
| Fuel Type | Natural Gas / Propane Gas |
|---|---|
| Material | Cast Iron/Aluminum |
| Color | Stainless Steel |
| Dimensions |
110" W x 8" H x 18" D |
| Weight | 70.4 lbs |
| BTU Ratings (BTU/hr) |
|
| Ignition Type | Direct Spark Ignition |
| Volts | 120 AC 60Hz |
| Supply Pressure |
|
| Burner Pressure |
|
| Warranty |
|
SIR Clearances to Combustibles:
| Model | Mounting Angle | Side Front | Side Rear | Ceiling | Below | End |
|---|---|---|---|---|---|---|
| SIR 35 or 45 | 0° | 12" | 12" | 4" | 57" ** | 12" |
| SIR 35 or 45 | 45° | 40" | 4" | 4" | 57" ** | 12" |
Please check Product Manual for more Information...
Dimensions:
| Bottom View |
|
Downloads:
- Download Installation and Owner's Manual
-
Download Specs Sheet
- Download Heat Loss Estimating Chart
-
Download SunStar Tube Heaters Accessories
CA Residents: See Prop 65 WARNING.
Options & Accessories
Click to see 6" Vent Cap For Sidewall Or Roof Vent
 |
This 6" vent cap is used for sidewall venting or through-the-roof venting. It can be used with all infrared tube heaters. This product has a limited warranty of 1 Year. This product is made in USA. |
Click to see 4" Combustion Air Termination Cap
 |
This 4" cap. is used for combustion air or fresh air duct termination. It can be used with all infrared tube heaters. This product has limited warranty of 1 year. This product is made in USA. |
Click to see Exhaust Hood
 |
This Exhaust Hood is for use with all straight and U-Shaped infrared tube heaters. Intended for inside indirect vented use. This product has a limited warranty of 1 Year. This product is made in USA. |
Click to see Gas Supply Accessories
 |
Gas Line Pressure Regulator Up To 2 PSIG This Regulator is for use with all Tube Heaters between 1/2 and 2 psig. The maximum supply pressure to the infrared heaters is 14" WC or 1/2 psig. If your supply pressure is between 1/2 psig and 2 psig then you will need this second stage regulator. The regulator is equipped with vent limiting device and complies with ANSI standards. The regulator does not need any venting. This product has limited warranty of 1 year. This product is made in USA. |
 |
Gas Line Pressure Regulator Above 2 PSIG This Regulator is for use with all Tube Heaters between 2 and 10 psig. The maximum supply pressure to the infrared heaters is 14 " WC or 1/2 psig. If your supply pressure is above 2 psig and less than 10 psig then you will need this second stage regulator. The regulator requires venting outside the building to comply with local codes. This product has limited warranty of 1 year. This product is made in USA. |
 |
36" Flexible Gas Connector This 36" flexible gas connector is For use with all ceramic heaters. Features long-lasting stainless steel construction. This product has limited warranty of 1 year. This product is made in USA. |
Click to see Thermostat Options
 |
Two Stage Economy Thermostat Two Stage Economy Thermostat for indoor applications. 24V, temperature range 50° to 90°F (∓4°F differential). Up to 85 operating humidity range (%RH). Manual changeover |
 |
Two Stage High Humidity Thermostat This Two Stage High Humidity Thermostat is 24V operation for use with all two stage Infrared Tube Heaters. This product has limited warranty of 1 year. This product is made in USA. |
 |
Two Stage Digital Thermostat Two Stage Digital Setback Thermostat for indoor applications. 7 - day programmable digital 24V thermostat, temperature range 40° to 90°F (∓1°F differential). Up to 85 operating humidity range (%RH). Automatic changeover |
 |
Two Stage Thermostat Relay Kit Two Stage Relay Kit for controlling multiple heaters with a single 3 position switch or single 24V Two Stage thermostat. Waterproof ABS Construction. Up to 85 operating humidity range (%RH). |
Click to see 12' Chain Kit
 |
This chain kit is used to hang heaters from the ceiling. Includes 12' of chain and 8 S-hooks. For use with all ceramic heaters.
|
Click to see 8' Deflector Kit
 |
This Deflector Kit diffuses the radiation on the first 10' of the tube heater and reduces the clearance to combustibles below. The deflector is 8' long.
|
Click to see 60 Minute Auto Shut-Off Timer
 |
The 60 minute Auto Shut-off timer is specifically designed for SunStar heaters. it's Safety feature shuts off your heater after an hour.
|
