SKU:LYON-48-NG

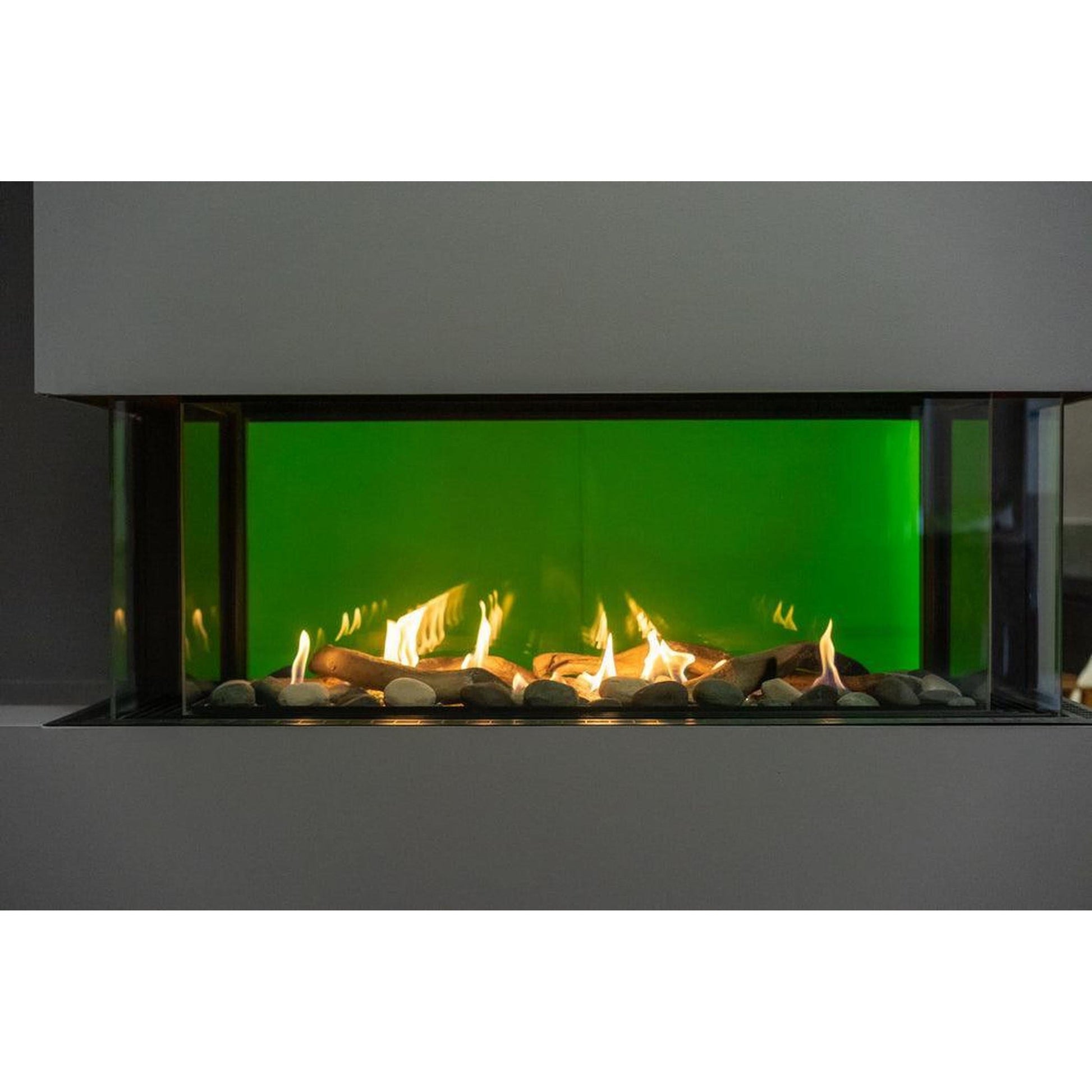

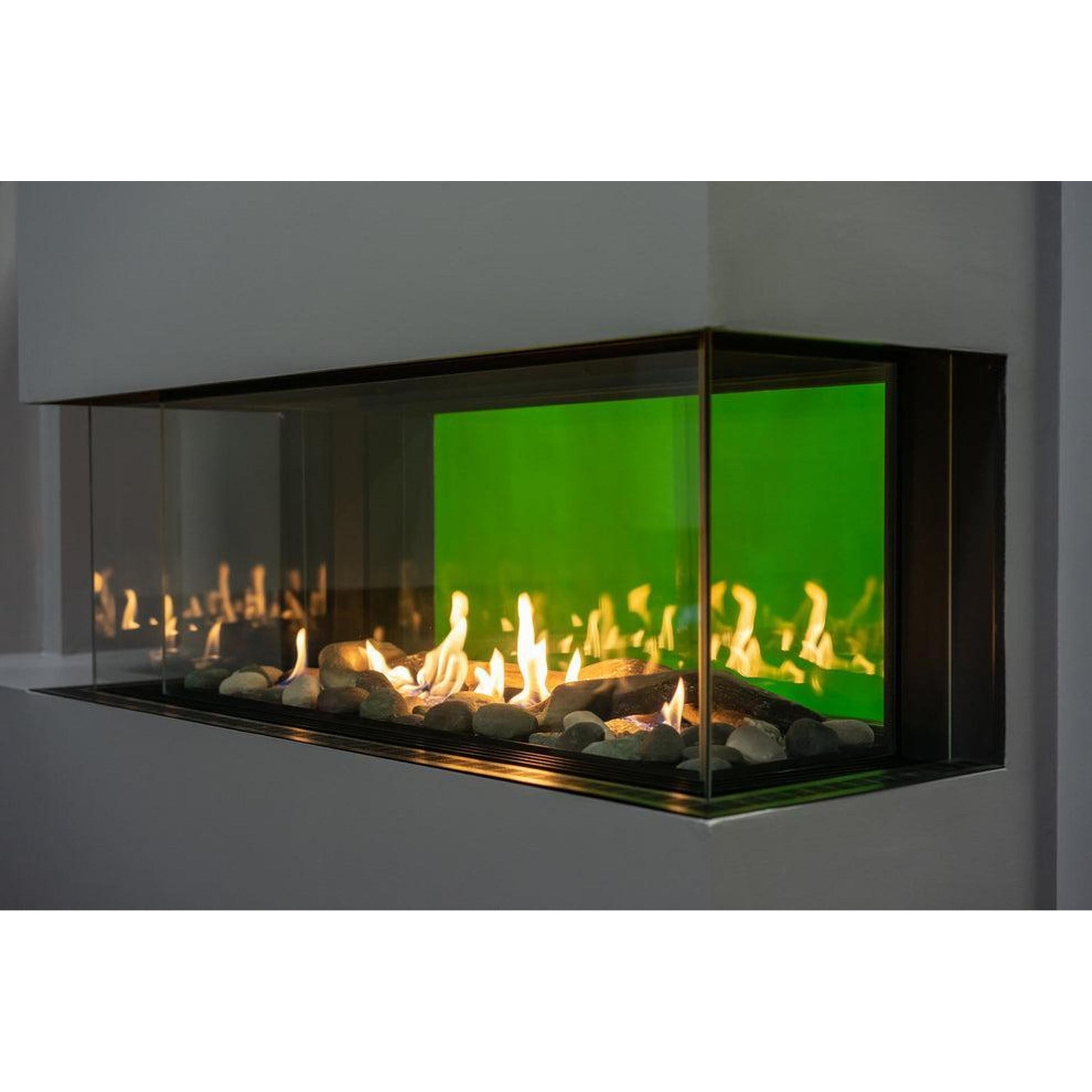

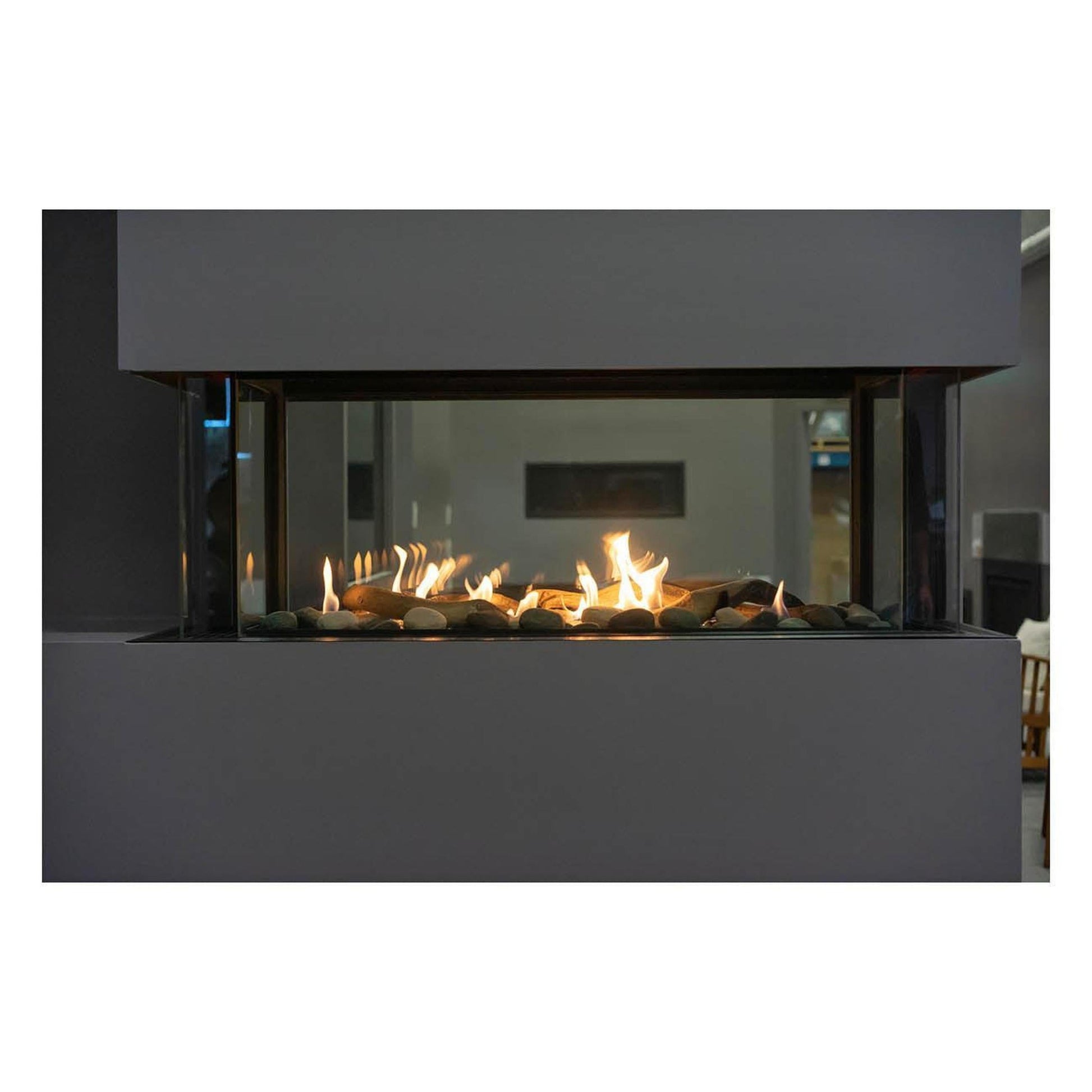

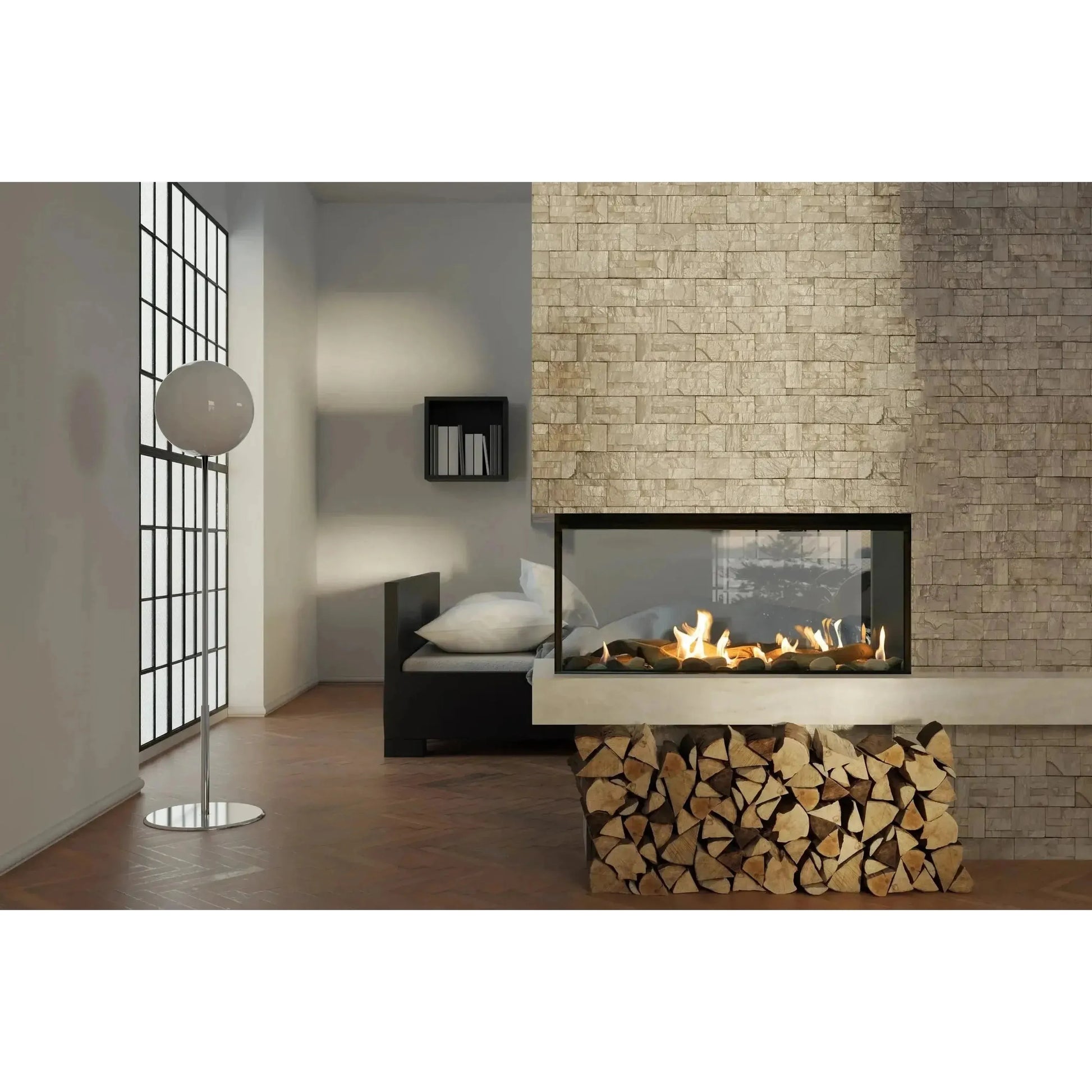

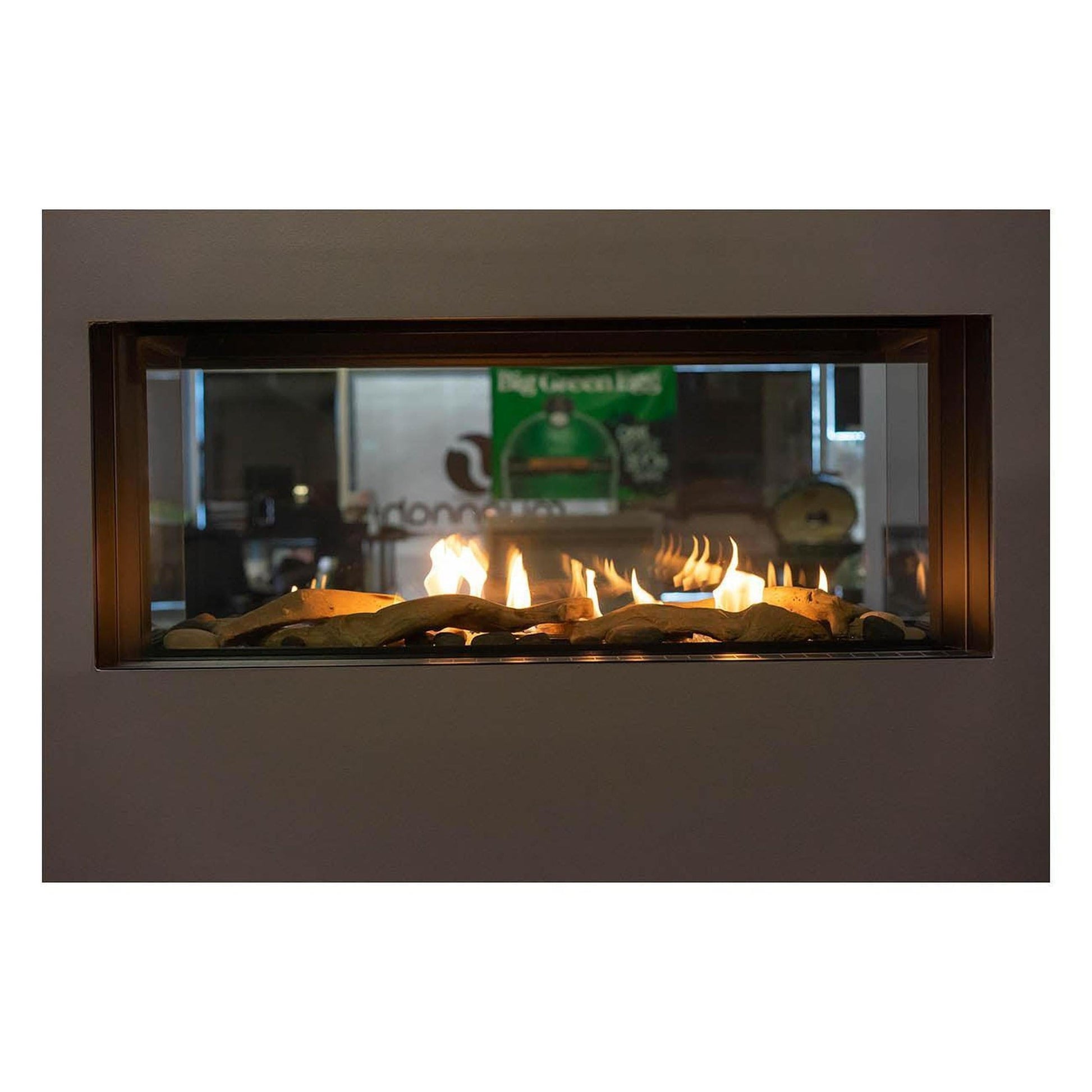

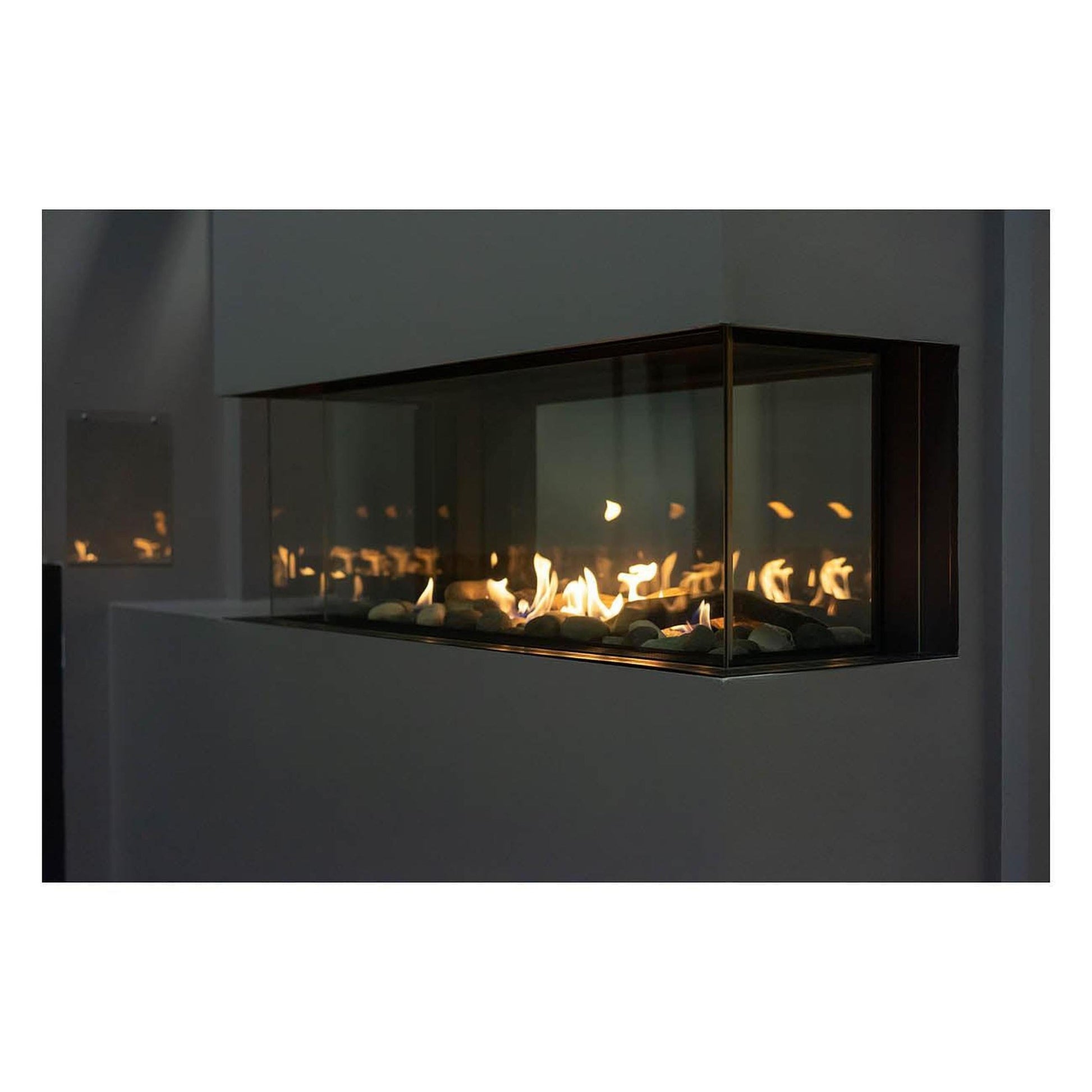

Sierra Flame by Amantii 48" Lyon 4 Sided See Through Natural Gas Fireplace

Sierra Flame by Amantii 48" Lyon 4 Sided See Through Natural Gas Fireplace

Regular price $10,999.00
Regular price $13,199.00 Sale price $10,999.00
Sale Sold out
Shipping calculated at checkout.

Termination Kit

-- Please Select --

Termination Kit

No, Thank You

Through The Roof Kit

-- Please Select --

Through The Roof Kit

No, Thank You

Steep Through The Roof Kit

-- Please Select --

Steep Through The Roof Kit

No, Thank You

Venting Options

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

DESIGN INTEGRITY, QUALITY CRAFTSMANSHIP & ATTENTION TO DETAIL

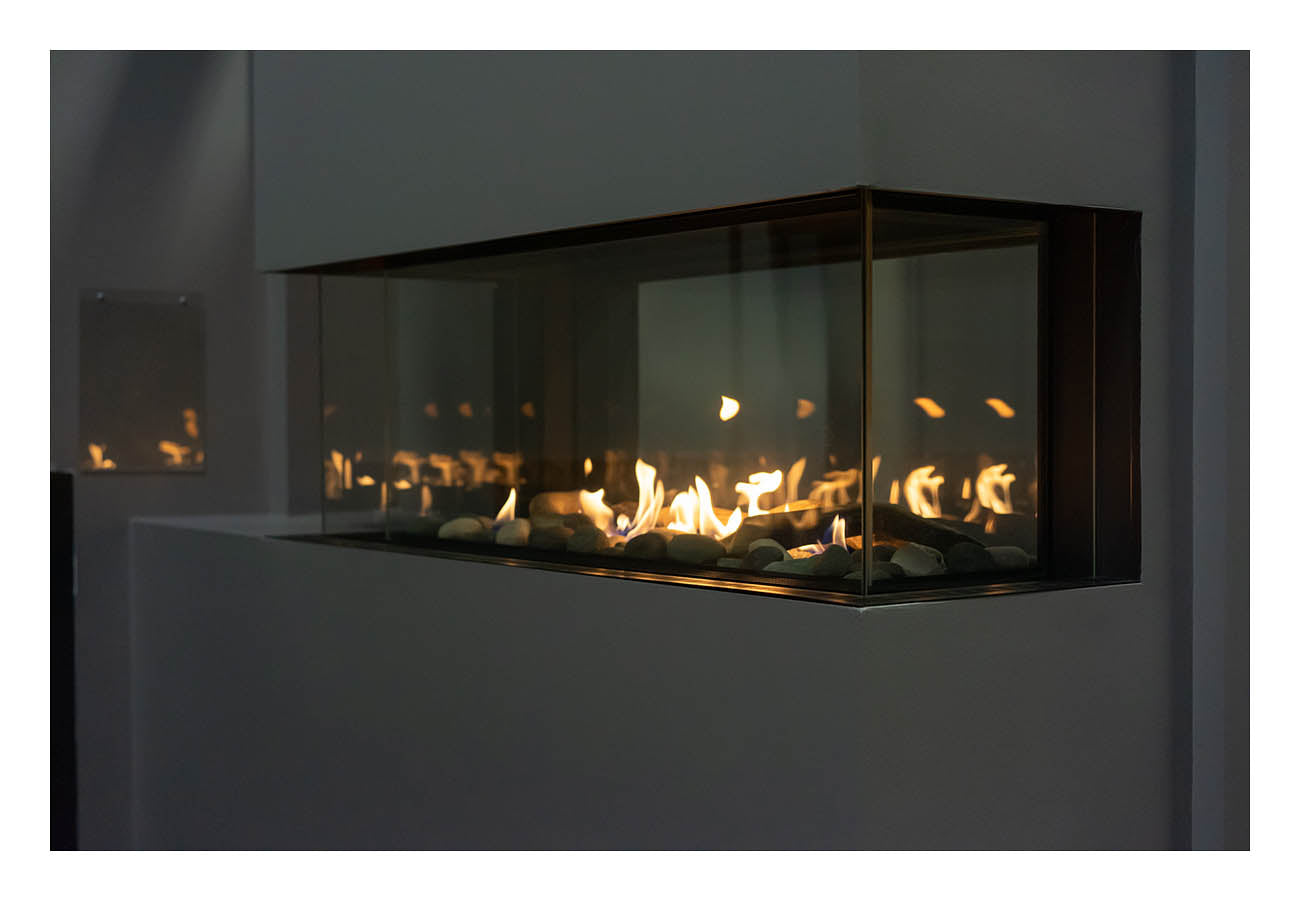

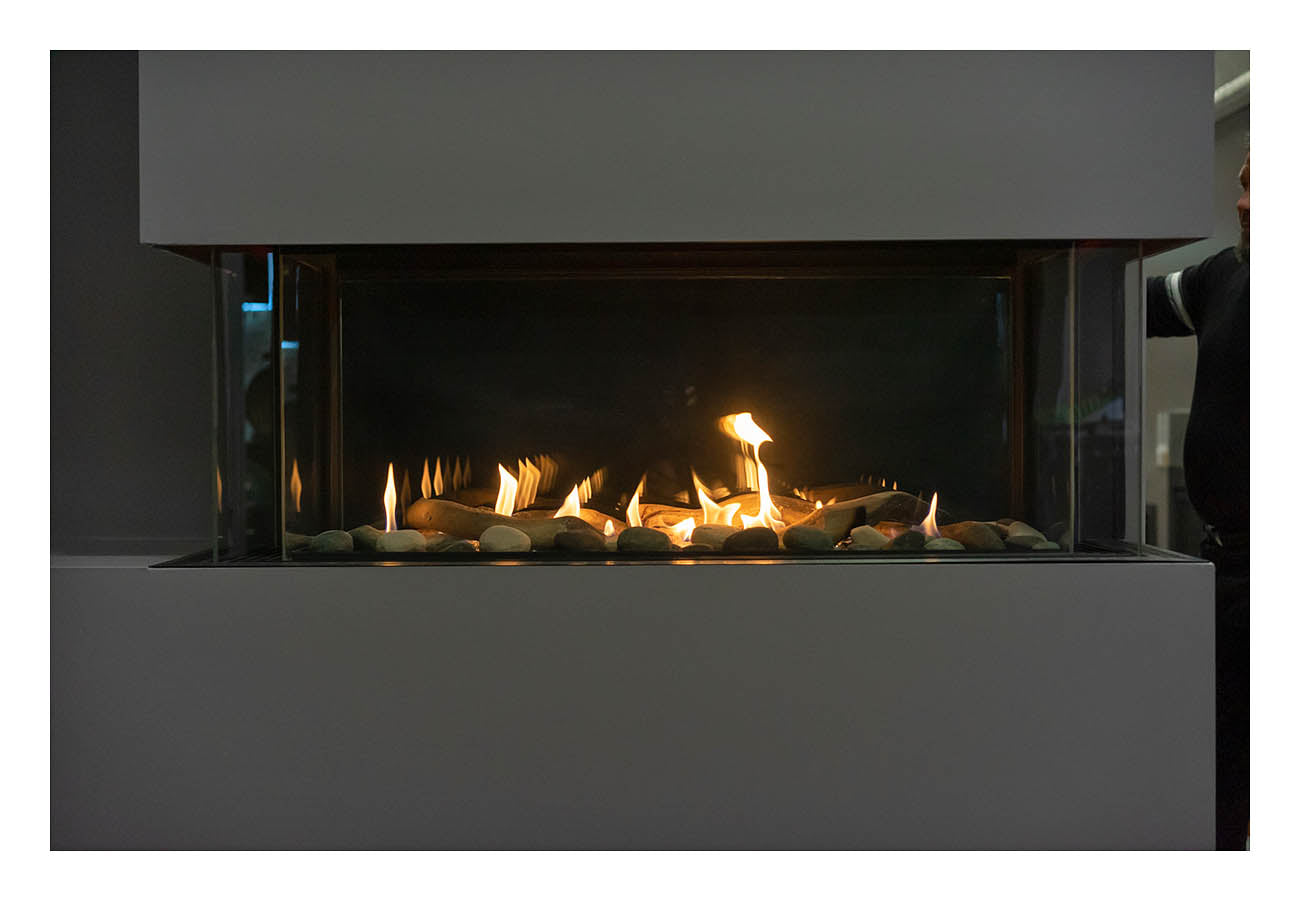

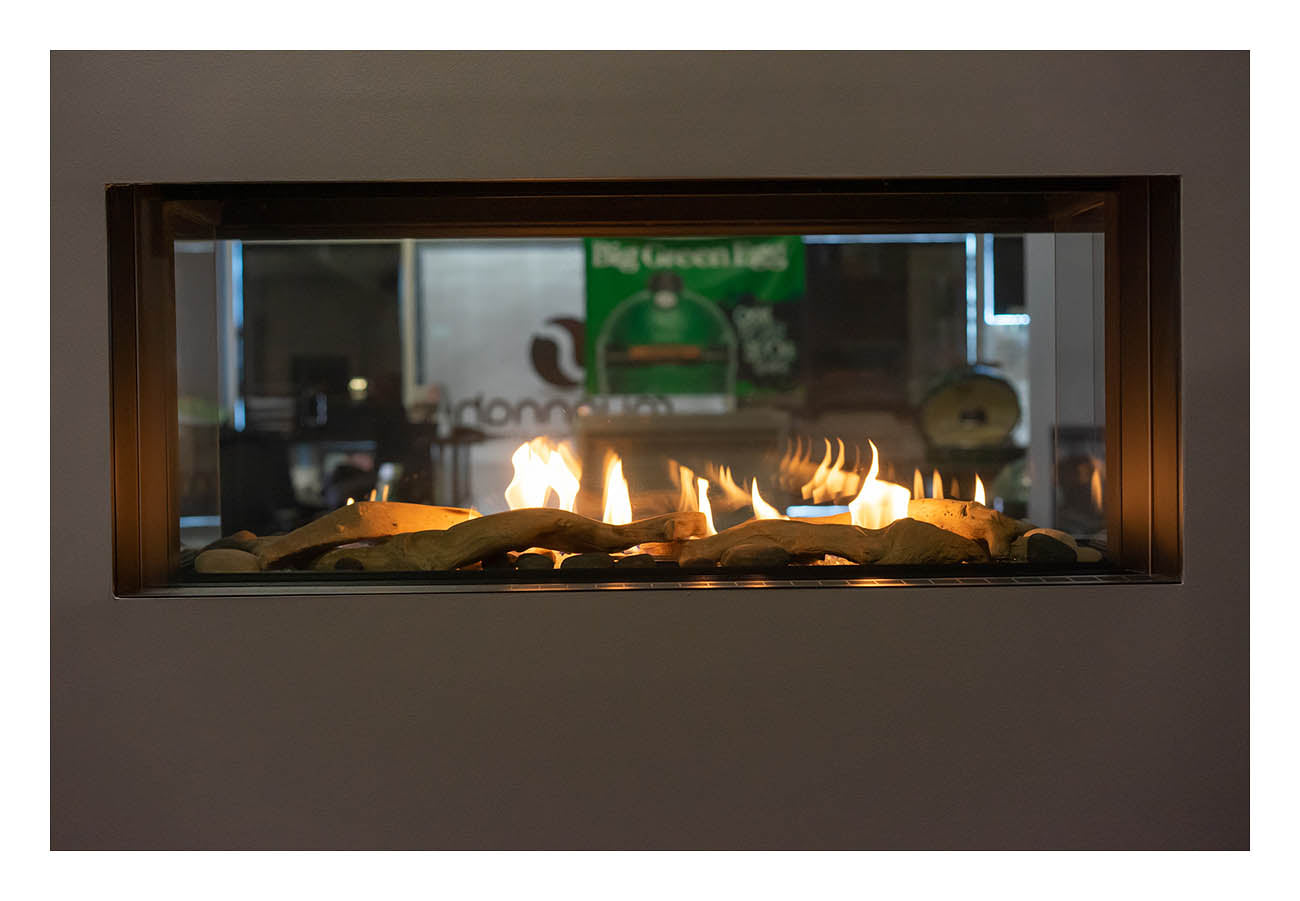

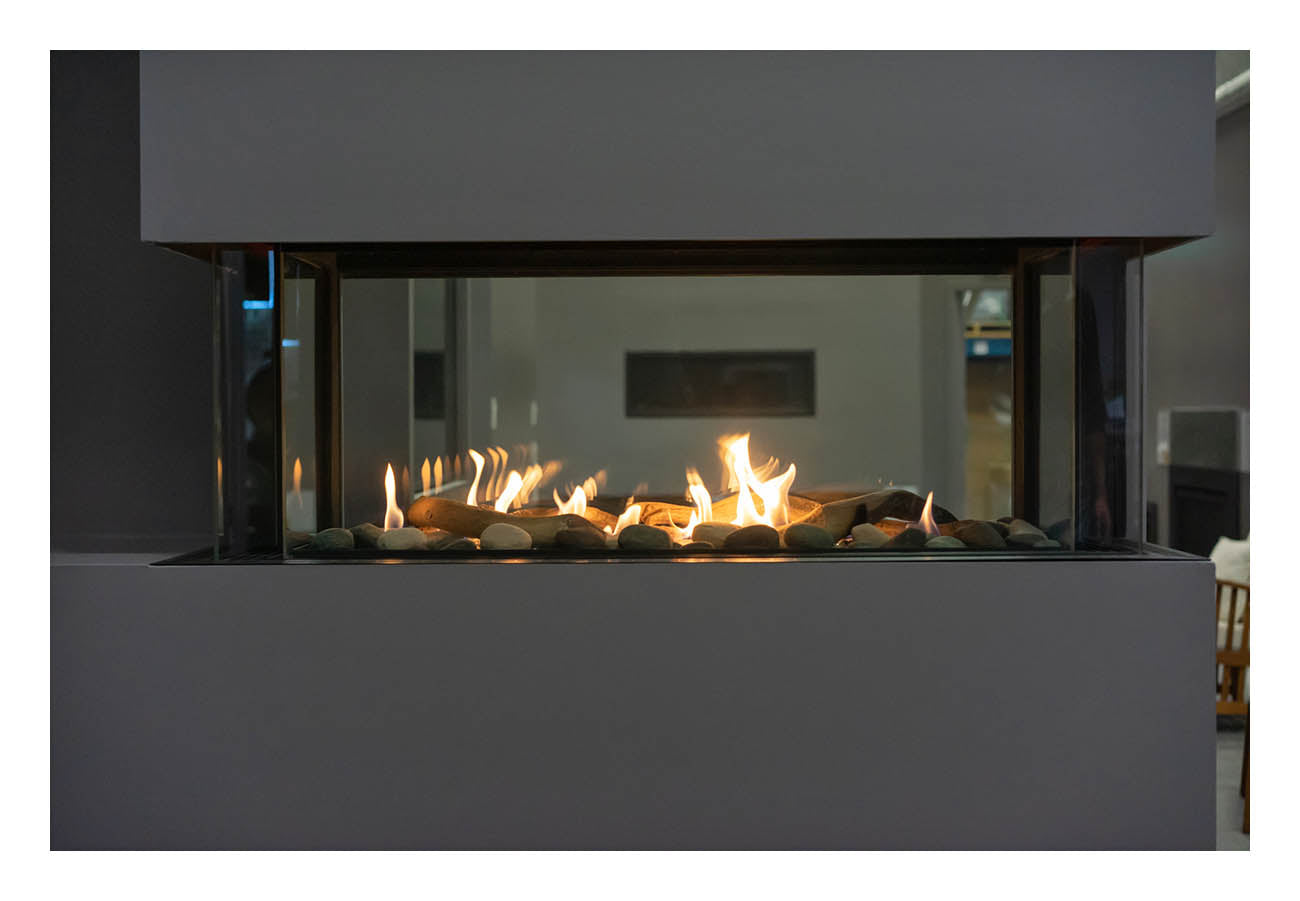

The Lyon 48” brings the-see thru linear gas fireplace a wonderful new look! Lyon gives you no screens, safe-to-touch glass, and an incredibly mesmerizing flame, you will love the Lyon.

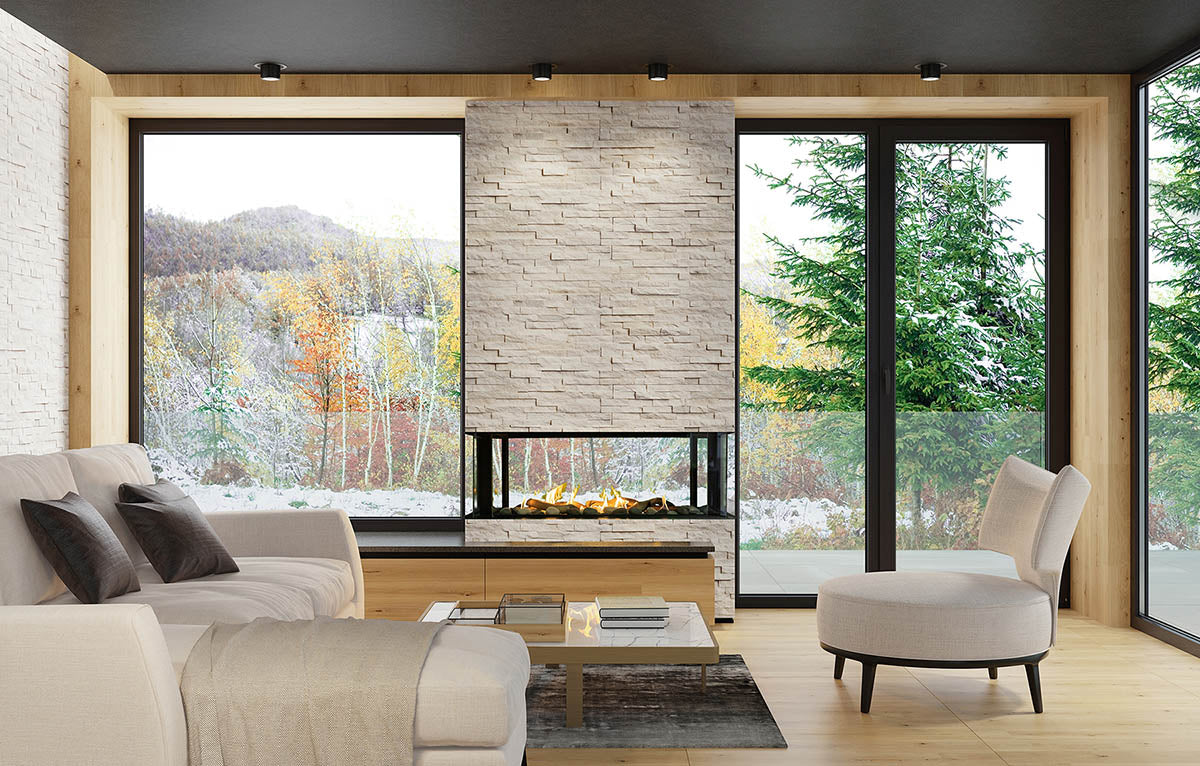

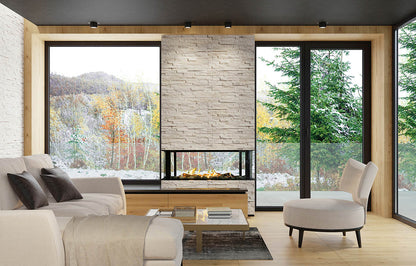

You can connect any room in your house with this fireplace, creating a flow in your home from setting to setting.

FEATURES

  • Available Size 48”
  • All Wood Framing
  • Double Glass, & Screen Free
  • No Concrete Board Required
  • 4 Sided See Through Unit – Full 360° View
  • 32,500 BTU on high & 21,000 BTU on low
  • Able to Finish with Combustibles around the fireplace

THE TECHNOLOGY

  • No Gaps
  • No Louvres
  • No Heat Dump
  • All Contained within the fireplace
  • Wood and Drywall Combustibles Okay
  • Quick and Simple Installation. No technician required for cleaning inside the glass

No-Gap

With a lot of fireplaces, they need to create an escape for the heat to vent out. To do this they leave a gap at the top of the fireplace wall to create a crown to hide the opening. A gap is not necessary.

No Intake or Exhaust Louvres

Your wall will not have any intake or exhaust louvers to break up the look.

No Heat Dump

There are no vents required behind the wall of the fireplace to dump the built-up heat.

Combustibles Okay

Everything is contained within the firebox. Able to finish with combustibles around the fireplace. No special concrete board or metal studs

IDEAL APPLICATIONS

  • New builds & Renovations
  • Restaurants
  • Commercial Spaces
  • Condominiums

SPECIFICATIONS

Model Lyon 48 NG
Fuel
Natural Gas
BTU’s Hi 32,500
Lo 21,000
Vent Top 5” & 8”
Actual Height, Width, Depth 34.61″ x 49.39″ x 22.79″
Framing Height, Width, Depth 38.52″ x 51.24″ x 23.5″
Glass Viewing Area 15.34” H x 45.16” W
15.53″ H x 39.17″ W
Side View Area 15.34” H x 13.40” W
Single Side View

DIMENSIONS

OPTIONAL ACCESSORIES

Click to see venting products


venting products

5" Inner Diameter Termination Kit - GEN-TERMKIT
Designed for use with Vienna, Toscana, or Lyon fireplaces. Includes fire stop, wall thimble, and horizontal termination kit. Requires the use of a listed 5 x 8 direct vent flex (not included)
5 Piece DuraVent Through The Roof Kit - 58TTRK
Designed for use with Vienna, Toscana, or Lyon fireplaces. Includes 36" rigid pipe length, storm collar, high wind cap, and DuraVent flashing/adapter
5 Piece DuraVent Steep Through The Roof Kit - 58TTRK-STEEP
Designed for use with Vienna, Toscana, or Lyon fireplaces. Includes 36" rigid pipe length, storm collar, high wind cap, and DuraVent flashing/adapter for steep roofs
45-Degree DirectVent Pro Elbow - 58DVA-E45
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°. Finish: Galvanized & Black.
90-Degree DirectVent Pro Elbow - 58DVA-E90
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 90°. Finish: Galvanized & Black.
5"x8" DirectVent Pro Pipe Length

Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional unless specified by the appliance manufacturer. Finish: Galvanized & Black.

5"x8" DirectVent Pro Adjustable Pipe

Use of sealant is optional unless specified by the appliance manufacturer. Available in black or galvalume exterior.

DirectVent Pro Wall Strap - 58DVA-WS
Use to support vent pipe. Provides 1” clearance. Recommend installing Wall Straps at 4-foot intervals on vertical runs.
DirectVent Pro Ceiling Firestop - 58DVA-FS
Required for multi-story vertical installations on the second floor and any subsequent floors.
DirectVent Pro Attic Insulation Shield - 58DVA-IS
Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent. Provides 1” clearance to combustibles.
