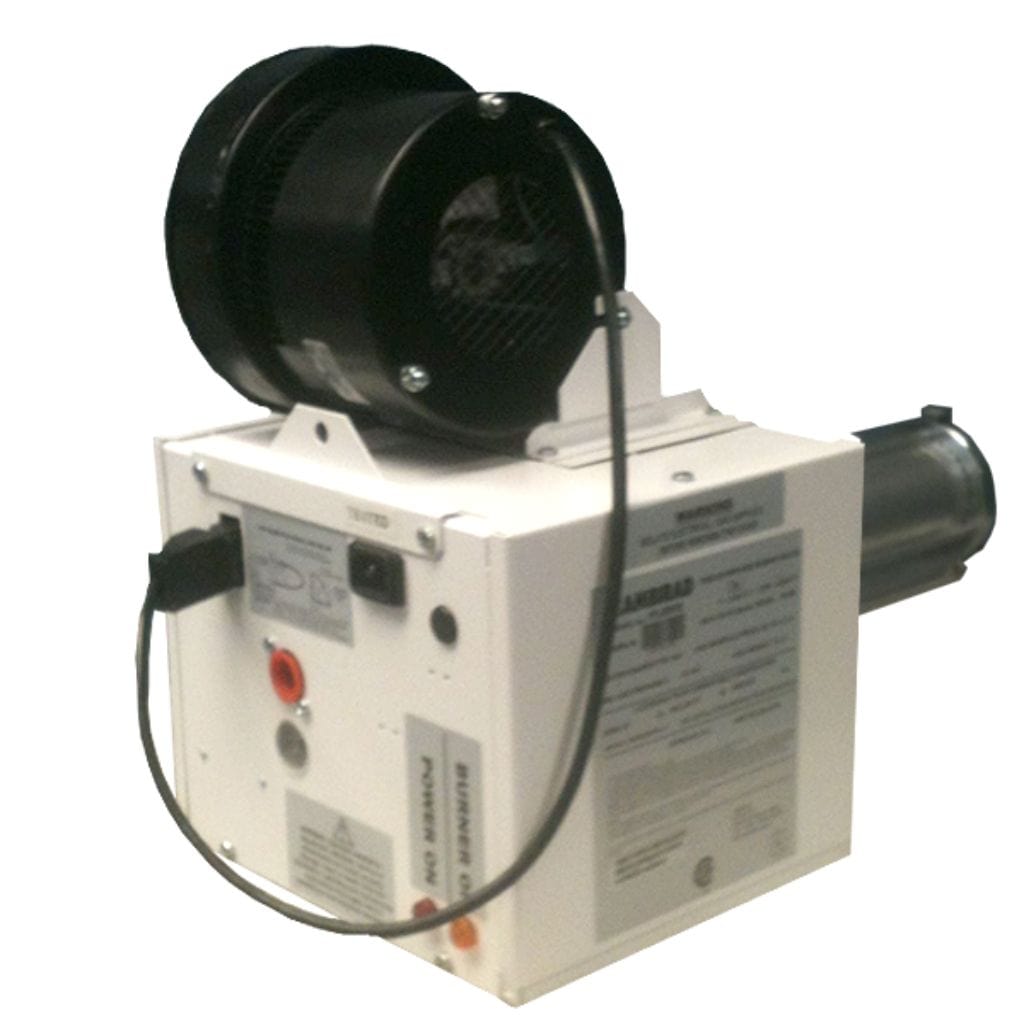

Reznor VPS170 Gas-Fired Radiant Indoor Heater - Burner Box Only

Overview

Reznor HVAC has 130 years of experience manufacturing a wide range of industry-leading industrial and commercial HVAC products. Reznor built its reputation by providing reliable, high-quality heating, ventilation and cooling systems.

Since its founding in 1888, Reznor has remained at the forefront of HVAC technology. Reznor is a global leader thanks to its innovative, extended range of gas-fired unit heaters, air handlers, condensers and rooftop units.

Descriptions

Reznor's VPS is a positive-pressure heating system. Units are available with a Calcoat® combustion chamber tube and rolled steel heat exchanger tubes. Reznor radiant heating is among the most environmentally friendly heating solutions on the market, greatly assisting industry and commerce in improving their overall energy performance and making a significant contribution to achieving compliance with the LEED green building rating system.

Features

The VP series of tubular radiant heaters are available in BTUH inputs ranging from 60,000 to 200,000 and in system lengths from 20 to 80 feet (see the following pages for BTUH/system length combinations). Heaters are available for use with natural gas or optional propane gas. Tubular radiant heaters are engineered to provide quiet, reliable, energy-efficient, and comfortable heating for both spot and space applications.

• Natural Gas operation
• Full input rate for elevations up to 2,000 ft.
• 115/1/60 supply voltage
• Single-stage combination gas valve
• Pre-purge and post-purge
• Diagnostic indicator lights
• Operation indicator lights
• Calcoat combustion chamber and rolled steel heat exchanger tubes
• Aluminized Steel Reflectors
• Multi-try direct ignition with soft lockout

Specifications

Model	VPS170
Product Type	Unit Heater
Fuel Type	Natural Gas or Propane
Installation Type	Ceiling Mount
Heating Capacity	125,000 to 170,000 BTU/H
Ignition	Electronic Program Startup with Spark Ignition
Gas Connection	1/2" N.P.T
Voltage	115V/1/60
Wattage	37,000 to 50,000

Minimum and Recommended Mounting Heights

Model	Standard		Angled
	Minimum	Recommended	Minimum	Recommended
	ft/m	ft/m	ft/m	ft/m
VPS170	16/4.9	18/5.5	14/4.3	15/4.6

Warranty

Reznor warrants to the original owner-user that this product will be free from defects in material and workmanship. This warranty is limited to twelve (12) months from the date of original installation, whether or not actual use begins on that date, or eighteen (18) months from date of shipment, whichever occurs first.

Downloads

• Product Catalog
• Product Introduction
• Installation Guide
• Clearances to Combustibles
• Warranty Guide

Safety Information: See CA Prop 65 Warning
