Rasmussen 54" Custom Pan Vented Burner with Strap Legs, 16" Deep

Rasmussen 54" Custom Pan Vented Burner with Strap Legs, 16" Deep

$997.00
$997.00
Sale Sold out
Shipping calculated at checkout.
Fuel Type
Control System
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Descriptions

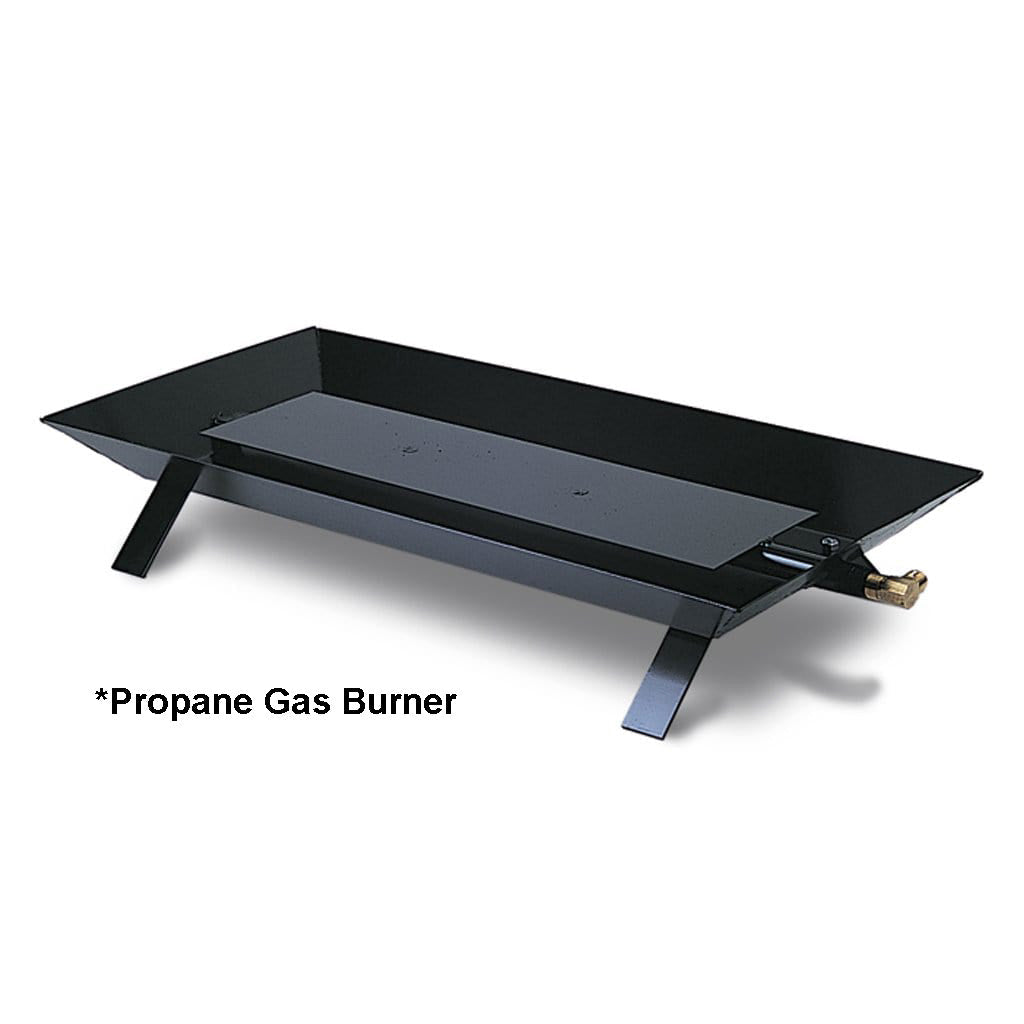

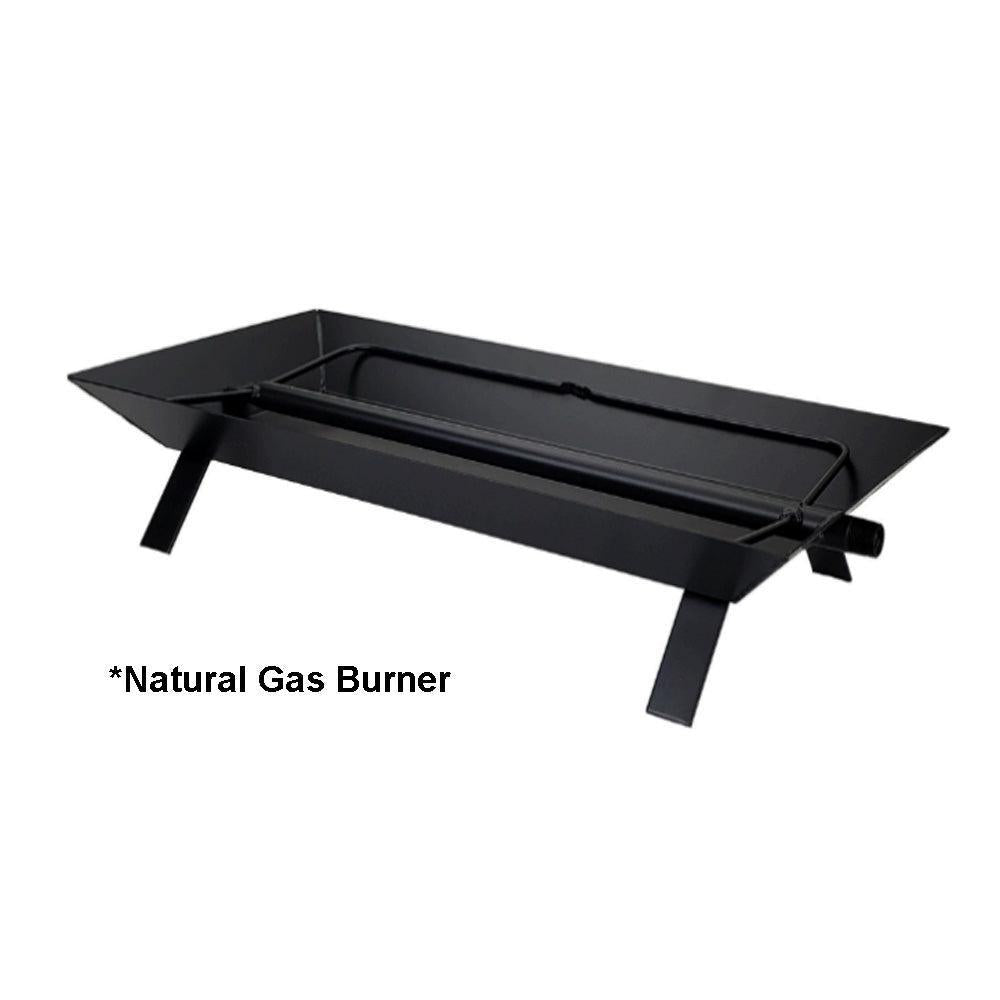

The CS Burner is the original pan tube burner, which can be used with legs for a clean look or without legs for a pit fire look. The CS Burner may also be used in See-Through fireplaces with Double Face logs. The logs reside inside the burner on the pan filler – no grate is to be used with the CS Burner.

  • Available in 8 Sizes: 27", 30", 33", 36", 42", 48", 54", 60"
  • Can be used with either Natural Gas or Propane
  • Match Lit, Millivolt Remote Ready
  • Certification: RIW
Valve
Natural Gas BTU:
Propane BTU:
Match Lit
 215,000
N/A
Millivolt Remote Ready
215,000
 145,000

Hearth Kits Includes: Pan Filler, Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.

NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.

Minimum Fireplace Dimensions

Match Lit
Front Width 60"
Rear Width 55"
Depth 18"
Standing Pilot
Front Width 66"
Rear Width 60"
Depth 18"
