SKU:CXF30-B-N

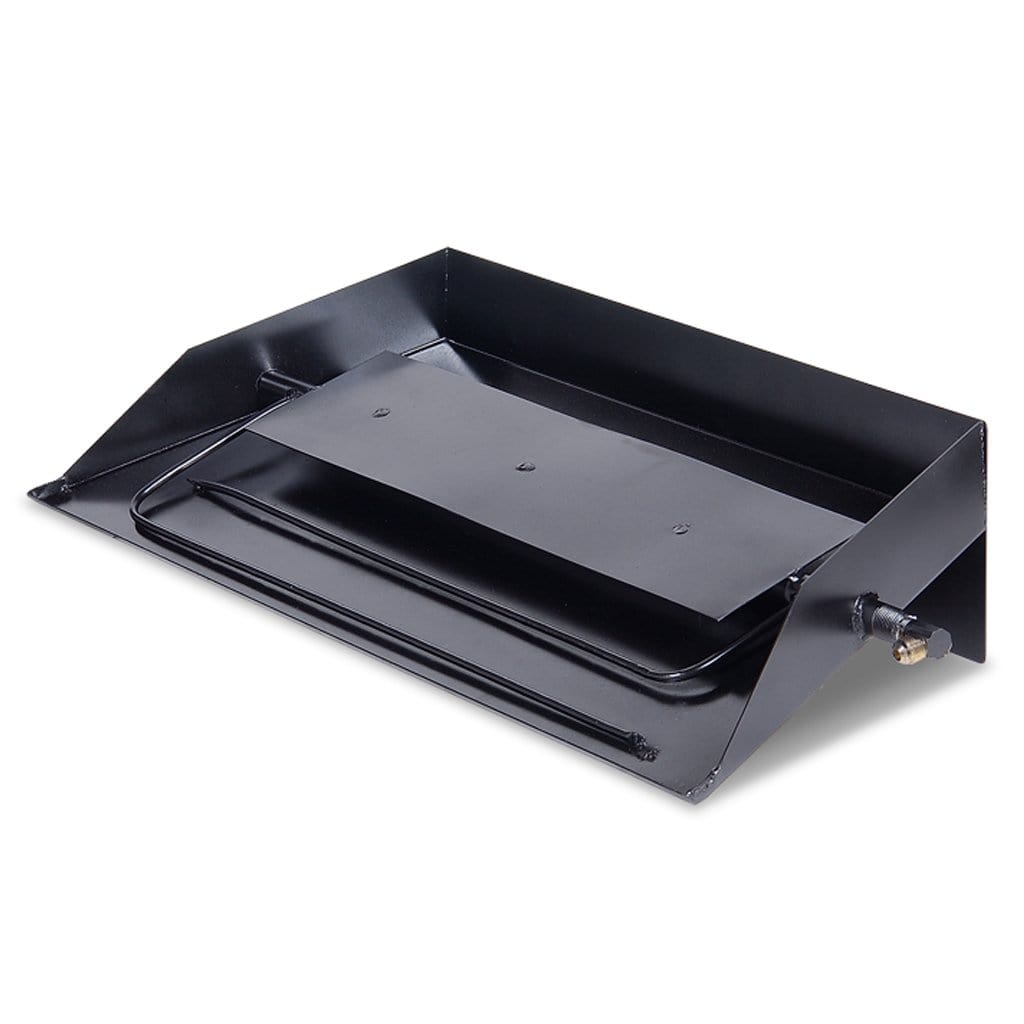

Rasmussen 30" Custom Embers Tapered Pan Vented Burner
Rasmussen 30" Custom Embers Tapered Pan Vented Burner
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Descriptions
The CXF Burner combines the full, realistic flame of the CS with the larger ember bed of the FX. The ramped pan is height adjustable for added versatility. The logs reside inside the burner on the pan filler – no grate is to be used with the CXF Burner.
- Available in 5 Sizes: 15", 18", 21", 24", & 30"
- Can be used with either Natural Gas or Propane
- Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
- Certification: RIW
|
Valve
|
Natural Gas BTU:
|
Propane BTU:
|
|
Match Lit
|
110,000 |
N/A
|
|
Manual Safety Pilot
|
110,000
|
60,000 |
|
Remote Ready
|
110,000
|
60,000 |
|
Variable Remote
|
110,000
|
60,000
|
|
Variable Electronic Ignition
|
110,000
|
60,000
|
|
Millivolt w/Valve Vanisher
|
100,000
|
60,000
|
|
Manual Valve w/Valve Vanisher
|
100,000
|
60,000
|
|
Millivolt Remote Ready
|
110,000
|
60,000
|
Burner Kits Includes: Pan Filler, Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.
NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.
Minimum Fireplace Dimensions
| Match Lit | |
| Front Width | 41" |
| Rear Width | 31" |
| Depth | 15" |
| Standing Pilot | |
| Front Width | 46" |
| Rear Width | 34" |
| Depth | 15" |
| Valve Vanisher | |
| Front Width | 42.125" |
| Rear Width | 33" |
| Depth | 16" |
