• Rasmussen 16.875" Small CoalFire Vent-Free Set with Classic Basket
1 1

CLAS-A-C9A-SE-N

Rasmussen 16.875" Small CoalFire Vent-Free Set with Classic Basket

Rasmussen 16.875" Small CoalFire Vent-Free Set with Classic Basket

$1,594.00
$1,594.00
Sale Sold out
Shipping calculated at checkout.
Fuel Type
Control System
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Description

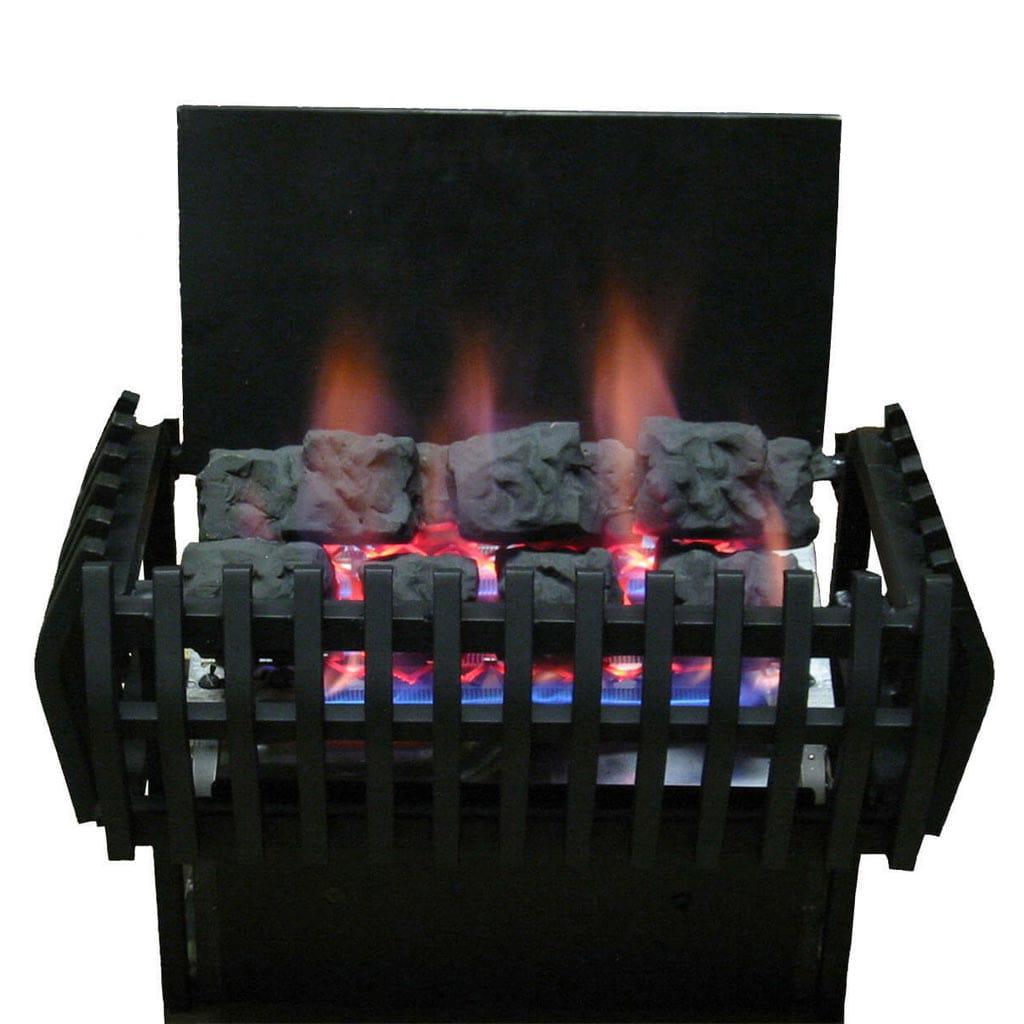

Traditional coal basket shape for a classic look. Rasmussen Gas Coal sets will start to glow similar to the real thing after heating up. Smaller profile good for small and factory-built fireplaces. Back Plate is optional and can be removed, lowering the rear height significantly. Ventless set for both fireplaces suitable for burning wood and approved vent-free fire enclosures.

Product Specifications

  • Available in Small and Large sizes
  • Log Set Type: Vent-Free
  • Fireplace Type: Standard
  • Fuel Type: Natural Gas | Propane
  • Set Width: 16.875" Inch
  • BTUs: 33,000
  • ANSI-Certified
  • Height (to top of burner) = 6.625”
  • Height (to top of coals) = 10.5”
  • Lowest point of flame = approx. 5 1/8” from the floor

*Notes:

  • Remote Control is not included with the Remote Ready Burner and should be ordered separately.
Specification Sheet
Set Size Model # BTU/hr
16.875"
 CLAS-A-C9A 33,000
20.875" CLAS-B-C9B 40,000

Minimum Fireplace Sizing Requirements

Set Size Front Rear Depth Height
16.875" 17" 17"
 10"
 16"
20.875" 21"
 21"
 10"
 16"

Limited Lifetime Warranty

RASMUSSEN IRON WORKS INC, 12028 E. Philadelphia Street, Whittier California, U.S.A., warrants this Gas Log Set and accessories against defects in materials and workmanship, and suitable for a particular purpose, for a period of:

Log Castings All logs are guaranteed against crumbling in the original installation for the lifetime of the initial purchaser.
Burner & Grate 2 Years from date of purchase.
Safety Control and Pilot
Pilots and Safety Controls are covered by a warranty of the original manufacturer only.

Options and Accessories

Click to see Remote Control and Switching Accessories

SR-2R Wireless Hand-held Transmitter with simple ON/OFF function

This remote turns the fireplace on or off at the push of a button. Works with "EASY" control systems as their remote control.
  • For "RPK3E" and "SE" Remote Ready EASY Controls Includes battery
  • Remote works up to 20 feet away

THR-2R Remote Control (Thermostat & On/Off) for RPK3E & SE Systems

This remote turns the fireplace on or off at the push of a button, but also has thermostat function. Works with "EASY" control systems as their remote control.
  • Only for use with Rasmussen "EASY" Control systems with latching solenoid, such as all "SE" and "RPK3E" controls
  • Batteries included
  • Works up to 20 feet away

TS-2R Wireless Wall Thermostat Control

The wall thermostat turns the fireplace on until the air temperature in the room reaches a certain point, then it shuts off. Works with "EASY" control systems as their remote control.
  • Turns the fireplace on until it reaches a certain temperature in the room
  • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
  • Works up to 20 feet away
  • Includes batteries
  • Receiver not included

WS-2R Wireless Wall Switch

The wall switch turns the fireplace on or off at the push of a button. Works with "EASY" control systems as their remote control.
  • On/off rocker switch, similar to a light switch, which turns the fireplace on or off at the push of a button
  • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
  • Works up to 20 feet away
  • Includes batteries
  • Receiver not included

WT-2R Wireless 30/60/120 minute Wall Timer

The wall timer turns the fireplace on until the specified time is reached, then it shuts off. This can help save gas or keep a room from getting too warm. Works with "EASY" control systems as their remote control.
  • Turns the fireplace on for a certain amount of time, after which it automatically shuts off
  • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
  • Works up to 20 feet away
  • Includes batteries
  • Receiver not included

THR-MV1 Wireless Remote Control (Thermostat & On/Off) for Millivolt & EIS

  • Provides ON/OFF control with Thermostat and Countdown Timer features
  • Use with Millivolt controls: S, RPK1, RPK3, & VMV
  • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
  • Works up to 20 feet away
  • Includes both Transmitter & Receiver
  • Batteries included

SR-MV1 Wireless On/Off Remote Control for Millivolt & EIS

  • Provides ON/OFF control
  • Use with Millivolt controls: S, RPK1, RPK3, & VMV
  • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
  • Works up to 20 feet away
  • Includes both Transmitter & Receiver
  • Batteries included

WS-MV1 Wireless Wall Switch Remote Control for Millivolt & EIS

  • Provides ON/OFF control
  • Use with Millivolt controls: S, RPK1, RPK3, & VMV
  • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
  • Works up to 20 feet away
  • Includes both Transmitter & Receiver
  • Batteries included

WT-MV1 Wireless Wall Timer Remote Control for Millivolt & EIS

  • Provides timed control in 30/60/120 minute increments
  • Use with Millivolt controls: S, RPK1, RPK3, & VMV
  • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
  • Works up to 20 feet away
  • Includes both Transmitter & Receiver
  • Batteries included
