SKU:B15FH-N
Rasmussen 15" Flaming Ember Vented Burner and Grate Hearth Kit
Rasmussen 15" Flaming Ember Vented Burner and Grate Hearth Kit
Regular price
$241.00
Regular price
Sale price
$241.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Descriptions

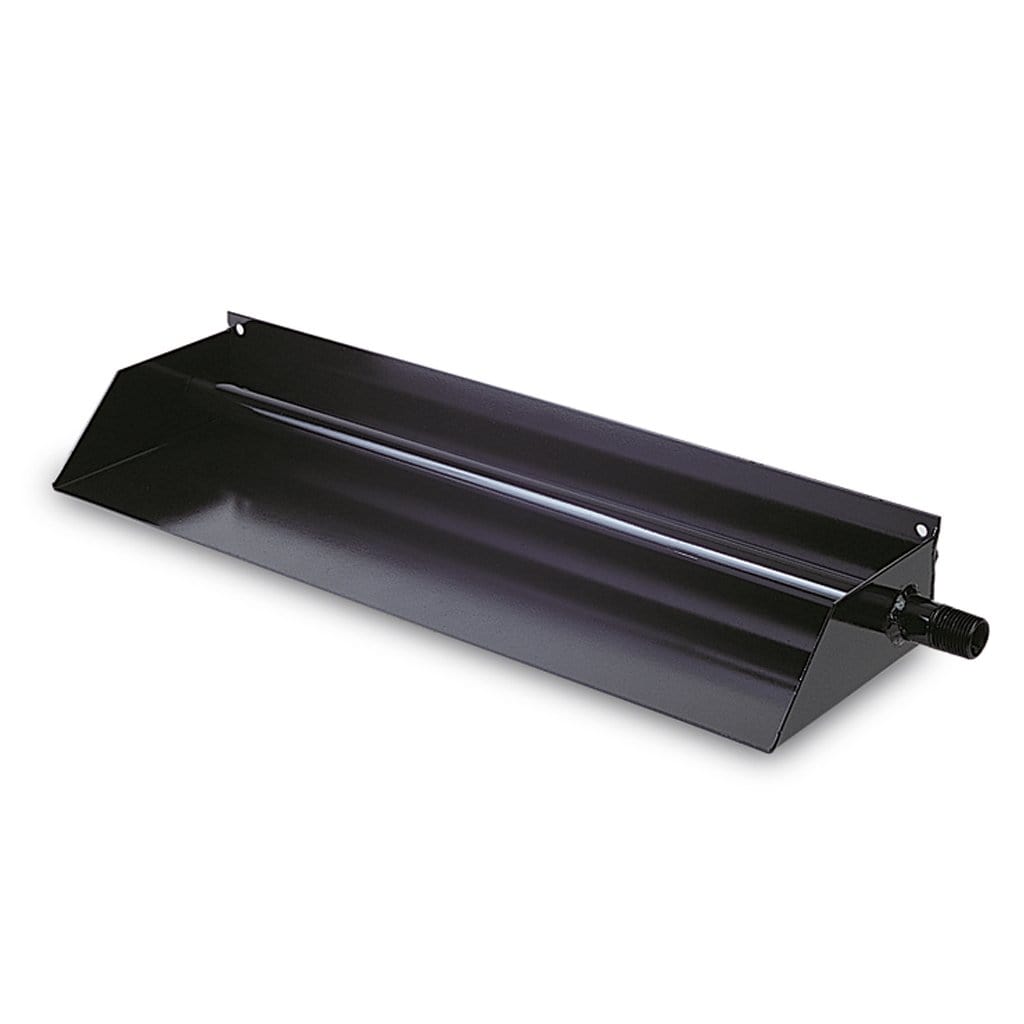

The F Burner is our basic single tube burner designed to be used under a log grate. It produces a pleasing, dancing flame with a more compact ember bed than the FX burner.
- Available in 5 Sizes: 15", 18", 21", 24", & 30"
- Can be used with either Natural Gas or Propane
- Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
- Certification: ANSI-Z21.84
| Valve | Natural Gas BTU: | Propane BTU: |
| Match Lit | 32,000 | N/A |
| Manual Safety Pilot | 32,000 | 27,000 |
| Remote Ready | 32,000 | 27,000 |
| Variable Remote | 32,000 |
27,000 |
| Variable Electronic Ignition | 32,000 | 20,000 |
| Millivolt w/Valve Vanisher | 32,000 | 21,000 |
| Manual Valve w/Valve Vanisher | 32,000 | 21,000 |
| Millivolt Remote Ready | 32,000 | 27,000 |
Burner Kits Includes: Burner (Sand for Natural Gas or Volcanic Ash for Propane), Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.
NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.
Minimum Fireplace Dimensions
| Match Lit | |
| Front Width | 21" |
| Rear Width | 15" |
| Depth | 13" |
| Standing Pilot | |
| Front Width | 27" |
| Rear Width | 18" |
| Depth | 13" |
| Valve Vanisher | |
| Front Width | 25.5" |
| Rear Width | 18.75" |
| Depth | 15" |
