Rasmussen 15" Double Face Custom Embers Pan Burner with Grate, 16" Deep
Rasmussen 15" Double Face Custom Embers Pan Burner with Grate, 16" Deep
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
The Double Face Custom Embers Burner combines the full, realistic flame of the CS with the larger ember bed of the FX. The ramped pan is height adjustable for added versatility. The logs reside inside the burner on the Grate.
- Available in 5 Sizes: 15", 18", 20", 24", & 30"
- Can be used with either Natural Gas or Propane
- Can be used for 18" Gas logs
- Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
- Certification: ANSI-Z2184
|
Valve
|
Natural Gas BTU:
|
Propane BTU:
|
|
Match Lit
|
50,000 |
N/A
|
|
Manual Safety Pilot
|
50,000
|
40,000 |
|
Remote Ready
|
60,000
|
30,000 |
|
Variable Remote
|
50,000
|
40,000
|
|
Variable Electronic Ignition
|
50,000
|
40,000
|
|
Millivolt w/Valve Vanisher
|
50,000
|
40,000
|
|
Manual Valve w/Valve Vanisher
|
50,000
|
40,000
|
|
Millivolt Remote Ready
|
50,000
|
40,000
|

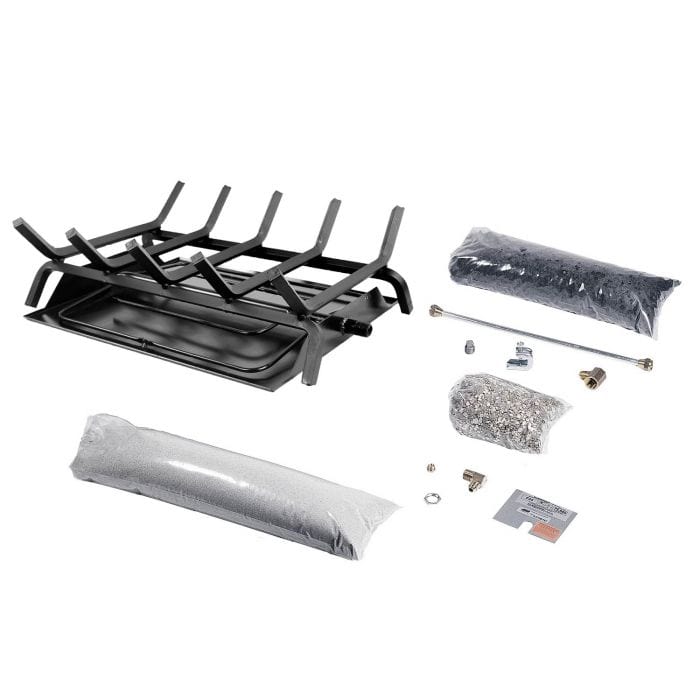

Burner Kits Includes: Burner, Grate, Sand or Volcanic Ash, Ember Magic, Flexible SS Non-Whistling Connector Kit, Damper Clamp, Instructions.
NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.
Minimum Fireplace Dimensions
| Match Lit | |
| Front Width | 21" |
| Rear Width | 15" |
| Depth | 15" |
| Standing Pilot | |
| Front Width | 27" |
| Rear Width | 18" |
| Depth | 15" |
| Valve Vanisher | |
| Front Width | 25 1/8" |
| Rear Width | 16" |
| Depth | 15" |
