Napoleon B46 Ascent 46" Direct Vent Gas Fireplace

Ascent™ 46

The Ascent™ 46 gas fireplace features a gorgeous hand-painted PHAZER® log set with a traditional look and feel. It is a clean-faced fireplace that maximizes the viewing area so the realistic flames can be enjoyed to their fullest. Customize the look of this gorgeous fireplace with a selection of fronts, backer panels, trims, and optional media kits like the beach fire and mineral rock kit to lend a more unique look. This unit is ideal for builders and homeowners alike, featuring a shallow depth, which allows for versatile installations where space is at a premium. This means any room, even a mobile home, can have a beautiful gas fireplace. No power? No problem! The electronic ignition system ensures that the fireplace functions, even when the power goes out, keeping your family safe and warm. With the approved safety barrier, the Ascent™ meets tomorrow's safety standards today.

Napoleon’s Ascent^™ 46 is now the largest single view fireplace in the Ascent^™ Series and is offered as a 4" x 7" top and rear vent model. Offering a multitude of options with decorative fronts, trim kits, decorative brick panels and MIRRO-FLAME^™ Reflective Radiant Panels, the Ascent^™ 46 can be designed to your personal taste and match any home décor. An approved safety barrier comes standard on the Ascent^™ 46.

Advanced Burner Technology
Napoleon`s sophisticated burner system offers superior flame technology. Strategically placed burner ports create the most realistic YELLOW DANCING FLAMES® in the industry

Zone Heating
Zone Heating means you are heating the rooms that you use the most with an alternate heat source, like a Napoleon heater rated gas fireplace. Zone Heating is the obvious solution for families concerned about rising fuel costs.

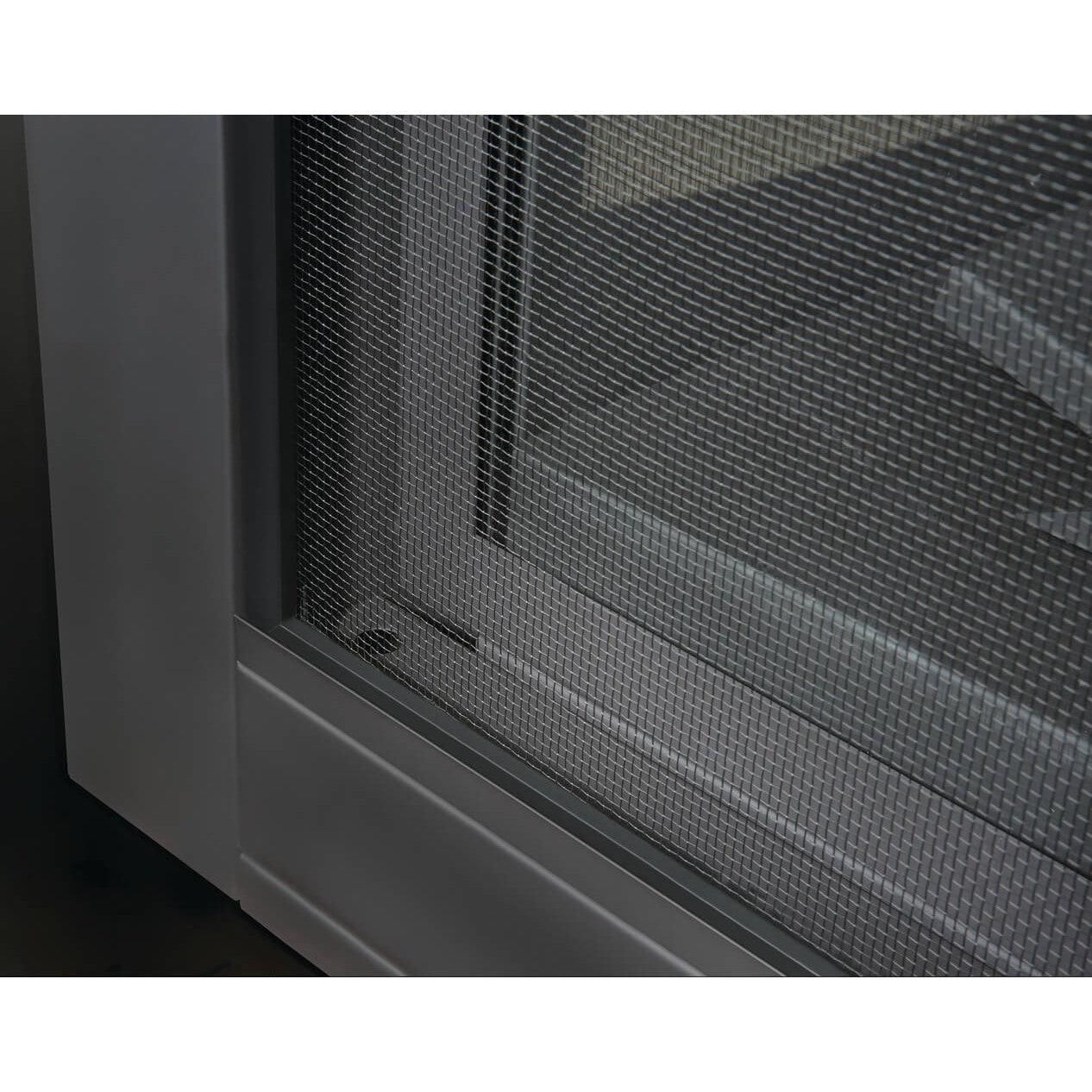

Safety Screens
Napoleon, leaders in design & technology have developed safety screens with aesthetically pleasing designs for every gas appliance to ensure ultimate safety and peace of mind for your family.

Finely Tuned Precision Valves
Surrounded with a protective cast aluminum jacket, the precision valves allow for ultimate reliability and 100% SAFE GUARD™ gas control system.

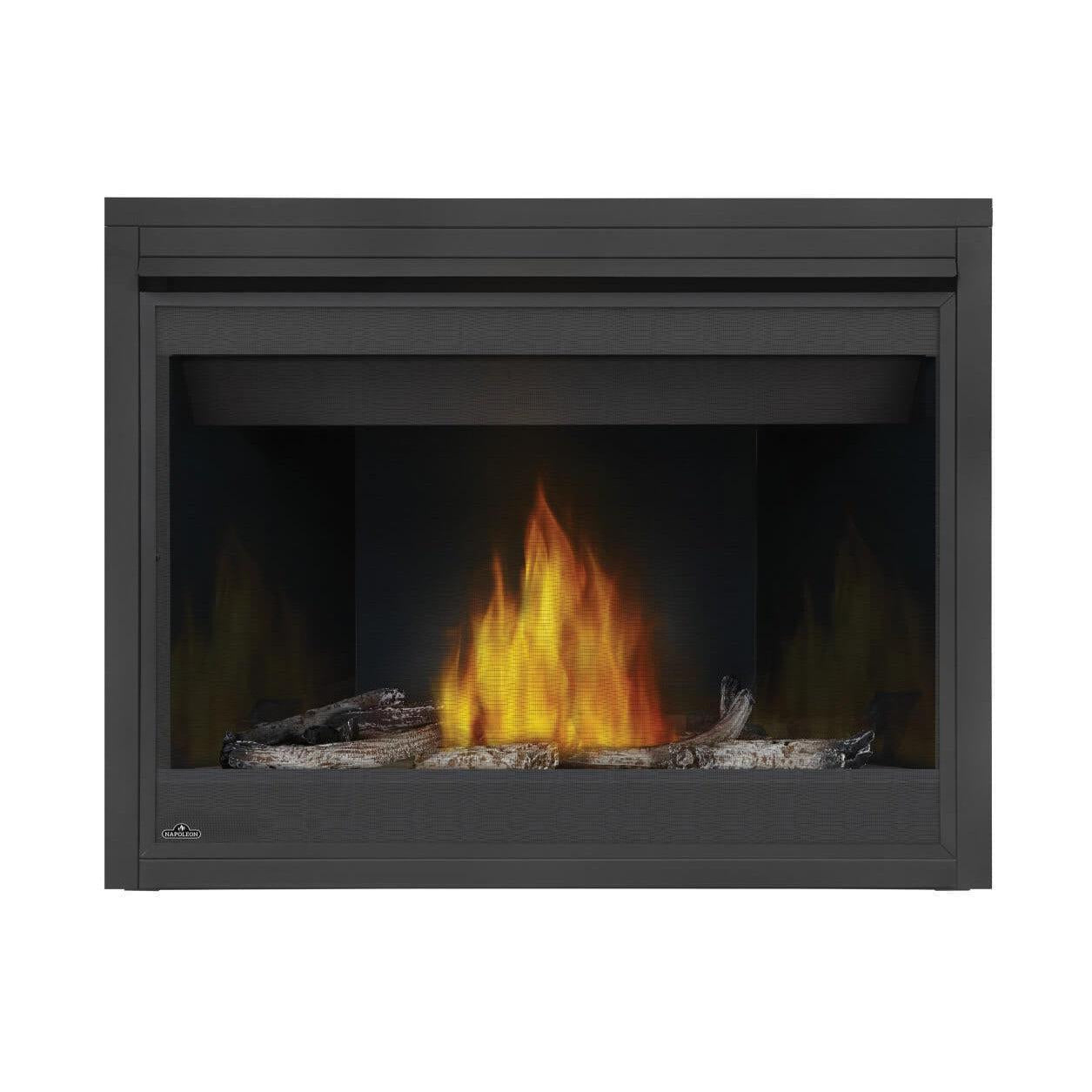

PHAZER® Log Set
The log set is rich in color and detail, provide a real wood log appearance. They are produced by a unique process where ceramic fibers are melded together in the form of a variety of log shapes. They are then hand painted and accented to create the most realistic looking logs available. The properties of the ceramic fibers allow the logs to withstand the extreme temperatures that they are exposed to within the combustion chamber of the fireplace. It is for this reason that our Phazer® logs are guaranteed for life!

Direct Vent Technology
Napoleon's Direct Vent Gas Fireplaces do not require a chimney and can be vented directly through a wall or roof. The direct vent draws its combustion air from outside while venting to the same outside atmosphere.

Features:

• Available in 36", 42" and 46" sizes.
• Exclusive PHAZER^® log set and glowing ember bed are the most realistic in the industry
• Up to 22,000 BTU's
• President’s Limited Lifetime Warranty
• Pre-wired for wall switch
• Firestop
• Mobile home approved
• Back-up control system ensures reliable use, even during power failures
• Millivolt or Electronic ignition systems available
• Flex connector complete with shut off (Electronic ignition system only)
• Pan style burner
• Optional MIRRO-FLAME^™ Porcelain Reflective Radiant Panels
• Optional Black Trim Kits in 2" Standard Design or 3" Premium Beveled Design
• Optional remote control
• Optional blower kit
• Optional AMBIENT-GLOW metal fibers are designed to enhance the glowing embers on gas fires

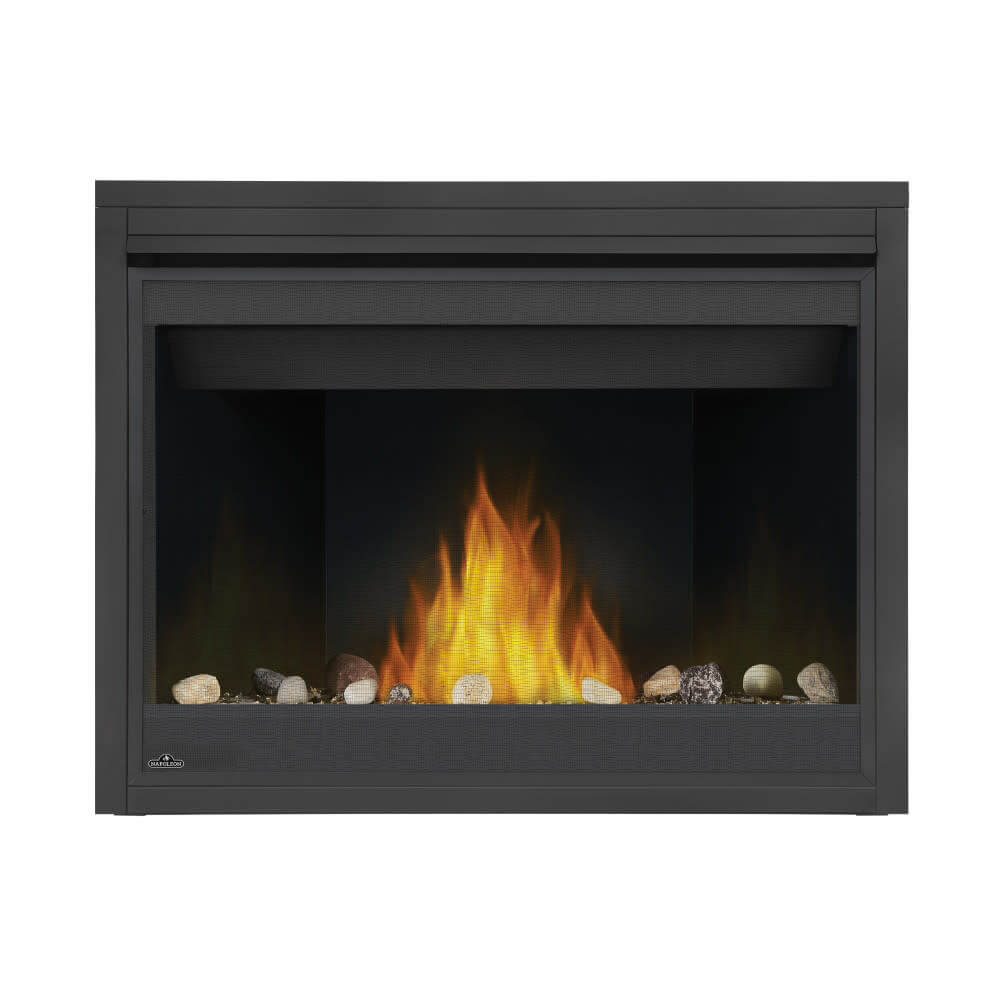

• Optional media enhancement kits include Beach Fire, Shore Fire and Mineral Rocks
• Dimensions: 34 5/8"H x 46"W x 18 5/16"D
• Glass Size: 23 11/16"h x 41 11/16"w

*Please Note: All Units are in Natural Gas. If Propane is required - Please order Conversion Kit from optional Accessories.

Available Model:

• Napoleon 30" Ascent B30 Direct Vent Gas Fireplace
• Napoleon B36 Ascent 36" Direct Vent Gas Fireplace
• Napoleon B42 Ascent 42" Direct Vent Gas Fireplace
• Napoleon B46 Ascent 46" Direct Vent Gas Fireplace



Options & Accessories

Click to see Panels

Click to see Decorative Fronts

*Note: Safety Screen Included for FREE, optional fronts are below

	H46F Heritage Decorative Front 12 lbs Classic black finish Custom made for B346 fireplaces Guaranteed Napoleon quality
	Z46F Zen Decorative Front 12 lbs Zen Decorative Front Black finish Napoleon quality

Click to see Decorative Trim Kit

Premium 3" Bevelled Trim Kit-BT46K Color: Black 3" thick Sleek, black beveled finish trim For use with 46" Ascent gas fireplace

Click to see Decorative Media

	BFKS Napoleon Beach Fire Kit (Recommended with Shore Fire Kit)
	SFKM Napoleon Shore Fire Kit, Mixture of Rocks, Sand, Vermiculite & Glass (Includes Tray)
	MRKM Napoleon Mineral Rock Kit (Recommended with Shore Fire Kit)
	RR42 Support Bracket This component helps to support the DLE and REK media kits for the gas fireplaces to ensure safe and proper installation.
	W361-0239-BULK Ambient-Glow Embers - Pack of 50 Type: Embers Fireplace Media Master Pack of 50 Ambient-Glow Fireplace Embers A great complement to your existing outdoor heating appliance Enjoy the cool night around the fire with no smell and smoke

Click to see Control Options

• F45 Remote Control, On/Off with Digital Screen

The remote provides convenient on/off control of a Napoleon appliance and features convenient battery-operated, hand-held design. You can check out the function on an easy-to-read digital screen, making the F45 remote one of the most versatile, user-friendly remotes on the market. Includes: Transmitter remote, remote cradle, receiver box, wall plate, wires with connectors, batteries, and instruction manual

• F60 Remote Control, Thermostatic On/Off with Digital Screen

With this remote you get on/off thermostatic control, battery-operated, hand-held design, and an easy-to-read digital screen. The 2-degree temperature swing reduces that annoying short on/off cycling, and it can be set to check the room temperature every 60 seconds and react accordingly. Simplicity, function, and value make the F60 a great choice for your Napoleon appliance Includes: Transmitter remote, remote cradle, receiver box, wall plate, wires with connectors, batteries, and instruction manual

• W660-0081 Wall-Mounted Digital Thermostat

Napoleon W660-0081 Wall Mounted Digital Thermostat Thermostat gives homeowner greater control of temperature Mounts easily on the wall for easy access Digital readout makes operation a snap Temperature control for greater comfort level

Click to see Heat Circulation Option

AUB Universal Blower Kit Type: Blower Variable Speed Thermostatic Control Serious energy savings Napoleon AUB Ascent Universal Blower Kit Includes blower kit, temperature sensor and rheostat control Intended for use with Ascent series fireplaces

Hot Air Distribution Kit-GA-566 With this Napoleon Hot Air Distribution Kit you can maximize the heating capability of your Napoleon direct vent fireplace.It manages heat produced by the fireplace by expelling it safely and efficiently into the areas of the home that you wish to heat. Maximizes house-wide heating efficiency For use with a variety of Napoleon fireplaces Includes all assembly items for an easy and secure installation Effectively distributes hot air from unit to heat adjacent rooms

Hot Air Exhaust Kit - GA-72 Hot Air Exhaust Kit This Napoleon Hot Air Distribution for Gas Fireplaces is an exterior vent termination that provides convenient air circulation for any gas fireplace. Napoleon Hot Air Distribution Vent for Gas Fireplaces Includes an exhaust kit for installation Exterior vent termination GA-566 also required

Click to see Power Vent Accessories

GPV Power Vent Kit Ideal for situations where standard direct vent configurations aren't possible Allows vent terminations to be above or below the fireplace Can "snake" around obstacles Extends from 10 to 110 ft. Includes a 20 ft. cord/wire harness and electronic junction control box Suitable for use with some direct vent Napoleon fireplaces that require 4" x 7" venting systems *Note: The GPV Power Vent Terminal must be used in conjunction with an adaptor.

Power Vent Adaptor Kit

Conversion Kit

Napoleon Conversion Kit - Natural Gas to Propane

Warranty

Napoleon Gas Appliance President’s Lifetime Limited Warranty

Refer to product manual for full warranty details.

Downloads

• Download Product Brochure
• Download Product Installation Instructions
• Download Product Size Chart
