Napoleon Ascent 45" Multi-View Direct Vent See-Thru Gas Fireplace with Fire Cradle

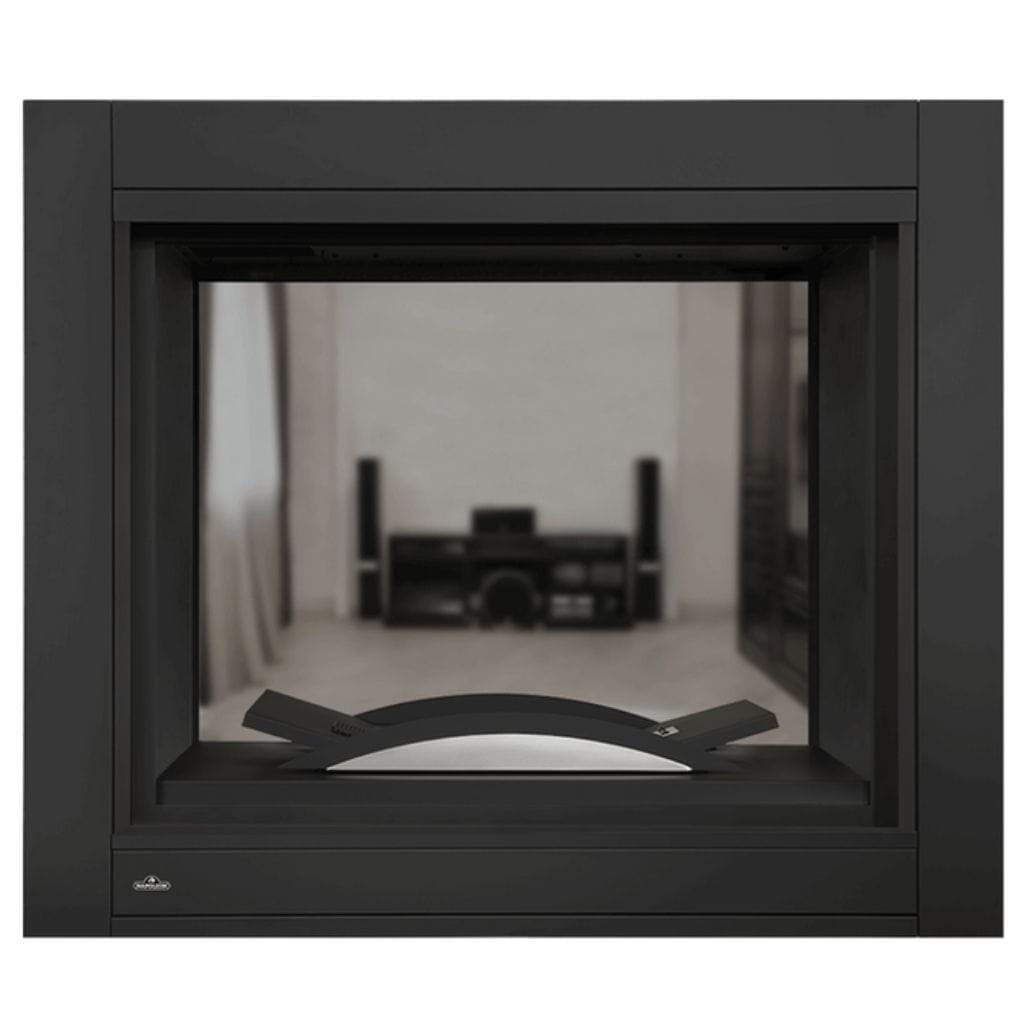

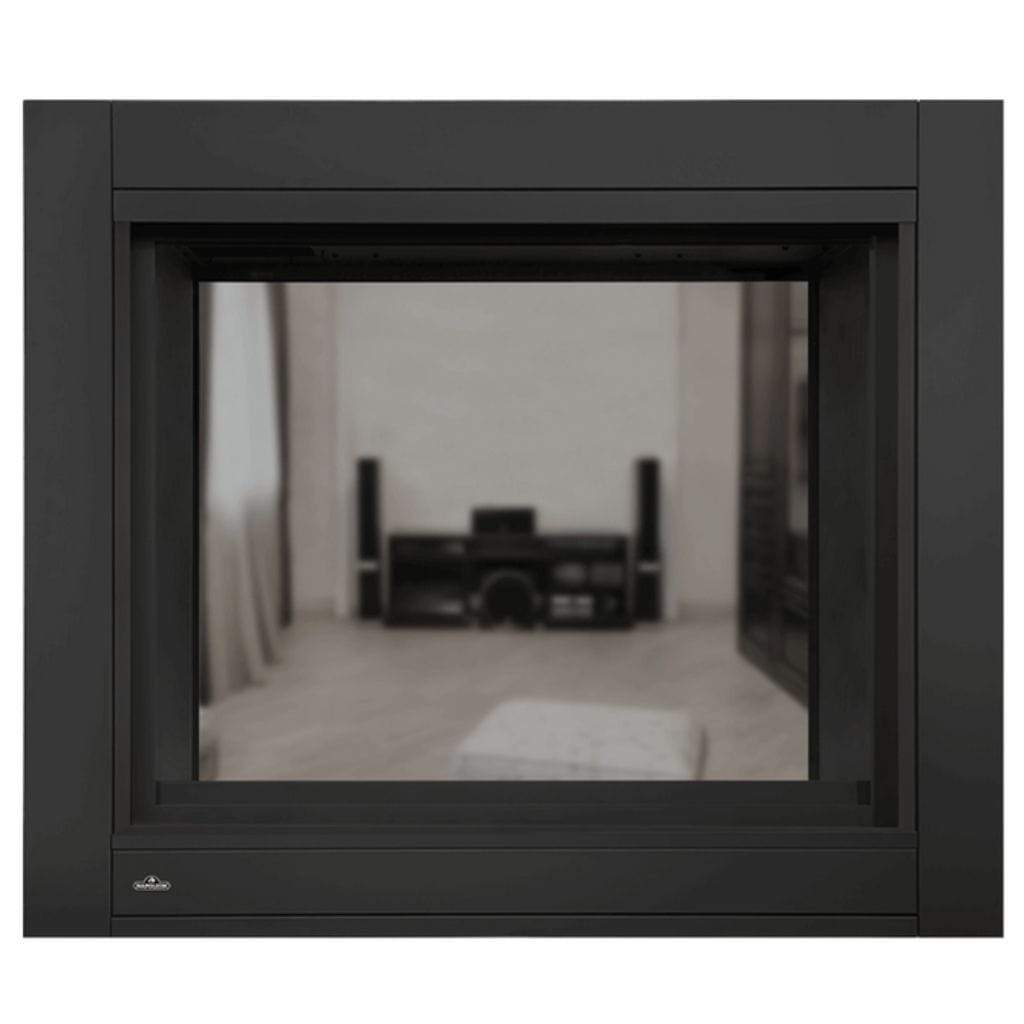

Napoleon Ascent 45" Multi-View Direct Vent See-Thru Gas Fireplace with Fire Cradle

Regular price $5,499.00
Regular price Sale price $5,499.00
Sale Sold out
Shipping calculated at checkout.

Panel

2 Sets

-- Please Select --

MIRRO-FLAME Porcelain Reflective Radiant End Panels (2 Pieces)

No, Thank You

Conversion Kit

-- Please Select --

Natural Gas to Propane

No, Thank You

Modulating Valve Regulator with Remote Control

-- Please Select --

Modulating Valve Regulator with Remote Control (Natural)

Modulating Valve Regulator with Remote Control (Propane)

No, Thank You

Mineral Rock Kit

-- Please Select --

Mineral Rock Kit

No, Thank You

Ambient-Glow Embers

Pack of 50

-- Please Select --

Ambient-Glow Embers (Pack of 50)

No, Thank You

Thurmalox Black Paint

Case of 12

-- Please Select --

Black Paint, Thurmalox 13oz (Case of 12)

No, Thank You

Control Options

-- Please Select --

On/Off Remote Control with Digital Screen

Thermostatic On/Off with Digital Screen

Wall-Mounted Digital Thermostat

No, Thank You

Power Vent Options

Power Vent Kit
Power Vent Adaptor Kit

Glass Embers Media Kit (5 lb.)

Red Glass Ember
Blue Glass Ember
Amber Glass Ember
Clear Glass Ember
Black Glass Ember
Topaz Glass Ember

Glass Beads Media Kit (5 lb.)

Amber Glass Beads
Blue Glass Beads
Clear Glass Beads
Black Glass Beads
Topaz Glass Beads
Red Glass Beads
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Direct Vent Gas Fireplaces

Direct Vent Gas Fireplaces burn natural gas to create heat and flames. They are versatile and easy to install. Enjoy a Direct Vent Gas Fireplace in the living room, bedroom, the basement, kitchen, bathroom, den, and even the home office – wherever you want to enjoy the comfort and warmth of a fire. Direct Vent Gas Fireplaces average about five times more efficient than traditional fireplaces while maintaining air quality and evenly distributing heat throughout a space. Installation eliminates drafts because the unit is completely sealed and requires no chimney for venting, also ensuring that no gases are released into the home. Cooler air is drawn into the firebox from the outside, which then efficiently pushes the hot air inside the box out through the venting. Indoor air is pulled in and circulated around the outside of the box that is heated by the fire and moved into the room for cozy heat. One of the best parts about a Direct Vent Gas Fireplace is that they do not require electricity to operate. Instead batteries or a self-sufficient control can light the fireplace in the event of a power outage, ensuring light and warmth.

Ascent Multi-View

The Napoleon Ascent Multi-View Gas Fireplace is available as a See Through or a three-sided Peninsula. It features various firebox and burner options to elevate the style in any room of your home. This gas fireplace easily warms large spaces and the clean face design ensures the fire remains the focal point. There are multiple firebox configurations and an electronic ignition with battery back-up. Media kits and decorative panels are available to create the perfect backdrop in every room.

Ascent See Through Gas Fireplace with Fire Cradle

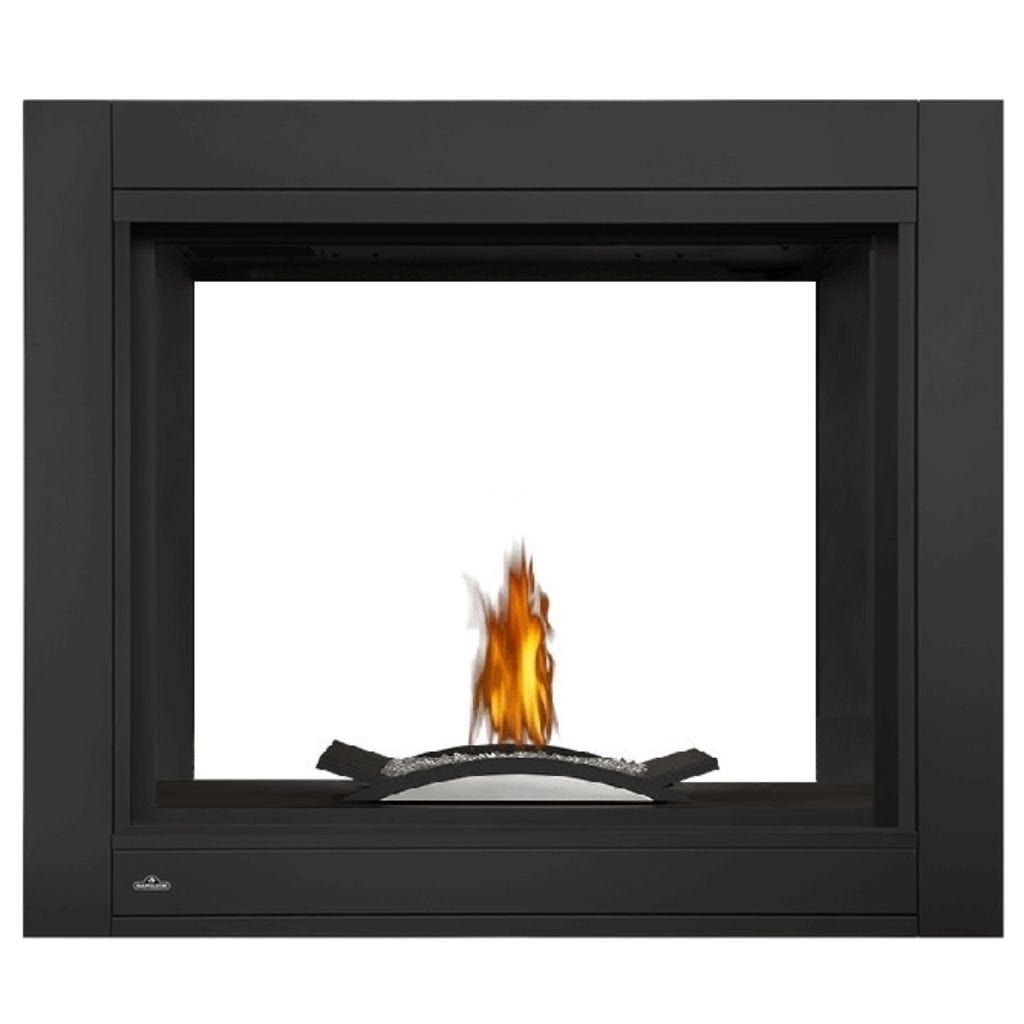

The Napoleon Ascent™ Multi-View See Through gas fireplace with Fire Cradle features sparkling topaz glass embers that will add a classy and contemporary focal point to any room. This gas fireplace offers massive views of the fire from two sides and electronic ignition with battery back-up. The Ascent™ Multi-View is easily able to heat large areas. Colored glass media kits, decorative fire art, and decorative panels are available to customize the style of this gas fireplace.

Multi-View Fireplace

Enjoy the warmth and light of a fireplace in two separate spaces.

Stylishly Modern

A unique bed of glass crystals cradle the flames for an extraordinary fireplace experience.

Choose to Sparkle

Customize your ember bed by adding amber, black, blue, clear, or topaz glass to perfect the look of your fireplace.


Sparkling Elements

Sparkling glass beads or embers that add a brilliance, reflecting the dancing flames.

Set the Scene

From traditional to contemporary, these back panels set the scene for your fireplace delight.

Beautiful Fire with the Push of a Button

Optional remote with optimized performance and easy to read display easily controls the fireplace.

*Please Note:

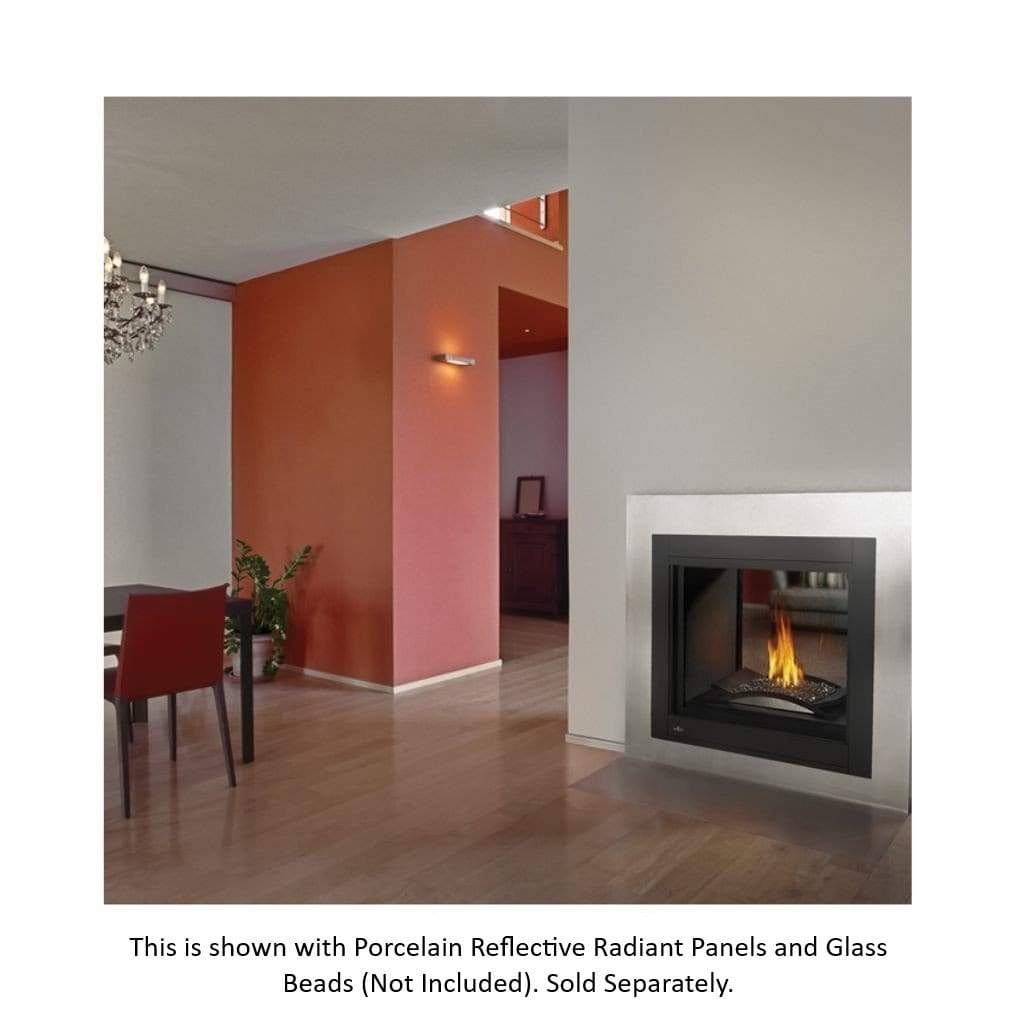

  • This is shown with Porcelain Reflective Radiant Panels and Glass Beads (Not Included). Sold Separately.
  • This unit is in Natural gas and for Propane, conversion kit is also available and sold separately.
  • Please check the accessories section to view more options.

Features

  • Available in a See-Thru or Peninsula with Fire Cradle
  • Up to 30,000 BTU's
  • See-Thru with Fire Cradle
  • Presidents limited lifetime warranty
  • Optional Newport™ deluxe decorative brick panels or MIRRO-FLAME™ porcelain reflective radiant panels
  • Safety screen included
  • AMBIENT-GLOW metal fibers

CA Residents: See Prop 65 WARNING.

Specifications

Model BHD4 (See-Thru with Fire Cradle)
Height
38.25in
Width
45in
Depth
25.13in
Style
See-Through
Fuel Type
Gas
Vent Type Direct Vent
Vent Size 5 x 8
Ignition Type Electronic
Installation Type Zero Clearance
Vent Inner Diameter 5 Inches
Vent Outer Diameter 8 Inches
Max / Min BTU's - Natural Gas 30,000 / 23,000
Max / Min BTU's - Propane 30,000 / 23,000


Options & Accessories

MIRRO-FLAME™ Porcelain Reflective Radiant Panels

  • Black porcelain panels enhance the appearance of the gas fireplace
  • End porcelain panel kit
  • Fireplace Accessory
  • Built to last
  • Elegant Look
  • Please Note: ( 2-piece required for See-Through unit)

Click to see Decorative Glass Ember Media


MKGA
  • Media kit: Glass Embers - Amber


MKGB
  • Media kit: Glass Embers - Blue


MKGC
  • Media kit: Glass Embers - Clear



MKGK
  • Media kit: Glass Embers - Black

MKGR
  • Media kit: Glass Embers - Red

MKGT
  • Media kit: Glass Embers - Topaz


Click to see Decorative Glass Beads Media


MKBA
  • Media kit: Glass Beads - Amber


MKBB
  • Media kit: Glass Beads - Blue


MKBC

  • Media kit: Glass Beads - Clear


MKBK
  • Media kit: Glass Beads - Black


MKBT
  • Media kit: Glass Beads - Topaz


Click to see Power Vent Accessories

GPV Power Vent Kit
  • Ideal for situations where standard direct vent configurations aren't possible
  • Allows vent terminations to be above or below the fireplace
  • Can "snake" around obstacles
  • Extends from 10 to 110 ft.
  • Includes a 20 ft. cord/wire harness and electronic junction control box
  • Suitable for use with some direct vent Napoleon fireplaces that require 4" x 7" venting systems

*Note: The GPV Power Vent Terminal must be used in conjunction with an adaptor.

Power Vent Adaptor Kit

Click to see Control Options



Wall Mount Digital Thermostat (W660-0081)
  • Napoleon W660-0081 Wall Mounted Digital Thermostat
  • Thermostat gives homeowner greater control of temperature
  • Mounts easily on the wall for easy access
  • Digital readout makes operation a snap
  • Temperature control for greater comfort level



Remote Control, On/Off with Digital Screen (F45)

The remote provides convenient on/off control of a Napoleon appliance and features a convenient battery-operated, hand-held design. You can check out the function on an easy-to-read digital screen, making the F45 remote one of the most versatile, user-friendly remotes on the market.

Includes: Transmitter remote, remote cradle, receiver box, wall plate, wires with connectors, batteries, and instruction manual


Remote Control, Thermostatic On/Off with Digital Screen (F60)

With this remote, you get on/off thermostatic control, battery-operated, hand-held design, and an easy-to-read digital screen. The 2-degree temperature swing reduces that annoying short on/off cycling, and it can be set to check the room temperature every 60 seconds and react accordingly. Simplicity, function, and value make the F60 a great choice for your Napoleon appliance

Includes: Transmitter remote, remote cradle, receiver box, wall plate, wires with connectors, batteries, and instruction manual



Ambient-Glow Embers - Pack of 50

  • Type: Embers
  • Fireplace media
  • Master pack of 50
  • Ambient-glow fireplace embers
  • A great complement to your existing outdoor heating appliance
  • Enjoy the cool night around the fire with no smell and smoke



Thurmalox Black Stove Paint

  • Type: Paint
  • Thurmalox Black Paint
  • Case of 12 (13 oz)


Modulating Valve Regulator with Remote Control (Natural / Propane)

  • Type: Regulator
  • Modulating valve regulator with remote control
  • Fireplace Accessory
  • Modulating valve regulator
  • Remote control
  • Natural gas or propane options



Conversion Kit - Natural Gas To Propane
  • Convert from Natural Gas to Liquid Propane
  • Simple Installation

Warranty

Napoleon Gas Appliance President’s Lifetime Limited Warranty

Refer to product manual for full warranty details.
