Highly efficient. Self-contained. Gas Fireplace inserts are an easy solution for replacing an old, existing Wood-Burning Fireplace opening. These inserts require little in the way of maintenance and are far more efficient than the fireplaces they are replacing, Gas Fireplace Inserts vent exclusively out of the chimney which will eradicate drafts, increasing your home’s efficiency. Their smaller stature is because they are a singular, self-contained unit. This makes installation easier, less expensive. Nearly endless choices when it comes to design and décor provide both traditional looks with logs and more contemporary looks with glass and other media. Surrounds can accentuate the design you are going for, creating the perfect focal point for any space.
SKU:GDIX3N-1

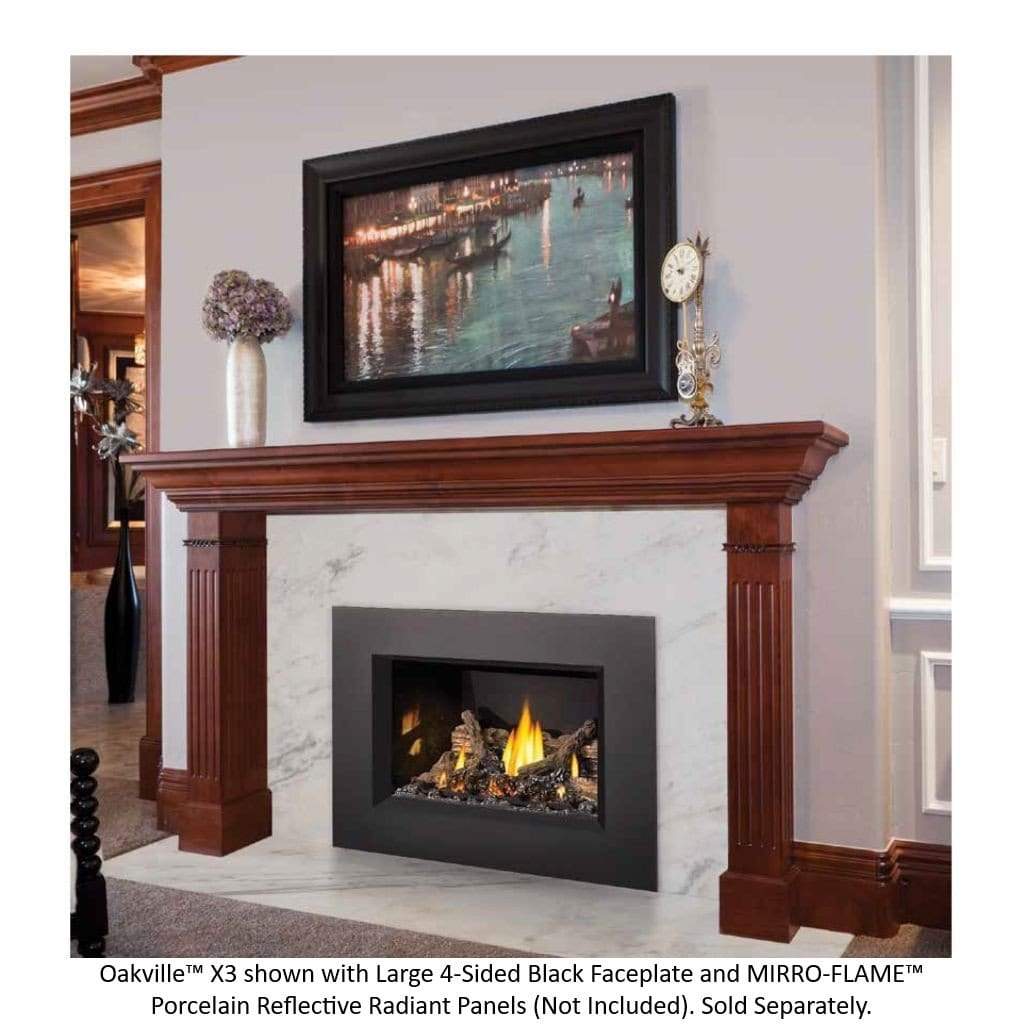

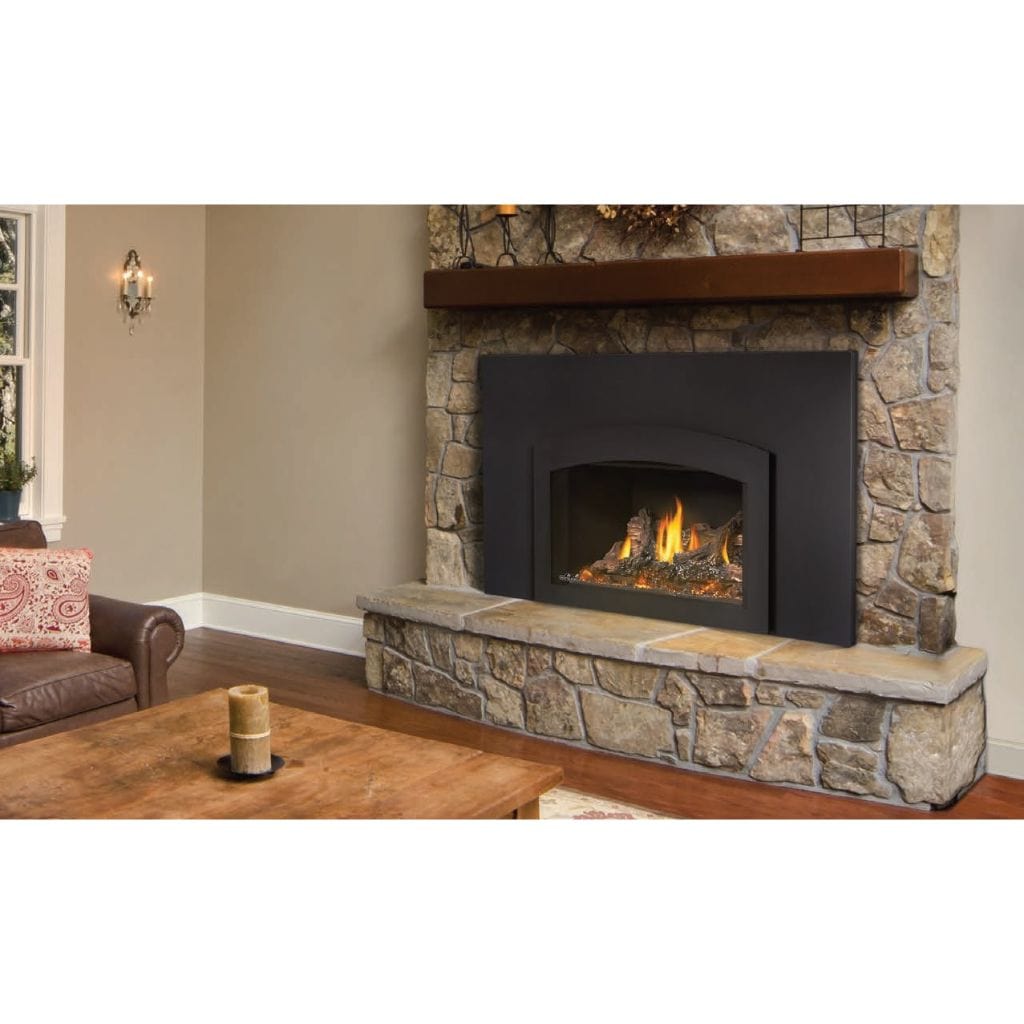

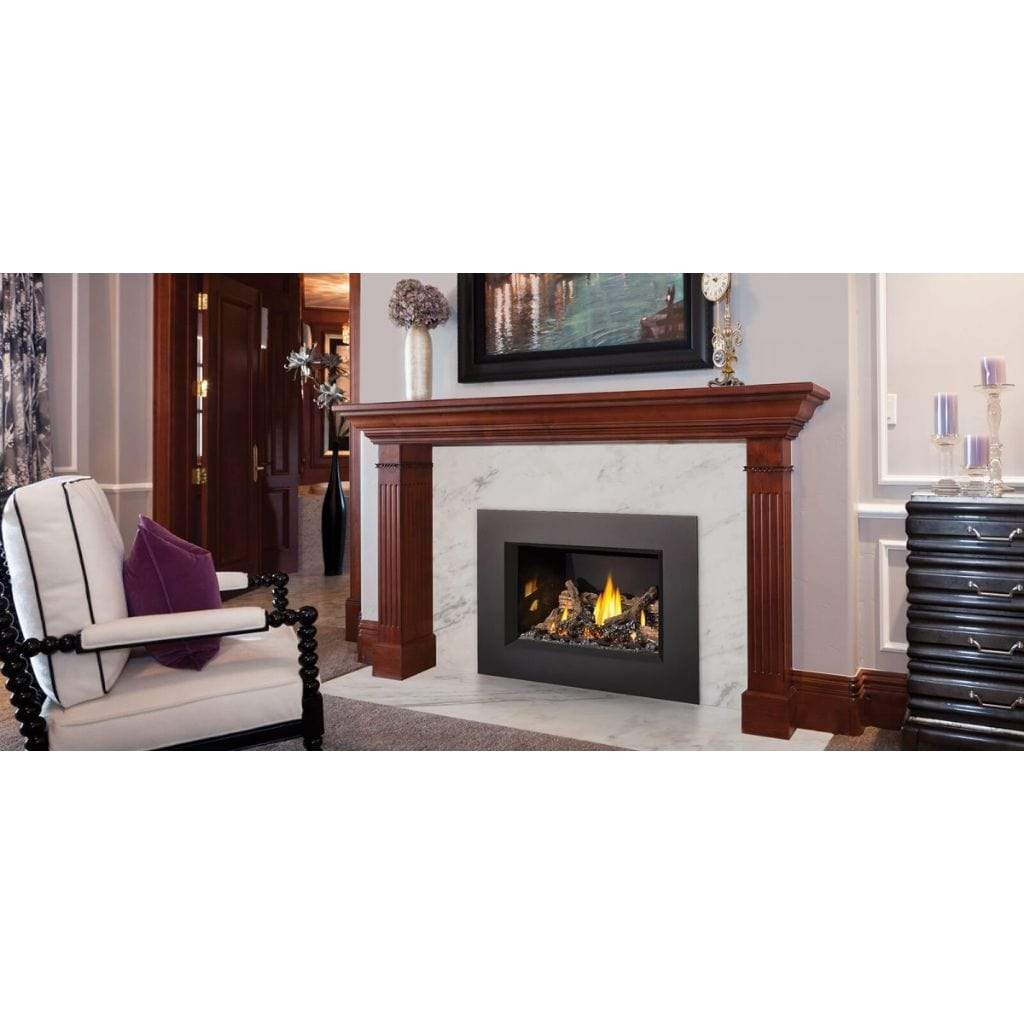

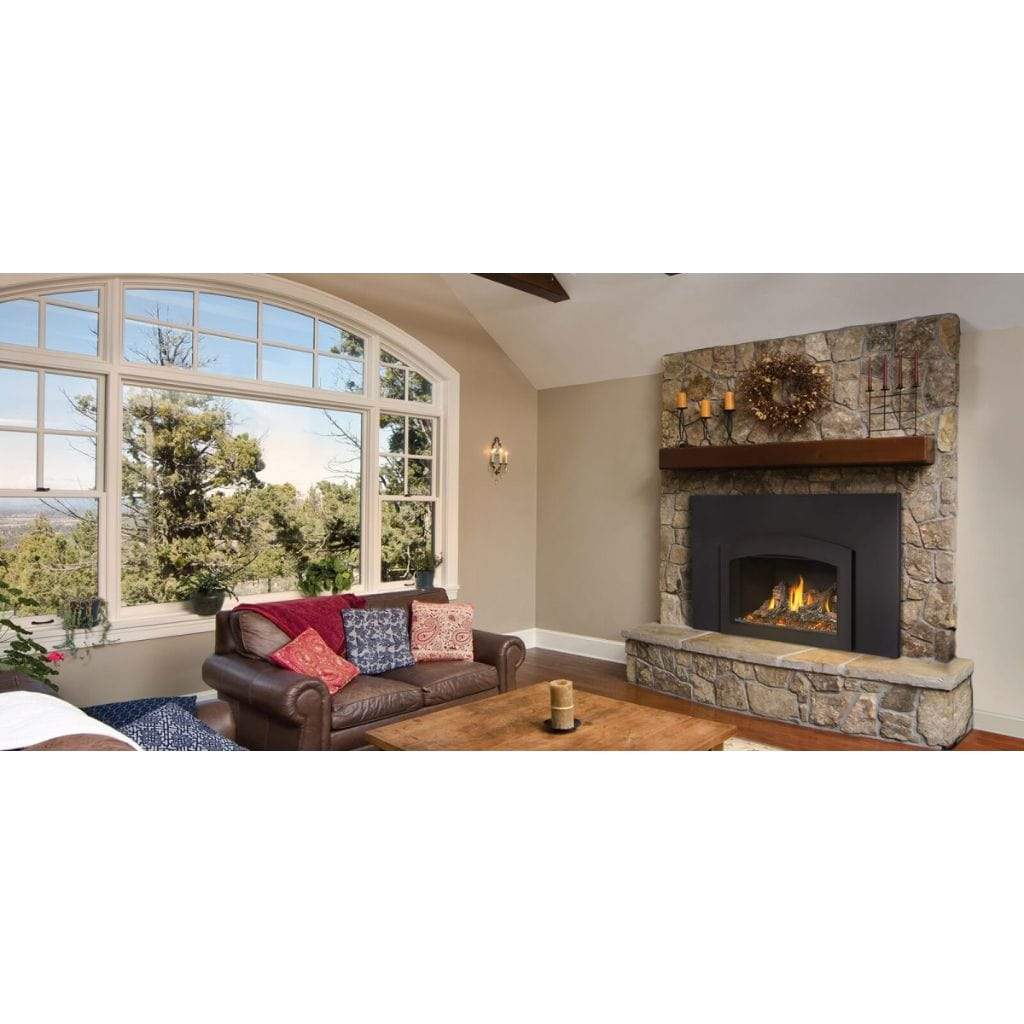

Napoleon 29" Oakville X3 Direct Vent Gas Fireplace Insert
Napoleon 29" Oakville X3 Direct Vent Gas Fireplace Insert
Regular price
$3,399.00
Regular price
Sale price
$3,399.00
Unit price
per
Shipping calculated at checkout.
Decorative Panels
-- Please Select --
MIRRO-FLAME Porcelain Reflective Radiant Panels
Newport Standard Brick Panels
Old Town Red Standard Brick Panels
Westminster Grey Standard Brick Panels
No, Thank You
Log Set
-- Please Select --
Birch Log Set
Driftwood Log Set
No, Thank You
Surround
-- Please Select --
Black Cast Iron Surround
No, Thank You
Backerplate
-- Please Select --
Small 3 Sided Backerplate - Black
Medium 3 Sided Backerplate - Black
Large 3 Sided Backerplate - Black
Large 4 Sided Backerplate - Black
No, Thank You
Faceplate
-- Please Select --
Small 3 Sided Faceplate - Black (for use with 3 sided backerplate)
Small 3 Sided Faceplate - Copper (for use with 3 sided backerplate)
Small 3 Sided Faceplate - Gun Metal (for use with 3 sided backerplate)
Small 3 Sided Faceplate - Charcoal (for use with 3 sided backerplate)
Small 4 Sided Faceplate - Black (for use with 3 sided backerplate)
Small 4 Sided Faceplate - Copper (for use with 3 sided backerplate)
Small 4 Sided Faceplate - Gun Metal (for use with 3 sided backerplate)
Small 4 Sided Faceplate - Charcoal (for use with 3 sided backerplate)
Small 4 Sided Faceplate - Black (for use with 4 sided backerplate)
Small 4 Sided Faceplate - Copper (for use with 4 sided backerplate)
Small 4 Sided Faceplate - Gun Metal (for use with 4 sided backerplate)
Small 4 Sided Faceplate - Charcoal (for use with 4 sided backerplate)
Small Arched 4 Sided Faceplate - Black (for use with 3 sided backerplate)
Small Arched 4 Sided Faceplate - Copper (for use with 3 sided backerplate)
Small Arched 4 Sided Faceplate - Gun Metal (for use with 3 sided backerplate)
Small Arched 4 Sided Faceplate - Charcoal (for use with 3 sided backerplate)
Large 3 Sided Faceplate - Black (for use with 3 sided backerplate)
Large 3 Sided Faceplate - Copper (for use with 3 sided backerplate)
Large 3 Sided Faceplate - Gun Metal (for use with 3 sided backerplate)
Large 3 Sided Faceplate - Charcoal (for use with 3 sided backerplate)
Large 4 Sided Faceplate - Black (for use with 4 sided backerplate)
Large 4 Sided Faceplate - Charcoal
Large 4 Sided Faceplate - Gun Metal
Large 4 Sided Faceplate - Copper (for use with 4 sided backerplate)
No, Thank You
Conversion Kit
-- Please Select --
Natural Gas to Propane
Propane to Natural Gas
No, Thank You
Riser Box
-- Please Select --
Riser Box (3" H x 48" W)
No, Thank You
Thurmalox Black Paint
Case of 12
-- Please Select --
Black Paint, Thurmalox 13oz (Case of 12)
No, Thank You
Blower Kit
-- Please Select --
Blower Kit
No, Thank You
Remote Control
Wall Mount
-- Please Select --
Wall Mount Remote Control
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Gas Inserts
The Oakville™ Series Gas Inserts feature a robust "H" style burner which provides a brilliant display of flames throughout the firebox. Designed with ease of installation in mind, these inserts go in quickly and smoothly. A multitude of designer accessories offer thousands of different styled combinations. A clean face design and large viewing area make the Oakville™ Series the aesthetic choice while the performance and reliability make them the only choice when it comes to an insert!
Oakville™ X3
The Oakville™ is a deluxe Gas Fireplace Insert offering the same quality features as the Oakville™ and includes a thermostatic remote, the exclusive NIGHT LIGHT™ detail that radiates a warm glow throughout the room, even when the fireplace is off. This unit has an exclusive dual burner split-flow system that results in a firebox filled with a stunning triple flame pattern and allows the option of independently operating the front and rear burners. The Oakville™ provides additional BTU's for added heat. Directional baffles increase airflow to help drive the heat throughout your home for maximum efficiency. The perfect solution for replacing and updating an inefficient old masonry setting. This insert also comes equipped with eFIRE Bluetooth technology for your added convenience.
Set the Scene
From traditional to contemporary, these back panels set the scene for your fireplace delight.
Art Needs a Frame
Four sided faceplates are available in four different styles and four colours - black, copper, gunmetal, and charcoal.
Art Needs a Frame
Three sided faceplates are available in two sizes and four colours - black, copper, gunmetal, and charcoal.
Cozy Comfort
Backerplates create a more traditional hearth-like appearance. Available in small/medium/large three-sided, or large four-sided.
Art Needs a Frame
Supremely traditional cast iron surround adds a more masonry feel to the Oakville™ inserts.
No Power, No Problem
In the event of a loss of power, your fireplace will still light and keep you warm.
*Please Note:
- This unit is in Natural Gas (LP kit sold separately).
- Interior panels are required to complete this unit sold separately.
- Please check the accessories section to view more options.
Features
-
Up to 30,000 BTU's
-
High Performance “H” Style Burner Provides Complete Firebox Width Flame Display
-
Clean Face Design And Flush Finish Accessories
-
21" H X 29" W X 17 1/8" D
-
Full view design with a massive 340 sq. in. viewing area
-
SIT Proflame II electronic ignition
-
Exclusive NIGHT LIGHT™ included
-
Premium clean face safety barrier maximizes viewing area
-
Directional baffles increase air flow for maximum blower efficiency
-
Clean contemporary faceplates and backerplates available
-
Wide range of media kits, brick panels and porcelain panels available
-
Superior heat circulating blower available
-
Optional faceplates 2.5" and 5" widths, in 3-sided or 4-sided configurations
- 45’ vent kit available
CA Residents: See Prop 65 WARNING.
Specifications
| Model | GDIX3 |
| Height |
20.94in
|
| Width |
28.63in
|
| Depth |
18.31in
|
| Style |
Traditional
|
| Fuel Type |
Natural Gas |
| Vent Type | Direct Vent |
| Vent Size | 3 x 3 |
| Ignition Type | Electronic |
| Installation Type | Insert |
| Vent Inner Diameter | 3 Inches |
| Vent Outer Diameter | 3 Inches |
| Max / Min (BTU/HR) - Natural Gas | 30,000 / 18,540 |
| Max / Min (BTU/HR) - Propane | 30,000 / 18,540 |
Options & Accessories
Click to see Decorative Panels (Required)
|
|
|
|
|
Decorative Brick Panels Westminster™ Standard
|
 |
Decorative Brick Panels Newport™ Standard
|
 |
MIRRO-FLAME™ Porcelain Reflective Radiant Panels
|
Click to see Log Set
|
|
|
|
|
Driftwood Log Set
|
Click to see Faceplate
|
|
|
|
|
|
|
|
Small 4 Sided Faceplate (for use with 4 sided backerplate)
|
|
|
|
|
|
|
|
|
Large 4 Sided Faceplate (for use with 4 sided backerplate)
|
Click to see Backerplate
|
|
|
|
|
|
|
|
Black Cast Iron Surround (CISI3BK)
|
|
|
Conversion Kit
|
|
|
Thurmalox Black Stove Paint
|
|
|
Riser Box
|
|
|
Blower Kit
|
Control Options
 |
Wall Mount Control (W660-0160)
The anti-condensation switch is intended for Napoleon's gas appliances with the SIT ipi gas valve in order to keep the pilot lit to reduce condensation within the firebox, preventing rust or other complications that can occur. |
Warranty
Napoleon President’s Lifetime Limited Warranty
Refer to the product manual for full warranty details.
Downloads
- Download Product Brochure
- Download Product Features
- Download Product Installer Piece
- Download Installation Instructions
- Download Product Owner's Manual
- Download Product Specification Sheet
- Download Riser Kit Installation Instructions
- Download Blower Installation Instructions
- Download Brick Panels Installation Instructions
- Download Backer Plate Installation Instructions
- Download Porcelain Panel Installation Instructions
- Download Birch Log Set Installation Instructions
- Download Driftwood Log Set Installation Instructions
- Download Cast Iron Surround Installation Instructions
- Download 3 or 4 Sided Faceplate Installation Instructions
