SKU:MCUF42D-R

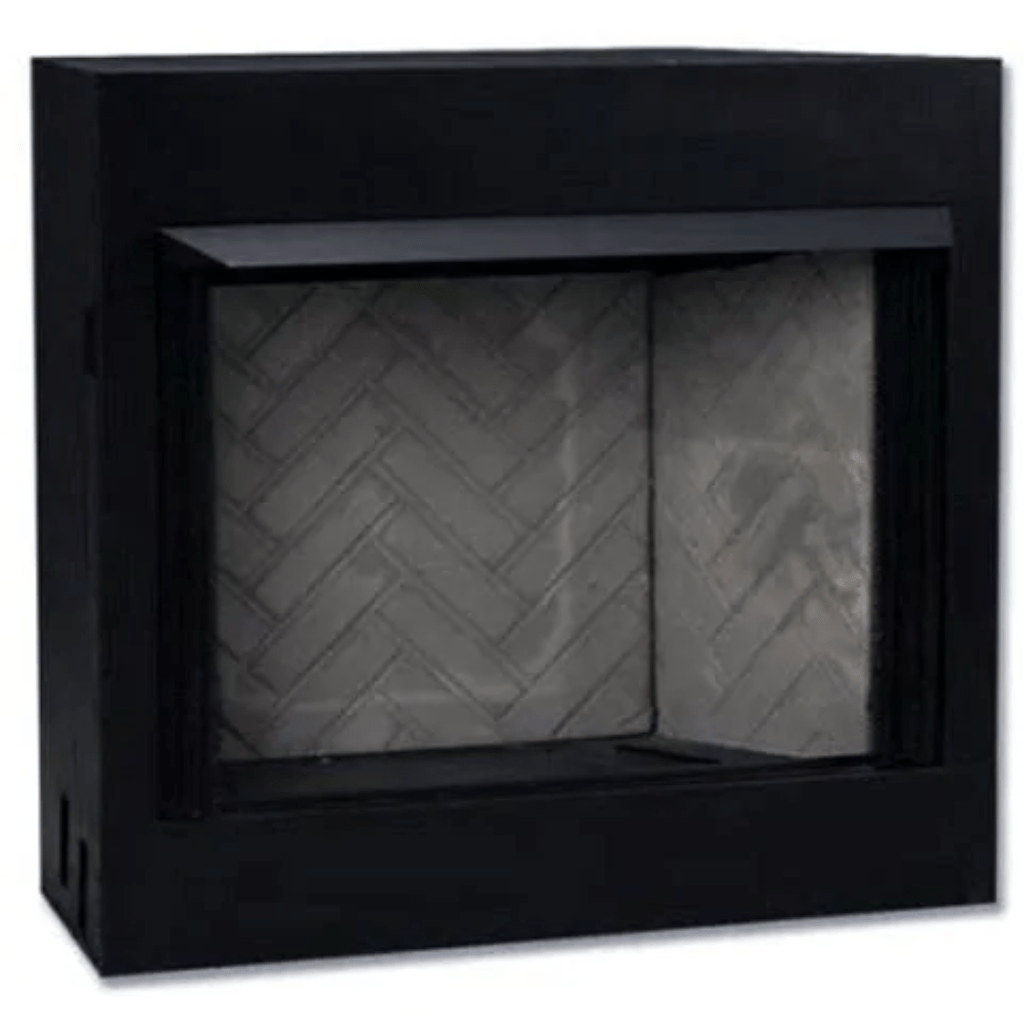

Monessen 42" Magnum Vent Free Firebox With Herringbone Refractory Firebrick
Monessen 42" Magnum Vent Free Firebox With Herringbone Refractory Firebrick
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
MAGNUM VENT FREE GAS FIREBOX
The Magnum firebox series offers Monessen's trademark angled firebox design coupled with a deep box and tall opening for maximum heating capacity. Finish your fireplace right up to the firebox with the material of your choice and add the log set you love for a perfect custom look.
See how easy it is to incorporate the timeless elegance and satisfying warmth of fire into your home with the vent free firebox series from Monessen.
Our Magnum MCUF series is available in either 36 or 42 inch sizes with your choice of standard 3D ceramic or Herringbone Firebrick. With radiant design and a wide variety of optional accessories, you can frame your fireplace right up to the firebox and finish it with a custom look.
A Monessen vent free firebox is the perfect way to display and operate your Monessen vent free log set. While our log sets can be utilized in an existing approved wood-burning fireplace (converted with a gas line), if your home does not already have an existing fireplace, a vent free firebox is an economical way to add a fireplace to your home. Installed in either your wall or a free-standing cabinet, a vent free firebox is simply the metal combustion chamber of a traditional fireplace system, without the log set and engine. You then add the vent free log set (with engine) of your choice to complete it.
Monessen offers one of the most diverse lineups of vent free gas fireboxes available, making it easy to find the right look for your home. Enjoy beautiful flames, excellent heating, and a customized look with the addition of your choice of Monessen log sets.
Because vent-free fireboxes and log sets are designed to be installed and operated without a chimney, flue, or vent, they can be installed in locations in your home where it would be impossible or cost-prohibitive to install a vented fireplace. They provide the most economical installation, only requiring a connection to a gas line.
Monessen vent free fireboxes allow for zero clearance installation, which means they may be installed flush against any combustible surface such as drywall or wood. This gives you added flexibility and helps save installation dollars when deciding where to install your fireplace, whether on an interior or exterior wall. (It is important to remember that the appliance should be sized to fit the area in which it is to be installed and must meet any additional regional or local requirements.
Monessen offers a large selection of vent-free log sets (sold separately) that are a perfect complement to your new fireplace.
FEATURES
- Black hood
- Junction box
- True masonry look
- Mesh curtain screens
- CSA Design certified
- Herringbone refractory firebrick standard
- Can be used with most 24" and 30" vent-free logs
- Radiant face design with heat circulating air ducts for optional blower
- Available facing options include Perimeter Trims, Classic Arched Faces, and Cabinet Doors with Screen
* Please Note: Log sets are not included and must be ordered separately.
* Please Note: Operable doors and front may be used together or alone.
* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.
PRODUCT SPECIFICATIONS
| Magnum 42 | MCUF42D-R |
|---|---|
| Size: | 42 |
| Appliance Width: | 47" |
| Appliance Height: | 37-3/8" |
| Appliance Depth1: | 18-1/4" |
| Appliance Rear Width: | 38" |
| Hearth Front Width: | 38-5/8" |
| Hearth Front Height: | 25" |
| Hearth Depth: | 15" |
| Hearth Rear Width: | 31-3/4" |
| Hearth Rear Height: | 20 1/2" |
| Viewing Area: | 42 x 26-1/4" |
VENTING SPECIFICATIONS
- Vent-free units do not require any venting products
PRODUCT DIMENSIONS
- Overall dimensions - 47" W (front) x 37 5/8" H x 18 1/4" D x 38" W (rear)
- Rough framing dimensions - 47 1/4" W x 37 3/4" H x 17 3/4" D
- Minimum hearth dimensions - 38 1/4" W (front) x 25" H x 15" D x 32 1/4" W (rear)
- Weight - 180 lbs.

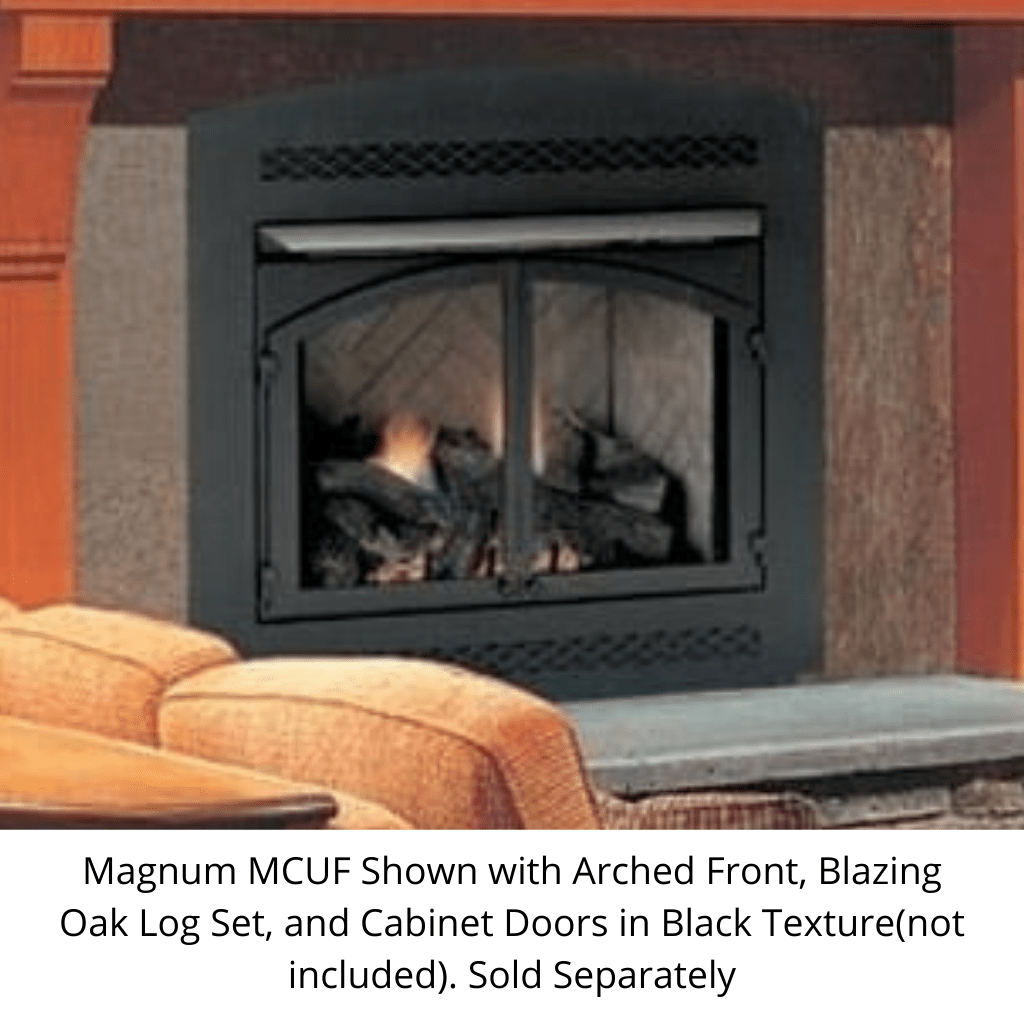

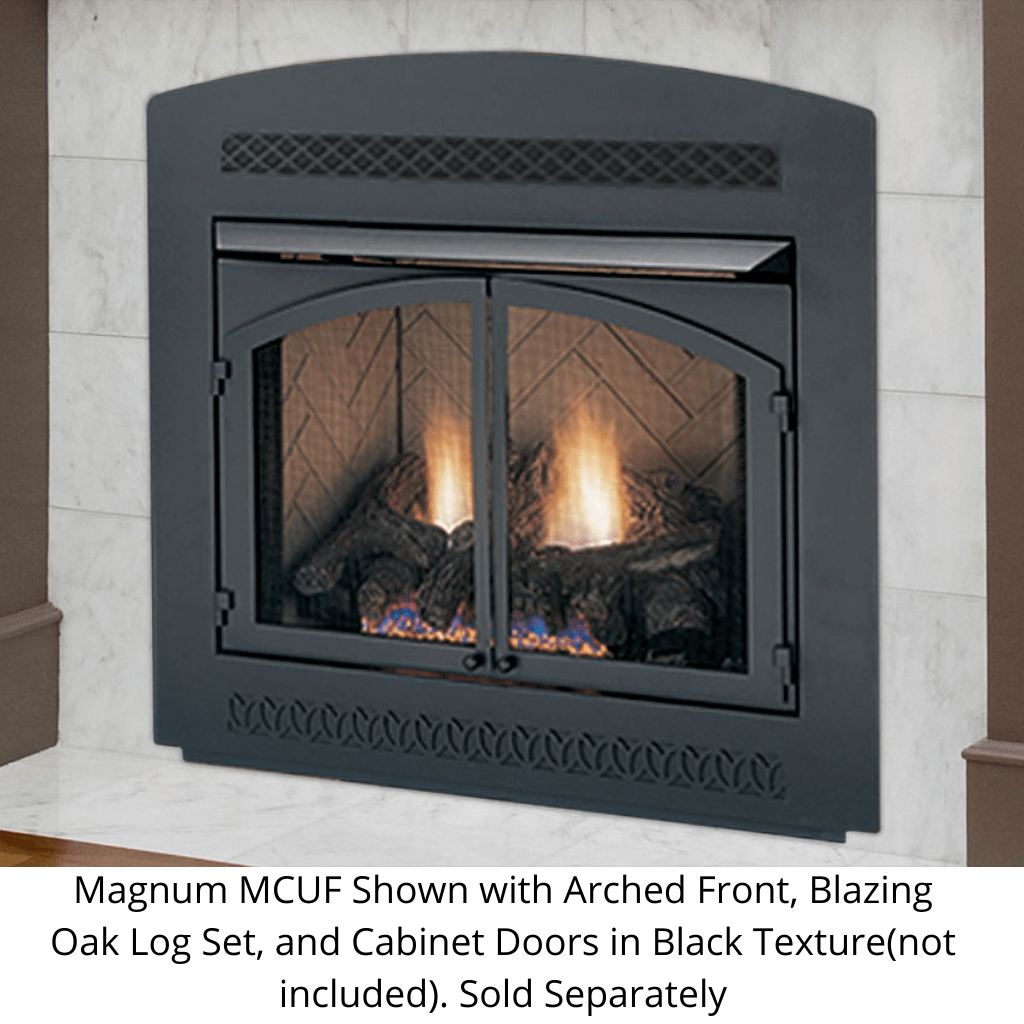

SHOWN WITH
- Black Hood (standard)
- Herringbone Firebrick Liner (standard)
- Black Classic Arched Front (optional)
- Cabinet Door Frame, Cabinet Doors w/ Screens (optional)
- 30" Aged Hickory Log and Burner set (optional)
- Custom Installation and Surround
CA Residents: See Prop 65 WARNING
CORNER INSTALLATION
FRONT VIEW
MINIMUM HEARTH DIMENSIONS
SIDE VIEW
TOP VIEW
OPTIONS & ACCESSORIES
Burners (Required to Complete)
Click to see Burners
 |
EYF24PM/EYF24NM/EYF24PV/EYF24NV Monessen popular EYF burner raise for dancing flames. Enjoy dancing, realistic flames with the EYF burner. The available EYF burner produces a fine yellow flame, heavy duty grate assembly adds an authentic touch. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
 |
GG24NV/GG24PV Glow Getter burner are available in 18" and 24" sizes, these burners feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
|
GG24NIF/GG24PIF Glow Getter burner are available in 18" and 24" sizes, these burners formats. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
 |
NB24NV/NB24PV Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas formats and feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
|
NB24NIF/NB24PIF Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
 |
PH24PM/PH24NM/PH24PV/PH24NV PH burner are available in 18" and 24" sizes, these burners feature manual control and come in both Natural Gas and Propane. Also available in remote-control ready burners come in both Natural Gas and Propane. Millivolt Control Valve comes with On/Off Switch and Manual Variable Flame Height Control. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
Logs (Required to Complete)
Click to see Logs
 |
EYF24-F
|
 |
EYF24-R
|
 |
EYF30-R
|
 |
CR24-H
|
 |
DY24-H
|
 |
MX24-H
|
 |
CR30-H
|
 |
DY30-H
|
 |
MX30-H
|
 |
BC24-R
|
 |
BO24-F
|
 |
BO24-R
|
 |
HO24-R
|
 |
SC24-R
|
|
BC30-R
|
|
BO30-F
|
|
BO30-R
|
|
HO30-R
|
|
SC30-R
|
 |
PH24R
|
|
PH30R
|
Log Accessories
Click to see Optional Log Accessories
 |
SC2430EK The Monessen 24" & 30" Stony Creek Vent Free Gas Log Set features the choice to add the two top log enhancement kit. This enhancement kit is priced reasonably and adds two additional logs to the very top of the stack to make a fuller look that goes well with larger fireplaces. Each log has been made with the utmost take care of a realistic, authentic look that you simply won't find anywhere else.
|
Accessories
Click to see Optional Fronts Door (Cabinet door frame is required for use with Cabinet Doors)
|
DMC42CDBT
* Please Note: In order to be properly installed, these doors require the separate purchase of the appropriately sized Monessen cabinet door frame Compatible with the following Monessen appliances
|
 |
DMD42CDFBT
* Please Note: In order to be properly installed, these doors require the separate purchase of the appropriately sized Monessen cabinet door frame Compatible with the following Monessen appliances
|
 |
GMD42AFBT
* Please Note: In order to be properly installed, these doors require the separate purchase of the appropriately sized Monessen cabinet door frame Compatible with the following Monessen appliances
|
Click to see Optional Air Blower
 |
BLOTMC
Compatible with the following Monessen appliances
|
Click to see Optional Air Kit
 |
AK4
Compatible with the following Monessen appliances
|
You Can Also Buy Available Marble, Granite & Slate with This Product
DOWNLOADS
