• Mason-Lite 63" Pre-Cast Masonry Firebox Kit
  • Mason-Lite 63" Pre-Cast Masonry Firebox Kit
  • Mason-Lite 63" Pre-Cast Masonry Firebox Kit
  • Mason-Lite 63" Pre-Cast Masonry Firebox Kit
  • Mason-Lite 63" Pre-Cast Masonry Firebox Kit
  • Mason-Lite 63" Pre-Cast Masonry Firebox Kit
1 6

MFP63

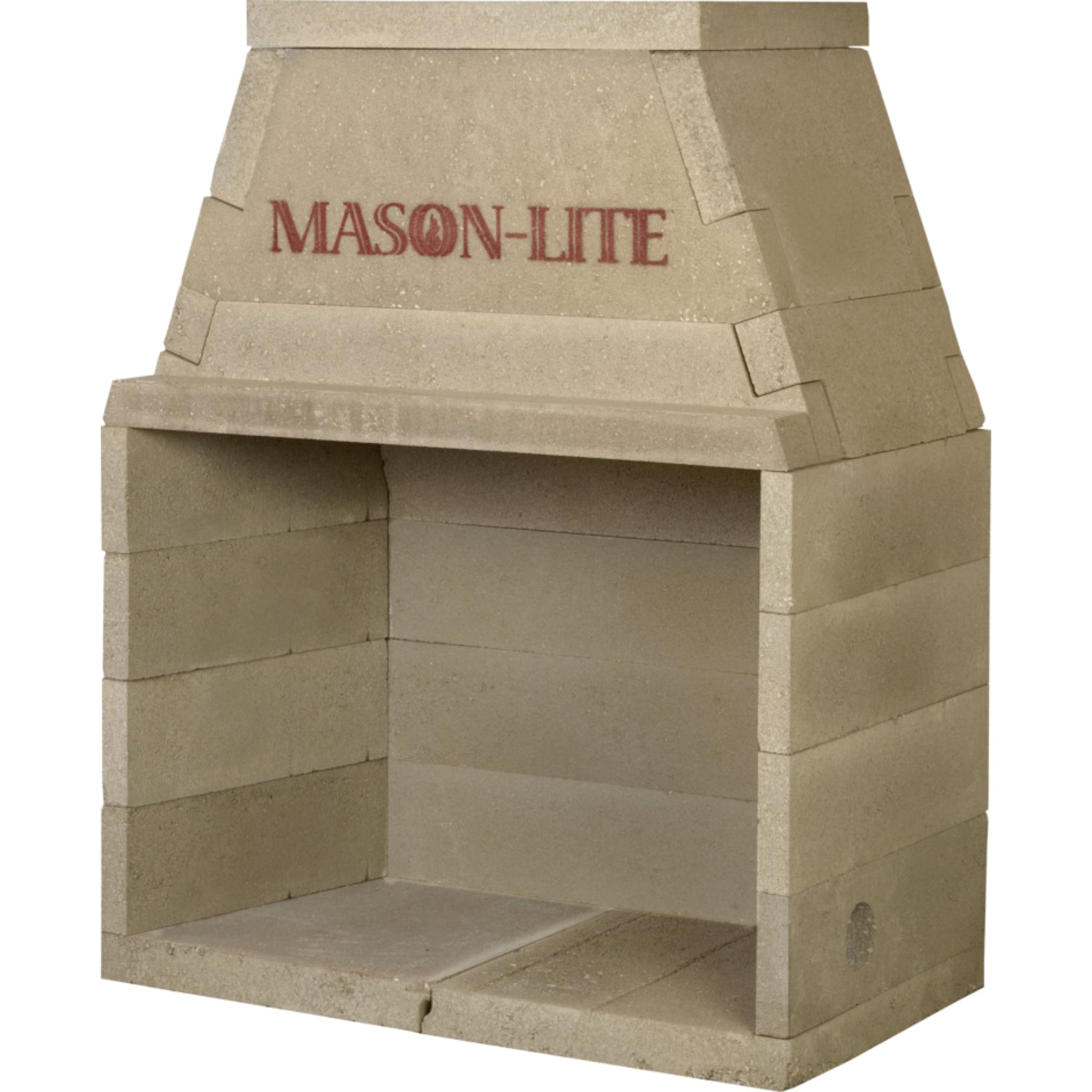

Mason-Lite 63" Pre-Cast Masonry Firebox Kit

Mason-Lite 63" Pre-Cast Masonry Firebox Kit

$7,722.00
$7,722.00
Sale Sold out
Shipping calculated at checkout.

Gas Log and Burner

-- Please Select --

48 in. Natural Gas Jumbo Virginiana Decorative Gas Logs and Burner for use with MFP63

48 in. Liquid Propane Jumbo Virginiana Decorative Gas Logs and Burner for use with MFP63

No, Thank You

Brick Panels

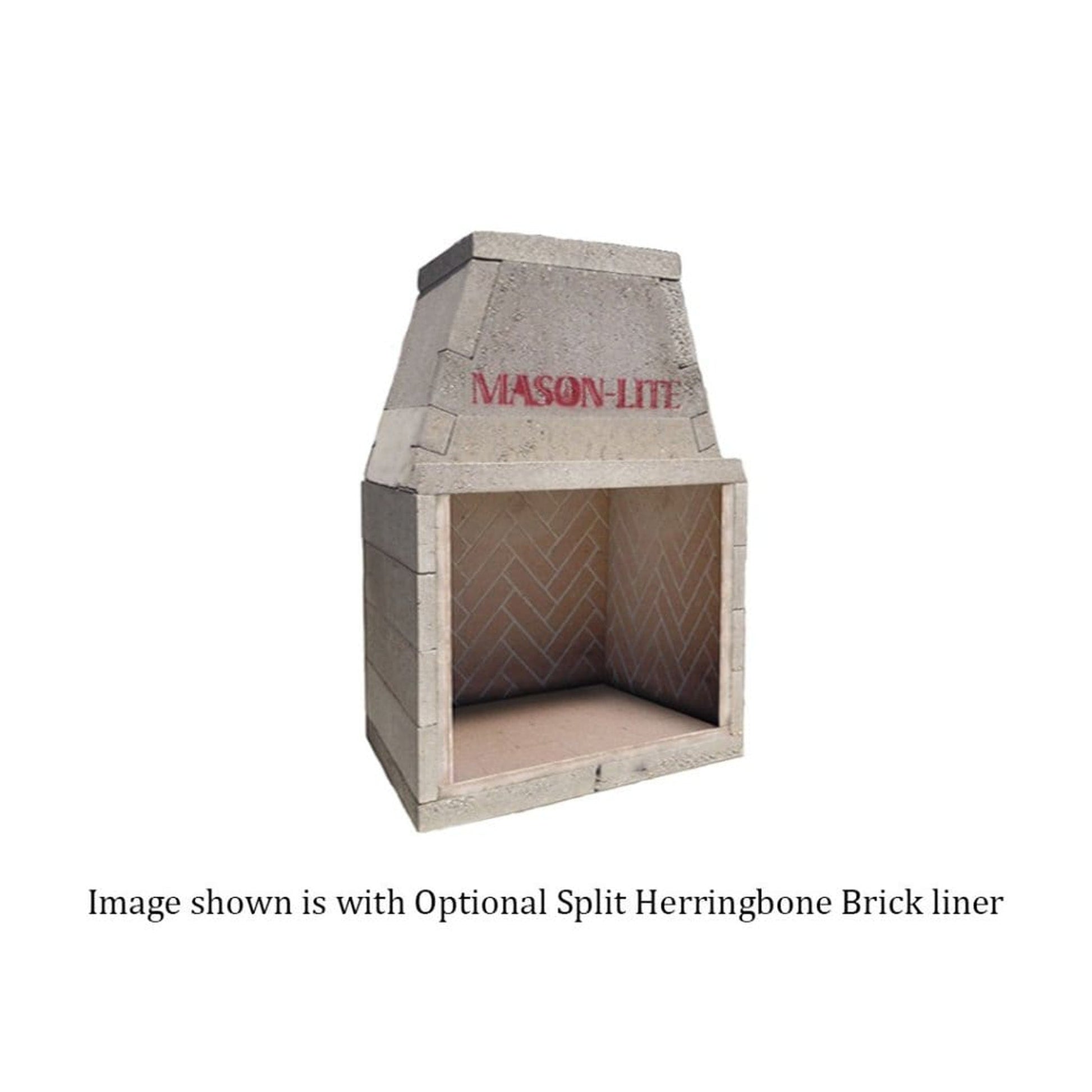

Red Split Herringbone Brick Panels for 63 in. Fireplace
Standard Buff Split Herringbone Brick Panels for 63 in. Fireplace
Red Full Running Bond Brick Panels for 63 in. Fireplace
Standard Buff Full Running Bond Brick Panels for 63 in. Fireplace
Red Split Running Bond Brick Panels for 63 in. Fireplace
Standard Buff Split Running Bond Brick Panels for 63 in. Fireplace

Metal Base

-- Please Select --

8 in. Structural Metal Base for 63 in. Firebox

No, Thank You

Air Kit

-- Please Select --

4 in. Combustion Air Kit -3' Flexible Vent and Plastic Hood

No, Thank You

Height Kit

-- Please Select --

Height Kit Includes (1) MFP63-2 (1) MFP63-2A & (2) MFP63-3

No, Thank You

Damper

-- Please Select --

54 in. Cast Damper - for MFP63 (DAMPER BLOCK - MFP63 Included)

Damper Block for MFP63

No, Thank You

Burner Set

-- Please Select --

Natural Gas Pureburn Grate/Burner Set for MFP63

Propane Pureburn Grate/Burner Set for MFP63

No, Thank You

Ignition

-- Please Select --

No, Thank You

Chimney Shrouds

-- Please Select --

32 in. Natural Copper Arlington Chimney Shrouds

32 in. Matte Black Arlington Chimney Shrouds

32 in. Dark Bronze Arlington Chimney Shrouds

32 in. Storm Gray Arlington Chimney Shrouds

36 in. Natural Copper Dover Chimney Shrouds

36 in. Matte Black Dover Chimney Shrouds

36 in. Dark Bronze Dover Chimney Shrouds

36 in. Storm Gray Dover Chimney Shrouds

40 in. Natural Copper Sussex Chimney Shrouds

40 in. Matte Black Sussex Chimney Shrouds

40 in. Dark Bronze Sussex Chimney Shrouds

40 in. Storm Gray Sussex Chimney Shrouds

40 in. Natural Copper Charleston Chimney Shrouds

40 in. Matte Black Charleston Chimney Shrouds

40 in. Dark Bronze Charleston Chimney Shrouds

40 in. Storm Gray Charleston Chimney Shrouds

No, Thank You
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Recreating the tradition of the hearth and the elegance & romance of the flame

Mason-Lite captures the essence of the fireplace masonry artists have been crafting for centuries. And, with a proven history of superior quality in lightweight fireplaces, it’s no wonder Mason-Lite is one of the industry leaders in modular concrete fireplaces.

With the best fit and finish in the industry, Mason-lite offers fireplaces in standard sizes of 33″, 39″, 44″, 49″, 63″, 75”, and a 43” See-through; combined with a vast custom-size fireplace library. And, by just adding an 8” height kit, you can have the tall and shallow look of a Rumford-style fireplace. Our fireplaces are approved for multi-story and combustible floor installations all the while meeting UL127, UL103 safety standards.

Looking for MASSIVE sizes! Look no further than our UL Listed REGAL fireplace line. These units have sizes of 72″, 84″, 96″, 108″, 120″ widths with a taller 38.5″ height for their openings. The REGAL fireplace line will impress your guests with sizes fit for royalty.

Using gas logs? Our fireplaces are also ANZI Z21.60 compliant! Check out our Virginiana Gas Log Systems or finish the look with our optional herringbone or running bond firebrick panels for easy installation.

What's Included

  • Semi-Custom Firebox Kit
  • High Temp. Mortar
  • Angle Iron or T-Bar

Not Included

  • Brick Panels/Local Firebrick Handlaid

Features

  • Available in 33", 39", 44", 49", 63" and 75" sizes
  • Use Dual 14" Class A UL103 Chimney
  • 100% USA Sourced & Manufactured
  • EPA Phase II qualified with PureBurn
  • 50% Lighter than traditional site-built masonry fireplaces
  • Superior thermal efficiencies with the highest resistance strength-up to 1700 Degrees Fahrenheit at 28 days
  • Meets or exceeds federal, state, and local construction building code requirements
  • Limited Lifetime warranty
  • USA and Canada approved

Specifications

Model MFP63
Finished Opening Dimensions 60" (W) x 21.5" (D) x 30.5" (H)
Total Unit Height 70.25"
Footprint 67" x 28"
Flue Diameter - Class A 16" ID
Clearance to Combustibles* (Sides and Back) 2"
Framing Dimensions 71" (W) x 30" (D) x 72.25" (H)
Floor Area(67x28) 13.03 sq. ft.
Fireplace Weight 2,558 lbs.
Mortar and Rebar 130 lbs.
Ready Mix 250 lbs.
Masonry Chimney weight per foot N/A
Metal Chimney weight per foot 12 lbs.
Installation Type Flush Installation / Corner / Internal Wall / Full Projection
Warranty Limited lifetime warranty

Technical Dimensions

Documents & Files

Videos

Frequently Asked Questions

Is the fireplace safe to use?

Yes, it has been tested to Underwriters Laboratories, UL 127 Standard for safety. The fireplace is listed by PFS testing agency, ICC, (International Code Council) and quality control standards are used in manufacturing.(ESR -2401)
Can I install the fireplace on a wood floor?

Yes: please use the required metal base under unit sold by MFI or use CMU block. Air space clearances range from 6″ to 8″ depending on the model.
Do I have to install the outside air kit on the fireplace?

The local building code will tell you if this is required in your area. The fireplace will work without the outside air kit, although, it is more efficient to use outside air for combustion.
Do I need firebrick inside the firebox?

Yes: MFI can supply firebrick panels for easy installation or a mason can lay firebrick inside the firebox.
    What type of chimney do I use on this fireplace?

    The fireplace has been tested with both a masonry chimney, manufactured by MFI, or Class A listed metal chimney. The different models can use different diameter metal chimney that will fit almost all installation needs. When installed, the maximum overall height of the Mason-Lite fireplace is 40 feet. The minimum installation height is 14 feet, given that the chimney is straight. If the chimney is not straight, the minimum installation height is 17 feet.
    Do I need a log holder or grate in the fireplace?

    Yes, you should use a grate to hold the wood in the firebox for better combustion and safety.
    Can I install a mantel or decorative stone or marble on the front of the fireplace?

    Yes. Just follow the installation instructions for safe installations.
    Can I install decorative gas logs in this wood-burning fireplace?

    Yes. Follow the manufacturers instructions for safe installation and operation.
    Can I install a log lighter in the fireplace? Yes. Follow the manufacturers instructions for safe installation and operation.
    Can I install a glass door on the fireplace?

    Yes, Follow the manufacturers instructions and always have doors in the fully open position when using the fireplace.
    Can I install fireplace on upper levels floors of a building?

    Yes with the lightweight design of MFI fireplaces will work on most applications. You must have a structural engineer determine the load limit of the flooring.
      Can I install a see-thru wood-burning fireplace?

      Yes. The MFPST43 You will need to install a chimney exhaust type fan in most installations.

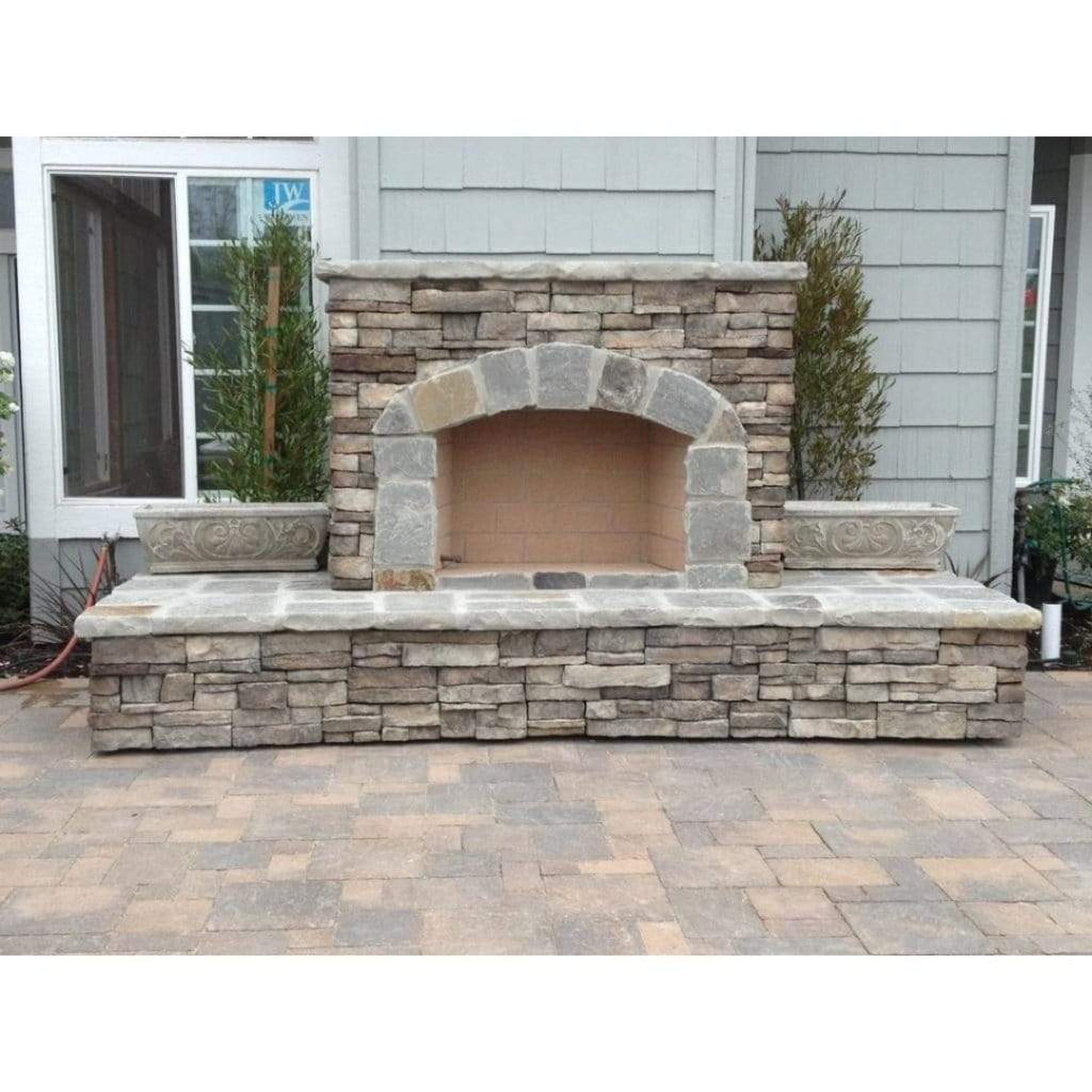

      Can I install this fireplace outside?

      Yes. It is listed for BOTH indoors and outdoors.
      What are the minimum and maximum fireplace heights for the Mason-Lite fireplace?

      When installed, the maximum overall height of the Mason-Lite fireplace is 40 feet. The minimum installation height is 14 feet, given that the chimney is straight. If the chimney is not straight, the measurement is 17 feet.
