SKU:LMFP60

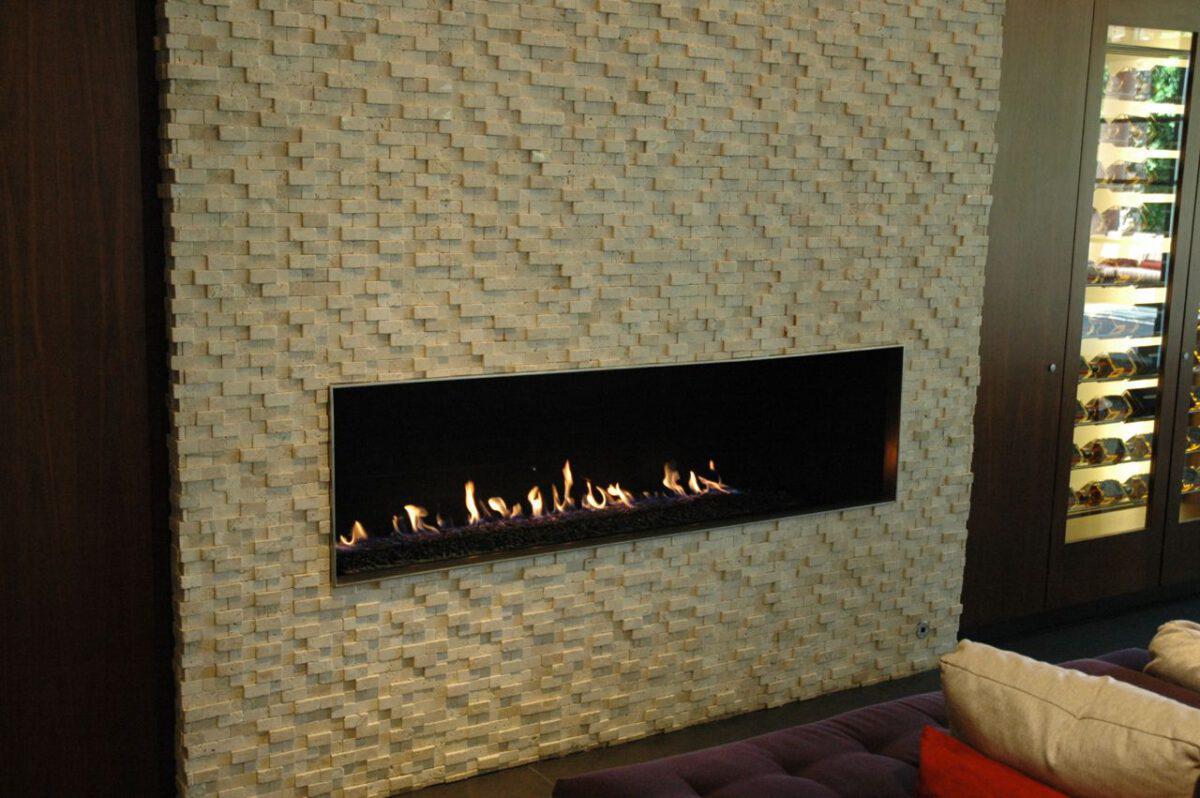

Mason-Lite 60" Linear Gas Fireplace - 12" B-Vent
Mason-Lite 60" Linear Gas Fireplace - 12" B-Vent
Linear Burner
-- Please Select --
48 in. Natural Gas Alpine Linear Burner for LMFP60 Fireplace
48 in. Liquid Propane Alpine Linear Burner for LMFP60 Fireplace
60 in. Natural Gas Linear Drop-In Burner With LED Lights For Use With LMFP60
60 in. Liquid Propane Linear Drop-In Burner With LED Lights For Use With LMFP60
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Overview
Mason-Lite Fireplaces are designed as factory-built blocks to be assembled on-site. These fireplaces may be installed on either combustible or non-combustible floors. In order to function, the system requires a 12” B-vent chimney.
Looking for a contemporary style for your new fireplace? Look no further than Mason-Lite. Mason-Lite provides safe, yet esthetically beautiful, linear fireplaces for your indoor and outdoor living space.
At Mason-Lite we have been making custom masonry fireplaces for years with great success. Mason-Lite is proud to present our semi-custom linear fireplace line that spans from 4 foot up to 10 foot wide. We have tested 7 new models to the ANSI Z 21.50 standard for Vented Decorative Gas Appliances. This gives you even more peace of mind when using our Custom Linear units. Please see the list below of the units that we tested. All of these units come with a shortened 22.5″ finished opening height that gives you that linear look that is so popular today.
Why Choose Mason-Lite:
Features
- Available in - LMFP 48”, 60”, 72”, 84”, 96”, 108”, and 120” wide models
- Class A chimney accepted
- ANSI Z21.50 compliant
- Glassdoor tested & listed
- Square sides - 90º angle in rear corners
- Choice of flush hearth or burner trough
- Units available with & without burner trough
- BTUs start at 85,000 to 200,000, depending on model
- Standard sizes are designed to use single or dual 12” B-vent chimney
- Available with Golden Blount Alpine Burner & Warming Trends Crossfire Burner
- Custom widths are also available including, but not limited to, corners & see-throughs (meet NFPA211 requirements)
- Modular Pre-cast fireplaces reduce labor and assembly time
Specifications
| Model | LMFP60 |
| Dimension A | 73" |
| Dimension B | 63" |
| Dimension C | 60" |
| Dimension D | 57" |
| Framing Dimension (Non-combustible floor system) | 78" (W) x 40.5" (H1) x 64.25" (H2) |
| Floor Area | 70" x 28" (14.4 ft²) |
| H-Burner BTU/HR | 100,000 |
| Gas Log Burner BTU/HR | 96,000 |
| Mortar, Rebar, and Ready Mix Concrete | 250 lbs. |
| Weight | 1995 lbs. |
| Flue | 12” Ø |
| Style | Contemporary |
| Installation Type | Flush Installation / Corner / Internal Wall / Full Projection |
| Certification | ANSI Z21.50 compliant |
| Warranty | Limited lifetime warranty |
Downloads
Attention: You may need a residential building permit to install a Mason-Lite Fireplace. Consult local jurisdictions before you get started!
