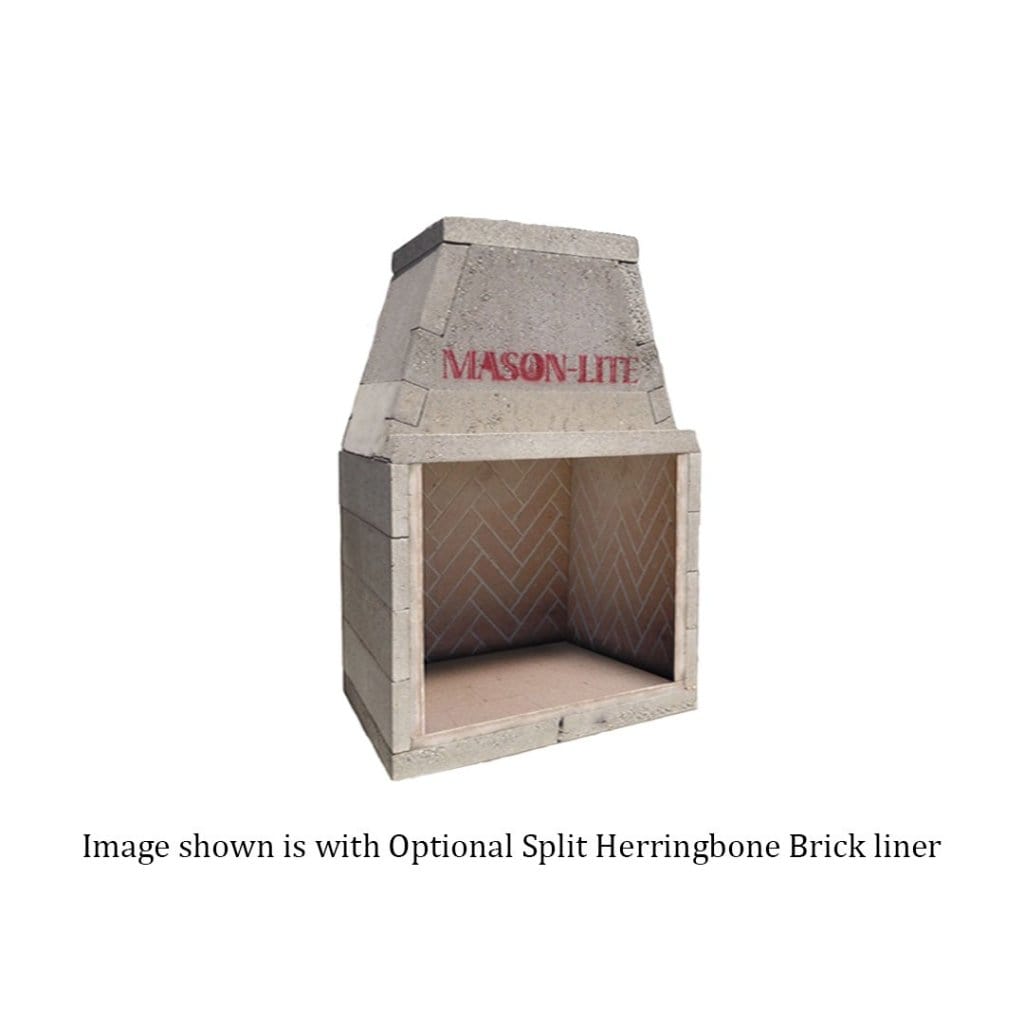

Mason-Lite 49" Pre-Cast Masonry Firebox Kit with 2ft Masonry Chimney

Overview

Have you ever dreamed of the radiant warmth of a masonry fireplace in your bedroom? Or, do you dream of an outdoor fireplace where you can gather together with friends and loved ones? Dreams can come true with Mason-Lite masonry fireplaces. Our factory-built masonry fireboxes are affordable, easy to handle, and consistent in quality. A masonry fireplace adds luxury and increases the value of your home.

Recreating the tradition of the hearth and the elegance & romance of the flame, Mason-Lite captures the essence of the fireplaces masonry artists have been crafting for centuries. And, with a proven history of superior quality, lightweight fireplaces for indoor and outdoor projects, it’s no wonder Mason-Lite is one of the industry leaders of modular concrete fireplaces.

At Mason-Lite, we use the finest aggregate materials available to build our lightweight modular concrete fireplaces. One of the main ingredients is pumice, a naturally fired volcanic rock with tremendous strength.

Its lightweight attributes are second to none, and because of its pre-fired beginnings, pumice retains heat better than any natural aggregate available. The best sources for USA pumice are in the western states, convenient to Mason-Lite’s California-based production facilities. Pumice is formed when gas-rich, frothy magma rapidly cools, creating air pockets that contribute to its remarkable lightweight properties.

Because it is only half the weight and half the cost of traditional masonry fireplaces, Mason-Lite Lightweight Masonry Fireplace Systems help you realize your dream of having a fireplace in your master bedroom, upstairs retreat, or even your outdoor patio, without major building infrastructure reinforcement. The restful flicker and comfortable glow of the fire will provide you with years of treasured memories.

With the help of ICC-ES, Mason-Lite developed the structural testing and performance criteria (AC375) that would comply with the International Building Code (IBC), the International Residential Code (IRC), and the International Fuel Gas Code (IFGC). This allows building officials throughout the US to confirm that Mason-Lite fireplaces meet these stringent codes.

Why Choose Mason-Lite:

The Perfect Fireplace for Indoor or Outdoor Projects

The MFP49-P is a package that includes the standard MFP49, 2 feet of Mason-Lite masonry chimney, and a bag of mortar. Being made from the same lightweight material as the other Mason-Lite wood-burning fireplaces allows this unit to be installed on decks and other wood framings. Available accessories include full running bond and split herringbone brick liners in standard sizes.

Features

• Lightweight construction with multiple firebox sizes available.
• Best fit and finish in the industry.
• Available for Indoor/outdoor, wood-burning, natural, and propane gas systems.
• Allowed for multi-story combustible floor installations.
• Superior thermal efficiencies with the highest resistance strength at 28 days.
• Complies and tested with UL 127 & UL 103 chimney component standards.
• Optional herringbone or running bond firebrick panels for easy installation.
• Heat resistant fire tested up to 1700 Degrees Fahrenheit.
• Less expensive shipping and handling costs.
• 50% cheaper than a traditional hand-built masonry fireplace.
• All kits come complete with Refractory Mortar, Rebar, and T-bar.
• Includes 2ft Masonry Chimney.
• Limited Lifetime warranty.
• Made in the U.S.A.



Specifications

Model	MFP49-P
Finished Opening Width	41" (W) x 21.5" (D) x 30.5" (H)
Total Unit Height	62.25"
Footprint	48" x 28"
Flue Diameter - Class A	12" ID
Clearance to Combustibles* (Sides and Back)	2"
Framing Width	57" (W) x 30 (D) x 64.25" (H)
Floor Area(37x28)	10.31 sq. ft.
Fireplace Weight	2122 lbs.
Mortar and Rebar	73 lbs.
Ready Mix	200 lbs.
Masonry Chimney weight per foot	140 lbs.
Metal Chimney weight per foot	12 lbs.
Installation Type	Flush Installation / Corner / Internal Wall / Full Projection
Warranty	Limited lifetime warranty

Product Inclusions

Click to see details

2 Feet Masonry Chimney

Refractory Mortar

Rebar and T-Bar



Optional Accessories

Click to see details

MFP49SHBL Split Herringbone Brick liner Mason-Lite offers true firebrick panels for quick and easy installation. Two color options: Standard Buff and Red
MFP49FRBL Full Running Bond Brick liner Mason-Lite offers true firebrick panels for quick and easy installation. Two color options: Standard Buff and Red
MFP49SRBL Split Running Bond Brick liner Mason-Lite offers true firebrick panels for quick and easy installation. Two color options: Standard Buff and Red
MFPB49 6" Structural Metal Base Our 6” and 8” bases are used for installations on combustible floors or second-story applications.
MFP4-AK Combustion Air Kit Because homes are being built so tight, many jurisdictions are requiring additional outside air to make up for negative air pressure. For convenience, the kit comes pre-drilled for this application.
MFP-Arc Masonry Arch The masonry arch kit consists of 2 pieces that can easily be mortared in to give a custom look.
MFP49-HK Height Kit This Height Kit consists of a rear wall and two side walls that will increase the height opening by 8" from the standard opening (giving a Rumford look). With the new size, opening be sure to check the Chimney Size Chart to ensure proper flu size.
14ATGAPD Anchor Plate/ Damper Dampers are required for indoor applications. Mason-Lite offers several damper options: metal anchor plate/damper for masonry chimney; cast-iron damper (damper blocks included); anchor plate/damper for metal chimney
Premium Chimney Shrouds Mason Lite’s Decorative steel and copper chimney pots offer an alternative to unsightly factory flue caps and terminations, improving the aesthetics of chimney tops



Downloads

• Owner's Manual
• Product Brochure
• Architectural Drawing
• Seismic Zoning Map



Attention: You may need a residential building permit to install a Mason-Lite Fireplace. Consult local jurisdictions before you get started!
