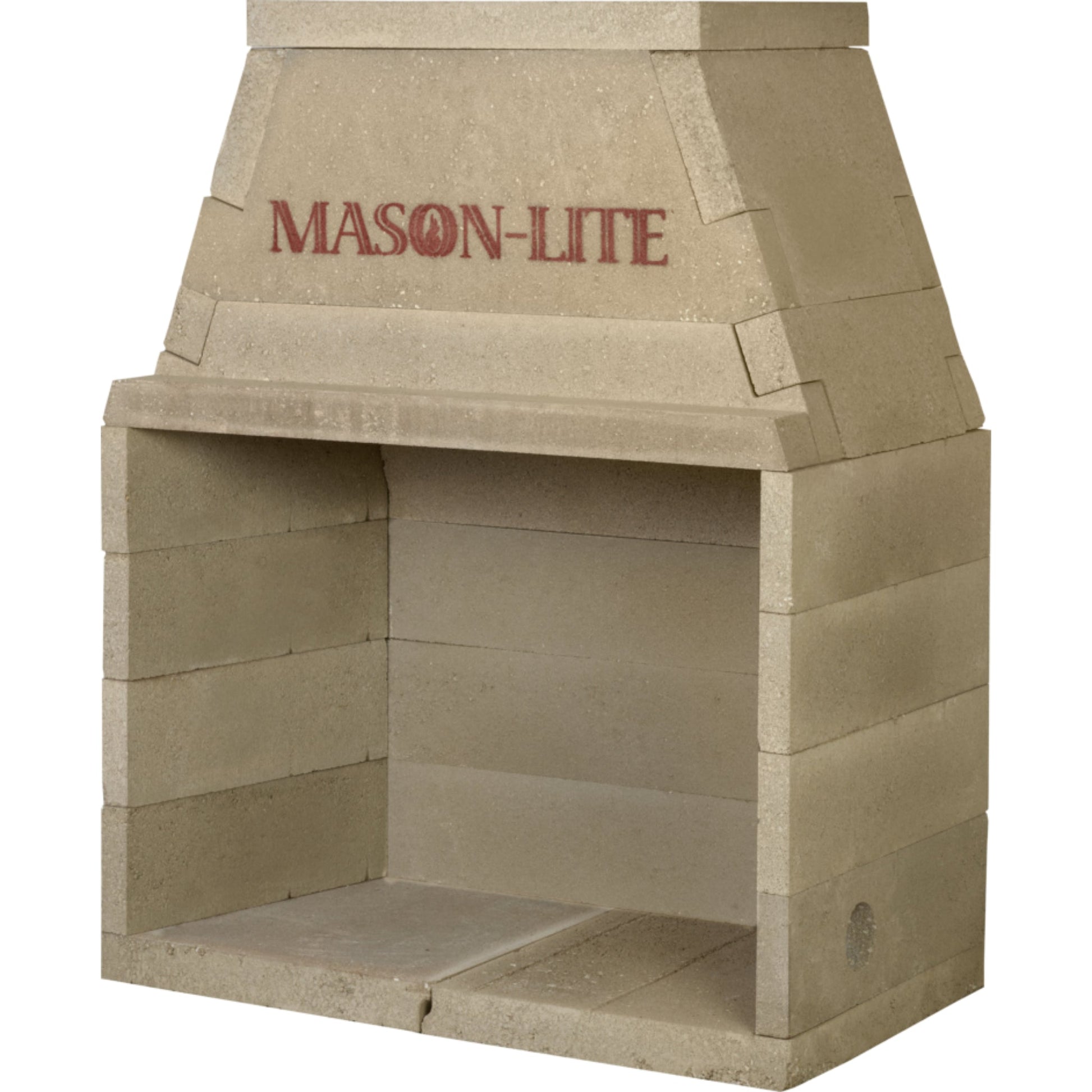

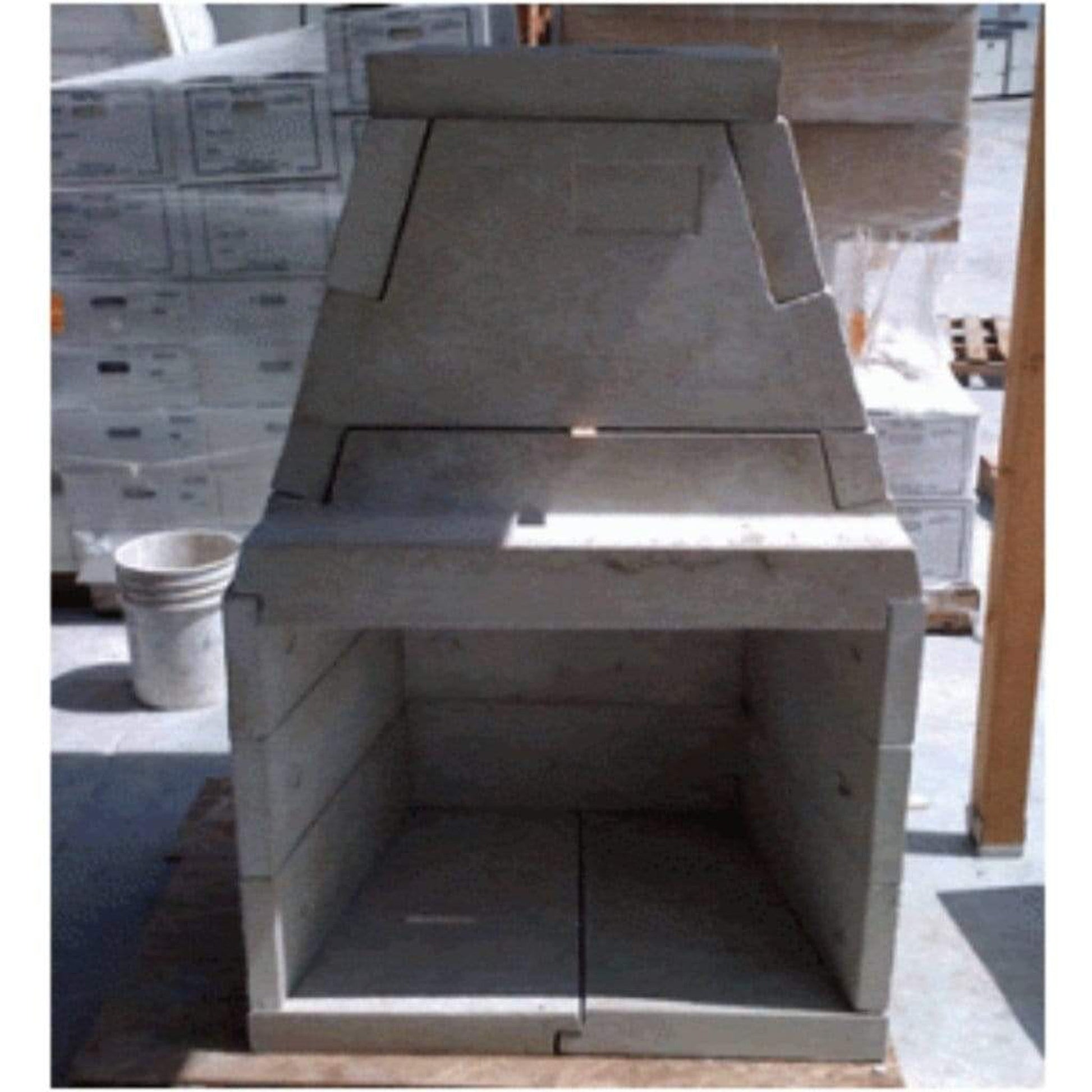

Mason-Lite 44" Pre-Cast Masonry Firebox Kit

Overview

Have you ever dreamed of the radiant warmth of a masonry fireplace in your bedroom? Or, do you dream of an outdoor fireplace where you can gather together with friends and loved ones? Dreams can come true with Mason-Lite masonry fireplaces. Our factory-built masonry fireboxes are affordable, easy to handle, and consistent in quality. A masonry fireplace adds luxury and increases the value of your home.

Recreating the tradition of the hearth and the elegance & romance of the flame, Mason-Lite captures the essence of the fireplace masonry artists have been crafting for centuries. And, with a proven history of superior quality, lightweight fireplaces for indoor and outdoor projects, it’s no wonder Mason-Lite is one of the industry leaders of modular concrete fireplaces.

At Mason-Lite, we use the finest aggregate materials available to build our lightweight modular concrete fireplaces. One of the main ingredients is pumice, a natural-fired volcanic rock with tremendous strength.

Its lightweight attributes are second to none, and because of its pre-fired beginnings, pumice retains heat better than any natural aggregate available. The best sources for USA pumice are in the western states, convenient to Mason-Lite’s California-based production facilities. Pumice is formed when gas-rich, frothy magma rapidly cools, creating air pockets that contribute to its remarkable lightweight properties.

Because it is only half the weight and half the cost of traditional masonry fireplaces, Mason-Lite Lightweight Masonry Fireplace Systems help you realize your dream of having a fireplace in your master bedroom, upstairs retreat, or even your outdoor patio, without major building infrastructure reinforcement. The restful flicker and comfortable glow of the fire will provide you with years of treasured memories.

With the help of ICC-ES, Mason-Lite developed the structural testing and performance criteria (AC375) that would comply with the International Building Code (IBC), the International Residential Code (IRC), and the International Fuel Gas Code (IFGC). This allows building officials throughout the US to confirm that Mason-Lite fireplaces meet these stringent codes.

Why Choose Mason-Lite:

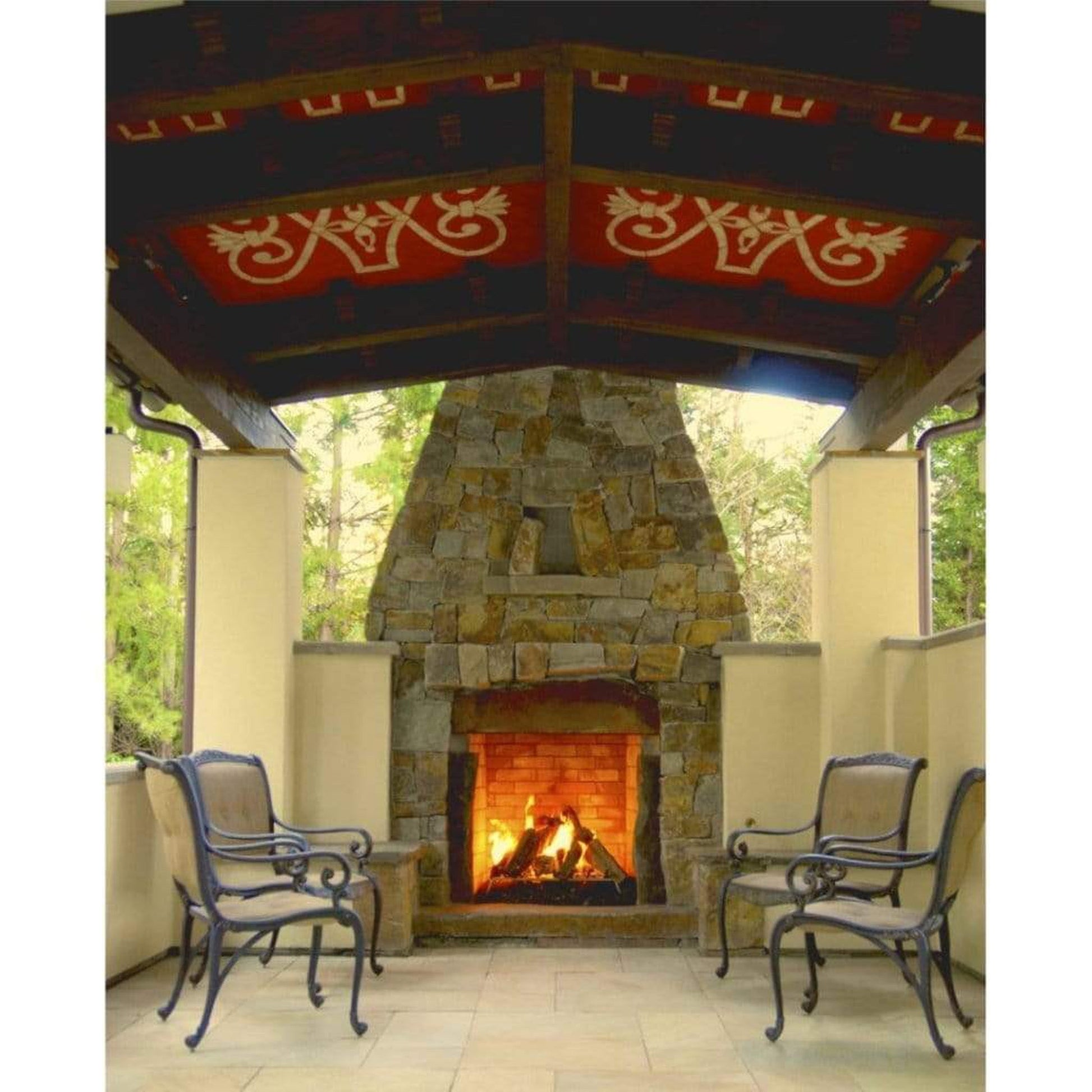

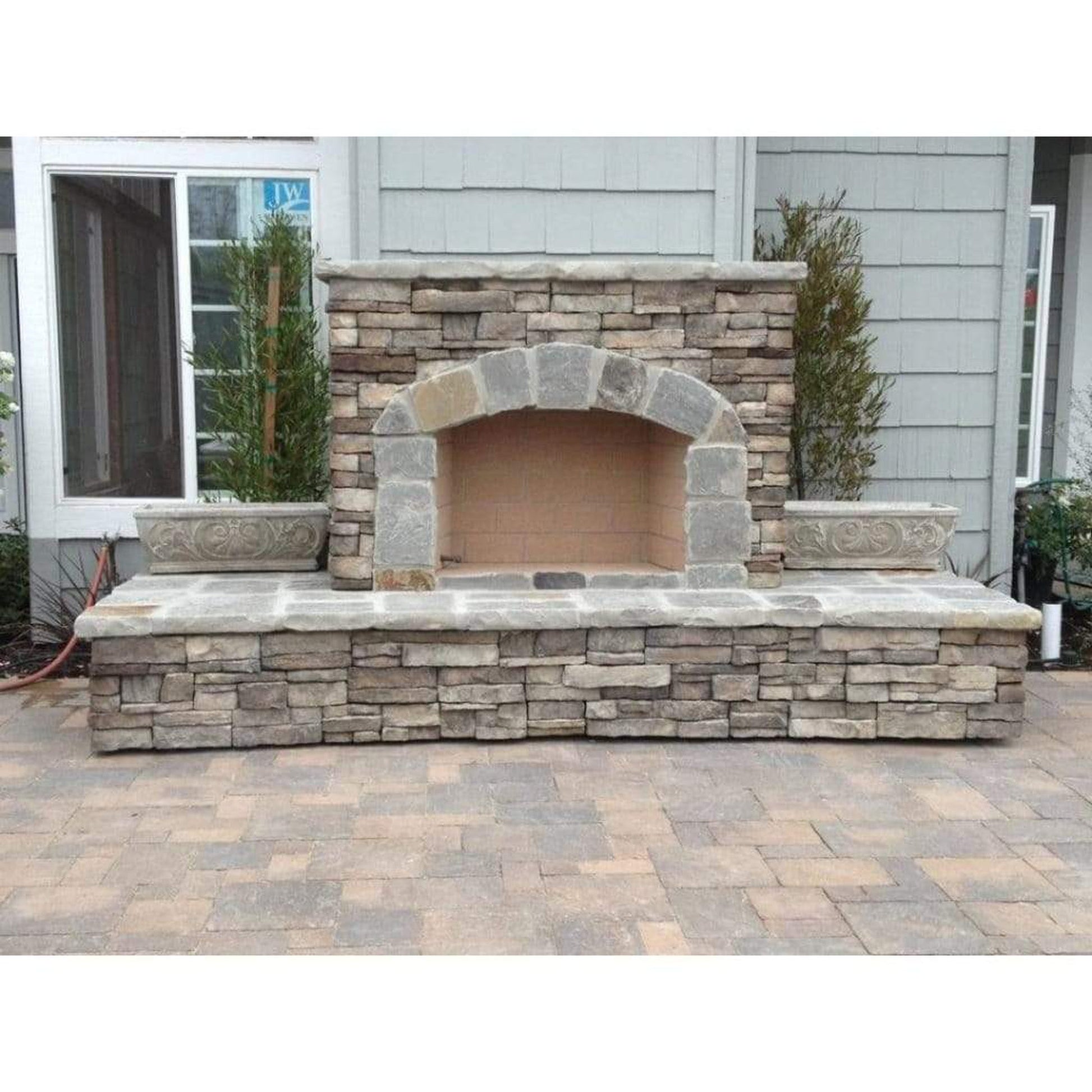

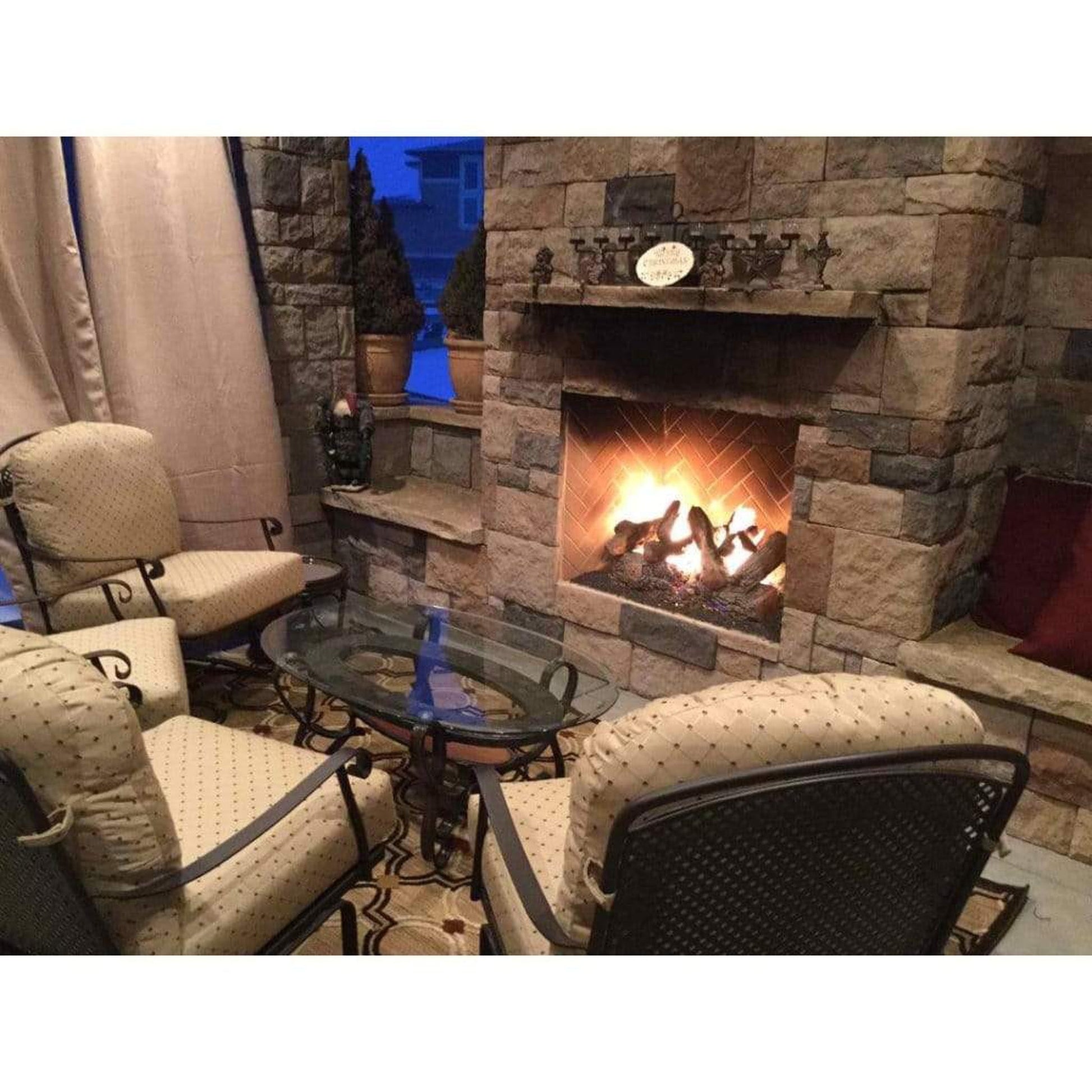

The Perfect Fireplace for Indoor or Outdoor Projects

The MFP44 has a finished opening of 41” W x 30.5” H and is a standalone unit that can be built indoors or outdoors to burn wood or gas. Made from the same lightweight material as the other Mason-Lite fireplaces allow this unit to be installed on decks and other wood framings. Available accessories include full running bond and split herringbone brick liners in standard sizes.

Features

• Available in 33", 39", 49", 63", and 43" See-Thru models
• Lightweight construction with multiple firebox sizes available
• Best fit and finish in the industry
• Available for Indoor/outdoor, wood-burning, natural, and propane gas systems
• Allowed for multi-story combustible floor installations
• Superior thermal efficiencies with the highest resistance strength at 28 days
• Complies and tested with UL 127 & UL 103 chimney component standards
• Optional herringbone or running bond firebrick panels for easy installation
• Heat resistant fire tested up to 1700 Degrees Fahrenheit
• Less expensive shipping and handling costs
• 50% cheaper than a traditional hand-built masonry fireplace
• All kits come complete with Refractory Mortar, Rebar, and T-bar
• Limited Lifetime warranty
• Made in the U.S.A.

Specifications

Model	MFP44
Finished Opening Dimensions	41" (W) x 21.5" (D) x 30.5" (H)
Total Unit Height	62.25"
Footprint	48" x 28"
Flue Diameter - Class A	12" ID
Clearance to Combustibles* (Sides and Back)	2"
Framing Dimensions	52" (W) x 30" (D) x 64.25" (H)
Floor Area(48x28)	9.33 sq. ft.
Fireplace Weight	1,726 lbs.
Mortar and Rebar	67 lbs.
Ready Mix	200 lbs.
Metal Chimney weight per foot	10 lbs.
Installation Type	Flush Installation / Corner / Internal Wall / Full Projection
Warranty	Limited lifetime warranty

Product Inclusions:

Click to see details

Refractory Mortar

Rebar and T-Bar

Optional Accessories

Click to see details

MFP44SHBL Split Herringbone Brick liner Mason-Lite offers true firebrick panels for quick and easy installation. Two color options: Standard Buff and Red
MFP44FRBL Full Running Bond Brick liner Mason-Lite offers true firebrick panels for quick and easy installation. Two color options: Standard Buff and Red
MFP44SRBL Split Running Bond Brick liner Mason-Lite offers true firebrick panels for quick and easy installation. Two color options: Standard Buff and Red
MFPB44 6" Structural Metal Base Our 6” and 8” bases are used for installations on combustible floors or second story applications.
MFP4-AK Combustion Air Kit Because homes are being built so tight, many jurisdictions are requiring additional outside air to make up for negative air pressure. For convenience, the kit comes pre-drilled for this application.
MFP-Arc Masonry Arch The masonry arch kit consists of 2 pieces that can easily be mortared in to give a custom look.
MFP44-HK Height Kit This Height Kit consists of a rear wall and two side walls that will increase the height opening by 8" from the standard opening (giving a Rumford look). With the new size opening be sure to check the Chimney Size Chart to ensure proper flu size.
12ATGAPD Anchor Plate w/ Damper Dampers are required for indoor applications. Mason-Lite offers several damper options: metal anchor plate/damper for masonry chimney; cast iron damper (damper blocks included); anchor plate/damper for metal chimney
Premium Chimney Shrouds Mason Lite’s Decorative steel and copper chimney pots offer an alternative to unsightly factory flue caps and terminations, improving the aesthetics of chimney tops

Masonry Chimney Systems

Mason-Lite refractory chimney system may be used on MFP33, MFP39, MFP44, and MFP49 with a maximum system height of 30' without additional support.

Click to see details

Click Here to Shop for Masonry-Chimney System Options

Class A Air-Cooled Metal Chimney System

DuraChimney® II is an exceptional factory-built alternative to pre-fabricated masonry chimneys.DuraChimney® II is a unitized, lightweight design that eliminates the need for field assembly of pipe sections, allowing for faster installation.

Click to see details

Click Here to Shop for Class A UL103 Chimney Systems

Downloads

• Owner's Manual
• Product Brochure
• Architectural Drawing
• Hearth Rebar locations
• Seismic Zoning Map

Attention: You may need a residential building permit to install a Mason-Lite Fireplace. Consult local jurisdictions before you get started!
