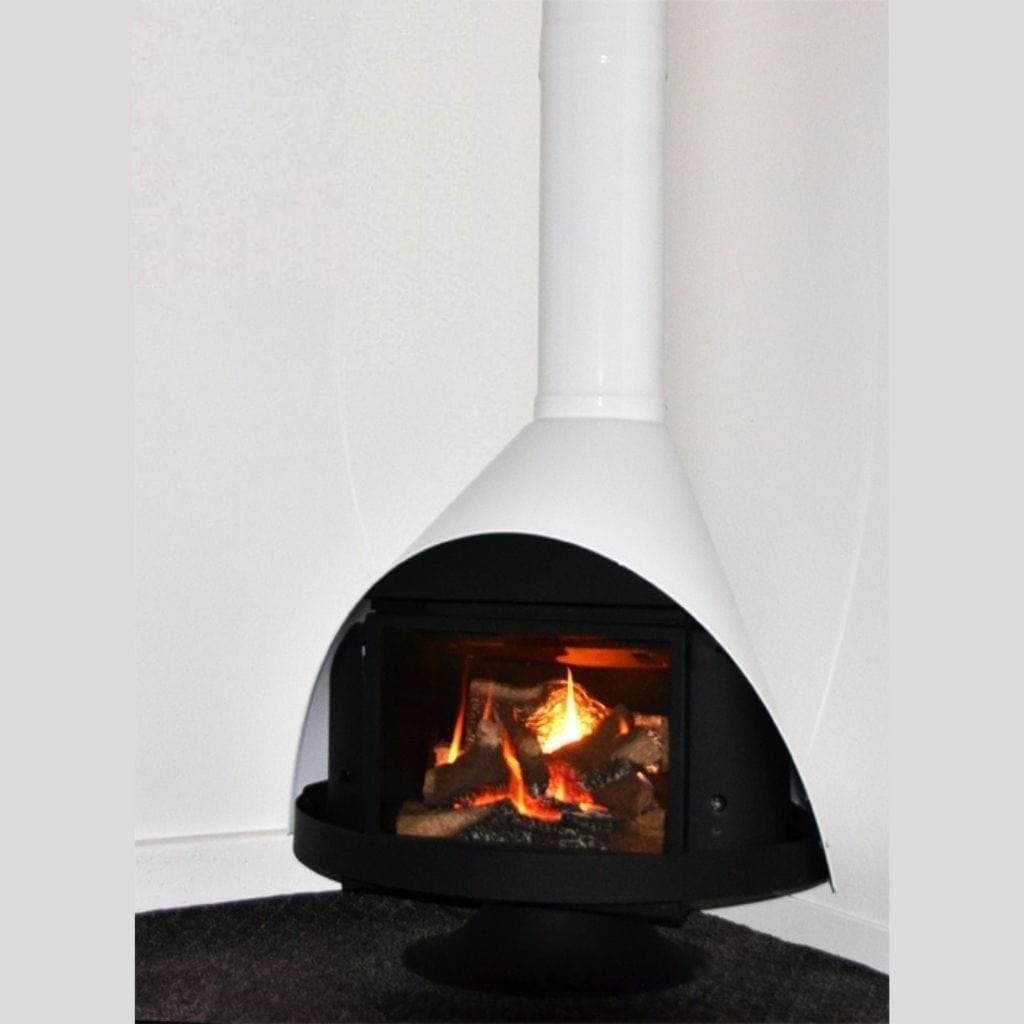

The Gas Zircon 34" is a modern design providing an excellent view of the fire. Available in all the Malm colors, the Gas Zircon 34" is the perfect unit to add atmosphere, color, and beauty to any room.

What's Included

• Fireplace Unit
• Safety Screen
• Log Set
• Remote Control
• Ceiling Support Box
• Chimney Liner Termination Kit (46DVA-GK)


Not Included

• 2-3" Flex from unit height of 34 1/2"

Features

• Matte black finish top and base. Powder coat colors are also available.

• Close clearance 2" to combustibles
• Safety screen
• Ceramic safety glass
• Proflame remote control
• Log set with glowing embers
• Variable speed blower
• Flame height adjustment control
• Standing pilot system
• Direct spark ignition
• Direct vent
• May be placed directly on combustibles
• Vertical Termination Approved, Horizontal version is also available
• Standard 6" Support Box and DirectVent Pro Chimney Liner Termination Kit (46DVA-GK) are included in the unit price. (Note: The cost of the Support Box will be deducted from the unit price if shipped separately from the unit.)

Venting Notes

• 2-3” Flex from unit height of 34 1/2” to Ceiling Support Box
• 8” DuraVent DirectVent Pro required from support box through roof to a height specified by DuraVent DirectVent Pro instructions.

Specifications

Model Name	34" Zircon - Direct-Vent
Fuel Type	Natural Gas/ Propane
Max. BTU	NG: 23,500 / LP: 21,500
Min. BTU	NG: 12,500 / LP: 11,000
Connector size	8"
Width	34"
Overall Height	96"
Weight	165 lbs.
Clearance to Combustible Wall	2"
Efficiency (Steady state)	NG: 73.94% / LP: 74.67%
EnerGuide Rating Canada	NG: 63.34% / LP: 64.73%
Tested to	ANSI Z21.88 2016

Product & Clearance Specifications

Warranty

Fireplace Products U.S., Inc. (collectively referred to herein as "FPI") extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation.

The items covered by this limited warranty and the period of such coverage is set forth in the table below.

The policy is not transferrable, amenable or negotiable under any circumstances.

Documents & Files

• Installation Instructions
• Complete Powder Coat Colors Brochure
• L234 Listing State Listing Code

Certification

• Massachusetts State Approval. The 34 Zircon Direct Vent can be installed in Massachusetts as the insert used in our fireplace is a FPI Fireplace Products Intl. L234 Insert. This insert is approved to be installed into our 34 Zircon and is listed by LabTest Certifications. Refer to the Documents & Files section to download the L234 Listing State Listing Code.
