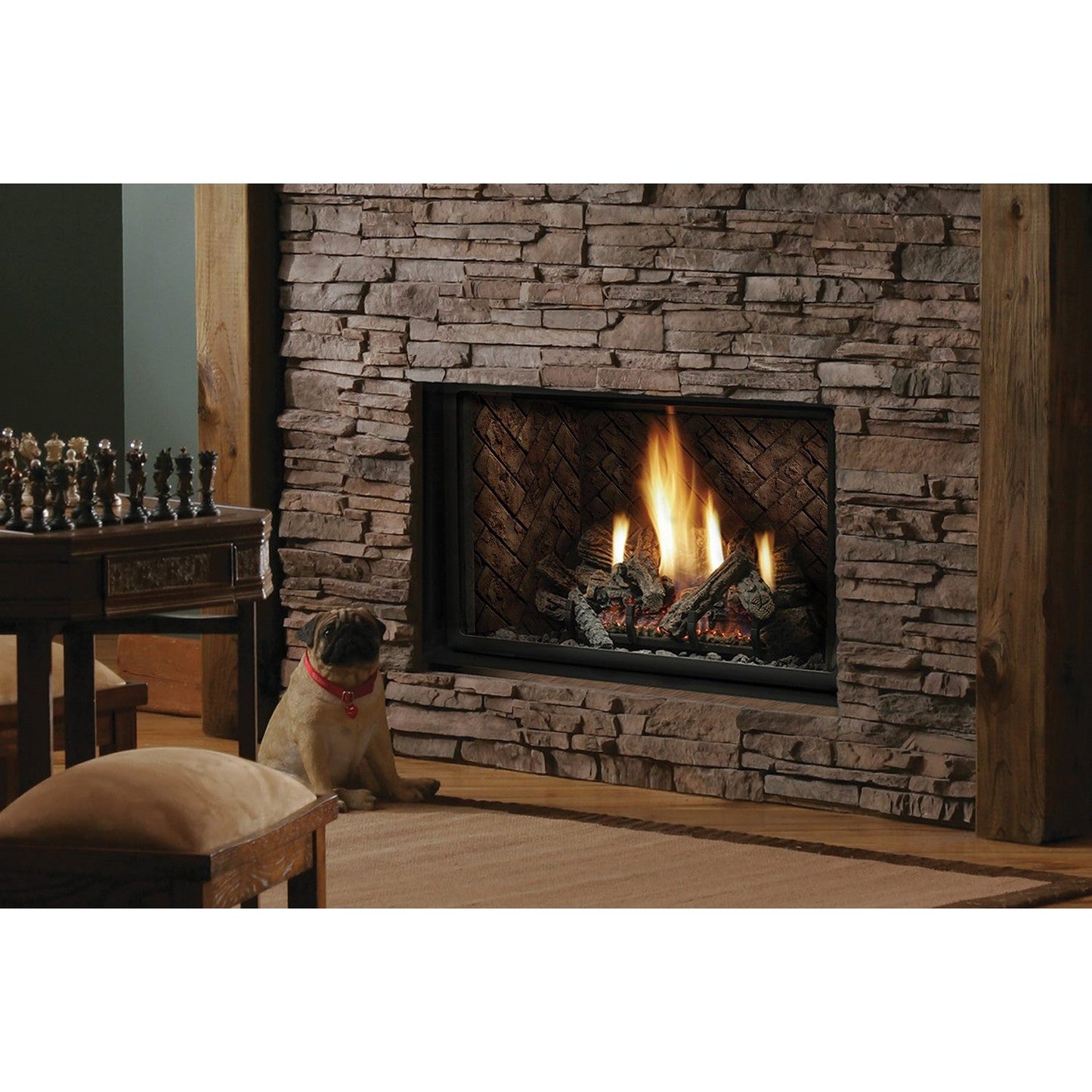

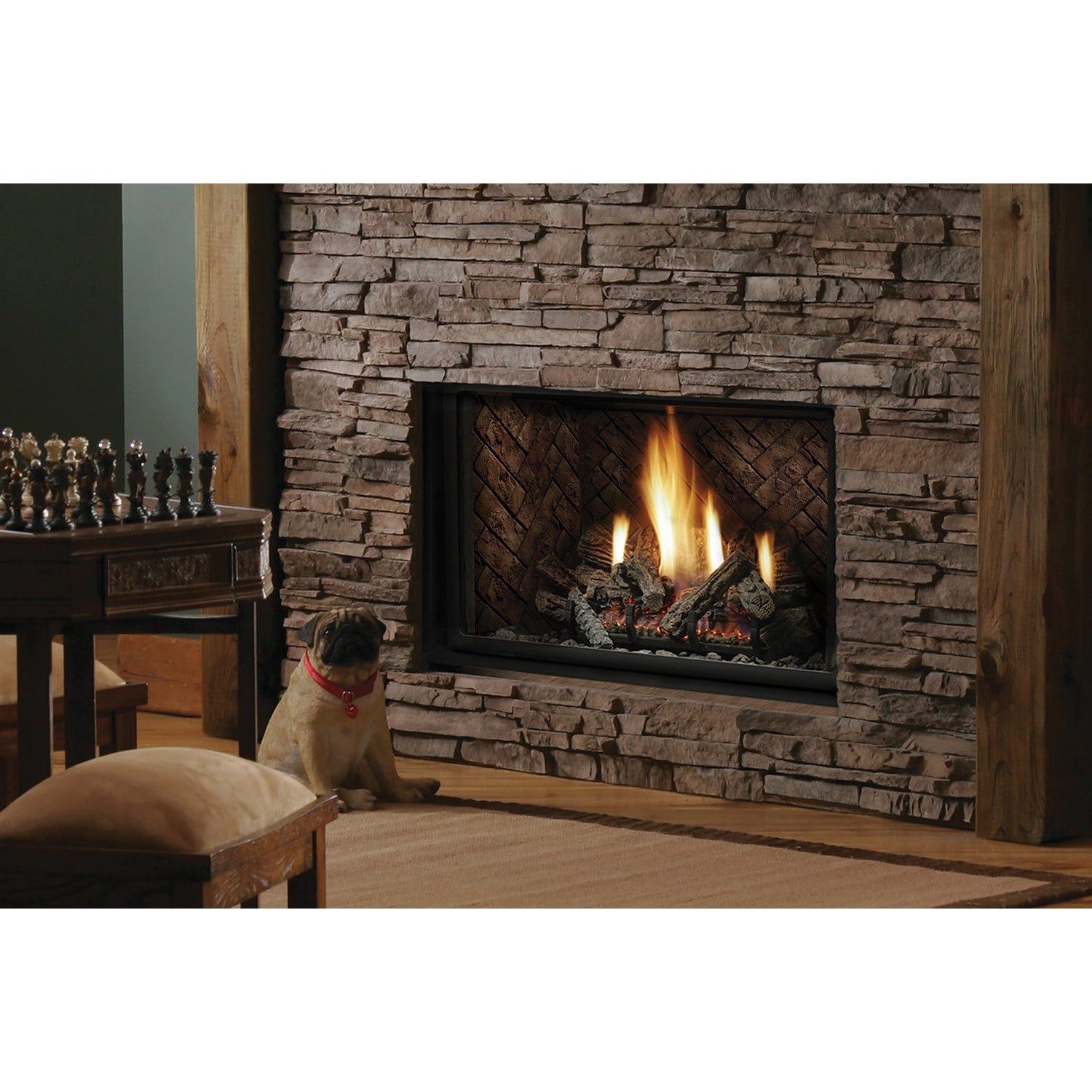

The ultimate in Zero Clearance Direct Vent Fireplaces for new home construction or renovation, and your best choice for installation anywhere throughout your home.

Kingsman fireplaces are among the safest and best designed on the market. This 36-inch gas-burning fireplace is made from top-of-the-line materials and comes complete with a dual burner, wall switch, 4/7" sloped top flute, tempered glass and louvered framing. It also comes standard with a completely sealed combustion unit and painted stove with the very best quality silicone paint.

Available in natural gas and liquid propane, Kingsman quality fireplaces let you enjoy the wonder of glowing embers and dancing flames and up to 85% maximum efficiency. Create an elegant and warm focal point in your home. Kingsman fireplaces have fully sealed combustion chambers with no pollution spillage to depreciate the indoor air quality of your home.

Choose from a variety of decorative options to create your own distinctive appearance and be assured of complete safety, comfort and long-lasting value. Select from a millivolt or intermittent pilot ignition system. The millivolt valve system does not use electricity but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation.

What's Included

• HBZDV3628 Gas Fireplace

• SIT Valve with Hi/Lo Flame Adjustment
• Wall Switch
• 4/7" Sloped Top Flue
• Ceramic Glass
• Safety Screen

Not Included (Sold Separately)

• Log Set (Required)
• Designer Clean View Kit (Required)
• Black Grill Kit (Required)

• Black Surround
• Refractory Fiber Brick Liner
• Porcelain Reflective Panel Liner
• Fan Kit With Variable Speed
• Log Bits - Small Six Piece Kit

• Gas Conversion Kit

• Thermostats and Remote Controls

Features

• Safety Screen Barrier
• Fully sealed combustion chamber
• Dual burner with Realistic Flame Pattern
• Tempered glass-front radiates heat to the room

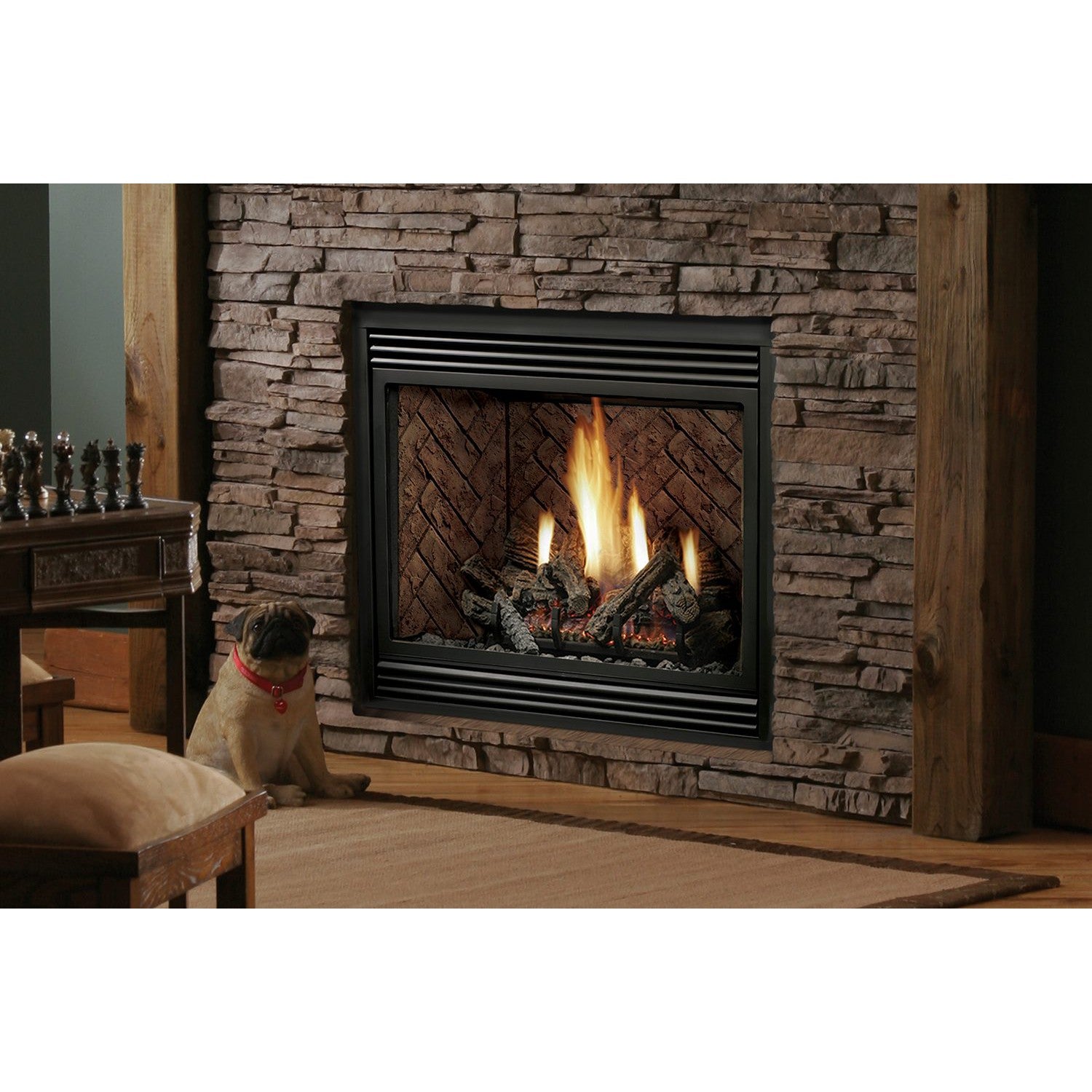

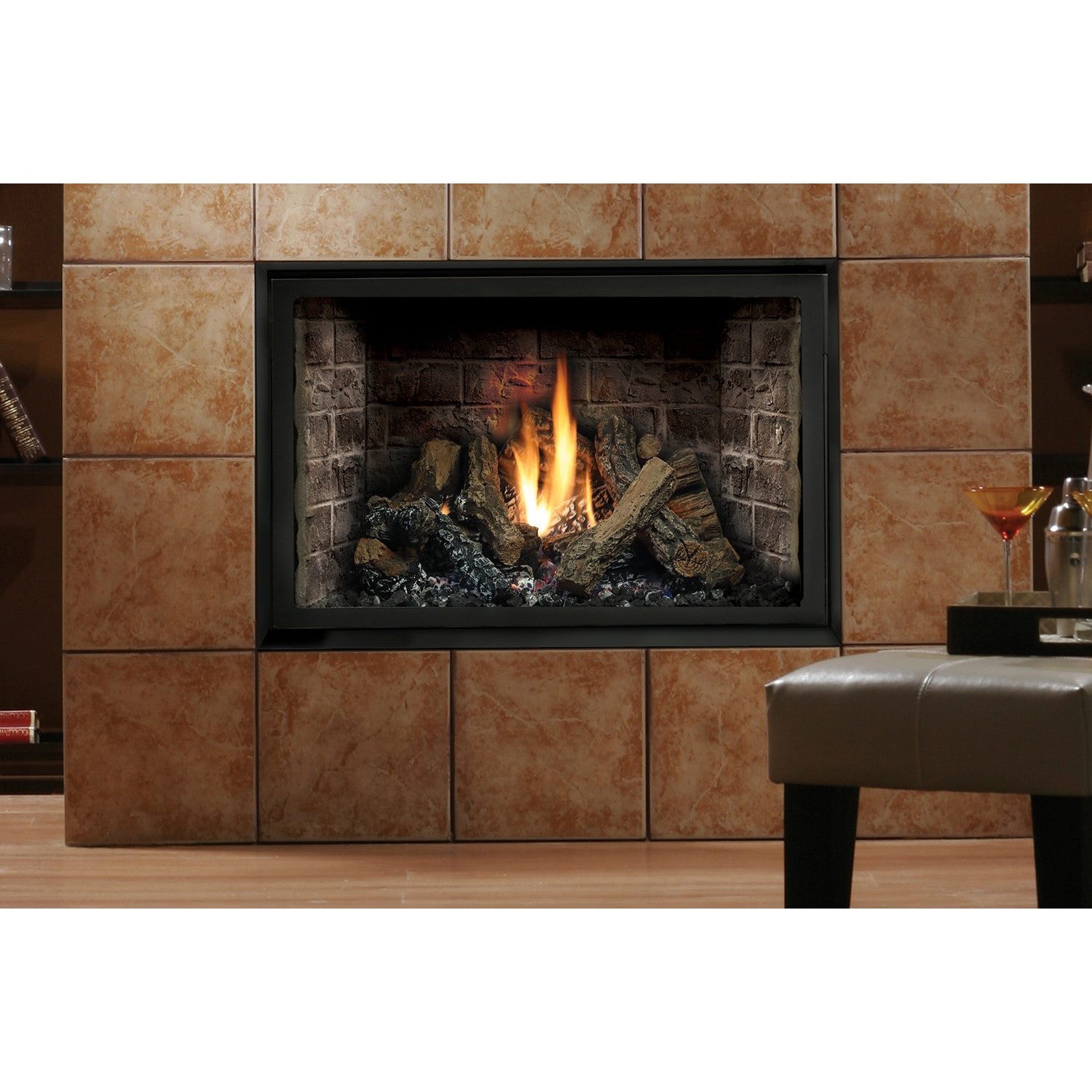

• Able to be configured as a clean face or louvered model
• Standing pilot valve system ensures ready operation during power outages
• Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
• A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed

Specifications

Model	HBZDV3628N
Fuel	Natural Gas
Gas Control	Millivolt
Flue	Top
Input Max.	28,000 BTU
Input Min.	20,000 BTU
FE (p.4.1-02)%	60.61% / 62.69%
Venting	4/7" Flex or 4/6 5/8" Hard Pipe
Glass Type	Ceramic
Certification	Heater

Gas Supply Pressure

Minimum	5.5"
Normal	7"
Maximum	9"
Manifold Pressure High	3.5 IN. W.C./.87 KPa
Manifold Pressure Low	1.6 IN. W.C./.40 KPa

Dimensions

Actual Width (Louvers)	36"
Actual Height (Louvers)	35"
Actual Depth (Louvers)	16"
Actual Width (CVCK)	38"
Actual Height (CVCK)	35"
Actual Depth (CVCK)	19"
Viewing Area Width	30"
Viewing Area Height	19"

Warranty

• This Limited Lifetime Warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii, and Canada.
• The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable installation and building codes and good trade practices.
