SKU:ZVFCV47

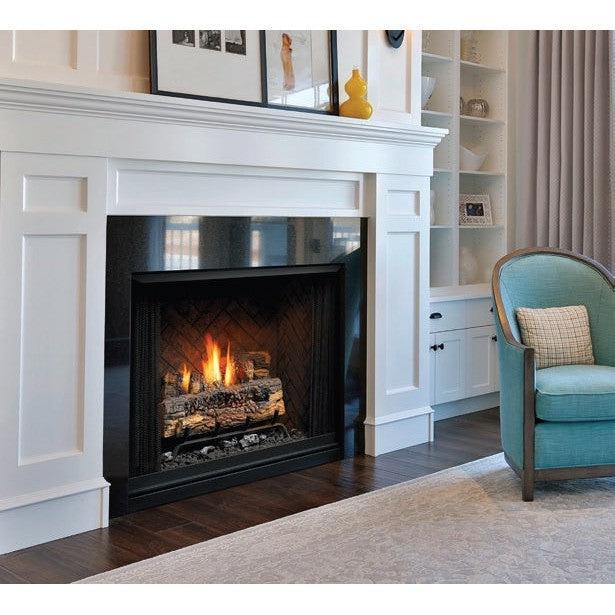

Kingsman 47" ZVFCV47 Zero Clearance Clean View Circulating Universal Vent Free Firebox

Name: Kingsman 47" ZVFCV47 Zero Clearance Clean View Circulating Universal Vent Free Firebox
Brand: Kingsman
SKU: ZVFCV47
Price: 1333.0 USD
Availability: InStock

$1,333.00

~~$1,600.00~~ $1,333.00

Sale Sold out

Shipping calculated at checkout.

Product variants

Surrounds

Refractory Liner Kit

Gas Burner (Required to Complete)

Fan Kit

Tile Lip Kit

Fan Kit

Log Set (Required to Complete)

Tile Lip Kit

Accent Lighting

Log Bits Kit

Controllers

Free Shipping on Orders Over $300
Same-Day Order Processing

OVERVIEW

The ultimate in Zero Clearance Vent-Free Fireplaces for new home construction or renovation, and your most suitable option for installation anywhere throughout your home.

The Kingsman Zero Clearance Clean View Circulating Universal Vent-Free Firebox is available during a 47-inch box. This firebox requires either the manual or remote-ready GLVF24 burner assembly and utilizes anybody of the LOGF18, LOGF24, LOGF30 fiber log assemblies as well. This firebox features a black heat deflector canopy hood, which can help to protect anything you place above your fireplace. Burner options use the matchless piezo ignition, and if they're millivolt equipped, they can have a wall switch control. With Kingsman's dedication to safety, they have included decorative pull screens for this firebox.

No chimney systems are required and this product is often used almost anywhere in your home (except in the bathroom, bedroom, spa room, mobile home, or recreational vehicle), but provisions for adequate combustion and ventilation must be provided (room size and BTU's of the appliance are the deciding factors of what BTU size can be used for a specific installation). The appliance uses room air for combustion and exhausts to the room. These appliances are 99.9% efficient and therefore the vent-free burner systems have an ODS pilot system, which ensures that the burner systems will shut down if oxygen in the room falls below acceptable limits.

STANDARD FEATURES

Color: Black
Decorative pull screens included
BTU Input Ratings: 38,250 NG / 38,000 LP
Burners use matchless piezo ignition system
Standard wall switch control for millivolt burners
Uses either LOGF18, LOGF24, or LOGF30 fiber log assemblies
Black heat deflector canopy hood protects mantels and wooden shelves
Must be completed with manual or remote ready GLVF24 burner assemblies
Hi/low Millivolt or manual valve with variable adjustment of flame and BTU
Overall Unit Dimensions: 48 3/4" Width, 45 3/8" Height, and 22 1/2" Depth
Framing Dimensions: 48 1/2" Width, 45 7/16" Height, and 22 5/8" Depth
Firebox opening dimensions: 39 3/4" Front Width, 29 3/4" Back Width, 34 1/8" Height, and 17 1/4" Depth
ODS sensor constantly monitors room air and provides 100% gas shut off if oxygen is reduced below acceptable levels

* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

DIMENSIONS

CA Residents: See Prop 65 WARNING

OPTIONAL ACCESSORIES

Click to see Burner (Required to Complete)

Burner

GLVF24MAN / GLVF24MAP / GLVF24MVN / GLVF24MVP

Size: 24 Inches
Vent Type: Vent Free
Fireplace Type: Standard
Pilot Type: Safety Pilot
Certified to: ANSI Z21.11.2-2013
Max BTU Output: 35,001 to 40,000
Manually operated variable flame control
Simple and reliable on/off Millivolt/manual gas valve
Certification: ANSI Certified, CSA Certified
Gas Type: Natural Gas, Propane Gas (Not convertible)
Vent-free burner system includes matchless piezo starter
Oxygen depletion sensor shuts down the burner if low oxygen levels are detected
Inlet gas pressure: 5 1/2 to 7 inches (Natural Gas) and 11 inches (Propane Gas) of W.C.
25,500 to 38,250 BTU/HR (Nat)
29,000 to 38,000 BTU/HR (LP)

Click to see Log Set (Required to Complete)

Log Set

Fiber Split Oak Log Set (LOGF18 / LOGF24 / LOGF30)

Size: 18/24/30 Inches
Vent Type: Vented
Log Style: Split Oak
Fireplace Type: Standard
High-quality logs will last years
Simulated split oak logs are manufactured from ceramic fiber that glows when heated

* Please Note: This item is a vent-free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

Click to see Surrounds

Surrounds

Hearth Mount Surround 4” Wide (ZCV47S1BL)

Color: Black
Classic black finish
Measures 50 9/16" wide by 43 3/16" high
Hearth mount surround for floor-mounted installations
Creates a border around the fireplace and accents the perimeter glass
Designed for ZVFCV47 fireplaces

Click to see Refractory Liner Kit

Refractory Liner Kit

	Traditional Refractory Fiber Liner (ZCV47RLT) Color: Brown No of piece: 3 Installation hardware included Durable cast refractory construction Mimics the look of traditional running courses of brick Designed to add a realistic appearance to the firebox interior Designed specifically for ZVFCV47 series fireplaces
	Herringbone Refractory Fiber Liner (ZCV47RLH) Color: Brown No of piece: 3 Installation hardware included Durable cast refractory construction Provides the look of a herringbone style brick pattern Designed to add a realistic appearance to the firebox interior Designed specifically for ZVFCV47 series fireplaces
	Traditional Refractory Fiber Liner (ZCV48RLT) Color: Brown No of piece: 3 Installation hardware included Durable cast refractory construction Mimics the look of traditional running courses of brick Designed to add a realistic appearance to the firebox interior Designed specifically for ZVFCV47 series fireplaces
	Herringbone Refractory Fiber Liner (ZCV48RLH) Color: Brown No of piece: 3 Installation hardware included Durable cast refractory construction Provides the look of a herringbone style brick pattern Designed to add a realistic appearance to the firebox interior Designed specifically for ZVFCV47 series fireplaces
	Stacked Brick Refractory Fiber Liner (ZCV48RLS) Color: Brown No of piece: 3 Installation hardware included Durable cast refractory construction Mimics the look of traditional running courses of brick Designed to add a realistic appearance to the firebox interior Designed specifically for ZVFCV47 series fireplaces

Click to see Fan Kit

Fan Kit

Speed Temperature Sensing Fan Kit (Z46FK)

Squirrel cage blower design for quiet and powerful operation
Thermal switch for automatic on/off operation
Variable speed control with built in all off setting
Designed to fit Kingsman fireplaces

Click to see Accent Lighting

Accent Lighting

Universal Light Kit - Two Lamps for Glass Trays (ULK2)

Dual halogen lamps accent glass media installations
Works with Kingsman fireplaces
Backlight affect adds a unique touch to glass equipped fireplaces
Can be used to illuminate the fireplace when not in use

Click to see Tile Lip Kit

Tile Lip Kit

Tile Lip Kit (ZCV-TLK)

Color: Black
Type: Tile Lip Kit
Provides a finished edge for tile, brick, or stone against fireplace edges
Recommended for installations without surrounds
Fits Kingsman fireplaces only

Click to see Log Bits Kit

Log Bits Kit

Four Piece Log Bits Kit (VLBIT4)

Designed to bolster the look of existing Kingsman log sets
Includes four large log chunks
Easy to install and arrange as desired

Six Piece Log Bits Kit (VLBIT6)

Designed to bolster the look of existing Kingsman log sets
Includes six large log chunks
Easy to install and arrange as desired

Click to see Thermostat

Thermostat

Wall Mount Thermostat- For Millivolt Units- Z2MT

Simple on/off millivolt thermostat design
Easy to use digital control
Allows convenient operation of gas appliances
Simple to wire to existing millivolt systems

Programmable Digital Wall Mount Thermostat- For Millivolt Units-Z80PT

Schedule programmable for desired operation
Works with Kingsman millivolt appliances
Easy to read digital LCD display

Click to see Remote Control

Remote Control

	On/Off Remote Control for Millivolt/IPI Units- GFRC Simple on/off operation for millivolt appliances Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation
	Thermostat Remote Control Millivolt/IPI Units- GTRC, EGTRC On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation
	Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units- GTMRCN, GTMRCP, EGTMRCN, EGTMRCP On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation Includes high/low modulating motor for natural gas and propane gas fireplaces
	Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units- GTFRCN, GTFRCP, EGTFRCN, EGTFRCP On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation Includes high/low modulating motor for natural and propane gas fireplaces Allows for control of optional fan operation

DOWNLOADS

View full details
