Zero Clearance Direct Vent Linear Gas Fireplace

Warm up your favourite room with the beauty of a Linear Fireplace.

The Kingsman VRB46 Zero-Clearance DV Linear Gas Fireplace is a quality fireplace that will allow you to enjoy the beauty of a contemporary looking fire in your new home or existing living space. Be assured that this fireplace is safe, offers comfort and a long lasting value!

Choose from a variety of options to create your own distinctive appearance and be assured of complete safety, comfort and long lasting value. Select from a millivolt or intermittent pilot ignition system. The millivolt valve system does not use electricity, but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation.

Millivolt Valve System

This contemporary fireplace includes bronze reflective glass media as the base for the dancing flames. This Direct Vent VRB46 Fireplace has a reliable standing pilot valve system which ensures operation in a power outage, standard high/low flame adjustment options, and can pair with a full line of remotes and wall switches. Kingsman includes a safety barrier screen to prevent accidental contact with hot surfaces, and this VRB46 Fireplace is ANSI/CSA listed for both the USA and Canada.

Features (VRB46LP, VRB46N)

  • Color: Black
  • High/low flame adjustment is standard
  • Efficiency Rating: 73.1% NG / 75.7% LP
  • ANSI/CSA listed for both USA and Canada
  • Vent Type: Direct Vent
  • BTU Input Ratings: 23,250 NG / 23,250 LP
  • Low profile linear fireplace with tempered glass front
  • Fireplace Type: Standard Fireplace
  • Fuel Type: Natural Gas (VRB46N), Propane Gas (VRB46LP)
  • Able to be equipped with a full line of remotes and wall switches
  • Includes bronze reflective glass media for a modern appearance
  • Includes safety barrier screen to prevent accidental contact with hot glass
  • Reliable standing pilot valve system ensures operation in a power outage
  • Specific Use Options: Mobile Home Approved / Bedroom Approved

IPI Valve System

This contemporary fireplace includes bronze reflective glass media as the base for the dancing flames. This Direct Vent VRB46E Fireplace with its fully electronic IPI pilot system eliminates the need for a standing pilot flame and standard high/low flame adjustment options, can pair with a full line of remotes and wall switches. Kingsman includes a safety barrier screen to prevent accidental contact with hot surfaces, and this VRB46E Fireplace is ANSI/CSA listed for both the USA and Canada.

    Features (VRB46LPE, VRB46NE)

    • Color: Black
    • High/low flame adjustment is standard
    • Efficiency Rating: 77.4% NG / 80.3% LP
    • ANSI/CSA listed for both USA and Canada
    • Vent Type: Direct Vent
    • Low profile linear fireplace with tempered glass front
    • Fireplace Type: Standard Fireplace
    • Fuel Type: Natural Gas (VRB46NE), Propane Gas (VRB46LPE)
    • Able to be equipped with a full line of remotes and wall switches
    • Includes bronze reflective glass media for a modern appearance
    • Includes safety barrier screen to prevent accidental contact with hot glass
    • Fully electronic IPI pilot system eliminates the need for a standing pilot flame
    • Specific Use Options: Mobile Home Approved / Bedroom Approved

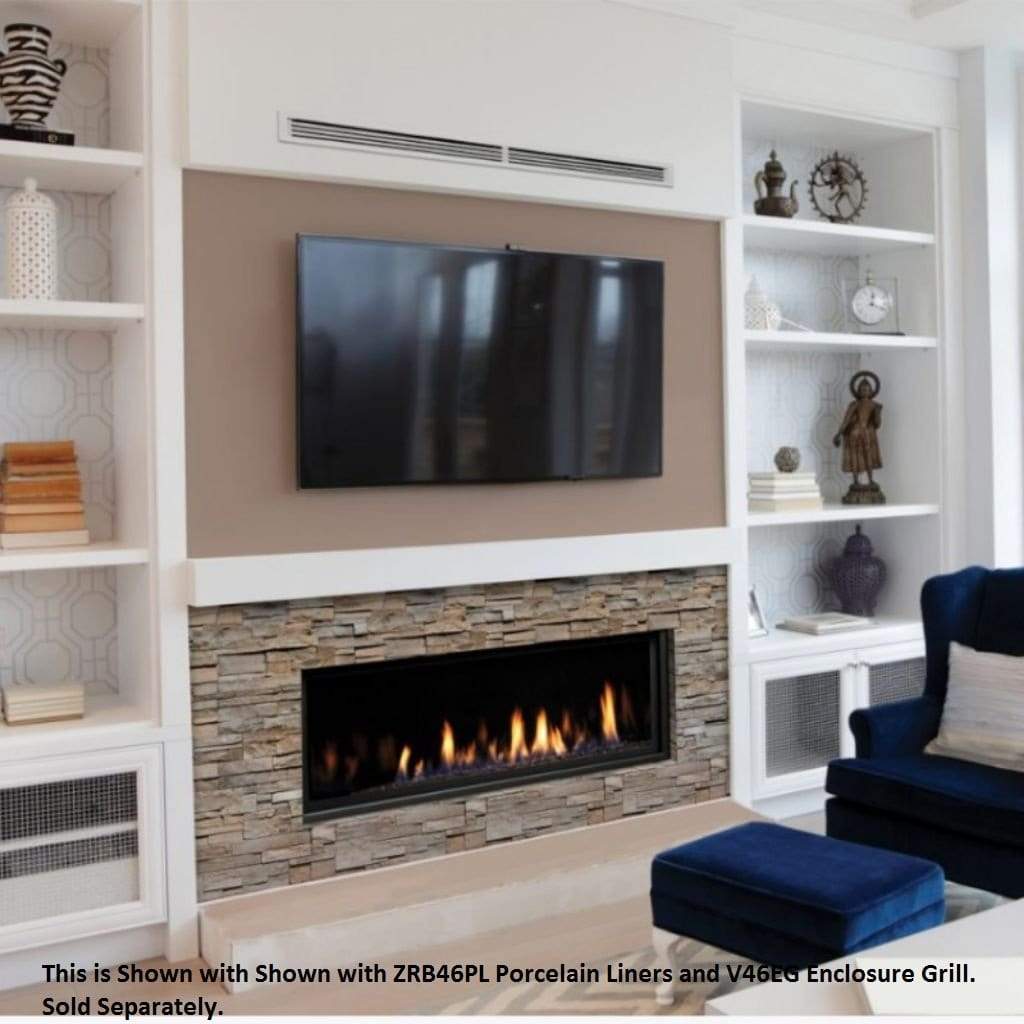

    *Please Note: This Image is shown with Shown with ZRB46PL Porcelain Liners and V46EG Enclosure Grill (not included). The enclosure grill is required for ventilation when using a television above the fireplace.

    Product Specification

     Model VRB46N/NE VRB46N/LPE
     Fuel Natural Propane
    Gas Control Millivolt / IPI Millivolt / IPI
     Input Max. 23,250 BTU 23,250 BTU
    Input Min. 15,750 BTU 15,750 BTU
    FE (p.4.1-02)% 67.94% / 70.65% 70.95% / 73.94%
    Venting 4/7" Kingsman Flex Vent Only 4/7" Kingsman Flex Vent Only
    Viewing Area 40 5/8" W x 13 7/8" H 40 5/8" W x 13 7/8" H
    Glass Type Tempered Tempered
    Certification Heater Heater
    Actual Width (CVCK) 46 1/4" 46 1/4"
    Actual Height (CVCK) 43 1/2" 43 1/2"
    Actual Depth (CVCK) 17 7/8" 17 7/8"
    Power Vent Yes Yes



    Standard Features

    • Hi/Low Millivolt or IPI valve system will operate during power failures.
    • Decorative Bronze Glass
    • Mobile Home, Bedroom and Bed Sitting Room approve
    • Safety Screen Barrier



    Dimensions





    CA Residents: See Prop 65 WARNING

    Optional Features

    Click to see Surround Trim Kit

    Surround Trim Kit

    Surround Trim Kit - 1 1/2" Wide Stainless Steel- ZRB46S1SS

    • Color: Stainless Steel
    • Narrow style wall surround kit with 1 1/2" wide border
    • Designed to frame VRB46 and ZRB46 series fireplaces
    • Enhances the appearance of the fireplace and provides a wall transition
    • Measures 44 5/8" wide by 17 1/8" high

      Surround Trim Kit - 1 1/2" Wide Black- ZRB46S1BL

      • Color: Black
      • Narrow style wall surround kit with 1 1/2" wide border
      • Designed to frame VRB46 and ZRB46 series fireplaces
      • Enhances the appearance of the fireplace and provides a wall transition
      • Measures 44 5/8" wide by 17 1/8" high

      Surround Trim Kit - 4" Wide Stainless Steel- ZRB46S2SS

      • Color: Stainless Steel
      • Wide style wall surround kit with 4" wide border
      • Designed to frame VRB46 and ZRB46 series fireplaces
      • Enhances the appearance of the fireplace and provides a wall transition
      • Measures 50 1/2" wide by 22 1/2" high

      Surround Trim Kit - 4" Wide Black- ZRB46S2BL

      • Color: Black
      • Wide style wall surround kit with 4" wide border
      • Designed to frame VRB46 and ZRB46 series fireplaces
      • Enhances the appearance of the fireplace and provides a wall transition
      • Measures 50 1/2" wide by 22 1/2" high
      Click to see Enclosure Grill


      Enclosure Grill

      Enclosure Ventilation Grill- V46EG

      • Designed to ventilate the enclosure for the VRB46 series fireplaces
      • Allows heat to be reclaimed into the room
      • Measures 46 3/4" wide by 2 5/8" high
      Click to see Accent Lighting


      Accent Lighting

      Universal Two Lamp Light Kit for Fireplaces- ULK2
      • Dual halogen lamps accent glass media installations
      • Works with Kingsman fireplaces
      • Backlight affect adds a unique touch to glass equipped fireplaces
      • Can be used to illuminate the fireplace when not in use
      Click to see Fan Kit


      Fan Kit



      Speed Temperature Sensing Fan Kit- Z46FK

      • Squirrel cage blower design for quiet and powerful operation
      • Thermal switch for automatic on/off operation
      • Variable speed control with built in all off setting
      • Designed to fit Kingsman fireplaces


      Click to see Refractory Liner

      Refractory Liner

      Porcelain Liner Kit- VRB46PL

      • Color: Reflective Black
      • Amplifies the flame presentation via reflective qualities
      • Durable porcelain coated steel finish
      • Installation hardware included
      • Sleek modern appearance compliments fire glass installations
      • Designed specifically for VRB46 series fireplaces
      Click to see Flame Displays
      		Decorative Ember Glass Bronze-ZG5C
      • Color: Bronze
      • Contains 5 pounds of 1/2" bronze glass media
      • Designed for use in contemporary fireplaces configured with glass media trays
      • High luster tempered finish

      Assorted Cannonball Fire Art- RBCB1

      • Color: Various Colors
      • Unique design alternative to glass media
      • Design for Kingsman fireplaces and stoves
      • Can be used with glass media accents
      Click to see Mineral Fiber Board


      Mineral Fiber Board



      4 Pieces ProMat Mineral Fiber Board- Z46PRO4

      • Designed to provide a noncombustible enclosure for VRB46 and ZRB46 series fireplaces
      • Heat resistant mineral board construction
      • Four piece kit
      Click to see Thermostat


      Thermostat



      Wall Mount Thermostat- For Millivolt Units- Z2MT

      • Simple on/off millivolt thermostat design
      • Easy to use digital control
      • Allows convenient operation of gas appliances
      • Simple to wire to existing millivolt systems

      Programmable Digital Wall Mount Thermostat- For Millivolt Units-Z80PT

      • Schedule programmable for desired operation
      • Works with Kingsman millivolt appliances
      • Easy to read digital LCD display
      Click to see Remote Control


      Remote Control

      On/Off Remote Control for Millivolt/IPI Units- GFRC

      • Simple on/off operation for millivolt appliances
      • Allows for the operation of the appliance without manual control
      • Included receiver easily mounts within the appliance chassis
      • Reliable RF transmitter operation

        Thermostat Remote Control Millivolt/IPI Units- GTRC, EGTRC

        • On/off operation with modulating thermostat control
        • Allows for the operation of the appliance without manual control
        • Included receiver easily mounts within the appliance chassis
        • Reliable RF transmitter operation

        Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units-
        GTMRCN, GTMRCP, EGTMRCN, EGTMRCP

        • On/off operation with modulating thermostat control
        • Allows for the operation of the appliance without manual control
        • Included receiver easily mounts within the appliance chassis
        • Reliable RF transmitter operation
        • Includes high/low modulating motor for natural gas and propane gas fireplaces

          Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units- GTFRCN, GTFRCP, EGTFRCN, EGTFRCP

          • On/off operation with modulating thermostat control
          • Allows for the operation of the appliance without manual control
          • Included receiver easily mounts within the appliance chassis
          • Reliable RF transmitter operation
          • Includes high/low modulating motor for natural and propane gas fireplaces
          • Allows for control of optional fan operation
