SKU:ZVFCV42

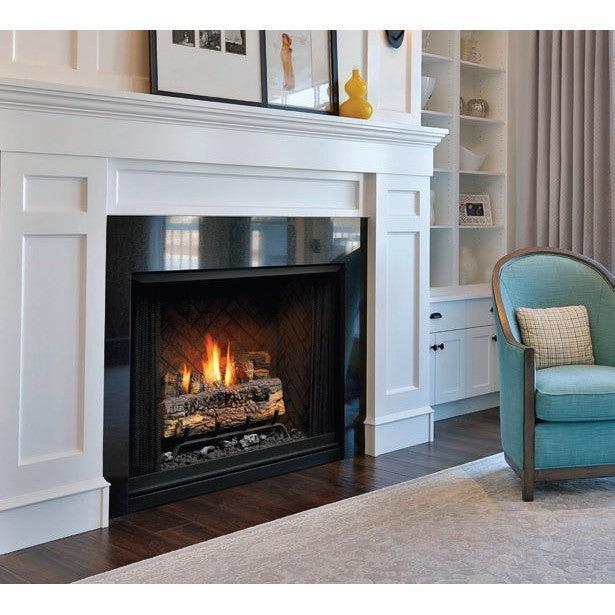

Kingsman 42" ZVFCV42 Zero Clearance Clean View Circulating Universal Vent Free Firebox

Name: Kingsman 42" ZVFCV42 Zero Clearance Clean View Circulating Universal Vent Free Firebox
Brand: Kingsman
SKU: ZVFCV42
Price: 980.72 USD
Availability: InStock

$980.72

Sale Sold out

Shipping calculated at checkout.

Product variants

Gas Burner (Required to Complete)

Log Set (Required to Complete)

Liner Kit

Surrounds

Tile Lip Kit

Accent Lighting

Log Bits Kit

Controllers

Free Shipping on Orders Over $300
Same-Day Order Processing

OVERVIEW

The ultimate in Zero Clearance Vent-Free Fireplaces for new home construction or renovation, and your most suitable option for installation anywhere throughout your home.

The Kingsman Zero Clearance Clean View Circulating Universal Vent Free Firebox is available during a 42-inch box. This firebox requires the utilization of a manual or a remote-ready GLVF24 burner assembly. you'll choose from LOGF18 or LOGF24 fiber log assembly. For your peace of mind, this fireplace has an ODS, or Oxygen Density Sensor, to consistently monitor the air in the room and automatically shuts the gas off if the oxygen levels in the room drop below safe levels. Another great feature of this firebox is that the black heat deflector. This canopy hood protects any items placed above the firebox from heat.

No chimney systems are required and this product is often used almost anywhere in your home (except in the bathroom, bedroom, spa room, mobile home, or recreational vehicle), but provisions for adequate combustion and ventilation must be provided (room size and BTU's of the appliance are the deciding factors of what BTU size can be used for a specific installation). The appliance uses room air for combustion and exhausts to the room. These appliances are 99.9% efficient and therefore the vent-free burner systems have an ODS pilot system, which ensures that the burner systems will shut down if oxygen in the room falls below acceptable limits.

STANDARD FEATURES

Color: Black
Size: 34 Inch
Vent Type: Vent Free
Fireplace Type: Standard Firebox
Decorative pull screens included
Burners use matchless piezo ignition system
Fuel Type Options: Natural Gas, Propane Gas
Standard wall switch control for millivolt burners
Uses either LOGF18 or LOGF24 fiber log assemblies
Black heat deflector canopy hood protects mantels and wooden shelves
Hi/low Millivolt or manual valve with variable adjustment of flame and BTU
Must be completed with manual or remote ready GLVF24 burner assemblies
ODS sensor monitors room air and provides gas shut off if oxygen is below acceptable levels

* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

Technical Specifications

Max BTU Output: 35,001 to 40,000
BTU Input Ratings: 38,250 NG / 38,000 LP
Framing Dimensions: 42 1/2" W 40 3/8" H and 20 5/16" D
Overall Unit Dimensions: 42 7/16" W 40 5/16" H and 20 3/16" D
Firebox opening dimensions: 33 7/8" FW 26 7/8" BW 29 1/8" H and 15 1/2" D

DIMENSIONS

CA Residents: See Prop 65 WARNING

OPTIONAL ACCESSORIES

Click to see Burner (Required to Complete)

Burner

GLVF24MAN / GLVF24MAP / GLVF24MVN / GLVF24MVP

Size: 24 Inches
Vent Type: Vent Free
Fireplace Type: Standard
Pilot Type: Safety Pilot
Certified to: ANSI Z21.11.2-2013
Max BTU Output: 35,001 to 40,000
Manually operated variable flame control
Simple and reliable on/off Millivolt/manual gas valve
Certification: ANSI Certified, CSA Certified
Gas Type: Natural Gas, Propane Gas (Not convertible)
Vent-free burner system includes matchless piezo starter
Oxygen depletion sensor shuts down the burner if low oxygen levels are detected
Inlet gas pressure: 5 1/2 to 7 inches (Natural Gas) and 11 inches (Propane Gas) of W.C.
25,500 to 38,250 BTU/HR (Nat)
29,000 to 38,000 BTU/HR (LP)

Click to see Log Set (Required to Complete)

Log Set

Fiber Split Oak Log Set (LOGF18/LOGF24)

Size: 18/24 Inches
Vent Type: Vented
Log Style: Split Oak
Fireplace Type: Standard
High-quality logs will last years
Simulated split oak logs are manufactured from ceramic fiber that glows when heated

* Please Note: This item is a vent-free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

Click to see Surrounds

Surrounds

Hearth Mount Surround 4” Wide (ZCV42S1BL)

Color: Black
Wide hearth mount style surround with safety screen
Measures 44 5/8" wide by 38 1/8" high
Designed to surround the fireplace when positioned at ground or hearth level
Designed for ZCV42, ZCV42H, MCVST42, and ZVFCV42 series fireplaces

Picture Frame Surround 4” Wide (ZCV42S1PFBL)

Color: Black
Wide picture frame style surround with safety screen
Measures 44 5/8" wide by 40 1/8" high
Designed to frame the fireplace opening and transition to the surrounding wall
Designed for ZCV42, ZCV42H, MCVST42, and ZVFCV42 series fireplaces

Picture Frame Surround 1 5/8” Wide (ZCV42S2PFBL)

Color: Black
Slim picture frame style surround with safety screen
Measures 40 1/8" wide by 35 5/8" high
Designed to frame the fireplace opening and transition to the surrounding wall
Designed for ZCV42, ZCV42H, MCVST42, and ZVFCV42 series fireplaces

Click to see Refractory Liner Kit

Refractory Liner Kit

	3 Piece Traditional Refractory Fiber Liner (ZCV42RLT) Color: Brown Designed to add a realistic appearance to the firebox interior Durable cast refractory construction Installation hardware included Mimics the look of traditional running courses of brick Designed specifically for ZCV42/ZCV42H/ZVFCV42 fireplaces
	3 Piece Herringbone Refractory Fiber Liner (ZCV42RLH) Color: Brown Designed to add a realistic appearance to the firebox interior Durable cast refractory construction Installation hardware included Provides the look of a herringbone style brick pattern Designed specifically for ZCV42/ZCV42H/ZVFCV42 fireplaces
	3 Piece Red Herringbone Refractory Fiber Liner (ZCV42RRH) Color: Red Herringbone Designed to add a realistic appearance to the firebox interior Durable cast refractory construction Installation hardware included Provides the look of a herringbone style brick pattern Designed specifically for ZCV42/ZCV42H/ZVFCV42 fireplaces
	3 Piece Stacked Brick Refractory Fiber Liner (ZCV42RLS) Color: Brown Designed to add a realistic appearance to the firebox interior Durable cast refractory construction Installation hardware included Mimics the look of traditional running courses of brick Designed specifically for ZCV42/ZCV42H/ZVFCV42 fireplaces

Click to see Fan Kit

Fan Kit

Speed Temperature Sensing Fan Kit (Z46FK)

Squirrel cage blower design for quiet and powerful operation
Thermal switch for automatic on/off operation
Variable speed control with built in all off setting
Designed to fit Kingsman fireplaces

Click to see Accent Lighting

Accent Lighting

Universal Light Kit - Two Lamps for Glass Trays (ULK2)

Dual halogen lamps accent glass media installations
Works with Kingsman fireplaces
Backlight affect adds a unique touch to glass equipped fireplaces
Can be used to illuminate the fireplace when not in use

Click to see Tile Lip Kit

Tile Lip Kit

Tile Lip Kit (ZCV-TLK)

Color: Black
Type: Tile Lip Kit
Provides a finished edge for tile, brick, or stone against fireplace edges
Recommended for installations without surrounds
Fits Kingsman fireplaces only

Click to see Log Bits Kit

Log Bits Kit

Four Piece Log Bits Kit (VLBIT4)

Designed to bolster the look of existing Kingsman log sets
Includes four large log chunks
Easy to install and arrange as desired

Six Piece Log Bits Kit (VLBIT6)

Designed to bolster the look of existing Kingsman log sets
Includes six large log chunks
Easy to install and arrange as desired

Click to see Thermostat

Thermostat

Wall Mount Thermostat- For Millivolt Units- Z2MT

Simple on/off millivolt thermostat design
Easy to use digital control
Allows convenient operation of gas appliances
Simple to wire to existing millivolt systems

Programmable Digital Wall Mount Thermostat- For Millivolt Units-Z80PT

Schedule programmable for desired operation
Works with Kingsman millivolt appliances
Easy to read digital LCD display

Click to see Remote Control

Remote Control

	On/Off Remote Control for Millivolt/IPI Units- GFRC Simple on/off operation for millivolt appliances Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation
	Thermostat Remote Control Millivolt/IPI Units- GTRC, EGTRC On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation
	Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units- GTMRCN, GTMRCP, EGTMRCN, EGTMRCP On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation Includes high/low modulating motor for natural gas and propane gas fireplaces
	Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units- GTFRCN, GTFRCP, EGTFRCN, EGTFRCP On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation Includes high/low modulating motor for natural and propane gas fireplaces Allows for control of optional fan operation
