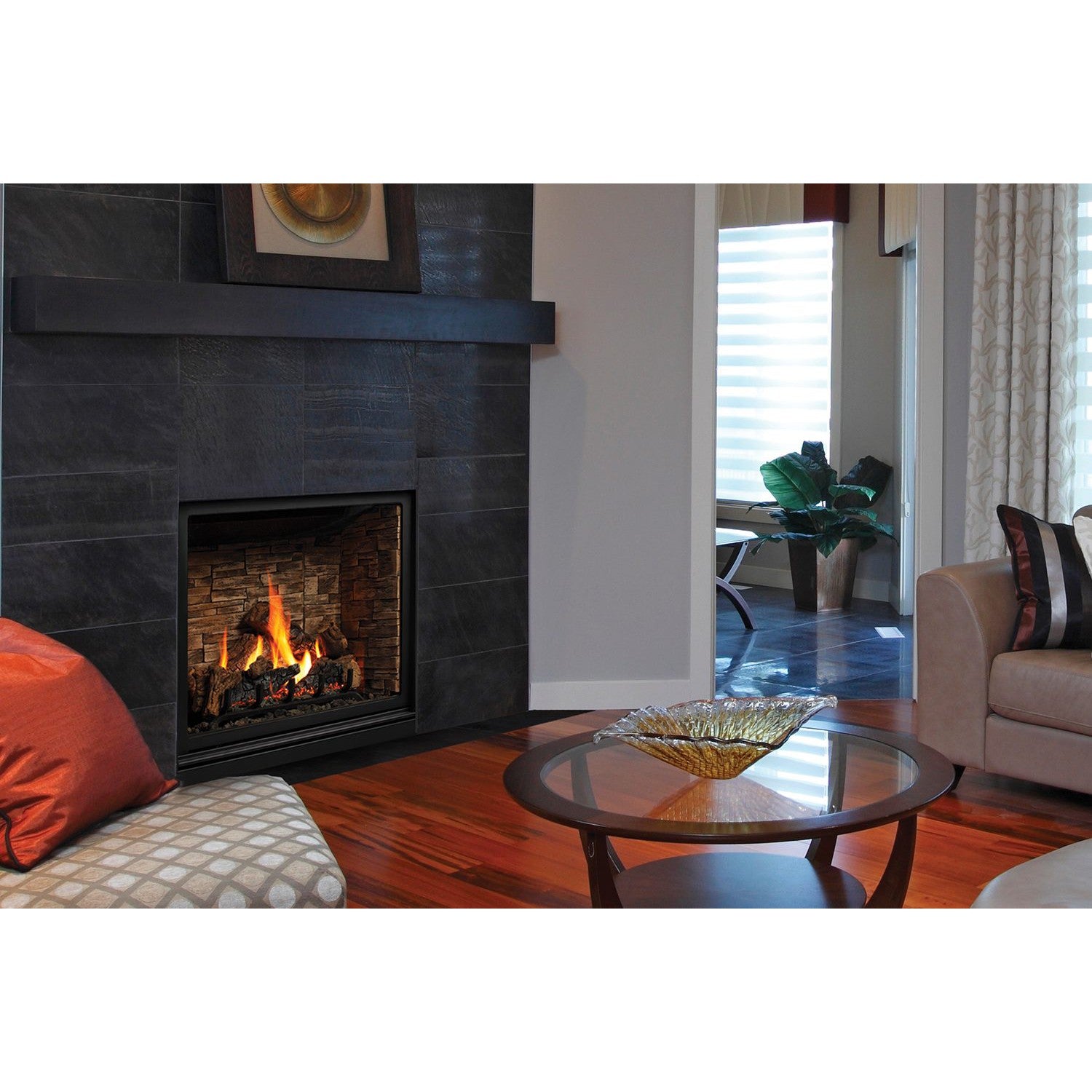

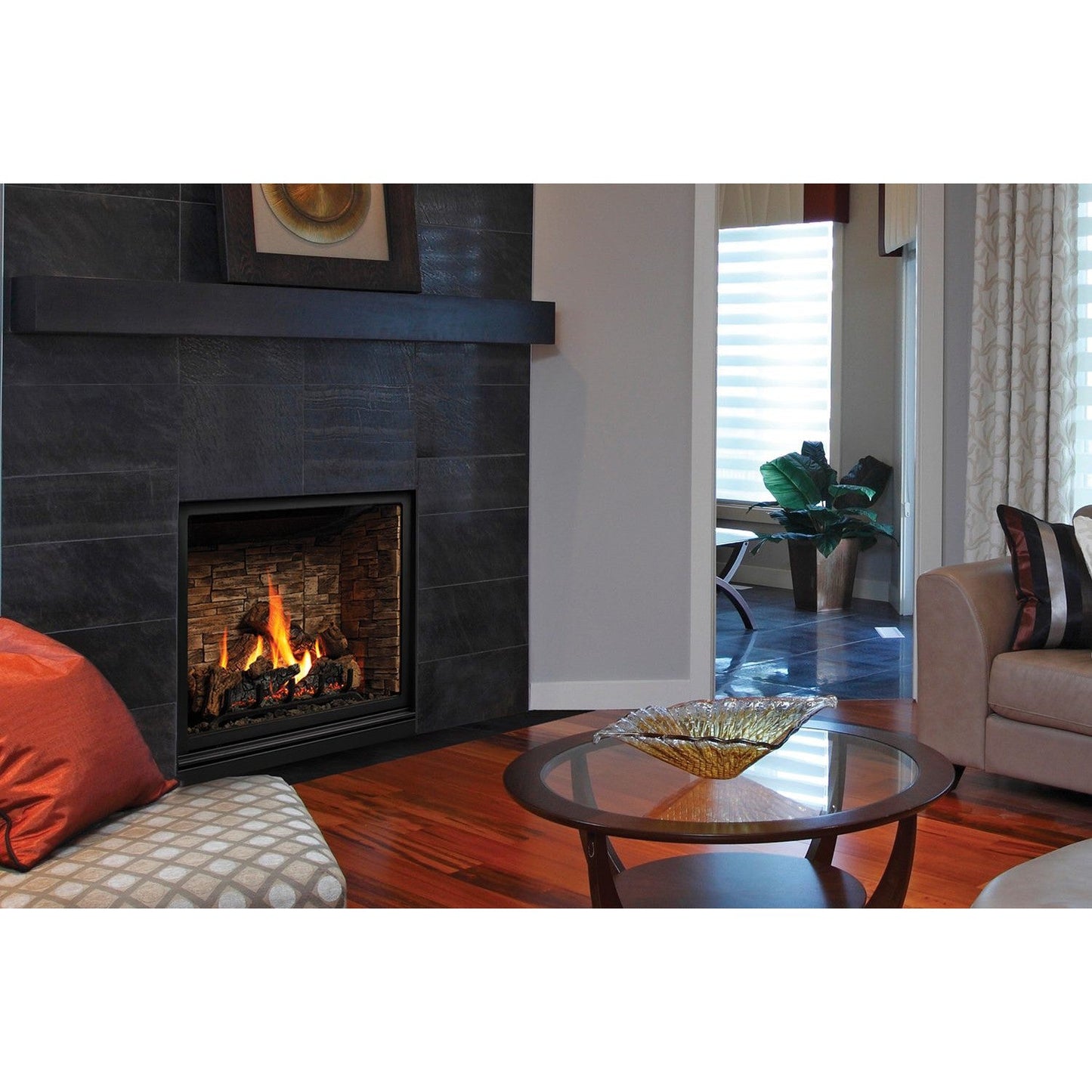

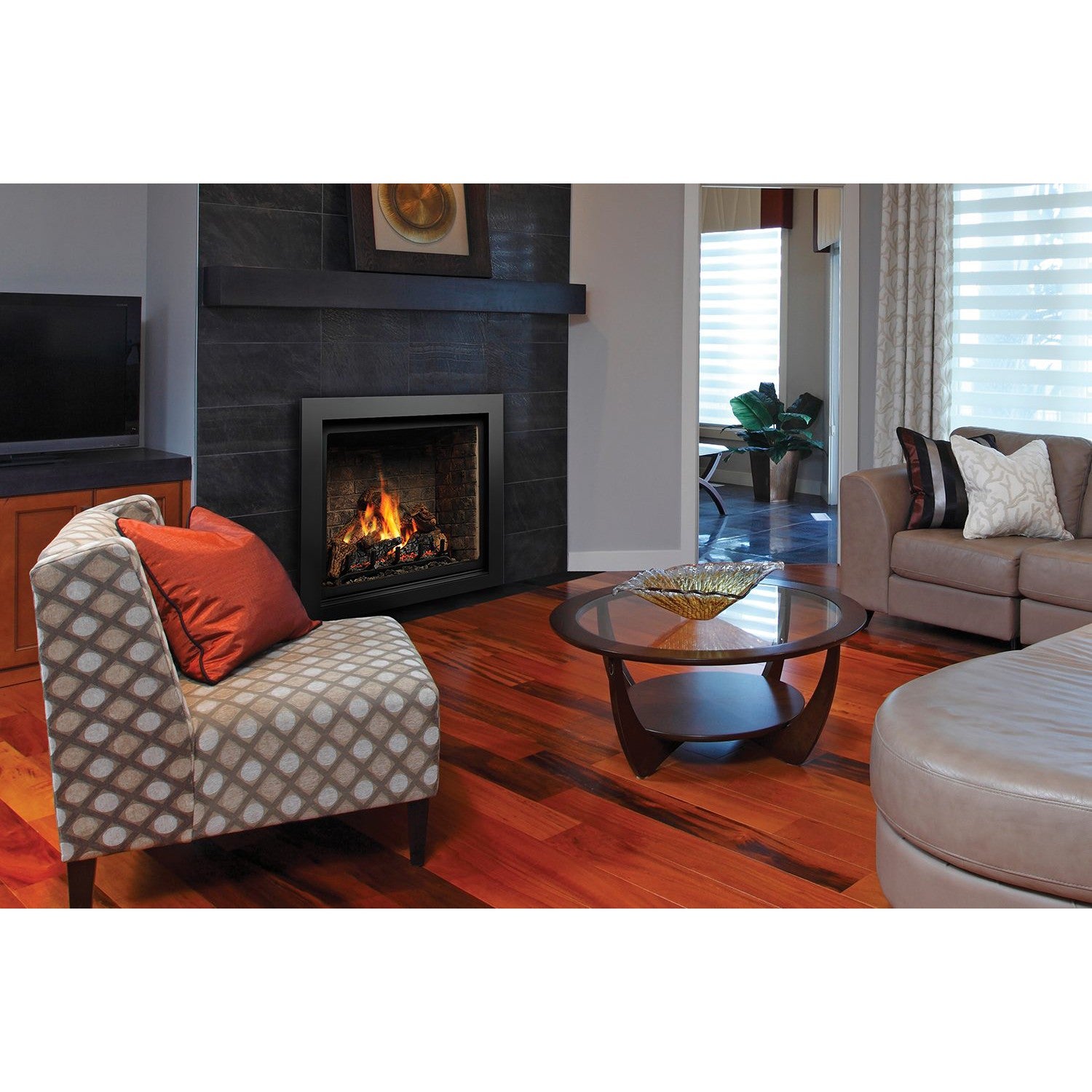

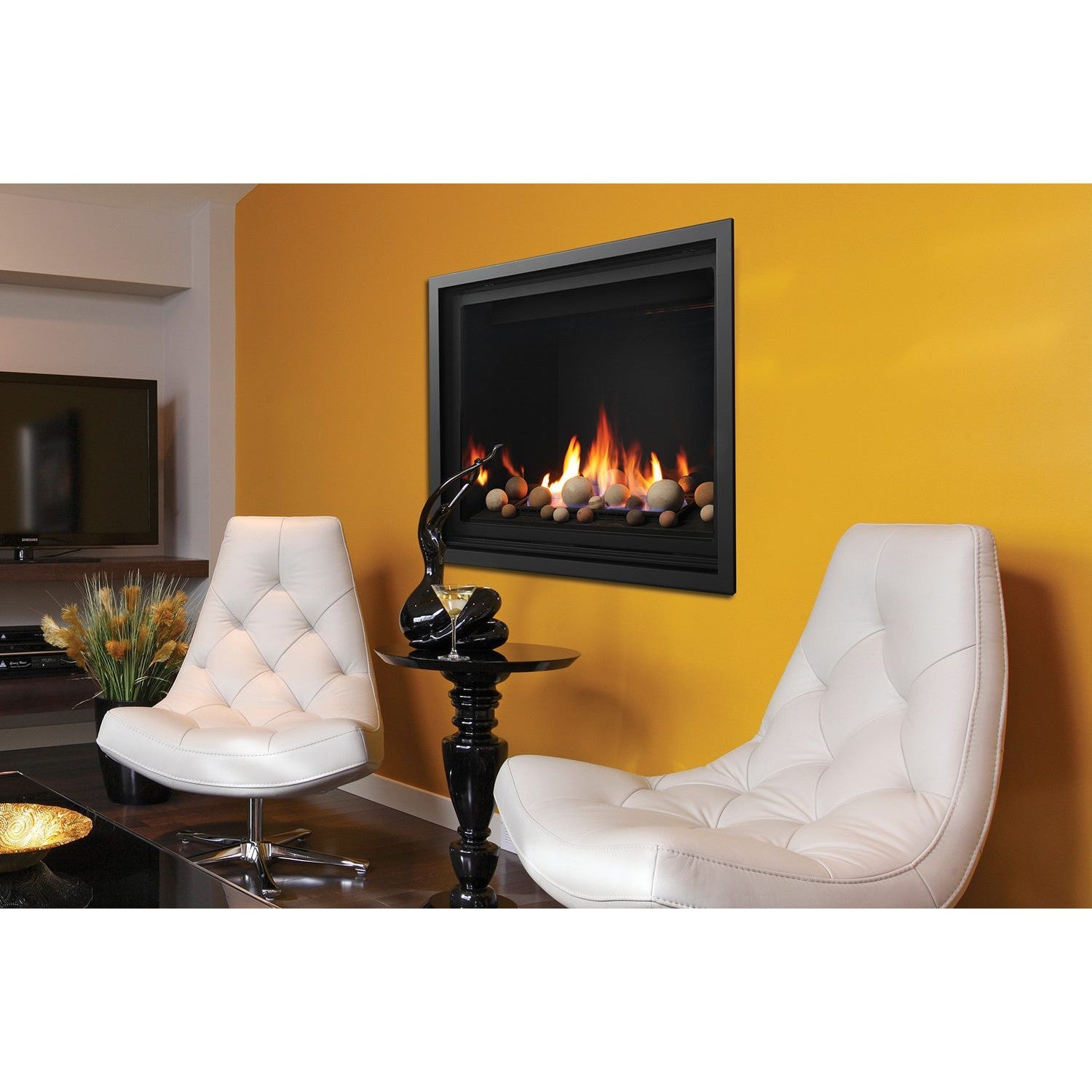

Kingsman 42" ZCV42H Zero Clearance Direct Vent Gas Fireplace
Kingsman 42" ZCV42H Zero Clearance Direct Vent Gas Fireplace
Conversion Kit
-- Please Select --
No, Thank You
Fan Kit
-- Please Select --
No, Thank You
Liner Kit
-- Please Select --
No, Thank You
Surrounds
-- Please Select --
No, Thank You
Glass Tray (Required to Complete)
-- Please Select --
No, Thank You
Tile Lip Kit
-- Please Select --
No, Thank You
Log Set (Required to Complete)
-- Please Select --
No, Thank You
Accent Lighting
-- Please Select --
No, Thank You
Log Bits Kit
-- Please Select --
No, Thank You
Cannonball Fire Art
-- Please Select --
No, Thank You
Bronze Fire Glass Media
*Required for Glass Tray
-- Please Select --
5 lbs. Bronze Glass Media
10 lbs. Bronze Glass Media
15 lbs. Bronze Glass Media
20 lbs. Bronze Glass Media
25 lbs. Bronze Glass Media
No, Thank You
Controllers
-- Please Select --
Millivot Remote Control - Thermostat/Modulating
IPI PF1 Remote Control - Thermostat/Modulating
Millivot Remote Control - Thermostat/Modulating/Fan
IPI PF1 Remote Control - Thermostat/Modulating/Fan
On/Off Remote Control for Millivolt/IPI Units
Wall Mount Thermostat for Millivolt Unit
Thermostat Remote Control for Millivolt Unit
Thermostat Remote Control for IPI Unit
No, Thank You
Venting Options
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
OVERVIEW
The ultimate in Zero Clearance Direct Vent Fireplaces for new home construction or renovation, and your best choice for installation anywhere throughout your home.
Kingsman 42-Inch Zero Clearance Clean View Direct Vent Gas Fireplace with Media offers an impressive direct vent gas fireplace option for your home. Featuring heavy-duty steel construction, this classic design offers durability to face up to the test of your time. With its premium pan burner system, realistic flame pattern, and impressive media, this appliance replicates the design of a traditional wood fireplace while also having the ability to incorporate contemporary styling. With its zero-clearance design and dedicated clean view appearance, this fireplace makes a wonderful option for the new home construction or renovation for any room in your home.
Kingsman quality Direct Vent gas fireplaces let you enjoy the wonder of glowing embers and dancing flames and up to 85% maximum efficiency. Create an elegant and warm focal point in your home. Kingsman fireplaces have fully sealed combustion chambers with no pollution spillage to depreciate the indoor air quality of your home.
This fireplace are often customized in a variety of ways. additionally, to fuel type, this unit are often purchased with a remote-ready millivolt ignition or an intermittent pilot ignition (IPI). This fireplace also can be purchased with a traditional brick liner, herringbone brick liner, red herringbone brick liner, stacked brick liner, or porcelain reflective liner to further customize your appliance. For your surround kit, this fireplace are often configured with a slim picture frame surround, a large picture frame surround or a fire mount surround.
STANDARD FEATURES
- Color: Black
- Size: 42 Inches
- Vent Type: Direct Vent
- Safety Screen Barrier
- Dedicated Clean View appliance
- Fuel Type: Natural Gas, Propane Gas
- Pan burner with Realistic Flame Pattern
- BTU Input Ratings: 29,500 NG / 29,000 LP
- Ceramic glass design offer superior heat transfer
- Fireplace heater rated for use as a supplemental heat source
- Able to be equipped with a full line of remotes and wall switches
- Specific Use Options: Mobile Home Approved / Bedroom Approved
- Able to utilize one of two detailed 5 piece log sets or contemporary glass media
- Reliable standing pilot valve system ensures ready operation during power outages
- Millivolt or IPI valve system allows operation during a power failure with Hi/Low heat and flame adjustment
*Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
PRODUCT SPECIFICATION
| Model | ZCV42NH/NHE |
ZCV42LPH/LPHE |
| Fuel | Natural | Propane |
| Flue | Top |
Top |
| Gas Control | Millivolt / IPI | Millivolt / IPI |
| Input Max. | 29,500 BTU |
29,000 BTU |
| Input Min. | 20,000 BTU |
23,000 BTU |
| FE (p.4.1-02)% | 64.53% / 66.48% |
66.65% / 68.77% |
|
Flue Sizes |
4/7" |
4/7" |
|
Glass Size |
35 5/8" W x 29 9/32"H |
35 5/8" W x 29 9/32"H |
| Glass Type | Ceramic | Ceramic |
| Size (WxHxD) |
42 3/8"W x 40 7/8"H x18 3/8"D |
42 3/8"W x 40 7/8"H x18 3/8"D |
| Viewing Area |
33 5/8"W x 27 1/4"H |
33 5/8"W x 27 1/4"H |
| Venting | 4/7” Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
4/7” Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
| Electronic Ignition |
Yes |
Yes |
| Certification | Heater | Heater |
| Bedroom Approved |
Yes |
Yes |
DIMENSIONS
CA Residents: See Prop 65 WARNING
OPTIONAL ACCESSORIES
Click to see Conversion Kit
Conversion Kit
 |
Conversion Kit to Propane Millivolt (42ZCV-CKLPH)
Conversion Kit to Natural Gas Millivolt (42ZCV-CKNGH)
Conversion Kit to Propane IPI (42ZCV-CKLPHI)
Conversion Kit to Natural Gas IPI (42ZCV-CKNGHI)
|
Click to see Log Set (Required to Complete)
Log Set
 |
Five Piece Fiber Log Set (LOGF3)
|
 |
Five Piece Glo-Cast Log Set (LOGC3)
|

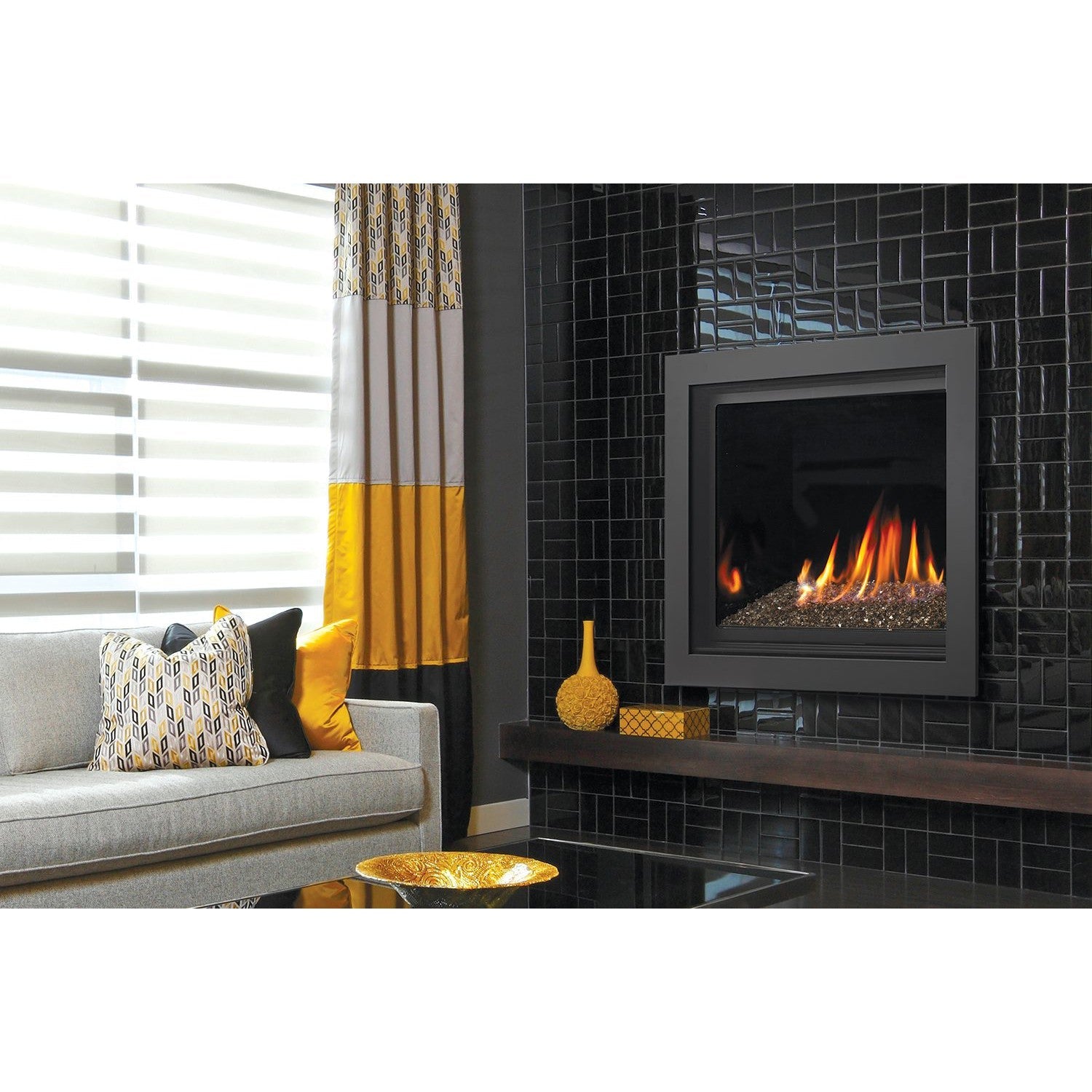

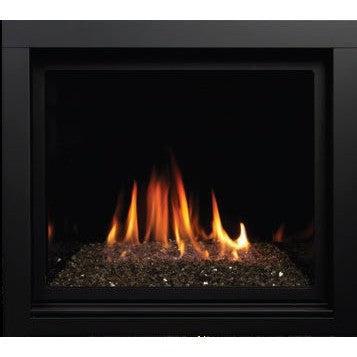

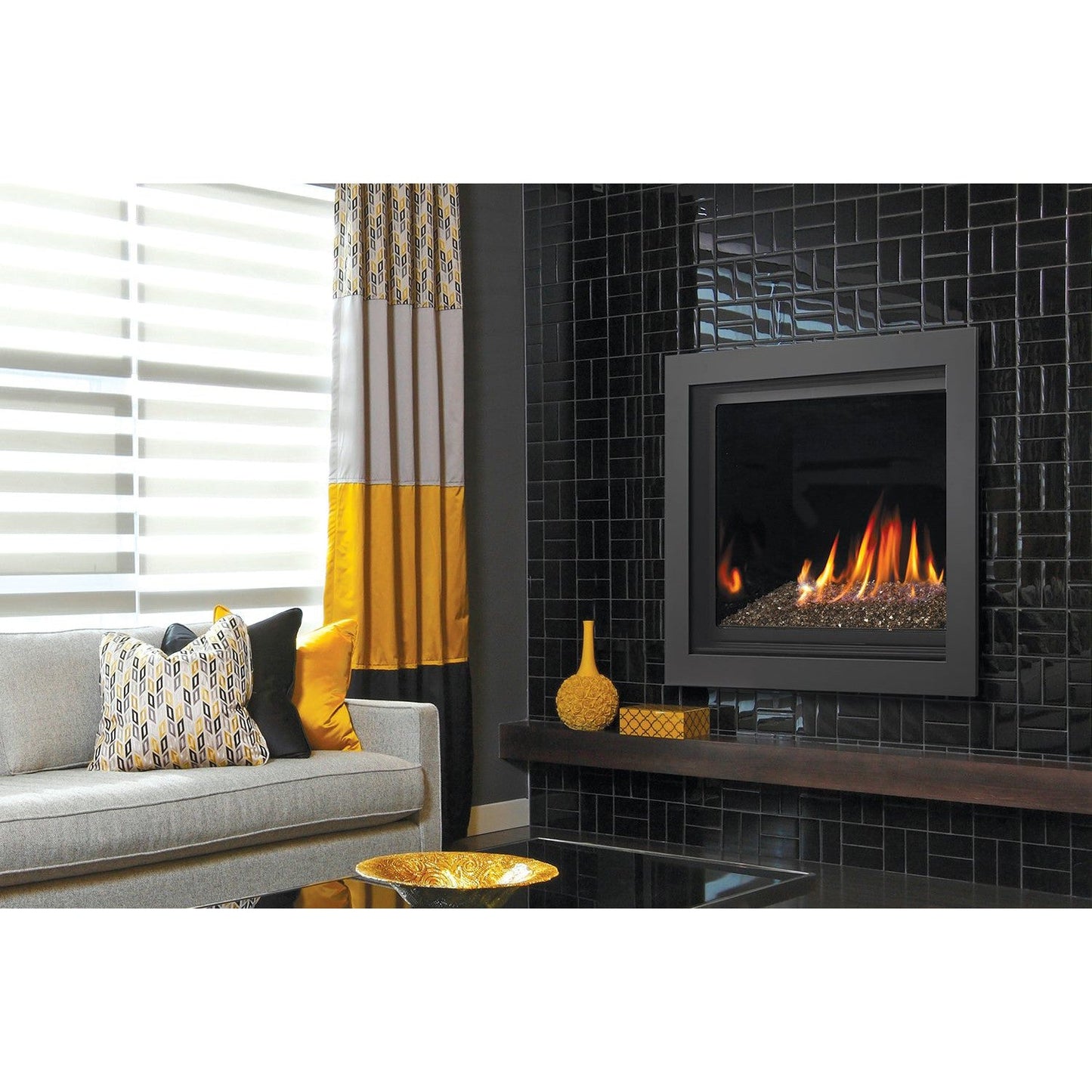

Click to see Glass Tray (Required to Complete)
Glass Tray
 |
Glass Tray (ZCV42GT)
|
Click to see Glass Media (Required for Glass Tray)
Glass Media
 |
Glass Media (4x Z5GC)
|

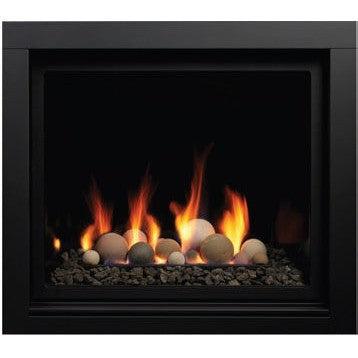

Click to see Assorted Cannonball
Assorted Cannonball
 |
Assorted Cannonball (RBCB1)
|
Click to see Accent Lighting
Accent Lighting
 |
Universal Light Kit - Two Lamps for Glass Trays (ULK2)
|
Click to see Surrounds
Surrounds
 |
Hearth Mount Surround 4” Wide (ZCV42S1BL)
|
 |
Picture Frame Surround 4” Wide (ZCV42S1PFBL)
|
 |
Picture Frame Surround 1 5/8” Wide (ZCV42S2PFBL)
|
Click to see Liner Kit
Liner Kit
 |
3 Piece Traditional Refractory Fiber Liner (ZCV42RLT)
|
 |

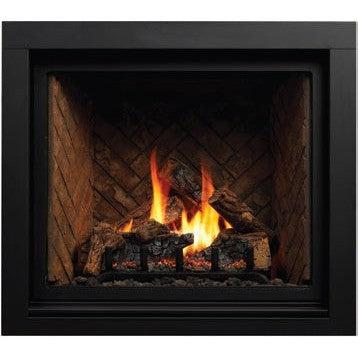

3 Piece Herringbone Refractory Fiber Liner (ZCV42RLH)
|
 |
3 Piece Red Herringbone Refractory Fiber Liner (ZCV42RRH)
|
 |
3 Piece Stacked Brick Refractory Fiber Liner (ZCV42RLS)
|
 |
3 Piece Porcelain Reflective Panel Liner (ZCV42PL)
|
Click to see Fan Kit
Fan Kit
 |
Speed Temperature Sensing Fan Kit (Z46FK)
|
Click to see Tile Lip Kit
Tile Lip Kit
 |
Tile Lip Kit (ZCV-TLK)
|
Click to see Log Bits Kit
Log Bits Kit
 |
Four Piece Log Bits Kit (VLBIT4)
|
|
Six Piece Log Bits Kit (VLBIT6)
|
Click to see Thermostat
Thermostat
 |
Wall Mount Thermostat- For Millivolt Units (Z2MT)
Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)
|
Click to see Remote Control
Remote Control
 |
On/Off Remote Control for Millivolt/IPI Units (GFRC)
|
 |
Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC)
|
|
|
Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units
|
|
Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units (GTFRCN, GTFRCP, EGTFRCN, EGTFRCP)
|
Click to see venting products
venting
| DuraVent Sloped Flue Stove Pipe Adapter - ZDVDFA | |
 |
The Dura-vent fireplace adapter is just the thing you would like to keep the fireplace residue from infiltrating your house. With this vent, fresher air is produced throughout the house. |
| 45-Degree DirectVent Pro Elbow - 46DVA-E45, 46DVA-E45B | |
 |
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°. Finish: Galvanized & Black. |
|
90-Degree DirectVent Pro Elbow - 46DVA-E90B, 46DVA-E90 |
|
 |
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 90°. Finish: Galvanized & Black. |
| 4"x6.625" DirectVent Pro Pipe Length | |
|
|
Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional unless specified by the appliance manufacturer. Finish: Galvanized & Black. |
| 4"x6.625" DirectVent Pro Pipe Extension | |
|
|
Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Available in black or galvalume exterior. |
| 4"x6.625" DirectVent Pro Adjustable Pipe | |
|
|
Use of sealant is optional unless specified by the appliance manufacturer. Available in black or galvalume exterior. |
| DirectVent Pro Wall Strap - 46DVA-WS | |
 |
Use to support vent pipe. Provides 1” clearance. Recommend installing Wall Straps at 4-foot intervals on vertical runs. |
| DirectVent Pro Ceiling Firestop - 46DVA-FS | |
 |
Required for multi-story vertical installations on the second floor and any subsequent floors. |
| DirectVent Pro Vinyl Sliding Standoff - 46DVA-VSS | |
 |
Use as a heat shield on structures with vinyl siding, or other temperature-sensitive materials, to help prevent warping and or melting of the material. |
| DirectVent Pro Attic Insulation Shield - 46DVA-IS | |
 |
Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent. Provides 1” clearance to combustibles. |
| Horizontal Chimney Vent Termination Starter Kit | |
|
|
Round and Square Horizontal Chimney Vent Termination Starter Kit will provide you with the secure and efficient ventilation you need to stay your fireplace functioning well. This vent termination starter kit is 36/60 inches long, and it comes with a wall thimble, all the screws, and a mill pac. |
|
Flex Chimney Vent Kit - 4" Inner Diameter |
|
 |
Flex ventilation material adapts to tight spaces and corners and allows you more freedom with the placement of your stove. 5 / 8 / 20 Foot Length. Spring, Screws, Mill Pac Included. Primarily used as an extension for venting systems. |
| DirectVent Pro Adjustable Roof Flashing - 46DVA-F6 | |
 |
Use to weatherproof the penetration of vent pipe through the roof. Select roof flashing based on pitch of the roof. For pitches of 0/12 - 6/12. Storm Collar required. Made of galvalume. |
| DirectVent Pro Steep Roof Flashing - 46DVA-F12 | |
 |
Use to weatherproof the penetration of vent pipe through the roof. Storm Collar required. Made of galvalume. |
| DirectVent Pro Dead Soft Aluminum Flashings - 46DVA-F6DS | |
 |
Available in sizes 4”x 6 5⁄8” and 5”x 8”, in 0/12-6/12 (shown) and 7/12-12/12 styles. Made of malleable dead soft aluminum. Use with metal or tile roofs. |
| DirectVent Pro Storm Collar - 46DVA-SC | |
 |
Use to maintain a weather tight resistant seal between the pipe and the flashing. |
| DirectVent Pro High-Wind Termination Cap - 46DVA-VCH | |
 |
Available in aluminum. Use for vertical terminations only. For vertical terminations only. Provides improved performance in high wind conditions. |
| DirectVent Pro Low-Profile Termination Cap - 46DVA-VC | |
 |
Available in aluminum and stainless steel (S). Use for vertical terminations only. Check the appliance manufacturer’s instructions to determine which caps are approved for use with their appliance. |
| DirectVent Pro Wall Thimble - 46DVA-WT | |
 |
Use with Square Horizontal Cap only. Provides a complete wall-pass-through and firestop. Refer to the appliance manufacturer’s installation instructions for requirements. |
| DirectVent Pro Square Horizontal Termination Cap - 46DVA-HC | |
 |
Use for standard and high-wind through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C). |
| DirectVent Pro Round Horizontal Termination Cap - 46DVA-HRCS | |
 |
Use for through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Finish: aluminum. |
| 4/7 Horizontal Vent Termination - FDVHT, FDVHSQ | |
|
|
Round/Square Vent Horizontal Termination for 4x7-Inch Venting provides a premium installation component for use with your fireplace. |
| Universal Safety Cage for Horizontal Termination - FDVHSCU | |
 |
Universal Safety Cage. Designed for Horizontal Termination. Use with Horizontal Vent Starter Kit. |
| Horizontal Stucco Shield - FDVHSS | |
 |
It's designed to protect the stucco siding from heat. Its product adding a direct vent stove to your home, consider the protection necessary for using it safely. |
|
Chimney Vent Snorkel Termination - Z47ST24, Z47ST36 |
|
 |
Chimney Vent Snorkel Termination for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. With a variety of styles and high-quality materials. If a vertical rise is necessary on the exterior side of the building. |
| Convertible Between 15' & 40' Vertical Vent Termination - FDVVT40 | |
 |
It's convertible between 15' and 40' vertical. The convertible function allows for better flexibility and use. Must watch out to follow the proper steps and double-check that the proper parts and accessories are being used. |
|
Vertical Chimney Vent Termination - Z47VT |
|
|
Direction: Vertical Type: Vent Termination Fireplace type: Zero Clearance direct vent gas |
| Attic Insulation Shield - ZDVAIS | |
 |
This shield will protect your attic and roof from the heat that escapes through the chimney. The shield offers 12" and 24" of insulation designed to surround your chimney. |
| Vertical Chimney Vent Offset Support - ZDVVOS | |
 |
It'll support your chimney through inclement weather, including heavy rain, snow accumulation, and wind, also as natural wear from gravity over time. The support has been tested for durability and function. |
| Vertical Chimney Vent Firestop Spacer - ZDVFS | |
 |
Chimney Vent Firestop Spacer is created out of rugged metal that will not deteriorate within the short term, and it'll make sure that your chimney vent is held at a correct length from any flammable surface nearby, such as the wall. |
| Chimney Vent Roof Support - ZDVRS | |
 |
Chimney Vent Roof Support will help your chimney function well through various circumstances: heavy wind, storms with heavy rain, hail, and snow accumulation just to call some. |
| Wall Thimble for Horizontal Venting - ZDVWT | |
 |
Horizontal Chimney Vent Wall Thimble for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. This Vent Wall Thimble is durably constructed and tested rigorously to protect your wall and inner material from the hot surface of the ventilation piping. |
| Heat Deflector Siding Shield - ZDVSS | |
 |
Siding Heat-Shield for Horizontal Round Chimney Termination will protect your siding from the chance of combustion to the heat. Protect combustible siding from combustion and charring. Made with careful metallic composition for heat tolerance. |
| Large Return Siding Shield - ZDVSSLR | |
 |
Siding Heat-Shield for Horizontal Round/Square Chimney Termination will protect your siding from the chance of combustion to the heat. |
| Roof Flashing with Storm Collar - ZDVAAF, ZDVAF2, ZDVAF3 | |
|
|
This storm collar measures 7" in inner diameter. This product has the capability of sealing the vent lengths that protrude from a sloped roof. And also, vertical installations are needed with this product and can be purchased separately. |
| 7" Storm Collar - ZDV7SC | |
 |
7-Inch Vertical Venting Storm Collar for 4x7-Inch Vertical Venting provides a premium installation component to be used together with your fireplace. This storm collar measures 7 inches in diameter. |
| 3-Feet Insulation Sleeve for Low Enclosures - MDV38IS | |
|
If you have a multi-sided direct vent fireplace, you'll need an MDV38IS Insulation Sleeve. This insulation sleeve measures 3 feet and is for low enclosures. |
| Flex Connector - 4" & 7" Diameter - ZDV4FC, ZDV7FC | |
 |
The chimney vent is just the thing to stay your belongings free of dirt. This chimney vent is provided with a flex connector that measures 4 or 7 inches in diameter. |
| Flex Clamp - 4" & 7" Diameter - ZDV4FCL, ZDV7FCL | |
 |
Flex Clamp provides a premium installation component to be used with your fireplace. This clamp is 4 or 7 inches in diameter. |
| 4" Standoff Spring Spacer - ZDV4SS | |
 |
Spring standoff spacer is simply the part needed for your chimney vent. This spring spacer measures 4 inches in diameter and has the potential of withstanding years of use. This spacer also will keep its polishing color. |
| Galvanized Chimney Vent Pipe for Vertical Installations - Z47GP36 | |
 |
This particular model is used for vertical installations. The galvanization of this model makes it not only easy to keep clean, but also sturdy enough to withstand years of use. |
| DuraVent 4"x6 5/8" Diameter DirectVent Pro 25ft Vertical Vent Kit | |
 |
The outer pipe brings combustion air to the appliance. Inner pipe exhausts flue gases to the outside. Tested and listed as a decorative gas appliance system or as a direct vent heater system by a major testing agency. |
| DuraVent 4"x6 5/8" Diameter DirectVent Pro 15ft Vertical Vent Kit | |
 |
The outer pipe brings combustion air to the appliance. Inner pipe exhausts flue gases to the outside. Tested and listed as a decorative gas appliance system or as a direct vent heater system by a major testing agency. |
