MVF40

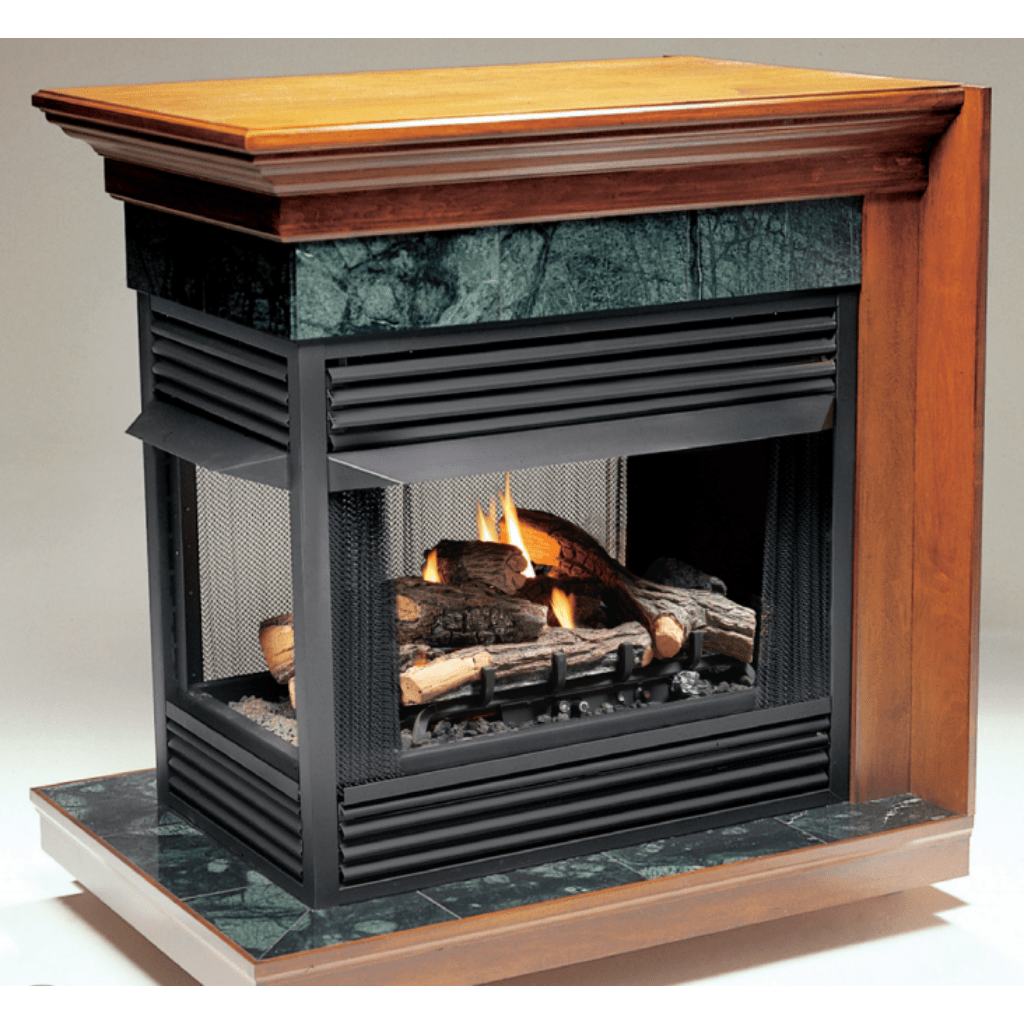

Kingsman 38" MVF40 Zero Clearance Universal Vent Free Multi-Sided Fireplace

Kingsman 38" MVF40 Zero Clearance Universal Vent Free Multi-Sided Fireplace

$1,219.00
$1,463.00 $1,219.00
Sale Sold out
Shipping calculated at checkout.
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

OVERVIEW

Create an elegant and warm focal point in your home with the Ultimate in Zero Clearance Vent-Free Fireplaces for New Home Construction or Renovation.

The Kingsman MVF40 Zero Clearance Universal Vent Free Fireplace is available in Corner, See-Thru, Peninsula, Bay Peninsula or Island configurations. This Kingsman fireplace comes in the only Millivolt, and also the versatile fireplace is multi-sided. The Kingsman MVF40 Zero Clearance Universal Vent Free Corner Fireplace is 38 Inches wide, and it's capable of 38,000 BTUs to stay you and your home warm. Kingsman products are tested for both quality and efficiency.

This fireplace is often configured in several ways to satisfy the needs of your installation. a decorative liner is available to make a customized appearance and features two end panels. Additionally, optional features available include fan kits, remote options, and other decorative upgrades to allow for further customization as desired.

STANDARD FEATURES

  • ANSI listed
  • Decorative Rock
  • ODS Safety Pilot
  • Gas Inlet Size 3/8"(SIT)
  • Matchless Pieso Ignition
  • Triple burner system for added realism
  • Uses a seven-piece cast split oak log assembly
  • Millivolt Control with Variable Flame and BTU Control
  • Able to be configured with a smooth face or traditional louvers
  • Able to be equipped with a full line of remotes and wall switches
  • Reliable standing pilot valve system operates readily during power outages
  • Features a 90-degree corner design with one short side and one long side open to the room

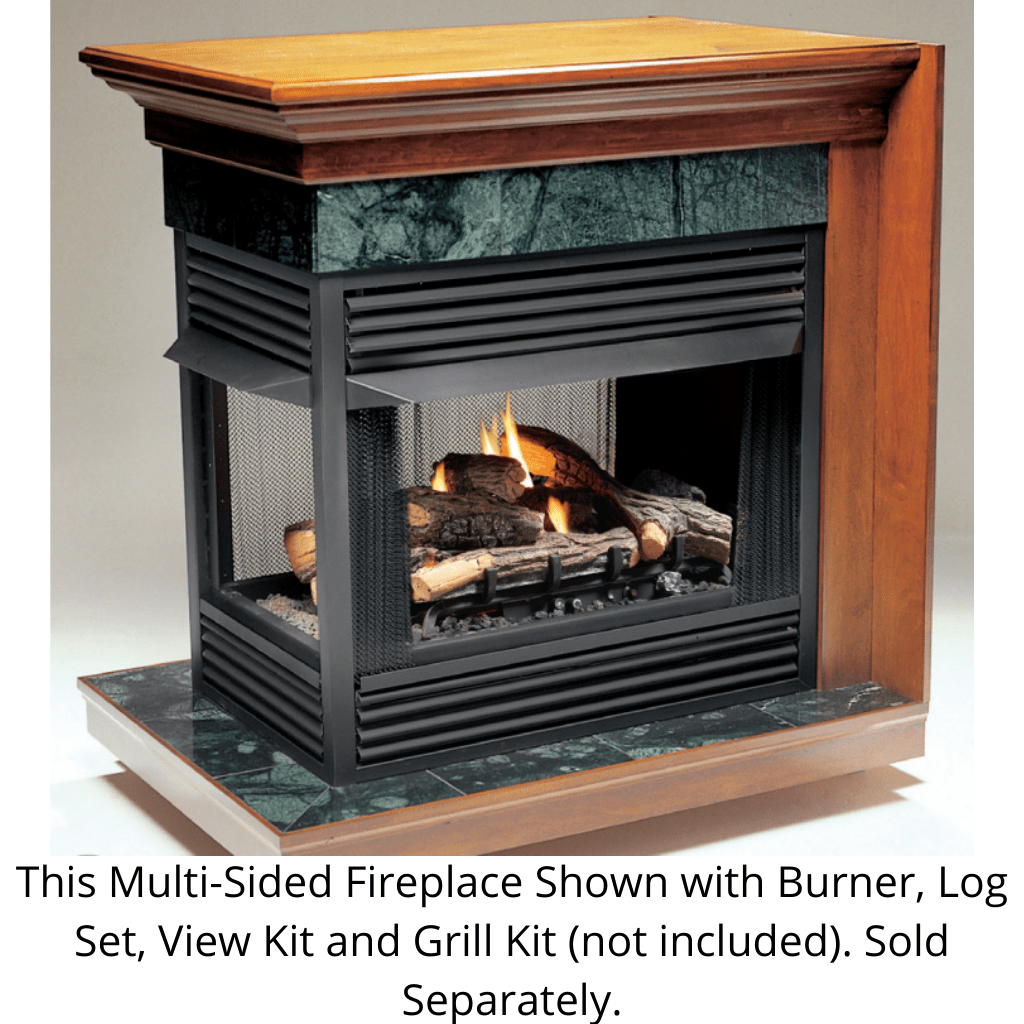

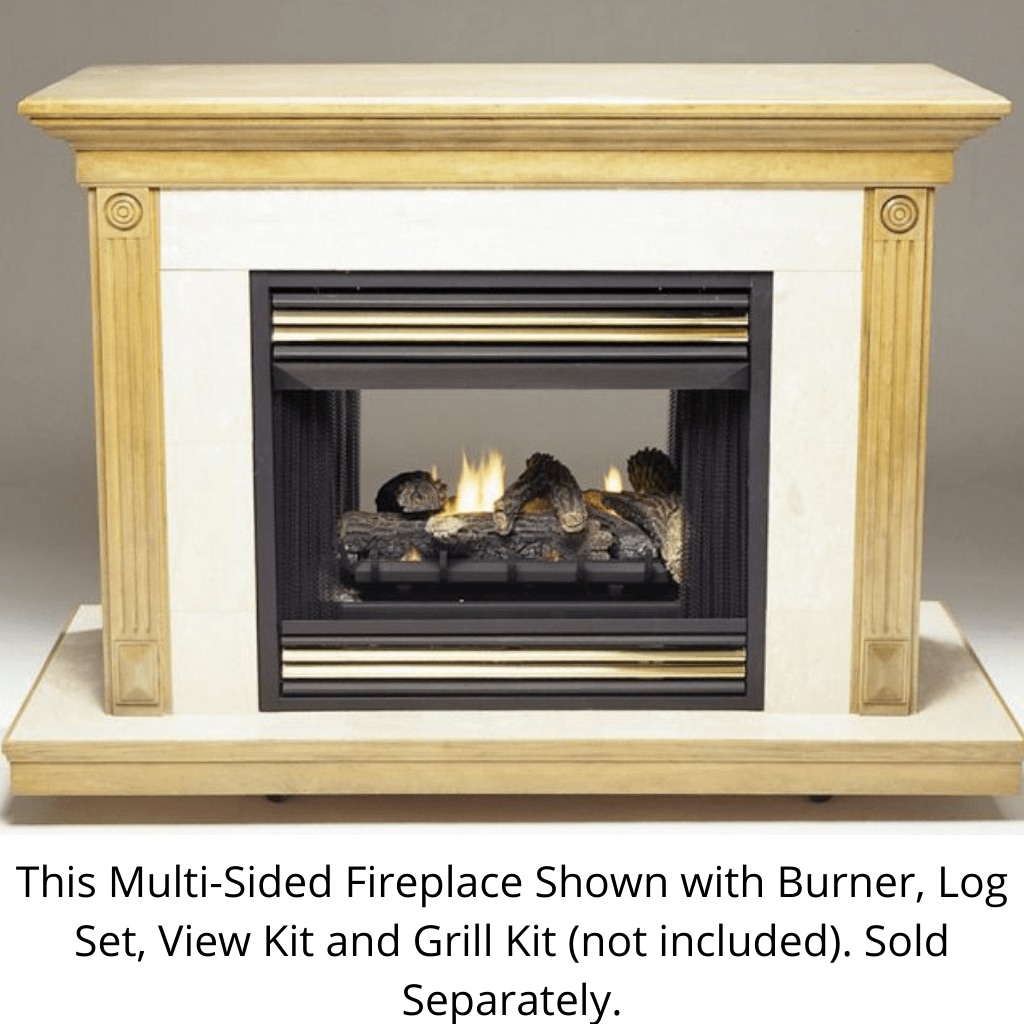

* Please Note: Image depicts standard peninsula model. Corner configuration will differ in appearance.

*Also Note: This item is a vent-free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

Technical Specifications

  • Side Viewing Area: 33" Width, 16" Height
  • End Viewing Area: 18 1/2" Width, 16" Height
  • Max/Min BTU Output: Natural Gas 38,225 / 29,900
  • Max/Min BTU Output: Propane Gas 30,500 / 24,200
  • Framing Dimensions: 38 1/8" Width, 33 1/4" Height, 23 3/4" Depth
  • Overall Unit Dimensions: 36 1/16" Width, 33 1/16" Height, 21 11/16" Depth

DIMENSIONS

CA Residents: See Prop 65 WARNING

OPTIONAL ACCESSORIES

Click to see Multi-Sided Burner (Required to Complete)


Multi-Sided Burner

GLMVF40MVN/GLMVF40MVP

  • Manually operated variable flame control
  • Fuel Type: Natural Gas, Liquid Propane (Not convertible)
  • Vent-free burner system includes matchless piezo starter
  • Millivolt valve can use a variety of wall switches and remotes
  • Inlet gas pressure: 5 1/2 to 7 inches (NG) or 11 inches (LP) of W.C.
  • Oxygen depletion sensor shuts down the burner if low oxygen levels are detected
  • BTU Range: 25,900 to 38,200 (NG)
  • BTU Range: 24,000 to 30,500 (LP)
  • Certified to: ANSI Z21.11.2-2007
    Click to see Log Set (Required to Complete)


    Log Set

    Seven Piece Cast Split Oak Log Set (LOGC31)

    • Log Type: Cast Split Oak
    • Seven Piece Log Set
    • Beautiful split oak design offers stunning realism
    • Cast refractory construction ensures lasting durability
    • Designed specifically for MVF40 and MDV31 multi-sided fireplaces
    • Designed specifically for Kingsman Multi-Sided Burner
    Click to see View Kit (Required to Complete)


    View Kit

    See-Through View Kit (MVF40SK)

    • Color: Black
    • Two Large Sides Open
    • Includes two small enclosure panels
    • Requires a see-through grill or smooth panel kit to complete installation
    • Required for the see-through configuration of the MVF40 series fireplace
    Peninsula View Kit (MVF40PK)
    • Color: Black
    • Includes one small enclosure panel
    • Two Large Sides Open, One Small Side Open
    • Requires a peninsula grill or smooth panel kit to complete installation
    • Required for the peninsula configuration of the MVF40 series fireplace

    Bay Peninsula View Kit (MVF40BK)

    • Color: Black
    • Includes one large enclosure panel
    • One Large Side Open, Two Small Sides Open
    • Requires a bay peninsula grill or smooth panel kit to complete installation
    • Required for the bay peninsula configuration of the MVF40 series fireplace

    Island View Kit (MVF40IK)

    • Color: Black
    • Four Sides Open
    • Includes four island corner supports
    • Requires an island grill or smooth panel kit to complete installation
    • Required for the island configuration of the MVF40 series fireplace
    Click to see Grill Kit (Required to Complete)


    Grill Kit

    Corner Grill Kit (MGCKBL)

    • Two Sets
    • Finish: Black
    • Allows heat to radiate readily into the room
    • Available in multiple finishes for different decors
    • Required to complete the installation of the unit
    • For use with M30CK, M39CK and MVF40CK Corner Kit
    • Louver kit for MDV31 and MVF40 corner applications

    See-Through Grill Kit (MGSKBL)

    • Two Sets
    • Finish: Black
    • Allows heat to radiate readily into the room
    • Available in multiple finishes for different decors
    • Required to complete the installation of the unit
    • For use with M30SK, M39SK and MVF40SK See-Through Kit
    • Louver kit for MDV31 and MVF40 see-through applications

    Peninsula Grill Kit (MGPKBL)

    • Three Sets
    • Finish: Black
    • Type: Peninsula Grill Kit
    • For use with M30PK, M39PK and MVF40PK Peninsula Kit
    • Allows heat to radiate readily into the room
    • Available in multiple finishes for different decors
    • Required to complete the installation of the unit
    • Louver kit for MDV31 and MVF40 peninsula applications

    Bay Peninsula Grill Kit (MGBKBL)

    • Three Sets
    • Finish: Black
    • For use with MVF40BK Peninsula
    • Allows heat to radiate readily into the room
    • Available in multiple finishes for different decors
    • Required to complete the installation of the unit
    • Louver kit for MVF40 bay peninsula applications

    Island Grill Kit (MGIKBL)

    • Four Sets
    • Finish: Black
    • For use with MVF40IK Unit
    • Allows heat to radiate readily into the room
    • Available in multiple finishes for different decors
    • Required to complete the installation of the unit
    • Louver kit for MVF40 island applications
        Click to see Log Bits Kit


        Log Bits Kit

        Four Piece Log Bits Kit (VLBIT4)

        • Designed to bolster the look of existing Kingsman log sets
        • Includes four large log chunks
        • Easy to install and arrange as desired

            Six Piece Log Bits Kit (VLBIT6)

            • Designed to bolster the look of existing Kingsman log sets
            • Includes six large log chunks
            • Easy to install and arrange as desired
            Click to see Refractory Liner Kit


            Refractory Liner Kit

            Refractory End Panel (MDV38RLE)

            • Color Options: White, Gray
            • Designed to add a realistic appearance to the firebox interior
            • Durable cast refractory construction
            • Installation hardware included
            • Mimics the look of traditional running courses of brick
            • Designed specifically for MDV31 and MVF40 series fireplaces

                Refractory Side Panel (MDV38RLS)

                • Color Options: White, Gray
                • Designed to add a realistic appearance to the firebox interior
                • Durable cast refractory construction
                • Installation hardware included
                • Mimics the look of traditional running courses of brick
                • Designed specifically for MDV31 and MVF40 series fireplaces
                Click to see Black Surround (For See-Through Louvered only)


                Black Surround

                Black Surround (Z36SBL)

                • Finish: Black
                • Measures 41 1/8" wide by 34 1/2" high
                • Designed to accent the transition between the fireplace and surrounding wall
                • Designed for louvered installations of the MDV31, as well as the MVF40
                    Click to see Fan Kit


                    Fan Kit

                    Speed Temperature Sensing Fan Kit (Z36FK)

                    • Squirrel cage blower design for quiet and powerful operation
                    • Thermal switch for automatic on/off operation
                    • Variable speed control with built-in all offsetting
                    • Designed to fit Kingsman fireplaces
                          Click to see Thermostat


                          Thermostat



                          Wall Mount Thermostat- For Millivolt Units- Z2MT

                          • Simple on/off millivolt thermostat design
                          • Easy to use digital control
                          • Allows convenient operation of gas appliances
                          • Simple to wire to existing millivolt systems

                          Programmable Digital Wall Mount Thermostat- For Millivolt Units-Z80PT

                          • Schedule programmable for desired operation
                          • Works with Kingsman millivolt appliances
                          • Easy to read digital LCD display
                          Click to see Remote Control

                          Remote Control

                          On/Off Remote Control for Millivolt/IPI Units- GFRC

                          • Simple on/off operation for millivolt appliances
                          • Allows for the operation of the appliance without manual control
                          • Included receiver easily mounts within the appliance chassis
                          • Reliable RF transmitter operation

                            Thermostat Remote Control Millivolt/IPI Units- GTRC, EGTRC

                            • On/off operation with modulating thermostat control
                            • Allows for the operation of the appliance without manual control
                            • Included receiver easily mounts within the appliance chassis
                            • Reliable RF transmitter operation

                            Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units-
                            GTMRCN, GTMRCP, EGTMRCN, EGTMRCP

                            • On/off operation with modulating thermostat control
                            • Allows for the operation of the appliance without manual control
                            • Included receiver easily mounts within the appliance chassis
                            • Reliable RF transmitter operation
                            • Includes high/low modulating motor for natural gas and propane gas fireplaces

                            Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units- GTFRCN, GTFRCP, EGTFRCN, EGTFRCP

                            • On/off operation with modulating thermostat control
                            • Allows for the operation of the appliance without manual control
                            • Included receiver easily mounts within the appliance chassis
                            • Reliable RF transmitter operation
                            • Includes high/low modulating motor for natural and propane gas fireplaces
                            • Allows for control of optional fan operation

                            DOWNLOADS
