SKU:ZCV3622N

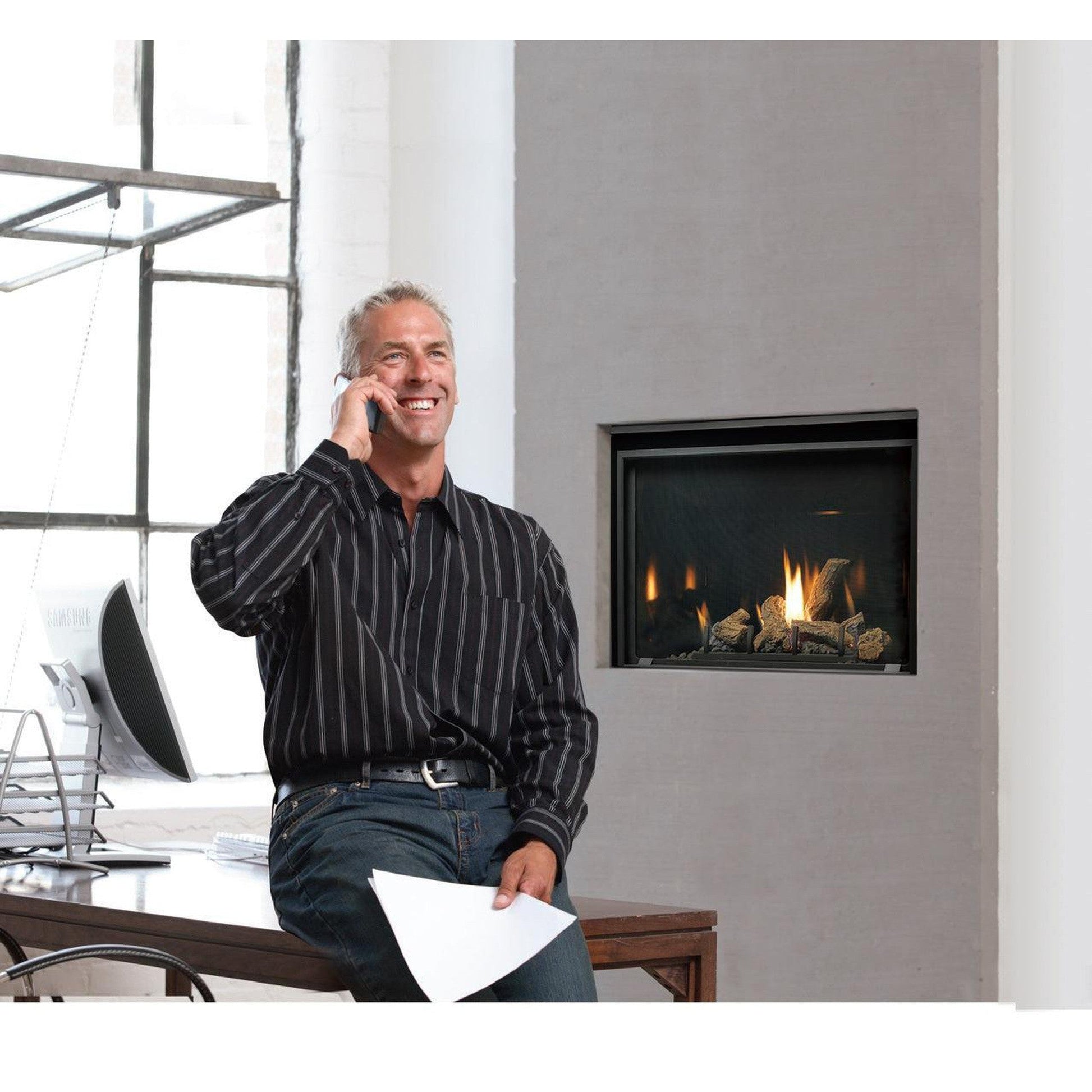

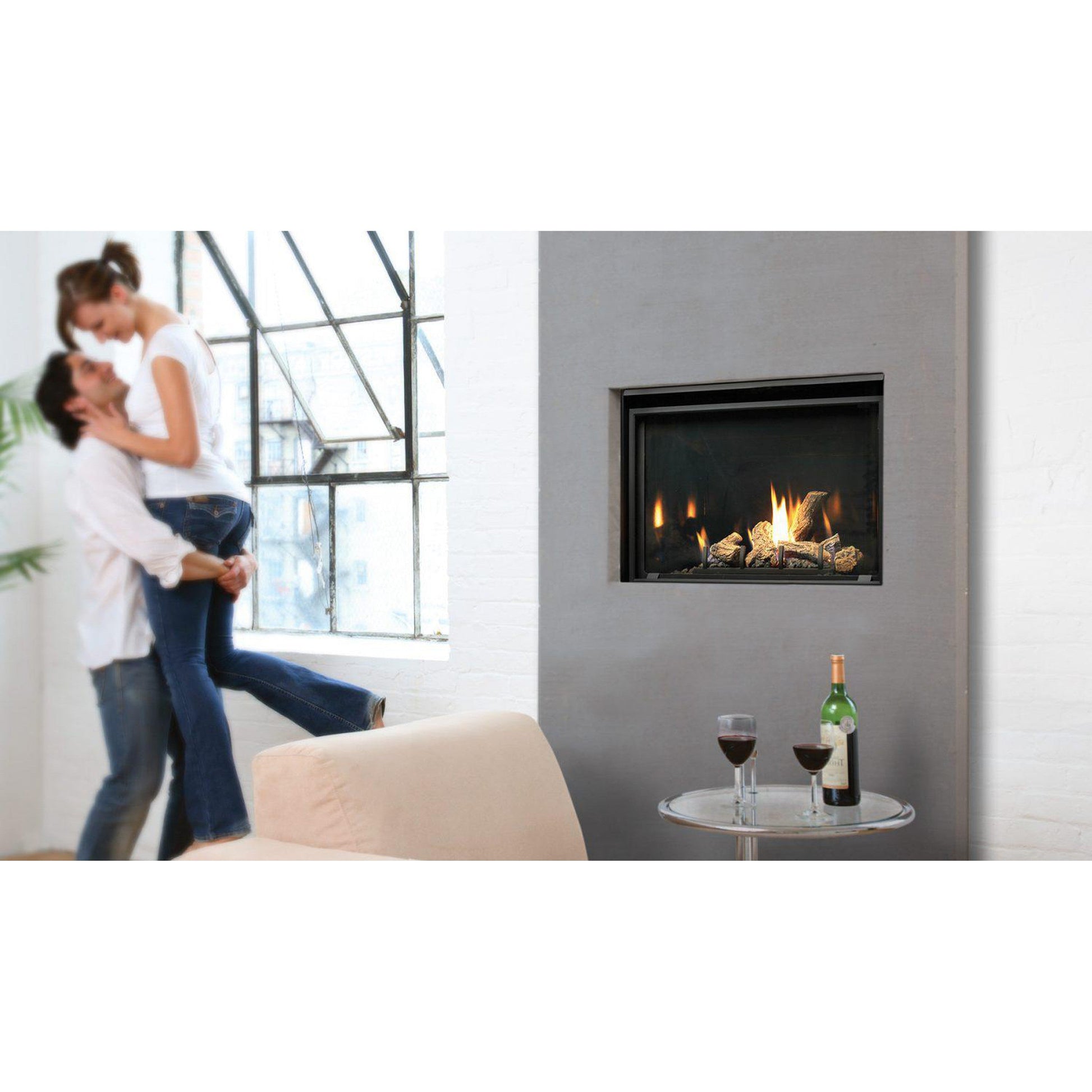

Kingsman 36" ZCV3622 Zero Clearance Direct Vent Gas Fireplace

Name: Kingsman 36" ZCV3622 Zero Clearance Direct Vent Gas Fireplace
Brand: Kingsman
SKU: ZCV3622N
Price: 1730.56 USD
Availability: InStock

$1,730.56

Sale Sold out

Shipping calculated at checkout.

Fuel Type Natural Gas Propane Gas

Ignition Type Millivolt IPI

Product variants

Free Shipping on Orders Over $300
Same-Day Order Processing

OVERVIEW

Enjoy the elegance and warmth of glowing embers and dancing flames around our traditional oak log set. it's absolute to be the focal point of your home. choose from a variety of decorative options to make your own distinctive appearance and be assured of complete safety, comfort and long-lasting value.

Select from a millivolt or intermittent pilot ignition system. The millivolt valve system doesn't use electricity but features a standing pilot which allows operation during an influence failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance isn't operational.

This fireplace features a fully sealed combustion chamber with no pollution spillage to depreciate the indoor air quality of your home. This quality fireplace allows you to enjoy the wonder of glowing embers and dancing flames and maximum efficiency.

This Kingsman Zero-Clearance Direct Vent Millivolt and IPI Gas Fireplace could be a reliable clean-faced heater-rated fireplace featuring a tempered glass front. This fireplace utilizes a highly detailed and sturdy seven-piece split oak log set and includes a reliable standing pilot valve system which ensures operation even without power. With the millivolt/IPI valve, this technique is often paired with a full line of remotes or wall switches and features a high/low flame adjustment come standard. This fireplace comes with a safety barrier screen to forestall accidental contact with the hot glass.

STANDARD FEATURES

Color: Black
Safety Screen Barrier
Vent Type: Direct Vent
Fireplace Type: Standard Fireplace
Fuel Type: Propane Gas, Natural Gas
Proprietary burner, with realistic burn
Efficiency Rating: 61.7% NG / 63.2% LP
Tempered glass-front with smooth face perimeter
Mobile Home, Bedroom and Bed Sitting Room approved
Fireplace heater rated for use as a supplemental heat source
Able to be equipped with a full line of remotes and wall switches
Low profile fireplace frame allows for a clean looking installation
Hi/low Millivolt or IPI valve system, will operate during power failures
Includes safety barrier screen to prevent accidental contact with hot glass
Utilizes a lifelike split oak log set made of durable cast refractory cement
Reliable standing pilot valve system ensures ready operation during power outages

*Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

PRODUCT SPECIFICATION

Model	ZCV3622N/NE	ZCV3622LP/LPE
Fuel	Natural	Propane
Flue	Top	Top
Gas Control	Millivolt / IPI	Millivolt / IPI
Input Max.	18,000 BTU	18,000 BTU
Input Min.	13,000 BTU	15,000 BTU
FE (p.4.1-02)%	60.54% / 63.46%	62.09% / 65.09%
Flue Sizes	4/7"	4/7"
Glass Size	31 3/4"W x 20 7/16" H	31 3/4"W x 20 7/16" H
Glass Type	Tempered	Tempered
Size (WxHxD)	36"W x 37 1/8"H x 17 7/16"D	36"W x 37 1/8"H x 17 7/16"D
Viewing Area	29 3/4"W x 18 5/8"H	29 3/4"W x 18 5/8"H
Venting	4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent	4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent
Electronic Ignition	Yes	Yes
Certification	Heater	Heater
Bedroom Approved	Yes	Yes

DIMENSIONS

CA Residents: See Prop 65 WARNING

OPTIONAL ACCESSORIES

Click to see Log Set (Required to Complete)

Log Set

Split Oak Log Set (LOGC51)

Cast refractory split oak design
Highly detailed hand painted logs
Required to complete fireplace installation
Designed for the ZCV3622 series fireplaces

Click to see Conversion Kit

Conversion Kit

Conversion Kit to Propane Millivolt (3622-CKLP)

Type: Conversion Kit
For Millivolt Units only
Natural gas to propane
Complete with conversion instructions
For use with ZCV3622 Direct Vent Gas Fireplace
Includes all necessary gas valve and pilot assembly conversion components

Conversion Kit to Natural Gas Millivolt (3622-CKNG)

Type: Conversion Kit
For Millivolt Units only
Propane to natural gas
Complete with conversion instructions
For use with ZCV3622 Direct Vent Gas Fireplace
Includes all necessary gas valve and pilot assembly conversion components

Conversion Kit to Propane IPI (3622-CKLPI)

Type: Conversion Kit
For IPI Units only
Natural gas to propane
Complete with conversion instructions
For use with ZCV3622 Direct Vent Gas Fireplace
Includes all necessary gas valve and pilot assembly conversion components

Conversion Kit to Natural Gas IPI (3622-CKNGI)

Type: Conversion Kit
For IPI Units only
Propane to natural gas
Complete with conversion instructions
For use with ZCV3622 Direct Vent Gas Fireplace
Includes all necessary gas valve and pilot assembly conversion components

Click to see Surround Hearth Mount

Surround Hearth Mount

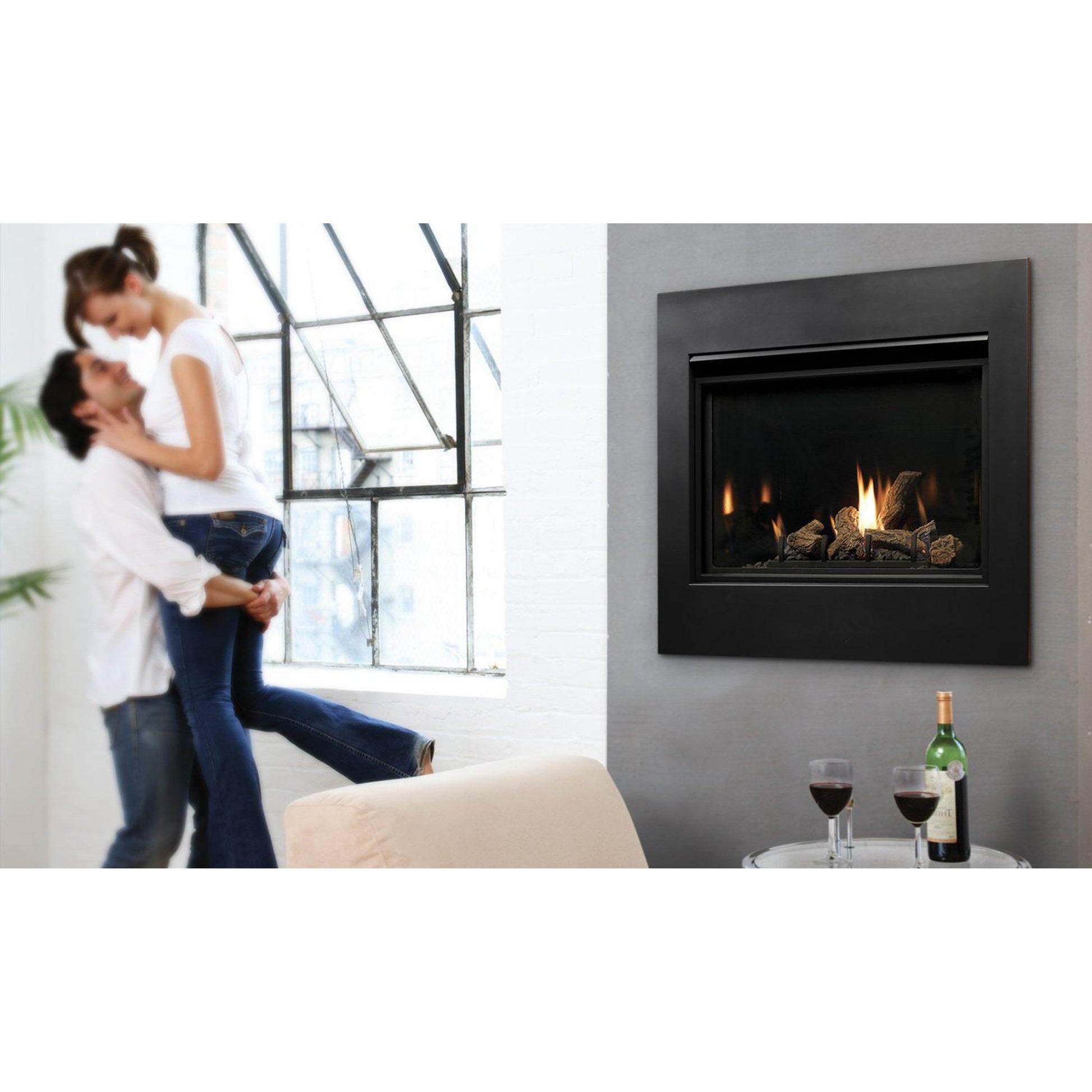

Black Surround Hearth Mount (ZCV36S1BL)

Finish: Black
Fireplace Accessory
Type: Decorative Surround
Measures 39" wide by 34 1/16" high
Picture frame surround for flush installations
Creates a border around the fireplace and accents the perimeter glass
Designed for ZCV3622 fireplaces

*Note: Unit must be installed flush to wall.

Click to see Flat Wall Surround

Flat Wall Surround

Flat Wall Black Surround (ZCV36SWFBL)

Color: Black
3/4" depth
Optional surround
Covers 40 7/8" W x 37 1/4" H
Designed for use with ZCV3622 fireplaces
Requires unit to be installed flush to wall

*Note: The fireplace must be installed flush to drywall and raised a minimum 1/2" off floor.

Click to see Liner Kit

Liner Kit

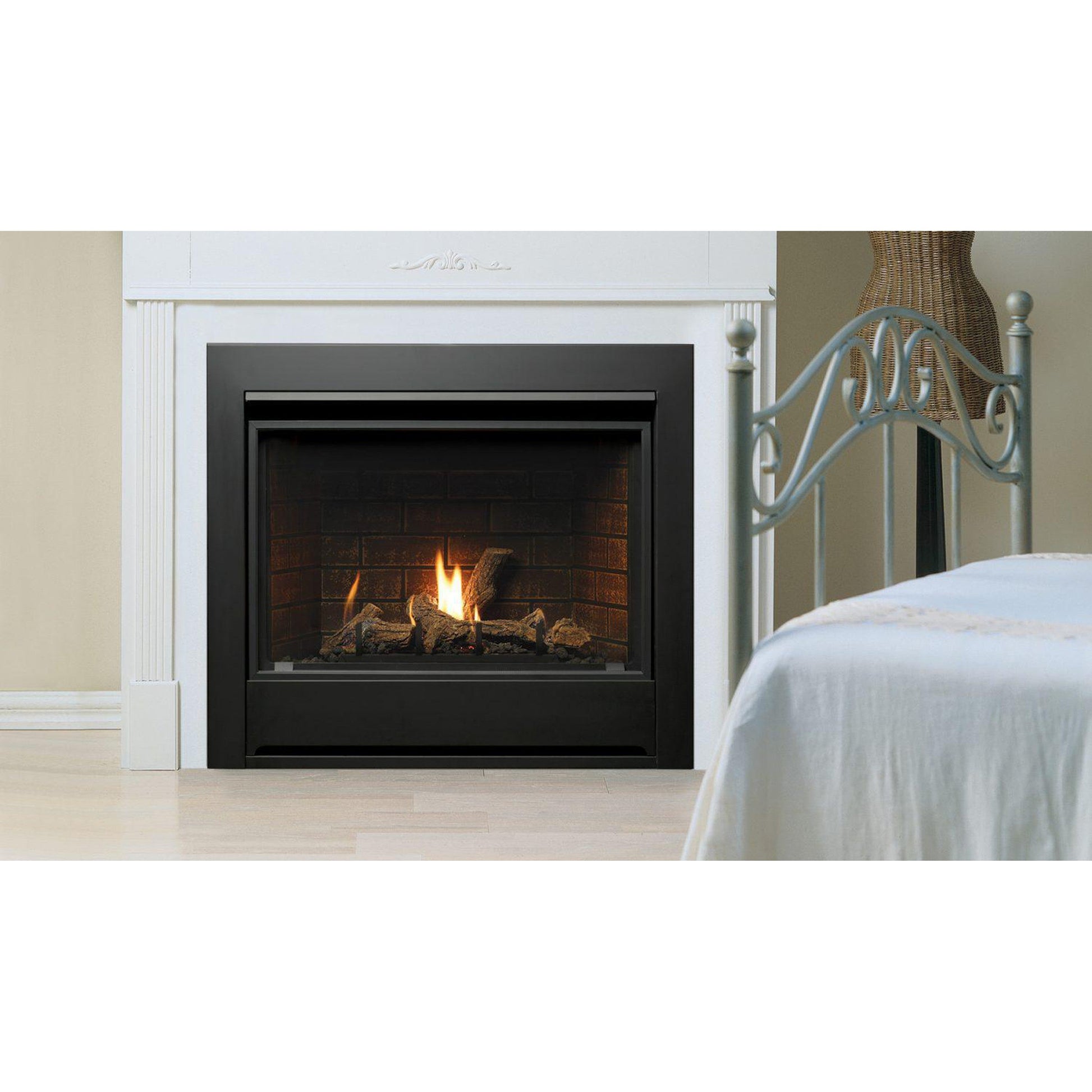

Metal Brick Liner (ZCV3622ML)

Type: Liner
Metal Brick
Color: Brown
3-piece kit with hardware
Stamped steel liner in a traditional brick pattern
Unique blend of traditional and contemporary design elements
Designed for the ZCV3622 series fireplace

Porcelain Reflective Panel Liner (ZCV3622PRL)

Type: Liner
3 Piece Item
Color: Reflective Black
Installation hardware included
Durable porcelain-coated steel finish
Amplifies the flame presentation via reflective qualities
Sleek modern appearance compliments fire glass installations
Designed specifically for ZCV3622 series fireplaces

Click to see Fan Kit

Fan Kit

Speed Temperature Sensing Fan Kit (Z36FK)

Squirrel cage blower design for quiet and powerful operation
Thermal switch for automatic on/off operation
Variable speed control with built in all off setting
Designed to fit Kingsman fireplaces

Click to see Accent Lighting

Accent Lighting

Universal Light Kit - Two Lamps for Glass Trays (ULK2)

Dual halogen lamps accent glass media installations
Works with Kingsman fireplaces
Backlight affect adds a unique touch to glass equipped fireplaces
Can be used to illuminate the fireplace when not in use

Click to see Magnet Kit

Magnet Kit

Lower Panel Magnet Kit (ZCV36LMK)

Type: Magnet Kit
Fireplace Accessory
Lower Panel Magnet Kit
Designed to assist in retaining lower access panels
Designed for the ZCV3622 series fireplaces

Click to see Log Bits Kit

Log Bits Kit

Four Piece Log Bits Kit (VLBIT4)

Designed to bolster the look of existing Kingsman log sets
Includes four large log chunks
Easy to install and arrange as desired

Six Piece Log Bits Kit (VLBIT6)

Designed to bolster the look of existing Kingsman log sets
Includes six large log chunks
Easy to install and arrange as desired

Click to see Thermostat

Thermostat

Wall Mount Thermostat- For Millivolt Units (Z2MT)

Simple on/off millivolt thermostat design
Easy to use digital control
Allows convenient operation of gas appliances
Simple to wire to existing millivolt systems

Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)

Schedule programmable for desired operation
Works with Kingsman millivolt appliances
Easy to read digital LCD display

Click to see Remote Control

Remote Control

	On/Off Remote Control for Millivolt/IPI Units (GFRC) Simple on/off operation for millivolt appliances Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation
	Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC) On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation
	Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units (GTMRCN, GTMRCP, EGTMRCN, EGTMRCP) On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation Includes high/low modulating motor for natural gas and propane gas fireplaces
	Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units (GTFRCN, GTFRCP, EGTFRCN, EGTFRCP) On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation Includes high/low modulating motor for natural and propane gas fireplaces Allows for control of optional fan operation

Remote Control Heat Shield

Remote Control Heat Shield (DCHS)

Designed to prolong remote receiver battery life
Reduces receiver operating temperatures and creates an air blanket
For all Kingsman millivolt remotes

Heat Shield Box

Heat Shield Box - P1/P2/MV (P2BOX)

Heat shield box
Optional accessory
Designed for use with ZCV3622 fireplaces
Required when fan installed into a millivolt unit

Click to see venting products

venting

DuraVent Sloped Flue Stove Pipe Adapter - ZDVDFA
	The Dura-vent fireplace adapter is just the thing you would like to keep the fireplace residue from infiltrating your house. With this vent, fresher air is produced throughout the house.
45-Degree DirectVent Pro Elbow - 46DVA-E45
	Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°. Finish: Galvanized & Black.
90-Degree DirectVent Pro Elbow - 46DVA-E90
	Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 90°. Finish: Galvanized & Black.
4"x6.625" DirectVent Pro Pipe Length
	Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional unless specified by the appliance manufacturer. Finish: Galvanized & Black.
4"x6.625" DirectVent Pro Pipe Extension
	Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Available in black or galvalume exterior.
4"x6.625" DirectVent Pro Adjustable Pipe
	Use of sealant is optional unless specified by the appliance manufacturer. Available in black or galvalume exterior.
DirectVent Pro Wall Strap - 46DVA-WS
	Use to support vent pipe. Provides 1” clearance. Recommend installing Wall Straps at 4-foot intervals on vertical runs.
DirectVent Pro Ceiling Firestop - 46DVA-FS
	Required for multi-story vertical installations on the second floor and any subsequent floors.
DirectVent Pro Vinyl Sliding Standoff - 46DVA-VSS
	Use as a heat shield on structures with vinyl siding, or other temperature-sensitive materials, to help prevent warping and or melting of the material.
DirectVent Pro Attic Insulation Shield - 46DVA-IS
	Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent. Provides 1” clearance to combustibles.
Horizontal Chimney Vent Termination Starter Kit
	Round and Square Horizontal Chimney Vent Termination Starter Kit will provide you with the secure and efficient ventilation you need to stay your fireplace functioning well. This vent termination starter kit is 36/60 inches long, and it comes with a wall thimble, all the screws, and a mill pac.
Flex Chimney Vent Kit - 4" Inner Diameter
	Flex ventilation material adapts to tight spaces and corners and allows you more freedom with the placement of your stove. 5 / 8 / 20 Foot Length. Spring, Screws, Mill Pac Included. Primarily used as an extension for venting systems.
DirectVent Pro Adjustable Roof Flashing - 46DVA-F6
	Use to weatherproof the penetration of vent pipe through the roof. Select roof flashing based on pitch of the roof. For pitches of 0/12 - 6/12. Storm Collar required. Made of galvalume.
DirectVent Pro Steep Roof Flashing - 46DVA-F12
	Use to weatherproof the penetration of vent pipe through the roof. Storm Collar required. Made of galvalume.
DirectVent Pro Dead Soft Aluminum Flashings - 46DVA-F6DS
	Available in sizes 4”x 6 5⁄8” and 5”x 8”, in 0/12-6/12 (shown) and 7/12-12/12 styles. Made of malleable dead soft aluminum. Use with metal or tile roofs.
DirectVent Pro Storm Collar - 46DVA-SC
	Use to maintain a weather tight resistant seal between the pipe and the flashing.
DirectVent Pro High-Wind Termination Cap - 46DVA-VCH
	Available in aluminum. Use for vertical terminations only. For vertical terminations only. Provides improved performance in high wind conditions.
DirectVent Pro Low-Profile Termination Cap - 46DVA-VC
	Available in aluminum and stainless steel (S). Use for vertical terminations only. Check the appliance manufacturer’s instructions to determine which caps are approved for use with their appliance.
DirectVent Pro Wall Thimble - 46DVA-WT
	Use with Square Horizontal Cap only. Provides a complete wall-pass-through and firestop. Refer to the appliance manufacturer’s installation instructions for requirements.
DirectVent Pro Square Horizontal Termination Cap - 46DVA-HC
	Use for standard and high-wind through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C).
DirectVent Pro Round Horizontal Termination Cap - 46DVA-HRCS
	Use for through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Finish: aluminum.
4/7 Horizontal Vent Termination - FDVHT, FDVHSQ
	Round/Square Vent Horizontal Termination for 4x7-Inch Venting provides a premium installation component for use with your fireplace.
Universal Safety Cage for Horizontal Termination - FDVHSCU
	Universal Safety Cage. Designed for Horizontal Termination. Use with Horizontal Vent Starter Kit.
Horizontal Stucco Shield - FDVHSS
	It's designed to protect the stucco siding from heat. Its product adding a direct vent stove to your home, consider the protection necessary for using it safely.
Chimney Vent Snorkel Termination - Z47ST24, Z47ST36
	Chimney Vent Snorkel Termination for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. With a variety of styles and high-quality materials. If a vertical rise is necessary on the exterior side of the building.
Convertible Between 15' & 40' Vertical Vent Termination - FDVVT40
	It's convertible between 15' and 40' vertical. The convertible function allows for better flexibility and use. Must watch out to follow the proper steps and double-check that the proper parts and accessories are being used.
Vertical Chimney Vent Termination - Z47VT
	Direction: Vertical Type: Vent Termination Fireplace type: Zero Clearance direct vent gas
Attic Insulation Shield - ZDVAIS
	This shield will protect your attic and roof from the heat that escapes through the chimney. The shield offers 12" and 24" of insulation designed to surround your chimney.
Vertical Chimney Vent Offset Support - ZDVVOS
	It'll support your chimney through inclement weather, including heavy rain, snow accumulation, and wind, also as natural wear from gravity over time. The support has been tested for durability and function.
Vertical Chimney Vent Firestop Spacer - ZDVFS
	Chimney Vent Firestop Spacer is created out of rugged metal that will not deteriorate within the short term, and it'll make sure that your chimney vent is held at a correct length from any flammable surface nearby, such as the wall.
Chimney Vent Roof Support - ZDVRS
	Chimney Vent Roof Support will help your chimney function well through various circumstances: heavy wind, storms with heavy rain, hail, and snow accumulation just to call some.
Wall Thimble for Horizontal Venting - ZDVWT
	Horizontal Chimney Vent Wall Thimble for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. This Vent Wall Thimble is durably constructed and tested rigorously to protect your wall and inner material from the hot surface of the ventilation piping.
Heat Deflector Siding Shield - ZDVSS
	Siding Heat-Shield for Horizontal Round Chimney Termination will protect your siding from the chance of combustion to the heat. Protect combustible siding from combustion and charring. Made with careful metallic composition for heat tolerance.
Large Return Siding Shield - ZDVSSLR
	Siding Heat-Shield for Horizontal Round/Square Chimney Termination will protect your siding from the chance of combustion to the heat.
Roof Flashing with Storm Collar - ZDVAAF, ZDVAF2, ZDVAF3
	This storm collar measures 7" in inner diameter. This product has the capability of sealing the vent lengths that protrude from a sloped roof. And also, vertical installations are needed with this product and can be purchased separately.
7" Storm Collar - ZDV7SC
	7-Inch Vertical Venting Storm Collar for 4x7-Inch Vertical Venting provides a premium installation component to be used together with your fireplace. This storm collar measures 7 inches in diameter.
3-Feet Insulation Sleeve for Low Enclosures - MDV38IS
	If you have a multi-sided direct vent fireplace, you'll need an MDV38IS Insulation Sleeve. This insulation sleeve measures 3 feet and is for low enclosures.
Flex Connector - 4" & 7" Diameter - ZDV4FC, ZDV7FC
	The chimney vent is just the thing to stay your belongings free of dirt. This chimney vent is provided with a flex connector that measures 4 or 7 inches in diameter.
Flex Clamp - 4" & 7" Diameter - ZDV4FCL, ZDV7FCL
	Flex Clamp provides a premium installation component to be used with your fireplace. This clamp is 4 or 7 inches in diameter.
4" Standoff Spring Spacer - ZDV4SS
	Spring standoff spacer is simply the part needed for your chimney vent. This spring spacer measures 4 inches in diameter and has the potential of withstanding years of use. This spacer also will keep its polishing color.

DOWNLOADS

View full details
