SKU:FDV350N

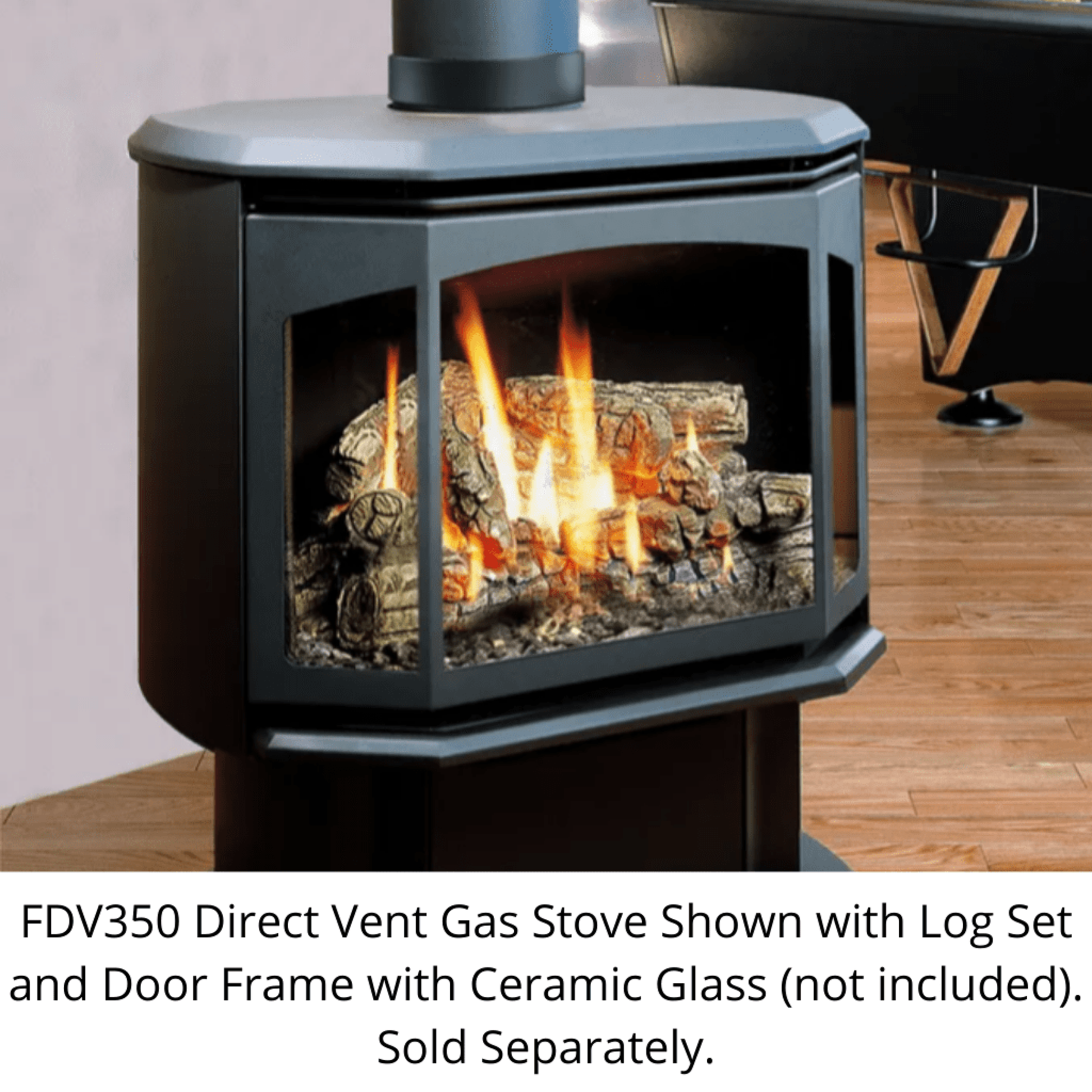

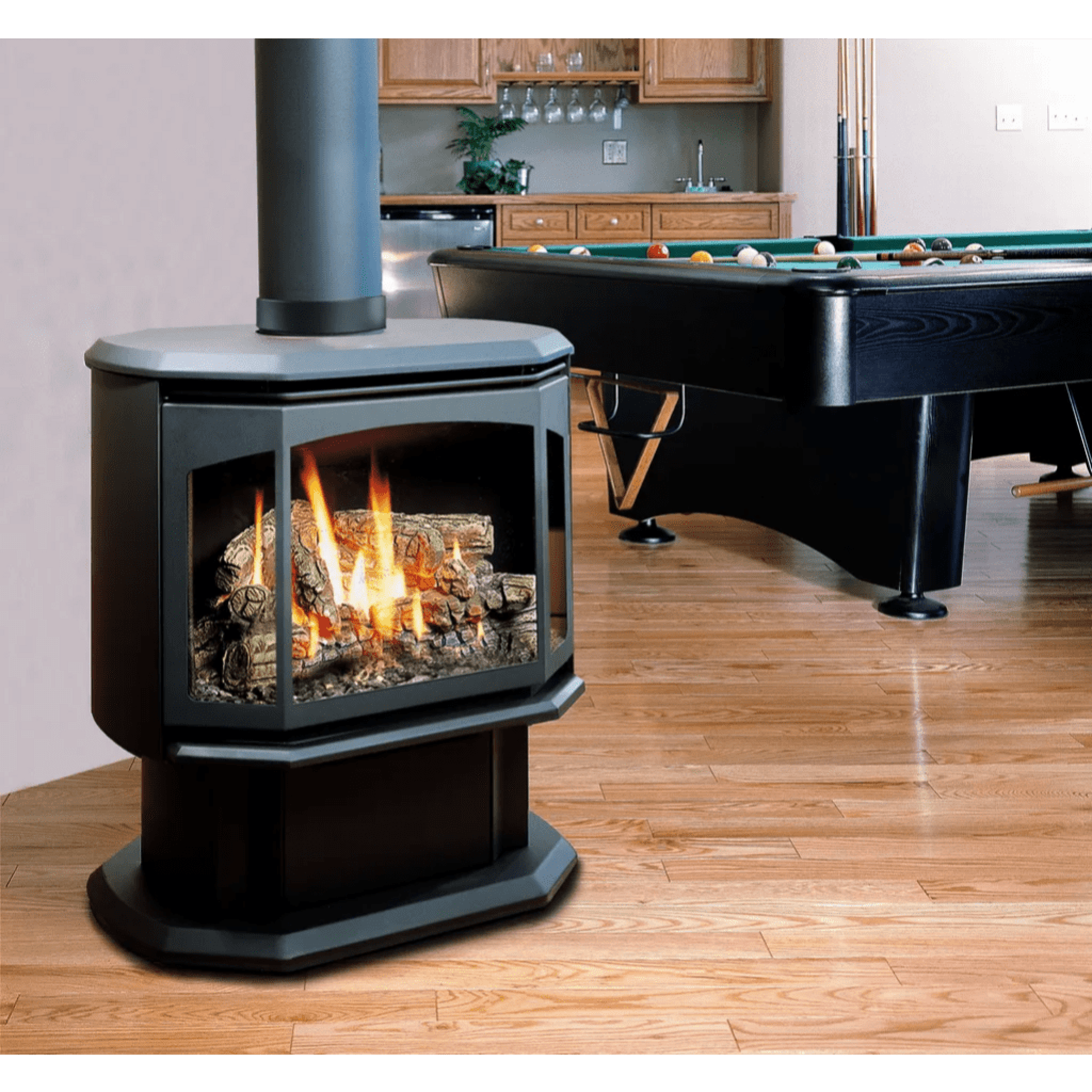

Kingsman 27" FDV350 Free Standing Direct Vent Gas Stove
Kingsman 27" FDV350 Free Standing Direct Vent Gas Stove
Log Set (Required to Complete)
-- Please Select --
No, Thank You
Conversion Kit
-- Please Select --
No, Thank You
Door Fronts (Required to Complete)
-- Please Select --
No, Thank You
Safety Screen (Required to Complete)
-- Please Select --
No, Thank You
Fan Kit
-- Please Select --
No, Thank You
Refractory Liner
-- Please Select --
No, Thank You
Controllers
-- Please Select --
Millivot Remote Control - Thermostat/Modulating
IPI PF1 Remote Control - Thermostat/Modulating
On/Off Remote Control for Millivolt/IPI Units
Wall Mount Thermostat for Millivolt Unit
Thermostat Remote Control for Millivolt Unit
Thermostat Remote Control for IPI Unit
No, Thank You
Venting Options
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
FREE STANDING DIRECT VENT GAS STOVE
The Kingsman direct vent freestanding gas stove is a safe and efficient heating apparatus with the convenience of gas. it'll be your most suitable option for installation anywhere in your home! Its three-panel panoramic ceramic glass allows you to look at the flames dance from any side of your unit and also the optional fiber cast oak logs add the realistic effect of a wood fire with the convenience and ease of natural gas or propane.
Kingsman Direct Vent gas stove is vented through the wall or up through your roof. This gas stove comes with a factory-installed fan, thermostatically controlled wireless remote control. you'll use the remote to manage the speed of the fan and adjust the flame height. Also comes with a child protection screen.
Kingsman Free Standing gas stove Millivolt and IPI Pilot has a great dual burner system stove that will keep you warm all throughout winter. With the heat radiating ceramic logs, and your choice of propane or gas, this freestanding stove is certain to delight. you'll enjoy a panoramic view from three sides with this free-standing stove.
Kingsman Free Standing Direct Vent Gas Stove also available in FDV200S and FDV451 Models.
STANDARD FEATURES
- Size: 27 Inches
- Color: Black
- Black louvers
- Mobile home approved
- Fibre Oak Log Set with Embers
- Freestanding stove with pedestal
- Your choice of natural gas or propane
- Dual burner system, with realistic flame pattern
- Product Dimensions: 27 5/16" W x 30 3/8" H x 19" D
- Approved for installation in bedrooms or bed-sitting rooms
- Heat radiating ceramic glass with panoramic view from three sides
- Millivolt Valve with Hi-Low heat and flame adjustment and allows operation during a power failure
- Proflame II (PF2) Models include Remote Control Features flame, fan, thermostat, smart thermostat and battery backup
*Note: Components may have to be ordered separately to create a complete unit.
*Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section for available venting pipe and other venting components that must be used with this unit.
PRODUCT SPECIFICATION
| Model |
FDV350N/NE/NE2 |
FDV350LP/LPE/LPE2 |
| Fuel | Natural | Propane |
| Flue | Top | Top |
| Gas Control | Millivolt/IPI |
Millivolt/IPI |
| Input Max. | 37,000 BTU |
35,000 BTU |
| Input Min. | 29,000 BTU |
27,000 BTU |
| FE (p.4.1-02)% | 66.63% / 67.9% |
67.64% / 70.10% |
| Flue Sizes | 4/7" |
4/7" |
| Size | 27 5/16" W x 30 3/8" H x 19" D |
27 5/16" W x 30 3/8" H x 19" D |
| Glass Type | Ceramic | Ceramic |
| Certification | Heater | Heater |
| Bedroom Approved | Yes | Yes |
DIMENSIONS
CA Residents: See Prop 65 WARNING
OPTIONAL ACCESSORIES
Click to see Log Set (Required to Complete)
Log Set
 |
Fiber Split Oak Log Set (LOGF35) The Kingsman Fiber split oak logs will display within your fireplace for years to return, because of their durable construction. The detail Kingsman dedicates to making features exquisite knots, bark, and wood grain patterns. The installation process for these Kingsman Split Oak Logs is quick and manageable. All of the required hardware will be included, alongside detailed instructions to finish the installment.
|
Click to see Conversion Kit
Conversion Kit
 |
Conversion Kit to Propane Millivolt (350DV-CKLP)
Conversion Kit to Natural Gas Millivolt (350DV-CKNG)
Conversion Kit to Propane Proflame 1 (350DV-CKLPI)
Conversion Kit to Natural Gas Proflame 1 (350DV-CKNGI)
Conversion Kit to Propane Proflame 2 (350DV-CKLPI2)
|
Click to see Door Fronts (Required to Complete)
Door Fronts
 |
Door Frame and Ceramic Glass (F35DB) The Kingsman Black Door Frame and Ceramic Glass for free Standing Direct Vent Gas Stoves you'll add the details you would like to make your unit shine. This required accessory is supposed to finish your unit with its black finish and ceramic glass window, giving it a more finished look. This door frame is designed to work with the FSV350 stove.
|
Click to see Safety Screen Barrier (Required to Complete)
Safety Screen Barrier
|
Safety Screen Barrier (F35OCSS) Added safety measures are always a plus. With the Kingsman Safety Barrier Screen for free Standing Direct Vent Gas Stoves, you'll have peace of mind. This screen barrier will protect you from accidental sparks, or keep your little hands from touching the hot stove.
|
Click to see Fan Kit
Fan Kit
 |
Speed Control Temperature Sensing Fan Kit (F45FK) This Kingsman Variable Speed Temperature Sensing Fan Kit is a handy addition to your free-standing stove. With the thermal switch control, this fan can automatically turn itself on and off in reaction to the heat levels of your living space.
|
Click to see Refractory Liner
Refractory Liner
 |
Refractory Liner (F35RL) This liner kit gives the impression of traditional running courses of brick behind the flames. This kit is cast using a durable refractory method, which can allow you to enjoy flames dancing ahead of gorgeous brick for several years to come. This series specific liner kit comes with all of the required installation hardware.
|
Click to see Thermostat
Thermostat
 |
Wall Mount Thermostat- For Millivolt Units- Z2MT
Programmable Digital Wall Mount Thermostat- For Millivolt Units-Z80PT
|
Click to see Remote Control
Remote Control
 |
On/Off Remote Control for Millivolt/IPI Units- GFRC
|
 |
Thermostat Remote Control Millivolt/IPI Units- GTRC, EGTRC
|
|
|
Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units-
|
Click to see venting products
venting
| 4/7" Direct Vent to 4" B-Vent Converter - F35BVC | |
 |
Place a bead of Black Mil Pac sealant around a 4-inch flue collar on the stove. Venting adapter, Converter - 4/7" DV to 4" B-Vent. |
| 7" Decorative Black Collar - F7DBC | |
 |
Designed to trim around the exposed vent pipes as they enter a wall or ceiling, this stamped steel trim will make it a touch less ugly, and with being painted black. |
|
Horizontal Vent Starter Kit - FDVHSK |
|
 |
This starter kit has all the right pieces necessary to supply adequate ventilation to a direct vent stove. |
| Vertical Vent Starter Kit - FDVVSK | |
 |
Vertical Vent Starter Kit for Direct Vent Stoves is that the right accompaniment to anyone's direct vent stove. This vertical vent starter kit includes an attic insulation shield, fire stop, a ceiling trim plate, a black trim ring, roof support, 6 spacer springs, and mill pac. |
| Dura-Vent Stove Adapter - ZDVDKA | |
 |
Dura-vent stove adapter is used specifically with direct vent stoves and allows the ventilation to exceed expectations when comparing them to other vents. |
| 45-Degree DirectVent Pro Elbow - 46DVA-E45, 46DVA-E45B | |
 |
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°. Finish: Galvanized & Black. |
|
90-Degree DirectVent Pro Elbow - 46DVA-E90B, 46DVA-E90 |
|
 |
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 90°. Finish: Galvanized & Black. |
| 17" DirectVent Pro Elbow Strap - 46DVA-ES | |
 |
DirectVent Pro Elbow Strap Use for supporting vent pipe between offsets. |
| 4"x6.625" DirectVent Pro Pipe Length | |
|
|
Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional unless specified by the appliance manufacturer. Finish: Galvanized & Black. |
| 4"x6.625" DirectVent Pro Pipe Extension | |
|
|
Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Available in black or galvalume exterior. |
| 4"x6.625" DirectVent Pro Adjustable Pipe | |
|
|
Use of sealant is optional unless specified by the appliance manufacturer. Available in black or galvalume exterior. |
| DirectVent Pro Wall Strap - 46DVA-WS | |
 |
Use to support vent pipe. Provides 1” clearance. Recommend installing Wall Straps at 4-foot intervals on vertical runs. |
| DirectVent Pro Ceiling Firestop - 46DVA-FS | |
 |
Required for multi-story vertical installations on the second floor and any subsequent floors. |
|
DirectVent Pro Decorative Cover - 46DVA-DC |
|
 |
Use as a decorative cover for horizontal (through-wall) installations Fits over the Wall Thimble faceplate. Also used to cover a Ceiling Support Box. |
| DirectVent Pro Attic Insulation Shield - 46DVA-IS | |
 |
Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent. Provides 1” clearance to combustibles. |
| 14" DirectVent Pro Cathedral Ceiling Support Box - 46DVA-CS | |
 |
Use to pass through ceiling and support pipe. May be used on vaulted or flat ceilings. Painted black. Trim and clamp included. |
| DirectVent Pro Flat Roof Flashing - 46DVA-FF | |
 |
Use to weatherproof the penetration of vent pipe through the roof. Use on flat roofs, chase enclosures, or masonry chimneys. Storm Collar required. Made of galvalume. |
| DirectVent Pro Adjustable Roof Flashing - 46DVA-F6 | |
 |
Use to weatherproof the penetration of vent pipe through the roof. Select roof flashing based on pitch of the roof. For pitches of 0/12 - 6/12. Storm Collar required. Made of galvalume. |
| DirectVent Pro Steep Roof Flashing - 46DVA-F12 | |
 |
Use to weatherproof the penetration of vent pipe through the roof. Storm Collar required. Made of galvalume. |
| DirectVent Pro Dead Soft Aluminum Flashings - 46DVA-F6DS | |
 |
Available in sizes 4”x 6 5⁄8” and 5”x 8”, in 0/12-6/12 (shown) and 7/12-12/12 styles. Made of malleable dead soft aluminum. Use with metal or tile roofs. |
| DirectVent Pro Storm Collar - 46DVA-SC | |
 |
Use to maintain a weather tight resistant seal between the pipe and the flashing. |
| DirectVent Pro High-Wind Termination Cap - 46DVA-VCH | |
 |
Available in aluminum. Use for vertical terminations only. For vertical terminations only. Provides improved performance in high wind conditions. |
| DirectVent Pro Low-Profile Termination Cap - 46DVA-VC | |
 |
Available in aluminum and stainless steel (S). Use for vertical terminations only. Check the appliance manufacturer’s instructions to determine which caps are approved for use with their appliance. |
| DirectVent Pro Wall Thimble - 46DVA-WT | |
 |
Use with Square Horizontal Cap only. Provides a complete wall-pass-through and firestop. Refer to the appliance manufacturer’s installation instructions for requirements. |
| DirectVent Pro Square Horizontal Termination Cap - 46DVA-HC | |
 |
Use for standard and high-wind through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C). |
| DirectVent Pro Round Horizontal Termination Cap - 46DVA-HRCS | |
 |
Use for through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Finish: aluminum. |
| DirectVent Pro Snorkel Termination Cap - 46DVA-SNK14 / 36 | |
 |
Use for horizontal through-the-wall termination when a vertical rise is desired in the system to meet the appliance manufacturer's recommended minimum heights. Do not enclose in the wall or install below grade. |
| DirectVent Pro Sconce Termination Cap - 46DVA-HSC | |
 |
Use for horizontal through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C). |
| DirectVent Pro Square Horizontal H2 Termination Cap - 46DVA-H2 | |
 |
Use for standard and high-wind through-the-wall termination. Provides improved performance in high wind conditions. Adjustable air intake and interchangeable shroud. |
| DirectVent Pro High-Wind Sconce Termination Cap - 46DVA-HSCH | |
 |
Use for horizontal through-the-wall termination. Provides improved performance in high wind conditions. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C). |
| DirectVent Pro Snorkel H2 Termination Cap - 46DVA-H2-SNK14 | |
 |
Use for horizontal through-the-wall termination when a vertical rise is desired in the system to meet the appliance manufacturer's recommended minimum heights. |
DOWNLOADS
