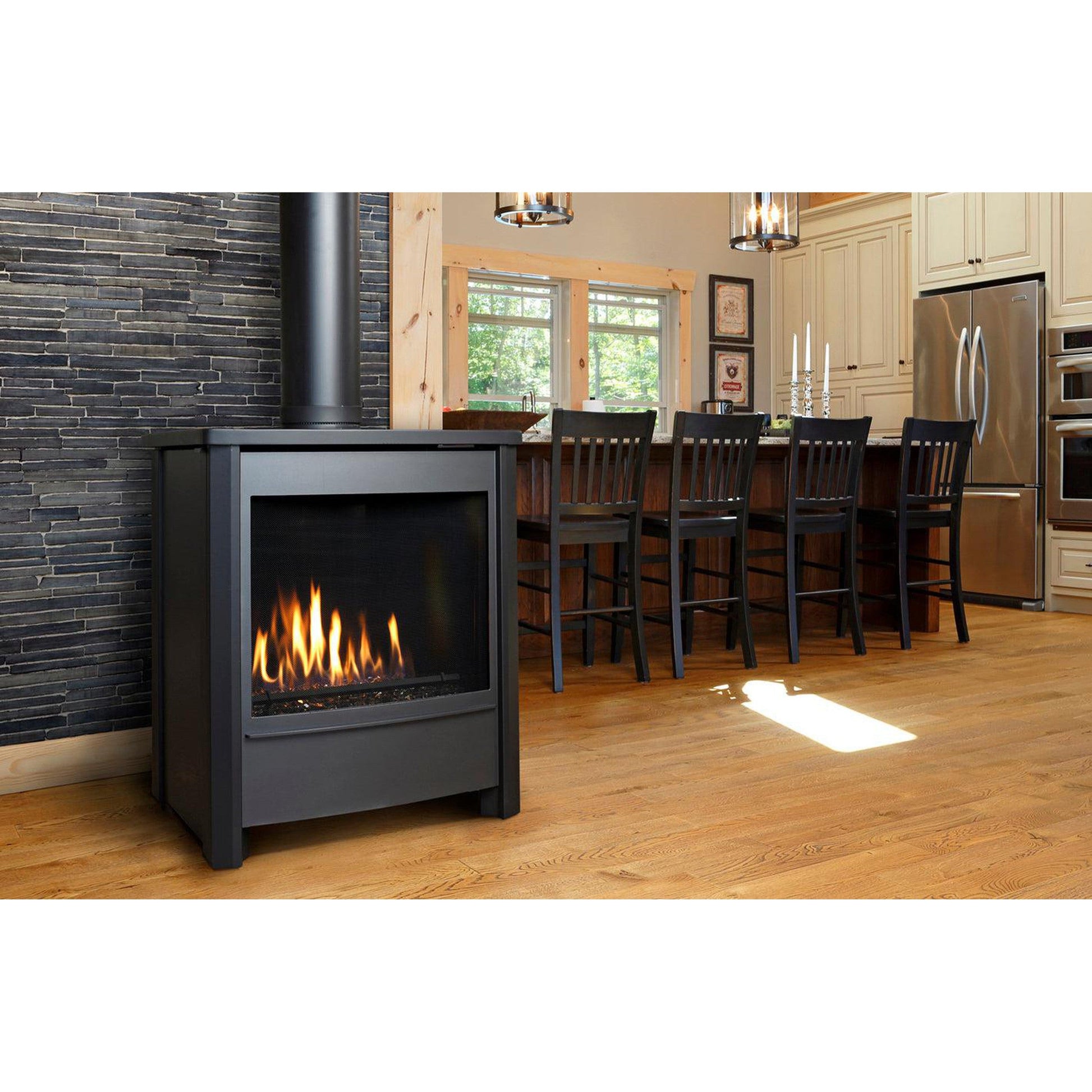

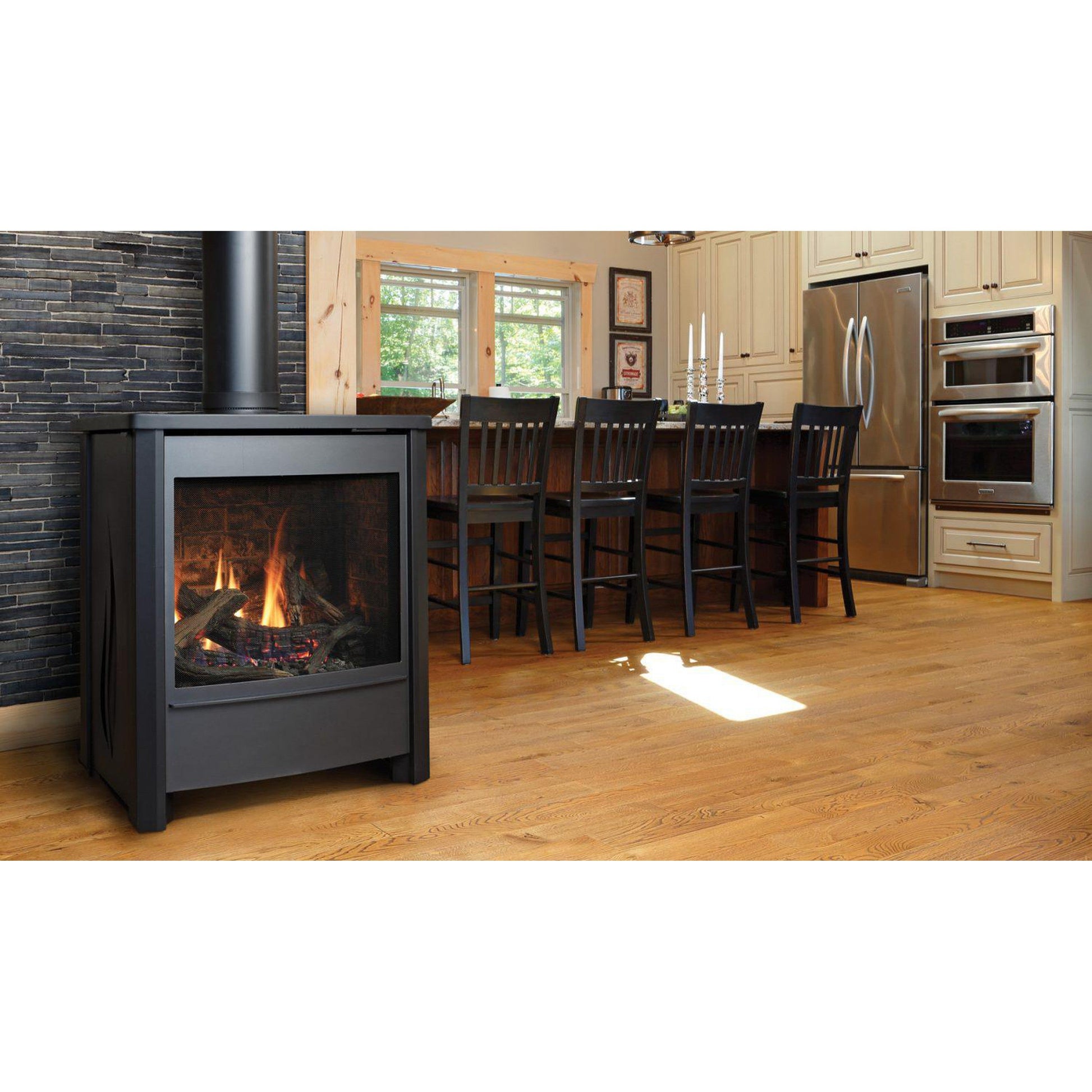

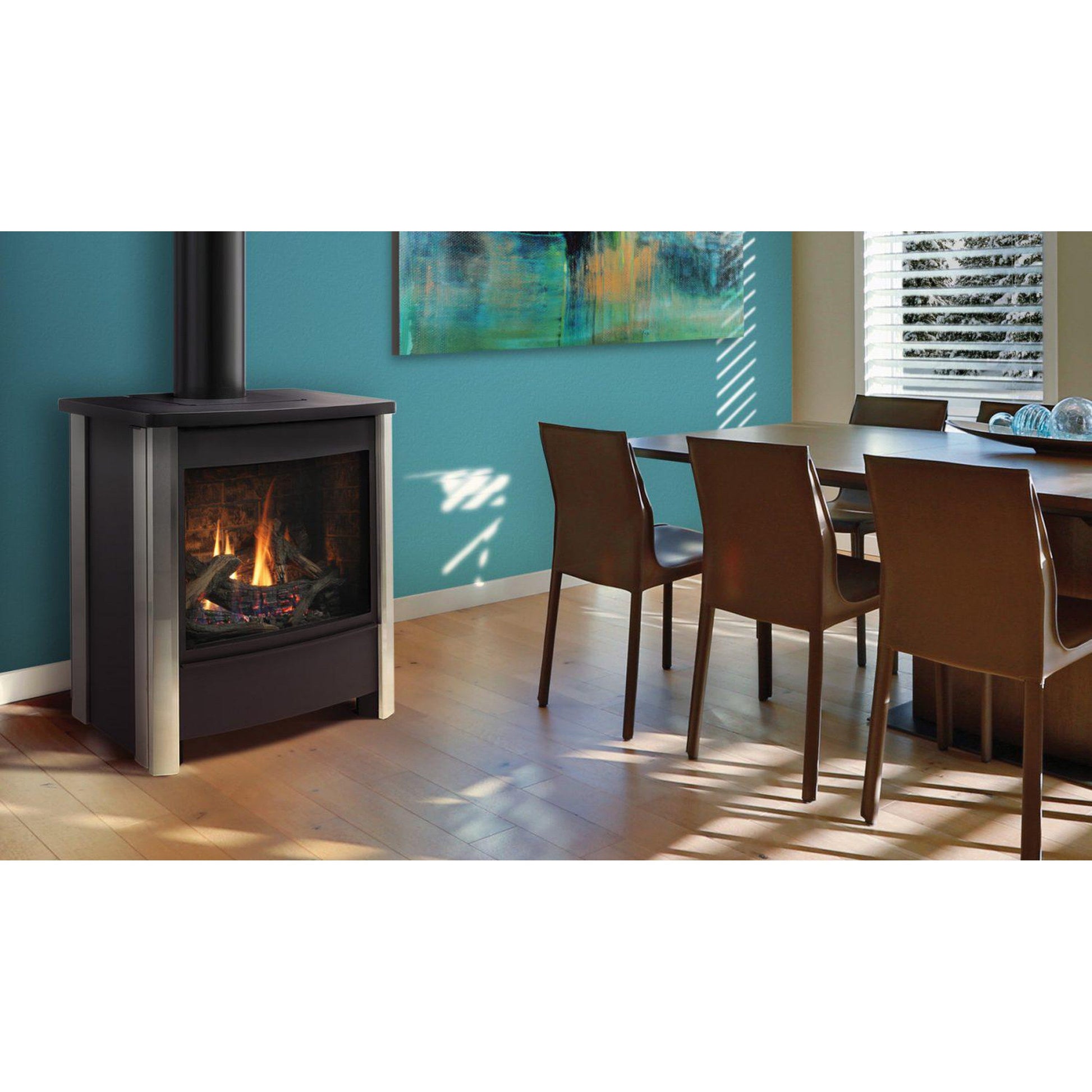

Kingsman 26" FDV451 Free Standing Direct Vent Gas Stove

Kingsman 26" FDV451 Free Standing Direct Vent Gas Stove

$2,038.40
$2,038.40
Sale Sold out
Shipping calculated at checkout.
Fuel Type
Ignition Type

Log Grate (Required)

-- Please Select --

No, Thank You

Log Set (Required to Complete)

-- Please Select --

No, Thank You

Bronze Fire Glass Media

-- Please Select --

5 lbs. Bronze Glass Media

10 lbs. Bronze Glass Media

15 lbs. Bronze Glass Media

20 lbs. Bronze Glass Media

25 lbs. Bronze Glass Media

No, Thank You

Conversion Kit

-- Please Select --

No, Thank You

Front Door and Vent Lid (Required to Complete)

-- Please Select --

No, Thank You

Side Doors (Required to Complete)

-- Please Select --

No, Thank You

Liner Kit

-- Please Select --

No, Thank You

B-Vent Converter

-- Please Select --

No, Thank You

Controllers

-- Please Select --

Millivot Remote Control - Thermostat/Modulating

IPI PF1 Remote Control - Thermostat/Modulating

Millivot Remote Control - Thermostat/Modulating/Fan

IPI PF1 Remote Control - Thermostat/Modulating/Fan

On/Off Remote Control for Millivolt/IPI Units

Thermostat Remote Control for Millivolt Unit

Thermostat Remote Control for IPI Unit

No, Thank You

Venting Options
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

FREE STANDING DIRECT VENT GAS STOVE

The FDV451 Free Standing Direct Vent Gas Stove Model provides sealed combustion where it draws outside air for combustion. This model can be vented either horizontally or vertically.

The Kingsman FDV451 direct vent gas stove could be a safe and efficient appliance to heat your home. Conveniently fueled by either natural gas or propane and with dozens of possible style options and customizations available, this unit is certain to delight visually and conceptually. This unit can be vented either horizontally or vertically for ease of placement in any room of your home. it's mobile home approved also as approved for installation in bedrooms.

The Kingsman Free Standing Direct Vent gas stove with Millivolt and IPI Control is a fantastic modern and sleek-looking stove choice for your home. With a reliable standing pilot valve allowing operation during power outages and therefore the ability to pair with a full line of remotes or wall switches, this stove could be a star. Additionally, with a multitude of options in both finishes and doors, also as your choice of traditional oak logs or contemporary glass media, This stove's compact chassis design can fit into a variety of installations, and it comes with safety barrier screens to assist protect your loved ones from contact with hot surfaces.

Direct Vent gas stoves are heating workhorses. They feature a combustion system that utilizes the venting to not only exhaust but to bring in fresh air for combustion. These systems can act as full-time heaters when sized appropriately. Not only are they functional but they're decorative also. Direct Vent appliances have a number of the foremost realistic-looking log fires. With contemporary alternatives available, you'll match your home's style.

Kingsman Free Standing Direct Vent Gas Stove also available in FDV200S and FDV350 Models.

STANDARD FEATURES

  • Color: Black
  • Safety Screen Barrier
  • Vent Type: Direct Vent
  • Heat radiating ceramic glass
  • Modern and sleek look
  • Fuel Type: Propane Gas, Natural Gas
  • Max BTU Output: 30,001 to 35,000
  • Dual burner system, with Realistic Flame Pattern
  • Mobile home approved – (Direct Vent Model Only)
  • Approved for installation in a bedroom or bed-sitting room
  • Product Dimensions: 27 1/8"W x 33 1/2"H x 20 5/16"D
  • Millivolt or IPI valve system allows operation during a power failure with Hi-Low heat and flame adjustment
  • Proflame II Models include Remote Control – Features flame, fan, thermostat, and smart thermostat.

*Note: Components may have to be ordered separately to create a complete unit.

*Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section for available venting pipe and other venting components that must be used with this unit.

PRODUCT SPECIFICATION

Model FDV451LP/LPE/LPE2
 FDV451N/NE/NE2
Fuel Propane Natural
Flue Top
 Top
Gas Control Millivolt / IPI Millivolt / IPI
Input Max. 31,000 BTU
 34,500 BTU
Input Min. 24,500 BTU
 23,750 BTU
FE (p.4.1-02)% 72.14% / 74.06%
 65.89% / 67.72%
Flue Sizes
 4/7"
 4/7"
Glass Size
 21 3/8" W x 19 7/16" H
 27 1/8"W x 33 1/2"H x 20 5/16"D
Glass Type Single Ceramic
Size (WxHxD)
 27 1/8"W x 33 1/2"H x 20 5/16"D
 27 1/8"W x 33 1/2"H x 20 5/16"D
Viewing Area
 20" W x 16 5/16" H
 20" W x 16 5/16" H
Venting 4/7" Flex or 4 x 6 5/8 Hard Pipe*
 4/7" Flex or 4 x 6 5/8 Hard Pipe*
Electronic Ignition
 Yes Yes
Certification Heater Heater
Bedroom Approved
 Yes Yes

DIMENSIONS

CA Residents: See Prop 65 WARNING

OPTIONAL ACCESSORIES

Click to see Log Grate (Need to Choose Log Set)


Log Grate

Log Grate (F45LG)

The Kingsman Decorative Log Grate for the FDV451 Series Stoves is a beautiful accessory for your free-standing gas stove. This Kingsman log grate has been explicitly designed to figure with the LOGF451 log assemblies and would supply a wonderful base for your log set. This Kingsman Decorative Log Grate has steel tines to create sure that it can withstand many years of use under brilliant fires, allowing you to not have to worry about the stability of your log set.

  • Color: Black
  • Material: Steel
  • Product Type: Log Grate
  • Decorative log grate with steel tines
  • Designed to work with LOGF451 log assemblies
  • For use with FDV451/453 series Free Standing Direct Vent Gas Stove
    Click to see Log Set or Media (Required to Complete)


    Log Set or Media

    Oak Log Set (LOGF451)

    The Kingsman Oak Log Set for FDV451 Series Gas Stoves is an exquisitely detailed log set for your free-standing stove. These highly detailed logs are made up of a durable ceramic fiber that can withstand many years of use.

    • Detailed fiber oak log set
    • Required to complete stove installation
    • Designed specifically for the FDV451 series gas stoves

      Bronze Glass Media (Z5GC)

      If your fireplace can equip a glass media tray, then you'll enjoy the looks of this high luster Kingsman Half-Inch Bronze Glass Media. With the bronze color, this glass media will provide an upscale and earthy-toned base to your roaring fire. This Bronze Glass Media will catch the glint of the flames, throwing unusual patterns everywhere in your room.

      • Color: Bronze
      • Type: Glass Media
      • High luster tempered finish
      • Contains 5/10/15/20/25 pounds of 1/2" bronze glass media
      • Designed for use in contemporary fireplaces configured with glass media trays
      • For use with Fireplaces and Stoves

      Note: Maximum Glass Required 15 lbs

      Assorted Cannonball Fire Art (RBCB1)

      • Color: Various Colors
      • Unique design alternative to glass media
      • Design for Kingsman fireplaces and stoves
      • Can be used with glass media accents
      Click to see Conversion Kit


      Conversion Kit

      Conversion Kit to Propane Millivolt (450DV-CKLP)

      • Type: Gas conversion kit
      • For millivolt pilot FDV451 stoves
      • Converts Natural Gas Unit into Liquid Propane Unit
      • Includes all necessary gas valve and pilot assembly conversion components

      Conversion Kit to Natural Gas Millivolt (450DV-CKNG)

      • Type: Gas conversion kit
      • For millivolt pilot FDV451 stoves
      • Converts Propane Unit into Natural Gas Unit
      • Includes all necessary gas valve and pilot assembly conversion components

      Conversion Kit to Propane Proflame 1 (450DV-CKLPI)

      • Type: Gas conversion kit
      • For IPI pilot FDV451 stoves
      • Converts Natural Gas Unit into Liquid Propane Unit
      • Includes all necessary gas valve and pilot assembly conversion components

      Conversion Kit to Natural Gas Proflame 1 (450DV-CKNGI)

      • Type: Gas conversion kit
      • For IPI pilot FDV451 stoves
      • Converts Propane Unit into Natural Gas Unit
      • Includes all necessary gas valve and pilot assembly conversion components

      Conversion Kit to Propane Proflame 2 (450DV-CKLP2)

      • Type: Gas conversion kit
      • For IPI Proflame 2 pilot FDV451 stoves
      • Converts Natural Gas Unit into Liquid Propane Unit
      • Includes all necessary gas valve and pilot assembly conversion components

      Conversion Kit to Natural Gas Proflame 2 (450DV-CKNG2)

      • Type: Gas conversion kit
      • For IPI Proflame 2 pilot FDV451 stoves
      • Converts Propane Unit into Natural Gas Unit
      • Includes all necessary gas valve and pilot assembly conversion components
      Click to see Front Door and Vent Lid (Required to Complete)


      Front Door and Vent Lid

      Door Front and Vent Lid (F450FBL/F450FSS)

      This Kingsman Stove Door Front and Vent Lid with Safety Screen for the FDV451 Series Stoves is that the final touch your stove needs. This door front will complete the front appearance of your FDV451 Series Stove, and therefore the included safety screen grants an additional layer of safety against accidental burns. This door will give your free-standing stove installation an additional touch of timeless elegance.

      • Type: Door Front
      • Finish: Charcoal
      • Comes with Vent Lid
      • Included safety screen
      • Flat Black Posts / Stainless Posts
      • Completes the front of FDV451 series stoves
        Click to see Side Doors (Required to Complete)


        Side Doors

        Solid Panel Stove Side Doors (F451SDSBL/F451SDSSS)

        The Kingsman Solid Panel Stove Side Doors for FDV451 Series Free Standing Direct Vent Gas Stoves will complete the sides of your FDV451 installation and provides your home the aesthetic of a side-loading wood-burning stove. These doors are solid center door panels and are needed to finish the FDV451 series stoves. Your stove can readily be designed to figure well together with your home's existing design themes.

        • Type: Side Door
        • Solid Panel
        • Color: Charcoal
        • Black Frame / Stainless Steel Frame
        • Completes the sides of FDV451 series stoves
          Click to see Fan Kit


          Fan Kit

          Speed Control Temperature Sensing Fan Kit (F45FK)

          This Kingsman Variable Speed Temperature Sensing Fan Kit is a handy addition to your free-standing stove. With the thermal switch control, this fan can automatically turn itself on and off in reaction to the heat levels of your living space.

          • Material: Steel
          • Product Type: Fan Kit
          • Squirrel cage blower design for quiet and powerful operation
          • Thermal switch for automatic on/off operation
          • Variable speed control with built-in all off setting
          • Designed to fit free standing direct vent gas stoves
          • For use with Millivolt/Proflame 1 stoves
          Compatible with the following Kingsman appliances
          • FDV200S Free Standing Direct Vent Gas Stove
          • FDV350 Free Standing Direct Vent Gas Stove
          • FDV451 Free Standing Direct Vent Gas Stove
          • FVF350 Free Standing Direct Vent Gas Stove
          Click to see Liner Kit


          Liner Kit

          Traditional Brick Liner (F451RLT)

          • Color: Brown
          • Product Type: Liner
          • Installation hardware included
          • Durable cast refractory construction
          • Designed to add a realistic appearance to the firebox interior
          • Provides the look of a traditional/herringbone style brick pattern
          • Designed specifically for FDV451 series gas stoves

            Herringbone Brick Liner (F451RLH)

            • Color: Brown
            • Product Type: Liner
            • Installation hardware included
            • Durable cast refractory construction
            • Designed to add a realistic appearance to the firebox interior
            • Provides the look of a traditional/herringbone style brick pattern
            • Designed specifically for FDV451 series gas stoves

            3 Piece Porcelain Reflective Liner Kit (F451PL)

            • 3 Piece Item
            • Color: Reflective Black
            • Product Type: Liner
            • Installation hardware included
            • Durable porcelain coated steel finish
            • Amplifies the flame presentation via reflective qualities
            • Sleek modern appearance compliments fire glass installations
            • Designed specifically for FDV451 series gas stoves
            Click to see B-Vent Converter


            B-Vent Converter

            4/7" Direct Vent to 4" B-Vent Converter (F35BVC)

            Place a bead of Black Mil Pac sealant around a 4-inch flue collar on the stove. Position Safety Spill Switch wires to the rear of the stove and Lower B-Vent Converter onto the 4 and 7-inch collars until fully seated.

            • Venting adapter
            • Converter - 4/7" DV to 4" B-Vent
            • Designed for use with FDV350 or FDV451 stoves

            *Venting Requirements: This unit requires venting pipe with an inner diameter of 3 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
            Click to see Thermostat


            Thermostat



            Wall Mount Thermostat- For Millivolt Units (Z2MT)

            • Simple on/off millivolt thermostat design
            • Easy to use digital control
            • Allows convenient operation of gas appliances
            • Simple to wire to existing millivolt systems

            Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)

            • Schedule programmable for desired operation
            • Works with Kingsman millivolt appliances
            • Easy to read digital LCD display
            Click to see Remote Control


            Remote Control

            On/Off Remote Control for Millivolt/IPI Units (GFRC)

            • Simple on/off operation for millivolt appliances
            • Allows for the operation of the appliance without manual control
            • Included receiver easily mounts within the appliance chassis
            • Reliable RF transmitter operation

              Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC)

              • On/off operation with modulating thermostat control
              • Allows for the operation of the appliance without manual control
              • Included receiver easily mounts within the appliance chassis
              • Reliable RF transmitter operation

              Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units
              (GTMRCN, GTMRCP, EGTMRCN, EGTMRCP)

              • On/off operation with modulating thermostat control
              • Allows for the operation of the appliance without manual control
              • Included receiver easily mounts within the appliance chassis
              • Reliable RF transmitter operation
              • Includes high/low modulating motor for natural gas and propane gas fireplaces

                Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units (GTFRCN, GTFRCP, EGTFRCN, EGTFRCP)

                • On/off operation with modulating thermostat control
                • Allows for the operation of the appliance without manual control
                • Included receiver easily mounts within the appliance chassis
                • Reliable RF transmitter operation
                • Includes high/low modulating motor for natural and propane gas fireplaces
                • Allows for control of optional fan operation
                Click to see venting products


                venting

                Dura-Vent Stove Adapter - ZDVDKA
                		Dura-vent stove adapter is used specifically with direct vent stoves and allows the ventilation to exceed expectations when comparing them to other vents.
                45-Degree DirectVent Pro Elbow - 46DVA-E45, 46DVA-E45B
                Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°. Finish: Galvanized & Black.
                90-Degree DirectVent Pro Elbow - 46DVA-E90B, 46DVA-E90
                Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 90°. Finish: Galvanized & Black.
                4"x6.625" DirectVent Pro Pipe Length

                		Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional unless specified by the appliance manufacturer. Finish: Galvanized & Black.
                4"x6.625" DirectVent Pro Pipe Extension

                Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Available in black or galvalume exterior.
                4"x6.625" DirectVent Pro Adjustable Pipe

                		Use of sealant is optional unless specified by the appliance manufacturer. Available in black or galvalume exterior.
                DirectVent Pro Wall Strap - 46DVA-WS
                Use to support vent pipe. Provides 1” clearance. Recommend installing Wall Straps at 4-foot intervals on vertical runs.
                DirectVent Pro Ceiling Firestop - 46DVA-FS
                Required for multi-story vertical installations on the second floor and any subsequent floors.
                DirectVent Pro Decorative Cover - 46DVA-DC
                Use as a decorative cover for horizontal (through-wall) installations Fits over the Wall Thimble faceplate. Also used to cover a Ceiling Support Box.
                14" DirectVent Pro Cathedral Ceiling Support Box - 46DVA-CS
                Use to pass through ceiling and support pipe. May be used on vaulted or flat ceilings. Painted black. Trim and clamp included.
                DirectVent Pro Adjustable Roof Flashing - 46DVA-F6
                Use to weatherproof the penetration of vent pipe through the roof. Select roof flashing based on pitch of the roof. For pitches of 0/12 - 6/12. Storm Collar required. Made of galvalume.
                DirectVent Pro Steep Roof Flashing - 46DVA-F12
                Use to weatherproof the penetration of vent pipe through the roof. Storm Collar required. Made of galvalume.
                DirectVent Pro Dead Soft Aluminum Flashings - 46DVA-F6DS
                Available in sizes 4”x 6 5⁄8” and 5”x 8”, in 0/12-6/12 (shown) and 7/12-12/12 styles. Made of malleable dead soft aluminum. Use with metal or tile roofs.
                DirectVent Pro Storm Collar - 46DVA-SC
                Use to maintain a weather tight resistant seal between the pipe and the flashing.
                DirectVent Pro High-Wind Termination Cap - 46DVA-VCH
                Available in aluminum. Use for vertical terminations only. For vertical terminations only. Provides improved performance in high wind conditions.
                DirectVent Pro Low-Profile Termination Cap - 46DVA-VC
                Available in aluminum and stainless steel (S). Use for vertical terminations only. Check the appliance manufacturer’s instructions to determine which caps are approved for use with their appliance.
                DirectVent Pro Wall Thimble - 46DVA-WT
                Use with Square Horizontal Cap only. Provides a complete wall-pass-through and firestop. Refer to the appliance manufacturer’s installation instructions for requirements.
                DirectVent Pro Square Horizontal Termination Cap - 46DVA-HC
                Use for standard and high-wind through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C).
                DirectVent Pro Round Horizontal Termination Cap - 46DVA-HRCS
                Use for through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Finish: aluminum.
                DirectVent Pro Vinyl Sliding Standoff - 46DVA-VSS
                Use as a heat shield on structures with vinyl siding, or other temperature-sensitive materials, to help prevent warping and or melting of the material.

                DOWNLOADS

                View full details
