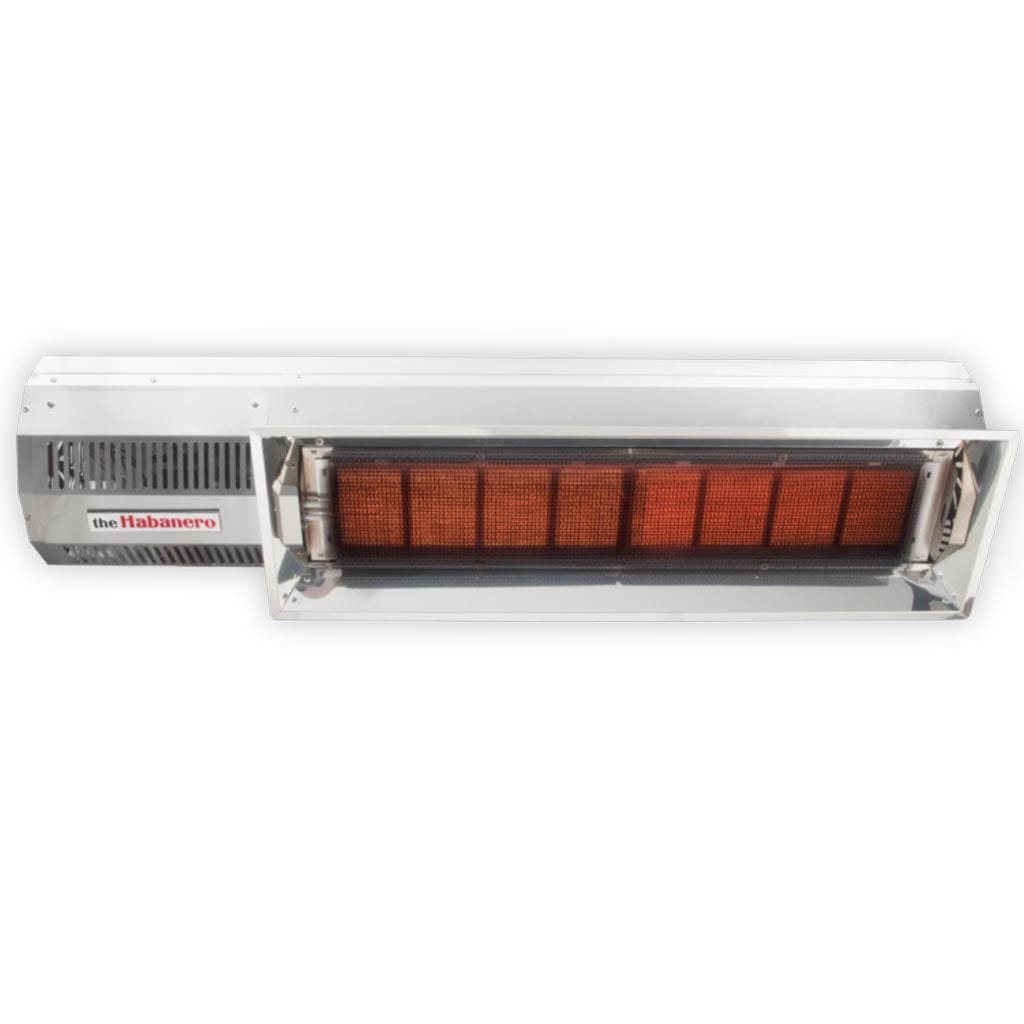

theHABANERO M50 is our smallest wall & ceiling mount gas patio heater, ideal for low ceilings, busy ceilings, and smaller areas. Designed for maximum versatility and convenience, the IR Energy Habanero M50 47" Unvented Natural Gas Radiant Patio Heater is perfect for any outdoor space. Whether you have a low ceiling, a busy ceiling, or a smaller area, this compact heater will provide powerful, reliable heat to keep you and your guests warm and comfortable.

What's Included

• Burner Assembly

• Two Stage Switch

• Wire Harness

• Gas Valve

• Electronic Ignition and Ignition Wire

• Spark Electrode

• Silicone Boot over Electrode Terminal


Not Included

• Mounting Kit

• Transformer

• Two-Stage Control Switch

• Gas Flex Connector

• Shut-Off Safety Valve


Features

• No blower = No noise
• Polished heat reflector
• Hi/Low/Off Dual heat output control
• Available in 33" and 48" lengths
• As low as 3" top clearance
• New ‘High-Grid’ technology substantially decreases heat loss
• Protect against flame lift-offs from extreme wind conditions
• Black Finish - Marine Grade Aluminum Powder Coated with High-Temperature Black Paint
• Unvented Natural Gas only
• German-made infrared burner
• Pole Mounted, Ceiling Mount Options
• Self-diagnostic potted module

Triple Surface Burner

• Ceramic Tile - Specialty tiles with a large surface area creates a much stronger and more consistent heat pattern
• Radiation Grid - New 'High-Grind' technology substantially decreases heat loss
• Wind Guard - Used to protect against flame lift-offs from extreme wind conditions

Burner Technology

• Pre-Mixed Combustion Chamber - Guarantees optimum combustion for every size of Habanero while saving you fuel costs

Specifications

Model	HAB50NS
Collection/Series	HAB-M50
Fuel Type	Natural Gas
Material	Stainless Steel
Color	Silver
BTU	up to 50,000/hr
Ignition Type	Direct Spark Ignition With 3-Try Lock Out & Automatic Re-Light
Electric Supply	24V, 0.8 AMPS
Gas Manifold Pressure	NG - 6.3" W.C. (HI), 4.5" W.C. (LO)
Gas Supply Pressure	NG - 7.0" W.C. (MIN), 14.0" W.C. (MAX)
Installation	Indoor or Outdoor, Ceiling Mount, Wall Mount
Product Size	H 11.41" x W 47.06"
Certifications	CSA Approved

Technical Drawings and Dimensions

Warranty

The manufacturer warrants to the original owner that the emitter of the product will be free of defects in material and workmanship for a period of 3 years from the date of purchase. All other parts of the product will have a warranty period of 1 year.

Click to see Complete Warranty Details

The Manufacturer’s obligation under this warranty is limited to repair or replacement; FOB its facility, of the defective part. In the case of replacement parts the warranty period shall be the longer of the original warranty or a period of 12 months from the date of purchase. In no event shall the Manufacturer be liable for incidental expense or consequential damages of any kind.

his warranty does not cover any shipping, installation or other costs incurred in the repair or replacement of the product. No materials will be accepted for return without authorization.

This warranty will not apply if, in the judgment of the Manufacturer, the equipment has been improperly installed, maintained, unreasonable used, damaged or modified.

This warranty will not apply to damage to the product when used in corrosive atmospheres. The warranty provides protection against rust-through of parts that render the product inoperative. It does not cover occasional surface rust or staining due to environmental conditions. No person is authorized to assume for the Manufacturer any other warranty, obligation or liability

THE REMEDIES PROVIDED FOR IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES. NO OTHER EXPRESS OR IMPLIED WARRANTIES ARE MADE INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE.

Documents & Files

• Brochure
• Installation Manual
• Specification Sheet
