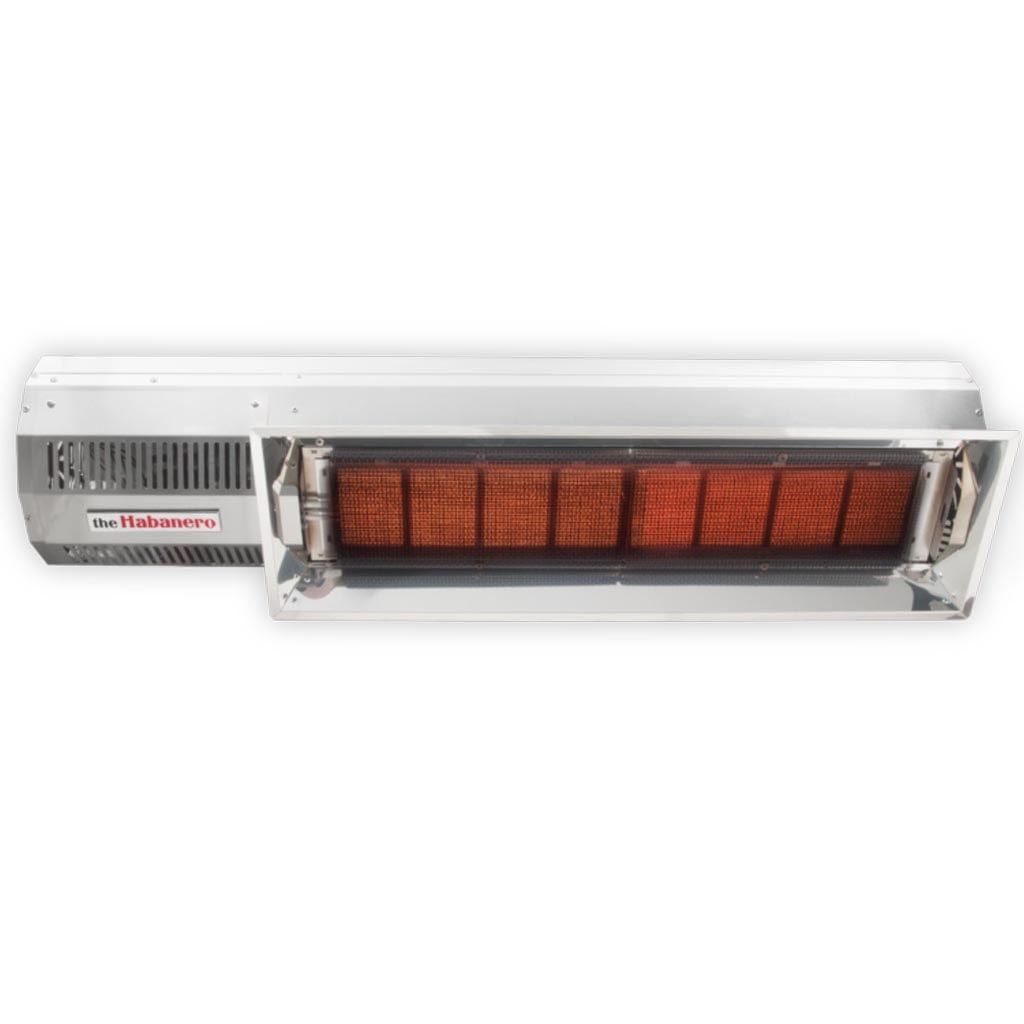

IR Energy M40 Habanero Unvented Radiant Patio Heater - Natural Gas
IR Energy M40 Habanero Unvented Radiant Patio Heater - Natural Gas
Mounting Kit
Transformer for 1 Heater
-- Please Select --
No, Thank You
Transformer for 2 Heaters
-- Please Select --
No, Thank You
Transformer for Upto 5 Heaters
-- Please Select --
No, Thank You
Two Stage Control Switch
-- Please Select --
No, Thank You
Gas Flex Connector
-- Please Select --
No, Thank You
Shut-Off Safety Valve
-- Please Select --
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Descriptions
HABANERO M40 is designed for standard mid-range ceiling heights, delivering a high-intensity heat output.
Features
The most powerful spot heating solution in the market
- No blower = No noise
- Polished heat reflector
- Hi/Low/Off Dual heat output control
- Available in 33" and 48" lengths
- As low as 3" top clearance
- New ‘High-Grid’ technology substantially decreases heat loss
- Protect against flame lift-offs from extreme wind conditions
- Black Finish - Marine Grade Aluminum Powder Coated with High-Temperature Black Paint
- Unvented Natural Gas only
- German-made infrared burner
- Ceiling Mount
- elf diagnostic potted module
Burner Technology
- Pre-Mixed Combustion Chamber - Guarantees optimum combustion for every size of Habanero while saving you fuel costs
Triple Surface Burner
- Ceramic Tile - Specialty tiles with a large surface area creates a much stronger and more consistent heat pattern
- Radiation Grid - New 'High-Grind' technology substantially decreases heat loss
- Wind Guard - Used to protect against flame lift-offs from extreme wind conditions
Technical Specification
- Max: 40,000 BTU/hr, Min: 32,000 BTU/hr
- Manifold Pressure: NG - 6.3" W.C. (HI), 4.5" W.C. (LO)
- Gas Supply Pressure: NG - 7" W.C (min), 14" W.C (max)
- Electrical Supply: 24v, 0.8A
- Direct Spark Ignition with 3-Try Lock Out & Automatic Re-Light
- Natural Gas Only
Options and Accessories
Click to See Optional Accessories
 |
Standard Mounting Kit Available with 304 Stainless Steel and Black Finish |
 |
Ultimate Mounting Kit Available with 304 Stainless Steel and Black Finish |
|
Low Clearance Mounting Kit Available with 304 Stainless Steel and Black Finish |
|
SE004 Transformer 120/24V, 20VA for 1 heater |
 |
SE009 Transformer 120/24V, 40VA for 2 heaters |
 |
SE010 Transformer 120/24V, 100VA for up to 5 heaters |
 |
EE020 24V Two Stage Control Switch |
 |
CG012 1/2" x 24" Stainless Steel Gas Flex Connector |
 |
CG011 1/2" Shut-Off Safety Valve |
