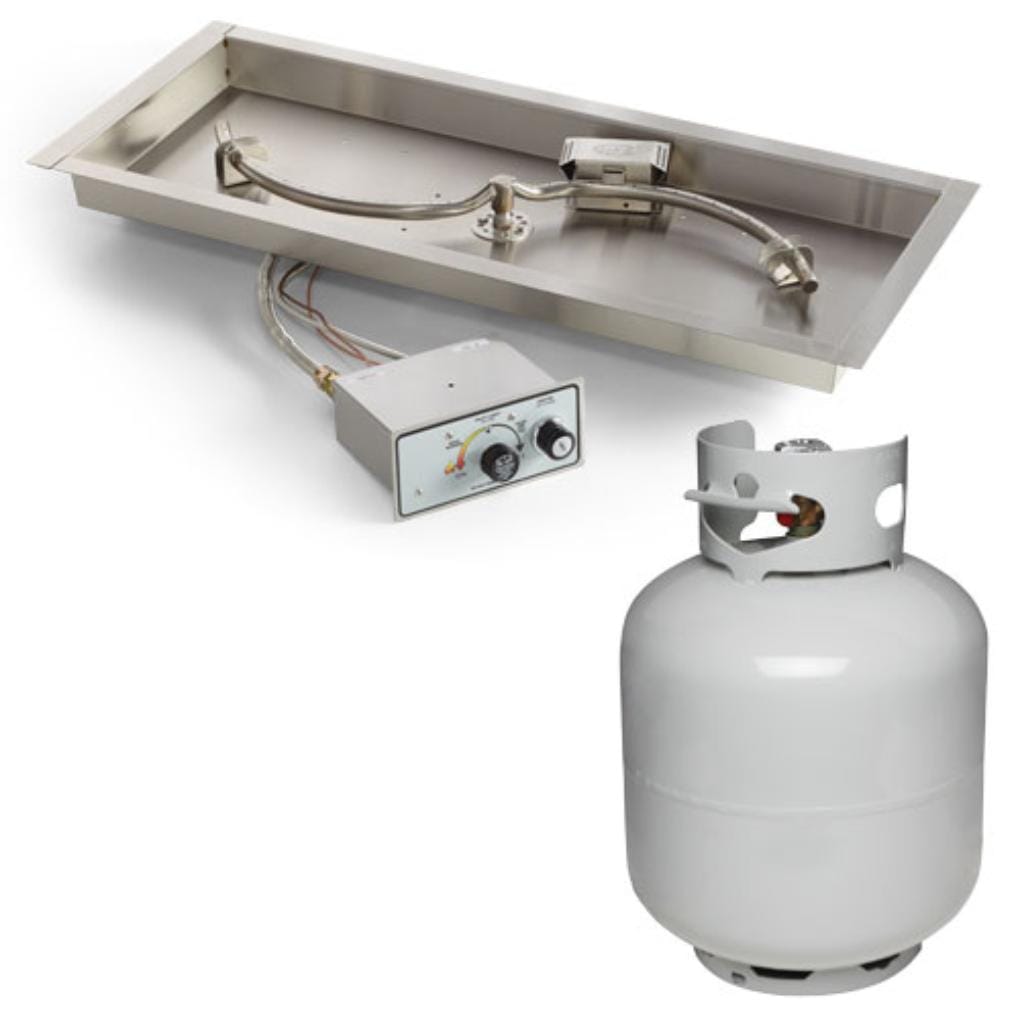

HPC 36" x 14" Rectangle S-Burner Bowl Pan Push Button Flame Sensing Ignition Fire Pit Insert with Small Tank



Overview

The foundation of the company was built on a safety pilot valve, millivolt valve, and remote control gas fire pit kits/repair parts, as well as various other components for the hearth industry. We then diversified our thinking by introducing the Outdoor Fire Products line in 2003 with the manufacturing of fire rings. Today this segment of the business has grown to include high-end electronic ignition fire pits, push-button ignition fire pits, TK Torches, portable fire pits, copper water bowls, outdoor fireplace accessories, fire and water features, and a selection of stainless steel components second to none.

HPC Fire Inspired™ also designs custom fire features and their control systems of any shape or size for residential or commercial applications. These range from 2 feet to 30 feet wide, from 50 thousand to 3 million Btu fire features found at large venues throughout the country including casinos, resorts, and restaurants.

An HPC Original – this stainless steel, spun bowl design was launched in 2004… and today is still our most popular pan style.

Why Choose HPC Fire Inspired?

Click to see the information

Thoughtful Innovation

 With elegant fire pit designs, unlimited control, and styling options, and innovative technology, we deliver unrivaled customization and ease of use.

HPC’s Electronic Ignition (EI) High-Low fire pits come with a built-in antenna for a reliable connection to Apple® and Android™ phones via our free Bluetooth app, enabling easy fire pit control from as far away as 20 feet.



 Built To Last

With strong stainless steel construction, our products provide higher heat tolerance and are safer, last longer, and perform better than brass burner fire pits.



Safe Fire Pits

We combine the most CSA certifications in the industry with NFI-certified technicians to deliver the safest and most dependable fire features.

Safety is one of the core values at HPC. The warmth, comfort, and fellowship that comes with an HPC Fire Pit would be meaningless if our products weren’t designed, built, and sold with our customers’ safety in mind.

Here at HPC, we substantiate our commitment to safety with over 400 CSA Certified products, features, and manufacturing practices. We make certain that the technology that goes into our products represents the cutting edge of safety in design. We also recognize that safety is a responsibility of the operator as well as the manufacturer, so we make certain the Installation and Operation Instructions are informative and clear.

Features

• Available in 36"x14" and 42"x14" Model with a Small Tank.
• Fully Assembled and ready to install. Control components are protected within the valve box.
•  Flex Line configuration provides versatile and simple installation.
• Start ignition with push button and valve control knob.
• Flame sensing- the system will turn off gas if the flame is lost.
• Flame height is adjustable using a valve control knob.
• Battery Operated System- is the perfect solution for installs with no power.
• Natural Gas or Liquid Propane: Factory built & tested for either fuel.
• Made of #304, 18 gauge Stainless Steel
• The spun design adds rigidity
• Welded gas fitting for strength
• Weep holes for drainage



How It Works

Start-Up: This is done by simultaneously pressing the valve control knob to start the flow of pilot gas and pressing the ignition button for spark. Release spark after pilot ignition, release valve control knob after ~20 seconds. Then turn the valve control knob counterclockwise to light the main burner.

Operation: Flame height may be adjusted by turning valve control knob- counterclockwise provides more flame, clockwise lowers flame. If flame loss does occur, the system will automatically turn off all gas flow.

Shut Down: To turn OFF the fire pit simply turn the valve control knob clockwise- slightly depress the knob to reach the OFF position.



 Specifications

Model	FPPK36X14-S-FLEX
Dimensions	L-36" x W-14" x D-2.5"
Max BTU	75,000
Nozzle BTU	-
Flex Line	36"
Burner	30" x 8" S-Fire
Gas Type	Liquid Propane
Ignition Style	Push Button Flame Sensing
Required Items	Lava Rock / Rolled Lava Stone (2 bags), River Rock (2 boxes), Fire Glass (60 lb), Flex-Form Install Collar (2 boxes)
Certification	CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.
Warranty	Lifetime warranty on burners



Options and Accessories

	Vinyl Cover Made of durable vinyl, these cover and protect a fire pit and enclosure from debris and wet weather.
	Glass Wind Guard High-quality glass wind guard specially designed to complement as well as provide additional safety for HPC fire pit inserts of all shapes- round, square, rectangle, and linear. Durable tempered glass construction to ensure a long-lasting, heat-resistant product. Wind guards reduce flame disturbance of your fire pit and prevent loose items from getting too close to the flames.
	Flex-Form Installation Collar The flex form install collar merges the gap between the fire pit structure and the insert pan for easy installation and auto-centering featured with a curved lip. This flexible install collar allows for an easy 3 step installation saving you time with our one size fits all product The collar can be formed to fit any shaped fire pit



 Media

Click to see details

Outdoor Fire Logs Arizona Weathered Oak Aspen Birch Western Driftwood   Lava Rock / Rolled Lava Stone / Ceramic River Rock Lava Rock Rolled Lava Stone Black Ceramic River Rock Multi-color River Rock   Fire Glass Cobalt Blue Pacific Blue Pacific Blue Reflective Black   Clear  Starfire Gray Reflective  Copper Bronze



Downloads

• Clearance Instructions
• Product Drawing
• Installation Manual

Warning: This product can expose you to Chromium, which is known in the state of California to cause cancer, congenital disabilities, or other reproductive harm. For more information, see CA Prop 65 Warning
