HPC 13" 120V Round Bowl Pan Natural Gas Fire Pit Insert With On/Off Electronic Ignition
HPC 13" 120V Round Bowl Pan Natural Gas Fire Pit Insert With On/Off Electronic Ignition
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Overview
The foundation of the company was built on a safety pilot valve, millivolt valve, and remote control gas fire pit kits/repair parts, as well as various other components for the hearth industry. We then diversified our thinking by introducing the Outdoor Fire Products line in 2003 with the manufacturing of fire rings. Today this segment of the business has grown to include high-end electronic ignition fire pits, push-button ignition fire pits, TK Torches, portable fire pits, copper water bowls, outdoor fireplace accessories, fire and water features, and a selection of stainless steel components second to none.
HPC Fire Inspired™ also designs custom fire features and their control systems of any shape or size for residential or commercial applications. These range from 2 feet to 30 feet wide, from 50 thousand to 3 million Btu fire features found at large venues throughout the country including casinos, resorts, and restaurants.
An HPC Original – this stainless steel, spun bowl design was launched in 2004… and today is still our most popular pan style.
Why Choose HPC Fire Inspired?
Click to see the information
Thoughtful Innovation
With elegant fire pit designs, unlimited control, and styling options, and innovative technology, we deliver unrivaled customization and ease of use.
HPC’s Electronic Ignition (EI) High-Low fire pits come with a built-in antenna for a reliable connection to Apple® and Android™ phones via our free Bluetooth app, enabling easy fire pit control from as far away as 20 feet.
Built To Last
With strong stainless steel construction, our products provide higher heat tolerance and are safer, last longer, and perform better than brass burner fire pits.
Safe Fire Pits
We combine the most CSA certifications in the industry with NFI-certified technicians to deliver the safest and most dependable fire features.
Safety is one of the core values at HPC. The warmth, comfort, and fellowship that comes with an HPC Fire Pit would be meaningless if our products weren’t designed, built, and sold with our customers’ safety in mind.
Here at HPC, we substantiate our commitment to safety with over 400 CSA Certified products, features, and manufacturing practices. We make certain that the technology that goes into our products represents the cutting edge of safety in design. We also recognize that safety is a responsibility of the operator as well as the manufacturer, so we make certain the Installation and Operation Instructions are informative and clear.
Features
- Fully Assembled- ready to install. Control components are protected within the valve box.
- Start via wall switch or remote control; Auto re-light if the flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter
- On/Off models: Use with optional wall switch, Remote Control, or your whole house system
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
- 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Internal temperature monitoring with overheat auto shutoff
How It Works
Start-Up: This is done by the use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks then starts the flow of pilot gas. After 5 seconds the hot surface igniter glows igniting the pilot flame. When the system confirms the pilot flame present, the main burner gas will flow ignited by the pilot flame.
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages, and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing the Start sequence.
On/Off Models: Includes the convenience and safety features- optional remote control available.

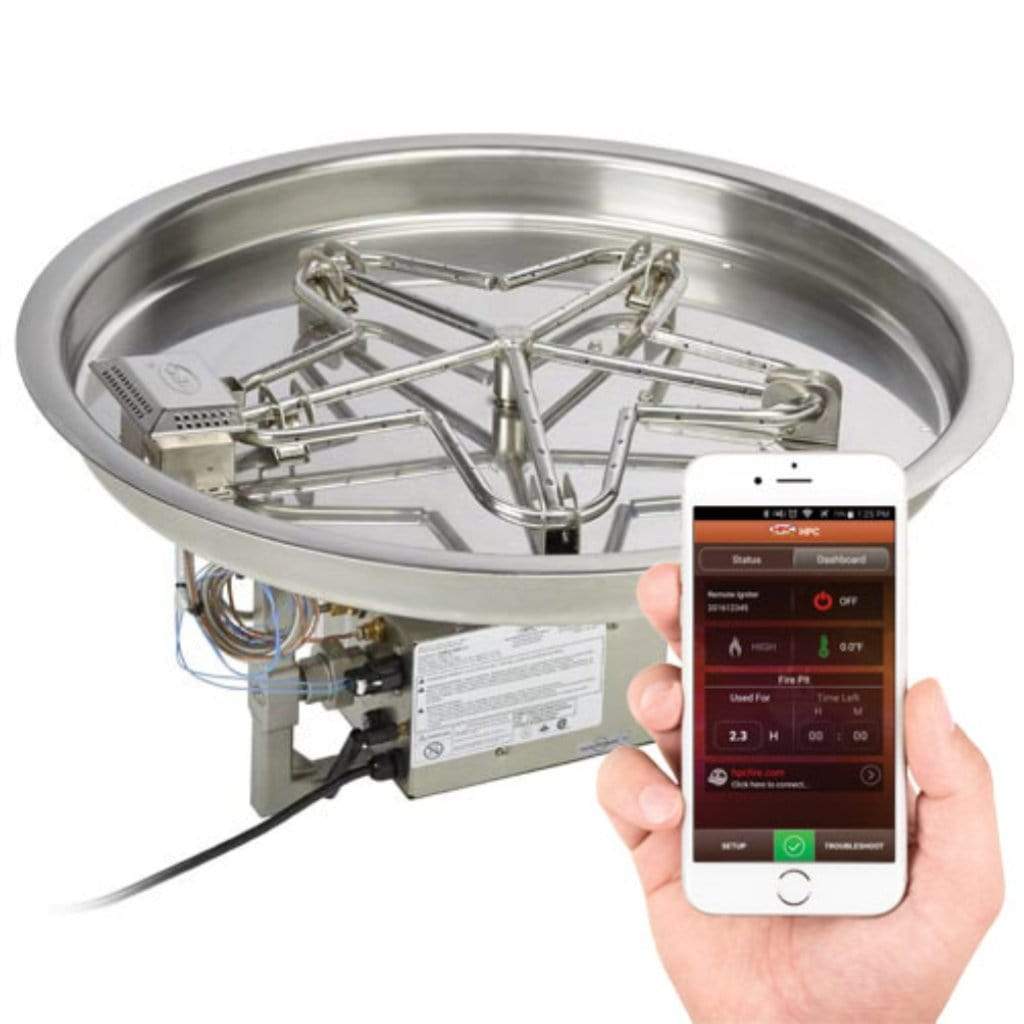

Bluetooth High / Low Flame Control Models: This option includes a smart remote and App via smart device control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from the fire pit to advise the user of fire pit status (flashing LED).
Shut Down: To turn OFF the fire pit simply use a wall switch, remote control, or whole house system.
Specifications
| Model | 13SSEI 120VAC/24VAC |
| Dimensions | L-13" x W-13" x D-2.5" |
| Max BTU | 90,000 |
| Nozzle BTU | - |
| Burner | 12" Round |
| Gas Type | Natural Gas / Liquid Propane |
| Power | 120vac / 24vac |
| Ignition Style | Electronic Ignition On-Off / Hi-Lo (Bluetooth App) |
| Required Items | Fire Glass (20 lb) |
| Certification | CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2020 ANSI requirements). |
| Warranty | Lifetime warranty on burners |
*IMPORTANT: 24VAC Models Require HPC/SEBCO 24VAC, 100W Power Supply
Options and Accessories
 |
POWER SUPPLIES - FOR 24VAC & 12VAC MODELS Input Primary - 120VAC, 60/50Hz, 1A max Output Secondary - 24VAC & 12VAC, 60/50Hz, 4A |
 |
120 VAC Outdoor On/Off Remote Control
|
 |
Stainless Steel Rotary Timer
|
 |
Rotary Timer with NEMA Box
|
 |
Commercial Emergency Stop
|
Media
Click to see details
|
Outdoor Fire Logs
Lava Rock / Rolled Lava Stone / Ceramic River Rock
Fire Glass
|
Downloads
Warning: This product can expose you to Chromium, which is known in the state of California to cause cancer, congenital disabilities, or other reproductive harm. For more information, see CA Prop 65 Warning
