Overview

For more than 35 years we have been creating the most beautiful and realistic gas logs available. We offer a full line of vented and vent-free gas logs in standard and large sizes, for single open and see-through fireplaces. If you desire to enhance your fireplace with gas logs, we have everything you need to make it happen!

Description

Hargrove offers log sets and burner systems specifically designed for larger fireplaces.

  • Massive logs
  • Three burner systems (Double/Triple Stack, Ember Supreme, Summit Oak) that accommodate various log styles.
  • Refractory log materials capable of withstanding temperatures of 2000ºF.
  • Crisp log detail.

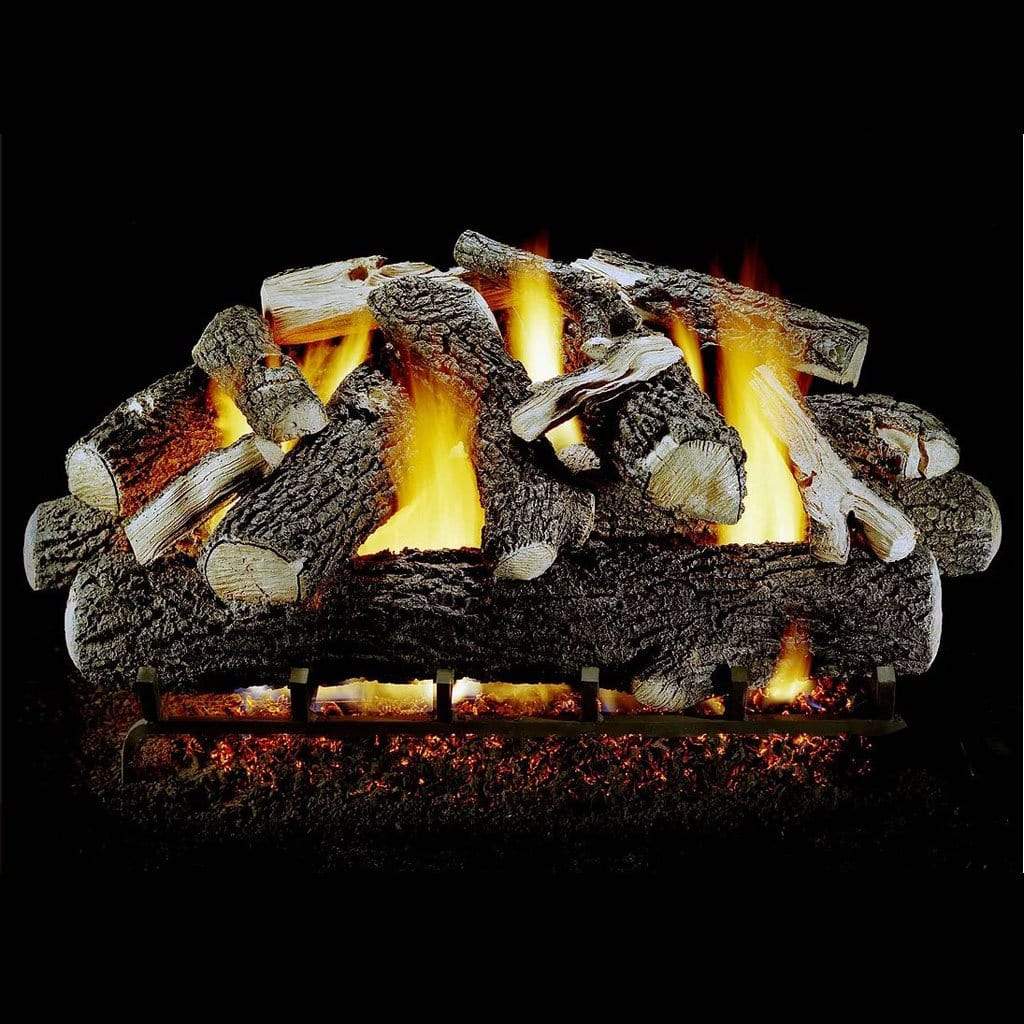

    The Summit Oak features a huge stack of fresh-cut and oak style logs

    • Available in 36", 42", and  48" sizes
    • Single Side Sets available
    • Works with specially designed Summit Oak burner
    • Available for Natural Gas or Liquid Propane

          *Notes:

          • Burner System is not included with the log set and should be ordered separately.
          • Remote controls are not included with Millivolt Safety Pilot, and High Capacity Millivolt Safety Pilot and should be ordered separately.



           Specification Sheet
          Single Side Fireplaces
          Set Size Model # Certified Models Weight
          (lbs)          		 # of Logs in Set
          36" SUS3612AA Non-certified 162 12
          42" SUS4214AA Non-certified 212 14
          48" SUS4815AA Non-certified 258 15
          All Single Side sets above use with the Ember Supreme Burner Burner Kits


          Vented Burner System Specification Sheet
          Natural Gas
          Burner System
          		 Certification Weight BTU Compatible Log Size
          42" Summit Oak Burner Non-Certified 75 180,000 42"-48"
          Propane
          42" Summit Oak Burner Non-Certified 78 125,000 42"-48"

          *Note:

          • Summit Oak Burner kits require a minimum of 24" of depth.

          Summit Oak Burner kit Includes: Burner, grate, sand, or vermiculite, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.



           The size chart below indicates the minimum size fireplace opening in which different size gas log sets can be installed.

          Minimum Fireplace Dimension
           Gas Log Set Size Minimum Depth Minimum Width
          36" 28" 44"
          42" 28" 50"
          48" 28" 56"

          Limited Warranty

           Refractory Logs Hargrove gas logs carry a limited lifetime warranty against any manufactured defect or breakage when installed indoors. A replacement will be available from the dealer at which the appliance was purchased. This warranty does not cover breakage caused by excessive handling once installed and fired. Products installed in outdoor applications carry a one (1) year limited warranty.
          Burner & Grate If the burner or grate fails due to deterioration within five (5) years of the verified purchase date, a free replacement will be made available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty
          All Other Parts If any assembled part should fail to operate or be found defective within two (2) years of the verified purchase date, a replacement will be available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty.

          Option and Accessories

          Click to see Burner Systems

          42" Summit Oak Burner Kit

          • Available in 36” to 48” sizes
          • A combination of a large ember bed burner and an elevated tube style main burner that provide depth and height needed for larger fireplaces
          • Recommended for Summit Oak Series logs
          • Available with Match Light and High Capacity Millivolt Safety Pilot w/Wall Switch

          Click to see Control Systems

          High Capacity Millivolt Safety Pilot with Wall Switch

          • Higher BTU Capacity Millivolt Pilot Kit for natural gas that utilizes the “Cool Mount” system. This kit is recommended for use on larger (36”sets vand up) single side and See Thru sets. Uses 250 degree heat rated valve. Valve is mounted in a forward position for optimal performance. This pilot kit allows the use of the Switching Accessories listed below.

          Click to see Millivolt Controls and Switching Accessories
          		RC-S12V-MV Millivolt DC operated on/off remote control
          • Kit includes 12 VDC remote/receiver - remote features: on/off function
          		RC-I12V-BT Millivolt Remote & Bluetooth
          • Kit includes 12VDC Remote/Receiver & Bluetooth smartphone capability
          		BT-IBUG Millivolt Bluetooth Module Control
          • Includes Bluetooth Module Control for smartphone capability
          		RC-A110V-A Millivolt AC operated on/off remote control
          • Requires 110 volt A/C electricity - remote features: on/off function, child-proof switch
          		BCS Bark Chip Switch
          • Bark chip switch, on/off function
          		PCS Millivolt Pine Cone Switch
          • 2 Piece Pine Cone switch, on/off function

          Click to see Gas Log Accessories
          CK-6 Combo Kit
          • This kit includes a 1x pinecone, 1x twig and 4x bark chips to add to your fireplace
          CCKGO Charred Chip Kit
          • A kit of charred chips that can be used to add character to your log set
          • 4x Decorative charred chips for ember bed
          BCKGO Bark Chip Kit
          • 4x - Decorative Bark Chips for Ember Bed
          TK-2 Twig Kit
          • 2x - Decorative Twigs - #602CL, #1110CL
          DPCK-2 Pine Cone Kit
          • 2x - Decorative Pine Cones - #1201, #1203
          FCC-3 3x Decorative Charred Chips Kit
          • 3x - Decorative Charred Chips for Ember Bed
          FCC-7 7x Decorative Charred Chips Kit
          • 7x - Decorative Charred Chips for Ember Bed
          1203-BX Pine Cone
          • These Pine Cones can be used to add some customization or to conceal a valve within your set.
          1204-BX Pine Cone
          • These Pine Cones can be used to add some customization or to conceal a valve within your set.
          1205-BX Pine Cone
          • These Pine Cones can be used to add some customization or to conceal a valve within your set.
          1210-BX Pine Cone
          • These Pine Cones can be used to add some customization or to conceal a valve within your set.
          1215-BX Pine Cone
          • These Pine Cones can be used to add some customization or to conceal a valve within your set.
          RW Glowing Ember
          • PART B (Glowing Embers) ONLY
          PB-5 Platinum Bright Embers 5 Grams Bag
          • Clean Burning, Luminous Embers for
          • Vented Gas Logs
          • For best use, mix with Standard Ember
          • Material to accent the Ember Bed.
          SD Silica Sand - 10 lb. bag
          • Sand for Natural Gas burner pan on vented log sets
          VC Volcanic Cinders - 5 lb. bag
          • Volcanic Cinder used to cover the fireplace floor
          VM Vermiculite - 1 lb. bag
          • Vermiculite for Liquid Propane burner pan on vented log sets
          VM-10 Vermiculite - 10 lb. bag
          • Vermiculite for Liquid Propane burner pan on vented log sets
          RW-10 Glowing Ember 10 lb. Bag
          • PART B (Glowing Embers) ONLY
          VCFP-S 3/8" Small Vocanic Cinders 5 gal.
          • 5 gal small Vocanic Cinders
          VCFP-L 1" to 3" Large Vocanic Cinders 5 gal.
          • 5 gal Large Vocanic Cinders
          SD-50 Silica Sand - 50 lb. bag
          • Sand for Natural Gas burner pan on vented log sets
