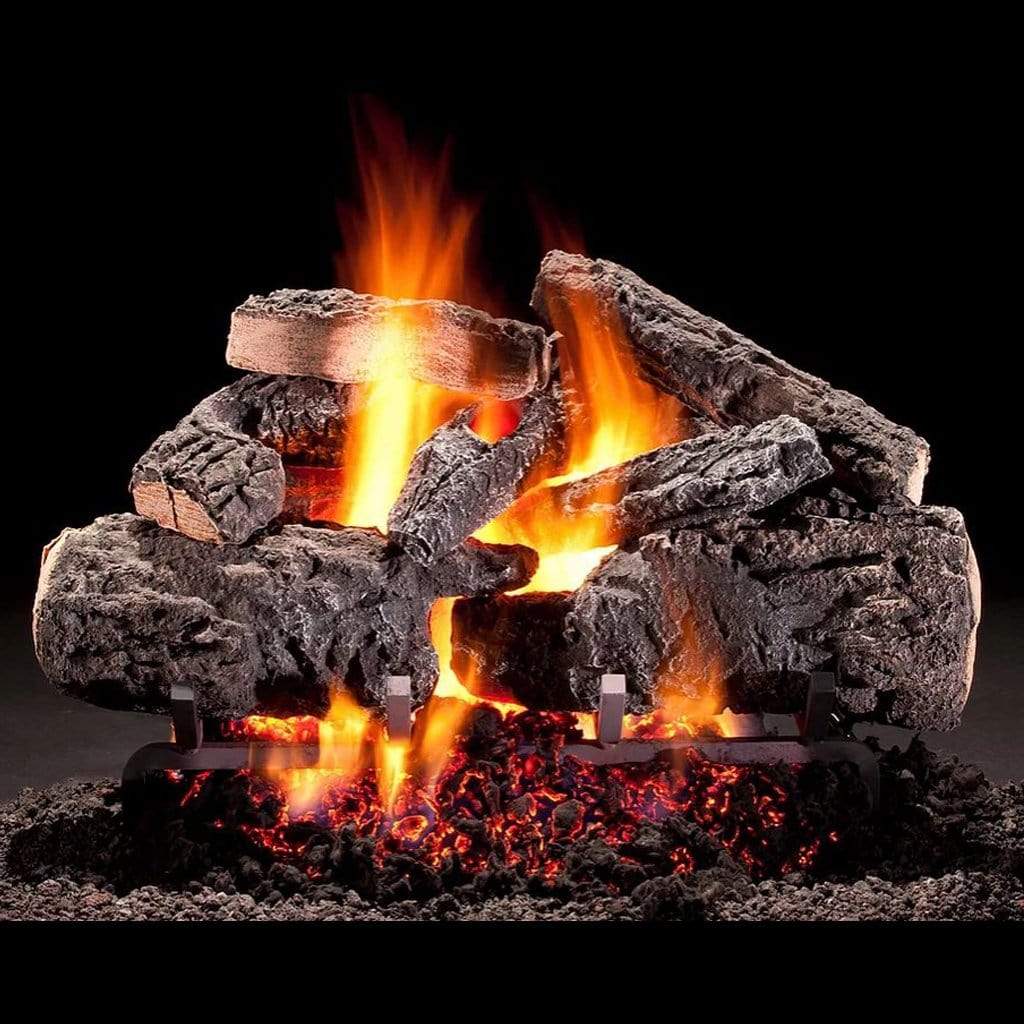

• Hargrove 21" Cross Timbers Single Side Vented Gas Log
1 1

CTS2108RG

Hargrove 21" Cross Timbers Single Side Vented Gas Log

Hargrove 21" Cross Timbers Single Side Vented Gas Log

$598.00
$598.00
Sale Sold out
Shipping calculated at checkout.
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Overview

For more than 35 years we have been creating the most beautiful and realistic gas logs available. We offer a full line of vented and vent-free gas logs in standard and large sizes, for single open and see-through fireplaces. If you desire to enhance your fireplace with gas logs, we have everything you need to make it happen!

Description

Hargrove's Radiant Heat series vented log sets allow you to have the most realistic-looking log set with all of the heat you want.

  • Radiant Riser technology directs the heat output forward
  • Revolutionary molding process gives log detail previously unattainable with Ceramic Fiber Logs
  • Ceramic Fiber material and Hargrove's Radiant Riser gives much greater heating efficiency than other vented log sets
  • Heat comparable with vent-free sets, with realistic fire and ember bed not possible with vent-free units

      The Cross Timbers features substantial front logs, heavy bark, abundant charring, and a warm glow.

      • Available in 21", 24", 30", and 36" sizes
      • Single Side and See Through Sets available
      • Works with E-Burner, H-Burner, Hidden Controls, and System 4 Burner kits
      • Available for Natural Gas or Liquid Propane

                  *Notes:

                  • Burner System is not included with the log set and should be ordered separately.
                  • Remote controls are not included with Millivolt Safety Pilot, and High Capacity Millivolt Safety Pilot and should be ordered separately.



                  Specification Sheet
                  Single Side Fireplaces
                  Set Size Model # Certified Models Weight
                  (lbs)                  		 # of Logs in Set
                  21" CTS2108RG ANSI/RGA2/72 12 8
                  24" CTS2409RG ANSI/RGA2/72 15 9
                  30" CTS3010RG ANSI/RGA2/72 20 10
                  36" CTS3611RG ANSI/RGA2/72 20 11
                  All Single Side sets above can be used with E-Burner, H-Burner, or System 4 Burner Kits

                   *Note: Click to See Full Details of Fireplace Dimensions



                   Vented Burner System Specification Sheet
                  Natural Gas
                  Burner System
                  		 Certification Weight BTU Compatible Log Size
                  18" E-Burner (R)RGA2/72 (C)ANSI Z.21.60 32 70,000 18" - 21"
                  18" H-Burner (R)RGA2/72 (C)ANSI Z.21.60 32 70,000 18" - 21"
                  18" Hidden Control Burner ANSI Z21.60 29 70,000 18" - 21"
                  Propane
                  18" E-Burner (R)RGA2/72 (C)ANSI Z.21.60 32 46,000 18" - 21"
                  18" H-Burner System (R)RGA2/72 (C)ANSI Z.21.60 32 46,000 18" - 21"
                  18" System 4 Burner ANSI Z.21.60 29 47,000 18" - 21"
                  18" Hidden Control Burner ANSI Z21.60 29 55,000 18" - 21"

                  *Notes:

                  • E-Burner, H-Burner, and Hidden Control kits require a minimum of 14" of depth.
                  • System 4 Burner kits require a minimum of 16" of depth.

                  E-Burner and H-Burner kits include: Burner, custom 5/8" grate, sand, or vermiculite, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.

                  System 4 Burner Kits include: Burner, custom 5/8" grate, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.

                  Hidden Control Burner kits include: HC Burner, custom 5/8" grate, sand or vermiculite, embers, volcanic cinder, fittings, and black non-whistling flex connector



                  Limited Warranty

                   Refractory Logs Hargrove gas logs carry a limited lifetime warranty against any manufactured defect or breakage when installed indoors. A replacement will be available from the dealer at which the appliance was purchased. This warranty does not cover breakage caused by excessive handling once installed and fired. Products installed in outdoor applications carry a one (1) year limited warranty.
                  Burner & Grate If the burner or grate fails due to deterioration within five (5) years of the verified purchase date, a free replacement will be made available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty
                  All Other Parts If any assembled part should fail to operate or be found defective within two (2) years of the verified purchase date, a replacement will be available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty.

                  Option and Accessories

                  Click to see Burner Systems
                  18" E-Burner Standard Kit
                  • Available in 15” to 42” sizes
                  • Compatible with 18" to 21" Log Size
                  • Available with Match Light, Safety Pilot Valve, Latch Tap Safety Pilot w/Remote Control, Variable Flame Safety Pilot w/Remote Control, Millivolt Safety Pilot w/Wall Switch,and High Capacity Millivolt Safety Pilot w/Wall Switch
                  • Single Burner that provides a large body of flame
                  • Recommended for Fresh Cut Series Logs
                  18" H-Burner Standard Kit
                  • Available in 18” to 36” sizes
                  • Compatible with 18" to 21" Log Size
                  • Available with Match Light, Safety Pilot Valve, Latch Tap Safety Pilot w/Remote Control, Variable Flame Safety Pilot w/Remote Control, Millivolt Safety Pilot w/Wall Switch,and High Capacity Millivolt Safety Pilot w/Wall Switch
                  • Dual Burner that provides a large body of flame and additional flame in front of the logs.
                  • Recommended for Char and Radiant Heat Series Logs
                  18" System 4 Burner Standard Kit - Specialized for LP Gas
                  • Available in 18” to 42” sizes
                  • Compatible with 18" to 21" Log Size
                  • Available with Safety Pilot Valve, Latch Tap Safety Pilot w/Remote Control, and Variable Flame Safety Pilot w/Remote Control
                  • A full-bodied flame that provides outstanding performance in liquid propane applications
                  • Recommended for Fresh Cut, Char, and Radiant Heat Series Logs

                  18" Hidden Control Vented Burner System with Manual Safety Pilot Valve

                  • Available in 18" to 36" sizes
                  • Compatible with 18" to 21" Log Size
                  • Available with Safety Pilot Valve,  Variable Flame Safety Pilot, and Electronic Ignition w/Remote Control
                  • Burner design hides control system from view

                  • Recommended for use with Radiant, Charred, and Fresh Cut Styles

                  AF-LCK Latch Tap Remote Control Upgrade Kit for Safety Pilot Valve

                  • Latch-Tap Kit (ON/OFF) for Safety Pilot Remote Control (AF-CMT-PO) with RC-S6V-LT Remote Control Included

                  AF-SCK Variable Flame Height Remote Control Upgrade Kit for Safety Pilot Valve

                  • Variable Flame Height for AF-CMT-PO with RC-S6V-ST Remote Control Included

                  Click to see Control Systems
                  		Cool Mount Manual Safety Pilot Valve
                  • Turn the control knob to turn set on and adjust the main burner flame
                  • Valve System is mounted using a flex connector allowing it to be located further from the main burner
                  • Standing Pilot
                  • Natural Gas or Liquid Propane
                  		Cool Mount LatchTap Safety Pilot Valve with On/off Remote Control
                  • Use Remote Control to turn the main burner on and off – flame can be adjusted with the valve control knob
                  • Valve System is mounted using a flex connector allowing it to be located further from the main burn
                  • Standing Pilot
                  • Natural Gas or Liquid Propane
                  		Cool Mount Variable Safety Pilot with Variable Remote Control
                  • Use Remote Control to turn the main burner on and off and adjust the flame height
                  • Valve System is mounted using a flex connector allowing it to be located further from the main burn
                  • Standing Pilot
                  • Natural Gas or Liquid Propane
                  		Millivolt Safety Pilot with Wall Switch
                  • Use Wall Switch to turn the main burner on and off
                  • Valve is mounted in a forward position for optimal performance.
                  • Natural Gas or Liquid Propane
                  		Electronic Ignition Safety Pilot with Variable Flame Remote
                  • Use Remote Control to activate the pilot, turn main burner on and off and adjust the flame height
                  • Valve System is mounted using a flex connector allowing it to be located further from the main burn
                  • No Standing Pilot
                  • Natural Gas or Liquid Propane (Liquid Propane requires an LP conversion kit)

                  Click to See Latch-Tap Controls and Switching Accessories
                  WS-S6V-LT DC Operated Wireless Wall Switch
                  • DC powered Wireless wall switch for Latch-Tap- remote features: on/off
                  WS-S6V-WIRED DC Operated Wired Wall Switch
                  • Flame Height Control Wall Switch for Latch-Tap (vented), Cumberland Char or Highland Glow (vent-free)
                  BPBCS DC Operated Bark Chip Switch
                  • DC powered bark chip switch for Latch-Tap System, on/off function

                  Click to see Millivolt Controls and Switching Accessories
                  		RC-S12V-MV Millivolt DC operated on/off remote control
                  • Kit includes 12 VDC remote/receiver - remote features: on/off function
                  		RC-I12V-BT Millivolt Remote & Bluetooth
                  • Kit includes 12VDC Remote/Receiver & Bluetooth smartphone capability
                  		BT-IBUG Millivolt Bluetooth Module Control
                  • Includes Bluetooth Module Control for smartphone capability
                  		RC-A110V-A Millivolt AC operated on/off remote control
                  • Requires 110 volt A/C electricity - remote features: on/off function, child-proof switch
                  		BCS Bark Chip Switch
                  • Bark chip switch, on/off function
                  		PCS Millivolt Pine Cone Switch
                  • 2 Piece Pine Cone switch, on/off function

                  Click to see Gas Log Accessories
                  CK-6 Combo Kit
                  • This kit includes a 1x pinecone, 1x twig and 4x bark chips to add to your fireplace
                  CCKGO Charred Chip Kit
                  • A kit of charred chips that can be used to add character to your log set
                  • 4x Decorative charred chips for ember bed
                  BCKGO Bark Chip Kit
                  • 4x - Decorative Bark Chips for Ember Bed
                  TK-2 Twig Kit
                  • 2x - Decorative Twigs - #602CL, #1110CL
                  DPCK-2 Pine Cone Kit
                  • 2x - Decorative Pine Cones - #1201, #1203
                  FCC-3 3x Decorative Charred Chips Kit
                  • 3x - Decorative Charred Chips for Ember Bed
                  FCC-7 7x Decorative Charred Chips Kit
                  • 7x - Decorative Charred Chips for Ember Bed
                  1203-BX Pine Cone
                  • These Pine Cones can be used to add some customization or to conceal a valve within your set.
                  1204-BX Pine Cone
                  • These Pine Cones can be used to add some customization or to conceal a valve within your set.
                  1205-BX Pine Cone
                  • These Pine Cones can be used to add some customization or to conceal a valve within your set.
                  1210-BX Pine Cone
                  • These Pine Cones can be used to add some customization or to conceal a valve within your set.
                  1215-BX Pine Cone
                  • These Pine Cones can be used to add some customization or to conceal a valve within your set.
                  RW Glowing Ember
                  • PART B (Glowing Embers) ONLY
                  PB-5 Platinum Bright Embers 5 Grams Bag
                  • Clean Burning, Luminous Embers for
                  • Vented Gas Logs
                  • For best use, mix with Standard Ember
                  • Material to accent the Ember Bed.
                  SD Silica Sand - 10 lb. bag
                  • Sand for Natural Gas burner pan on vented log sets
                  VC Volcanic Cinders - 5 lb. bag
                  • Volcanic Cinder used to cover the fireplace floor
                  VM Vermiculite - 1 lb. bag
                  • Vermiculite for Liquid Propane burner pan on vented log sets
                  VM-10 Vermiculite - 10 lb. bag
                  • Vermiculite for Liquid Propane burner pan on vented log sets
                  RW-10 Glowing Ember 10 lb. Bag
                  • PART B (Glowing Embers) ONLY
                  VCFP-S 3/8" Small Vocanic Cinders 5 gal.
                  • 5 gal small Vocanic Cinders
                  VCFP-L 1" to 3" Large Vocanic Cinders 5 gal.
                  • 5 gal Large Vocanic Cinders
                  SD-50 Silica Sand - 50 lb. bag
                  • Sand for Natural Gas burner pan on vented log sets



                  Downloads
