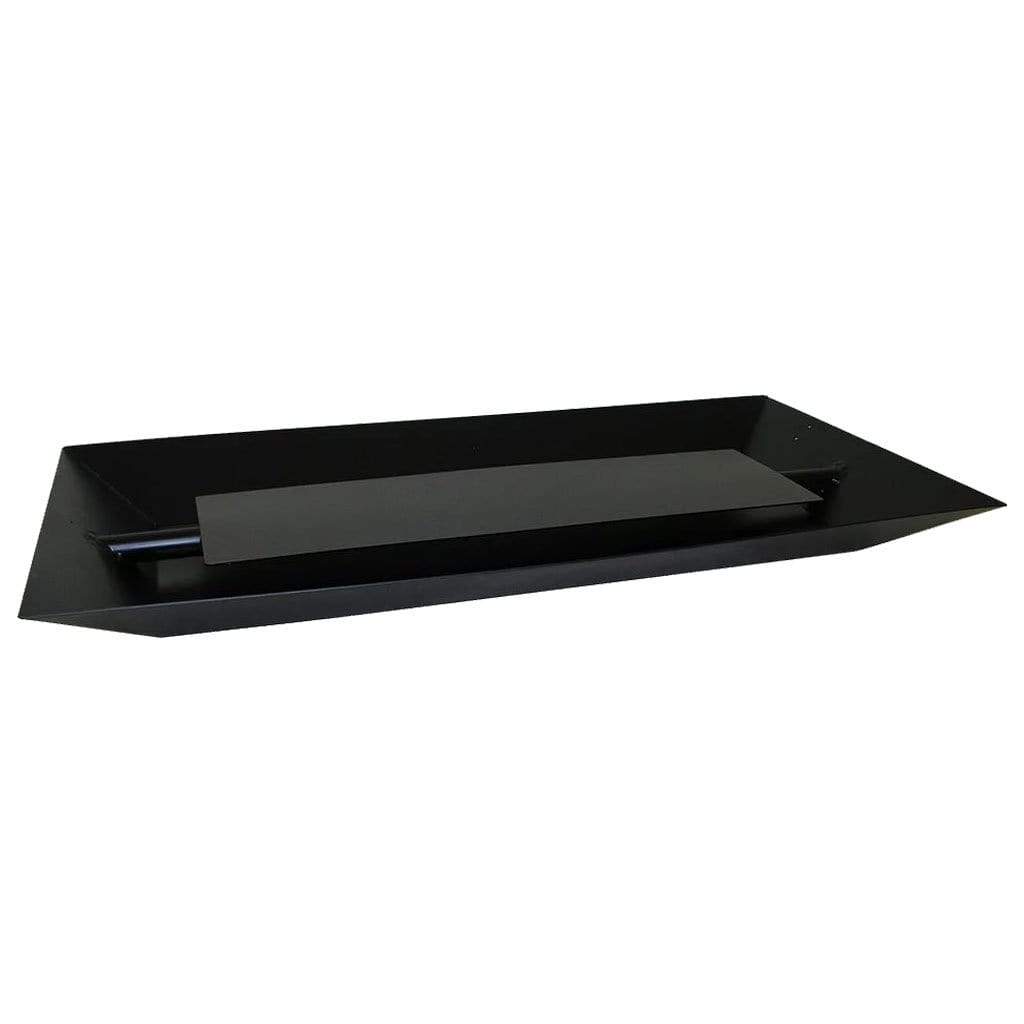

Hargrove 18" Full Pan Vented Burner w/Manual Safety Pilot

Overview

For more than 35 years we have been creating the most beautiful and realistic gas logs available. We offer a full line of vented and vent-free gas logs in standard and large sizes, for single open and see-through fireplaces. If you desire to enhance your fireplace with gas logs, we have everything you need to make it happen!

Description

Hargrove burner systems are the heart of the vented gas log set, providing the warmth and natural flame patterns that recreate the ambiance and beauty of a real wood fire, without the smoke, ashes, and mess.

• Available in 18”, 24", and 30" sizes
• Great for Two-Sided or Peninsula fireplaces, but can be used for Single Side fireplaces
• Multiple media (fire glass, river stones, cannonballs) as well as log options
• Non-Certified
• Burner kits include: Full Pan Burner & Legs, Silica Sand, Rock Wool, Aluminum Connector, Volcanic Cinders.
• With Manual Safety Pilot
• Natural Gas BTU: 90,000
• Propane BTU: 60,000
• Compatible Log Size: 18"

Fire Glass/Beads Application

For the best results fill the Full Pan Tray 2/3 of the way with the Burner Pan Sand (Natural Gas) or Vermiculite (Liquid Propane Gas) then the rest of the way with Fire Glass or Fire Beads. It should take a maximum of 10 lbs. of glass to fill the remaining portion of the burner tray. More Fire Glass will be needed if you are covering the fireplace floor.

*Note: Full Pan Burner kits require a minimum of 14" of depth.

Downloads

• Instruction Manual
• Specification Sheet
