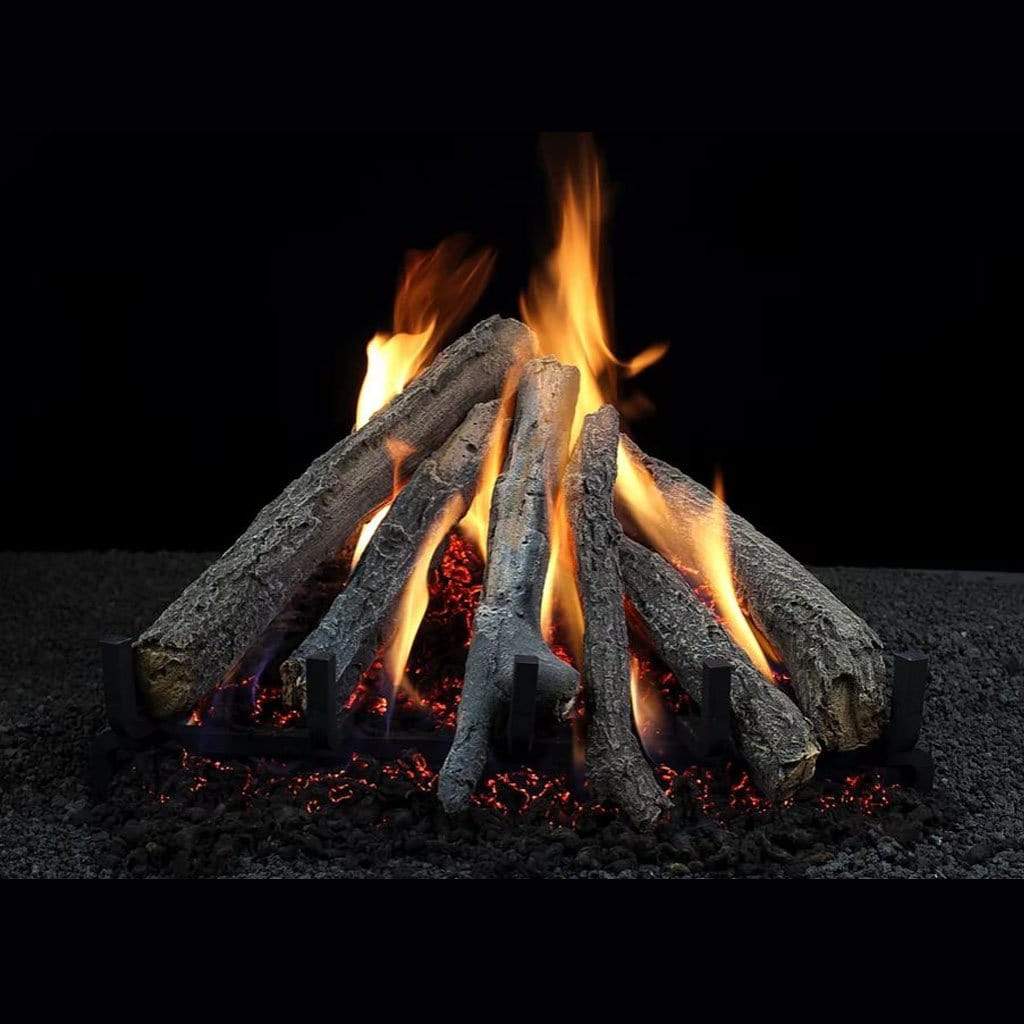

Hargrove 12" Sierra Stack Pinnacle Vented Log Series

Hargrove 12" Sierra Stack Pinnacle Vented Log Series

$230.00
$230.00
Sale Sold out
Shipping calculated at checkout.

Burner Kit

-- Please Select --

No, Thank You
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Overview

For more than 35 years we have been creating the most beautiful and realistic gas logs available. We offer a full line of vented and vent-free gas logs in standard and large sizes, for single open and see-through fireplaces. If you desire to enhance your fireplace with gas logs, we have everything you need to make it happen!

Description

Hargrove's Pinnacle Series vented log sets allow you to have the most realistic-looking log set in tall Rumford Style fireplaces.

  • Tall Peak (Olympia: 30” stack height), Mid Peak (Everest: 24” stack height), Short Peak (Sierra: 14" stack height) log options
  • Revolutionary molding process gives log detail previously unattainable with Ceramic Fiber Logs
  • Can be installed in shallow fireplaces with 11” depth
  • Two-level, sandless burner system

    The Sierra Stack features a premium two-level, sandless burner system with impressive flames and detailed ceramic fiber logs for standard height fireplaces.

    • Available in 12", 18", 24" and 30" sizes
    • Single Side Sets available
    • Utilizes Pinnacle Series Burner System
    • Available for Natural Gas or Liquid Propane

      *Note:

      • Burner System is not included with the log set and should be ordered separately.
       Specification Sheet
      Single Side Fireplaces
      Set Size Model # Weight
      (lbs)      		 # of Logs in Set
      12" SRS1204PL 6
      		 4
      18" SRS1805PL 7
      		 5
      24" SRS2406PL 8
      		 6
      30" SRS3007PL 9
      		 7
      All Single Side sets above can be used with Pinnacle Burner Kits



       Vented Burner System Specification Sheet
      Natural Gas/Propane
      Burner System
      		 Certification Weight BTU Compatible Log Size
      12" Pinnacle Burner ANSI-Certified 20
      		 38,000
      		 12"

      *Notes:

      • Pinnacle Burner requires a minimum of 10" of depth.

      Pinnacle Burner kits include: Burner, Valve, Regulator, Pilot Assembly, Orifice (NG), Air Mixer (LP), Non-Whistling Gas Flex Connector, Damper Stop, Glowing Ember, Volcanic Cinder

      Limited Warranty

       Refractory Logs Hargrove gas logs carry a limited lifetime warranty against any manufactured defect or breakage when installed indoors. A replacement will be available from the dealer at which the appliance was purchased. This warranty does not cover breakage caused by excessive handling once installed and fired. Products installed in outdoor applications carry a one (1) year limited warranty.
      Burner & Grate If the burner or grate fails due to deterioration within five (5) years of the verified purchase date, a free replacement will be made available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty
      All Other Parts If any assembled part should fail to operate or be found defective within two (2) years of the verified purchase date, a replacement will be available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty.

      Option and Accessories

      Click to see Burner Systems

      Pinnacle Burner Kit

      • Available in 12", 18", 24" and 30” sizes
      • Two-level sandless burner
      • Recommended for Pinnacle Series Rumford logs

      Click to see Control Systems
      		Manual Safety Pilot Valve
      • Turn the control knob to turn set on and adjust the main burner flame
      • Valve System is mounted using a flex connector allowing it to be located further from the main burner
      • Standing Pilot
      • Natural Gas or Liquid Propane
      		Variable Safety Pilot with Variable Remote Control
      • Use Remote Control to turn the main burner on and off and adjust the flame height
      • Valve System is mounted using a flex connector allowing it to be located further from the main burn
      • Standing Pilot
      • Natural Gas or Liquid Propane
      Electric Ignition Control System
      • Use Remote Control to activate the pilot, turn main burner on and off and adjust the flame height
      • Valve System is mounted using a flex connector allowing it to be located further from the main burn
      • No Standing Pilot
