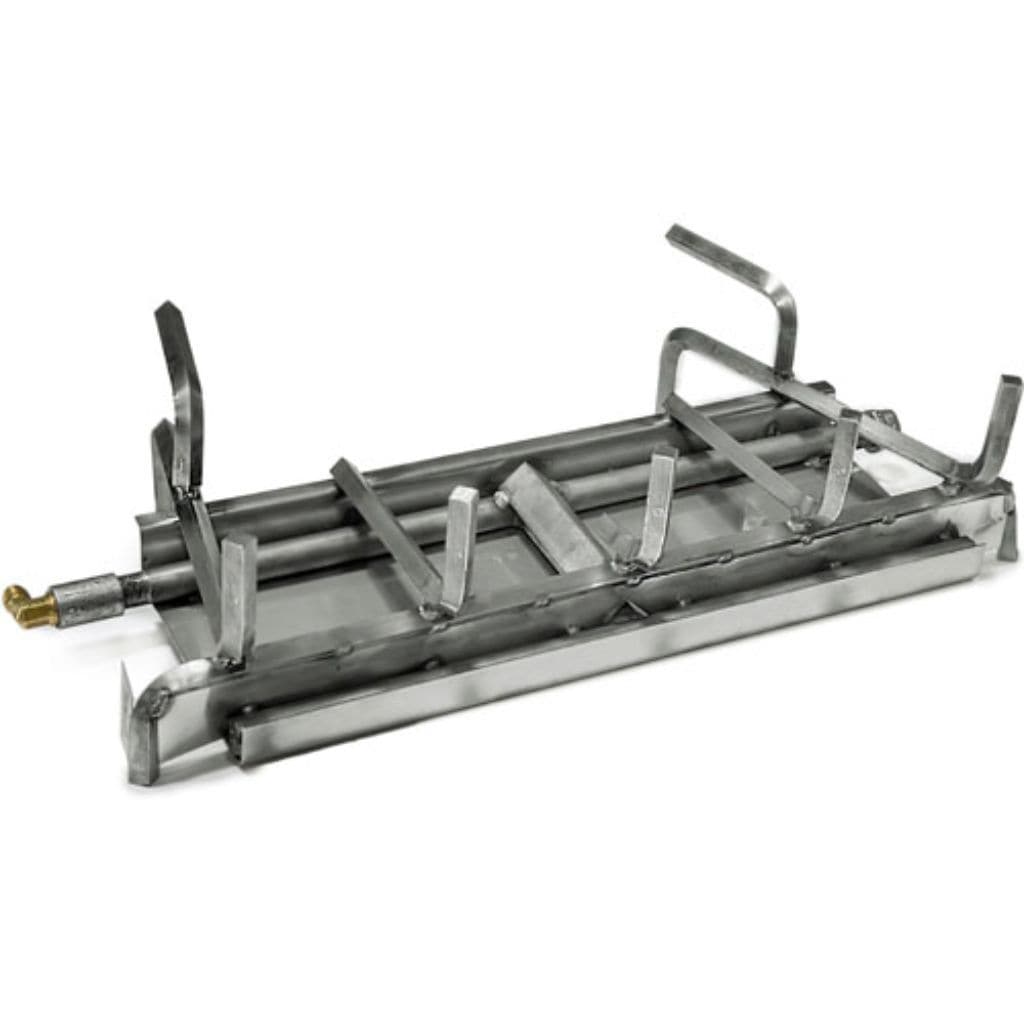

Grand Canyon 18" to 60" Outdoor Vented Stainless Steel 2-Burner System

Grand Canyon Stainless Steel 2 Burner System provides a high quality burner  component to help complete your ideal gas fireplace. Grand Canyon's 2 Burner system features 100%, 304 stainless steel construction for ultimate durability and performance indoors or outdoors while allowing for gas to flow in from either side of the burner. With 1 main back burner and 1 front, or ember burner, this component is sure to create enough heat to give your living space a much more comfortable atmosphere while the burner tines can be raised or lowered depending on the size of your fireplace opening and preferred log style.

This burner package comes complete with metal bar stock and burner pipes, lava rock, necessary fittings, a flex line and the ember damper clamp. With (8) different burner size options and a propane or natural gas option, Grand Canyon has ensured an outdoor rated burner that will fit any style of living space, allowing you to achieve an area that your friends and family will love for years to come.

Vented Burners - 100% American manufactured burners listed and tested to the ANSI standard. Indoor burners feature stainless steel pan construction with metal bar stock and burner pipes.

Use with logs:  Arizona Weathered Oak (AWO), Arizona Weathered Oak Charred (AWOC), Arizona Juniper (AJ), Quaking Aspen (ASPEN), Driftwood, and Blue Pine Split (BPS).

Please Note:

• Logs Not Included.
• 48, and 60-Inch 2 Burner systems feature a middle and elevated back burner that is the same height as the 3 Burner system.

 Features:

• Sizing: 18" – 60"
• Style: Main Rear Burner with Dual Action Front Ember Burner
• Standards: Built to ANSI Standards
• Usage: Outdoor
• Materials: 100% Stainless Steel Construction
• Warranty: Lifetime Warranty
• Piping: 1/2" Piping & ½" Bar Stock
• Fittings: Gas Inlet Left or Right
• Convertible to LP: NG Burner Convertible to LP
• Media: Includes Lava Rock, Embers, & Connection Fittings
• Pilot: with Concealed Pilot Mounting Brackets
• Design: Fully Welded System with Sandless Design

Specifications

18-Inch Front Width: 18" Depth: 12" Back Width: 11" Height: 6" BTU Rating NG: 52K BTU Rating LP: 49K

21-Inch Front Width: 21" Depth: 12" Back Width: 13" Height: 6" BTU Rating NG: 58K BTU Rating LP: 58K

24-Inch Front Width: 24" Depth: 12" Back Width: 16" Height: 6" BTU Rating NG: 64K BTU Rating LP: 64K

30-Inch Front Width: 30" Depth: 14" Back Width: 22" Height: 6" BTU Rating NG: 76K BTU Rating LP: 79K

36-Inch Front Width: 36" Depth: 14" Back Width: 27" Height: 6" BTU Rating NG: 81K BTU Rating LP: 83K

42-Inch Front Width: 42" Depth: 14" Back Width: 33" Height: 6" BTU Rating NG: 86K BTU Rating LP: 87K

48-Inch Front Width: 48" Depth: 14" Back Width: 40" Height: 8" BTU Rating NG: 150K BTU Rating LP: 145K

60-Inch Front Width: 60" Depth: 14" Back Width: 52" Height: 8" BTU Rating NG: 175K BTU Rating LP: 165K

Options & Accessories

Click to see Control Valve Options

	Manual Valve Kit (MA) Manual On/Off w/ Knob or Wrench Operations ONLY Low Profile Design Max Inlet 14” W.C. Valve Temp Rating 300° 90,000 BTU’s (NG/LP) For use with: 2-Burner / Glass / Kiva 18" - 42" (NG / LP) 3-Burner 18" - 30" (NG/LP)
	Safety Pilot Quick Mount Kit (SPQMKN / SPQMKLP) Standing Pilot System Manual On/Off Operations ONLY Low Profile Design Max Inlet 14” W.C. Valve Temp Rating 300° (NG) 90,000 BTU’s (LP) 90,000 BTU’s For use with: 2-Burner / Glass / Kiva 18" - 30" (NG) 18"- 42" (LP) 3-Burner 18" - 24" (NG) 18" - 36" (LP)
	High Capacity Safety Pilot Kit (HCSPK-N / HCSPK-LP) Standing Pilot System Manual On/Off Operations ONLY Max Inlet 14” W.C. Valve Temp Rating 250° (NG) 124,000 BTU’s (LP) 200,000 BTU’s GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately) For use with: 2-Burner / Glass / Kiva 18" - 42" (NG) 18"- 60" (LP) 3-Burner 18" - 42" (NG) 18" - 42" (LP) Jumbo / Jumbo Slimline 24" - 30" (NG) 24"- 48" (LP)
	Millivolt Quick Mount Kit (MVQMKN / MVQMKLP) Standing Pilot System On/Off Operations ONLY Low Profile Design Max Inlet 14” W.C. Valve Temp Rating 175° (NG) 3”-5” W.C. 70,000 BTU’s (LP) 8”-12” W.C. 110,000 BTU’s GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately) For use with: 2-Burner / Glass / Kiva 18" - 30" (NG) 18" - 42" (LP) 3-Burner 18" - 24" (NG) 18" - 36" (LP) Jumbo / Jumbo Slimline 24" - 30" (LP)
	Modulating Millivolt Valve Kit with Remote (MMVKR-NG / MMVKR-LP) Standing Pilot System Variable Flame Height Low Profile Design Max Inlet 14” W.C. Valve Temp Rating 225° (NG) 7” W.C. 120,000 BTU’s (LP) 7”-14” W.C. 120,000 BTU’s For use with: 2-Burner / Glass / Kiva 18" - 42" (NG) 18" - 42" (LP) 3-Burner 18" - 42" (NG) 18" - 42" (LP) Jumbo / Jumbo Slimline 24" - 30" (NG) 24" - 30" (LP)
	High Capacity Millivolt Valve Kit (HCMVQMKN / HCMVQMKLP) Standing Pilot System High Volume Output Millivolt System On/Off Operations ONLY Max Inlet 14” W.C. Valve Temp Rating 175° (NG) 3”-5” W.C. 370,000 BTU’s (LP) 8”-12” W.C. 560,000 BTU’s For use with: 2-Burner / Glass / Kiva 18" - 60" (NG) 18" - 42" (LP) 3-Burner 18" - 42" (NG) 18" - 42" (LP) Jumbo / Jumbo Slimline 24" - 108" (NG) 24" - 120" (LP)
	Battery Powered Electronic Ignition System (MVKEIKN / MVKEIKLP) Non-Standing Pilot 2-D Cell Battery Electronic Ignition Pilot on Demand System On/Off Operations ONLY Max Inlet 14” W.C. Valve Temp Rating 175° (NG) 3”-7” W.C. 88,000 BTU’s (LP) 8”-14” W.C. 110,000 BTU’s GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately) For use with: 2-Burner / Glass / Kiva 18" - 42" (NG) 18" - 42" (LP) 3-Burner 18" - 30" (NG) 18" - 36" (LP) Jumbo / Jumbo Slimline 24" - 30" (LP)
	Outdoor Electronic Ignition System (EIS-OUTDOOR / EIS-OUTDOOR-LP) Non-Standing Pilot Pilot on Demand System 24V Electronic Ignition On/Off Operations ONLY In-Wall Design (NG) 6’-10’ Pilot Assembly (LP) 6’ Pilot Assembly Max Inlet 14” W.C. Valve Temp Rating 175° (NG) 3”-7” W.C. 200,000 BTU’s (LP) 8”-14” W.C. 320,000 BTU’s GCRK (On/Off) remote / GCWS (On/Off) Wall Switch and WBPB-12/24 (Wifi / Blutooth Power Box) can be use with this kit (Not included - Sold separately) For use with: 2-Burner / Glass / Kiva 18" - 60" (NG) 18" - 42" (LP) 3-Burner 18" - 42" (NG) 18" - 42" (LP) Jumbo / Jumbo Slimline 24" - 60" (NG) 24" - 96" (LP)



Click to see Weather Beater / Wall Switch / Remote Control & Power Box

	Weather Beater Electronic Control System (WBECS) Hot Surface Ignition System Pilot on Demand System LED Diagnostics 12V Electronic Ignition On/Off Operations ONLY 24” Pilot Assembly CSA Certified Control System Max Inlet 14” W.C. Valve Temp Rating 175° WBECS: 265K BTU (NG/LP) HC-WBECS: 500K BTU (NG/LP) Use with Grand Canyon fire pits, fire tables, and outdoor burners
	Wall Switch (GCWS) Basic wall switch kit Basic on/off operations For indoor or outdoor use 15 foot 10-2 low voltage wire Rocker switch and cover included For Use With: HCSPK-N & HCSPK-LP MVQMKN & MVQMKLP HCMVQMKN & HCMVQMKLP MVKEIKN & MVKEIKLP ALL EIS Configurations
	Remote Control Kit (GCRK) Basic On/Off Operations RF Transmitter & Receiver LCD Temp Display Includes Batteries & Wall Plate For Use With: HCSPK-N & HCSPK-LP MVQMKN & MVQMKLP HCMVQMKN & HCMVQMKLP MVKEIKN & MVKEIKLP ALL EIS Configurations
	110V Plug-In Remote Control Kit (GCRK-110) 110V plug-in Includes batteries Basic on/off operations RF transmitter and receiver For Use With: (WBECS) Weather Beater Electronic Control System Only
	Weather Beater Wifi/Bluetooth Power Box (WBPB-12/24) Installs in-wall 12V/24V system Optional accessory Connect with your home Automation or weather smart app Designed for all EIS configurations Weather beater Wi-Fi and Bluetooth power box
