Grand Canyon 18" to 42" Indoor Vented 3-Burner System

Grand Canyon 18" to 42" Indoor Vented 3-Burner System

$550.00
$550.00
Sale Sold out
Shipping calculated at checkout.
Fuel Type
Size
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

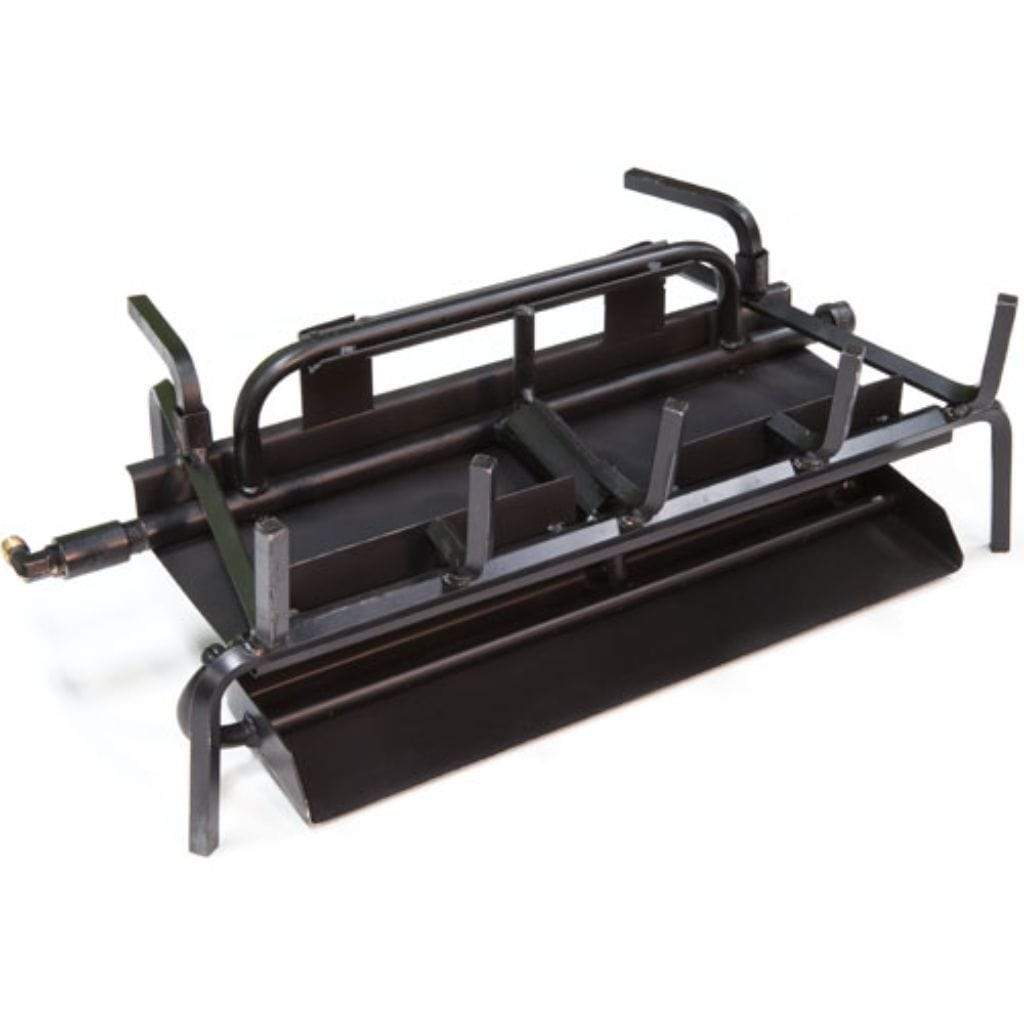

Grand Canyon 3 Burner System provides a high quality burner component to help complete your ideal gas fireplace. Grand Canyon's 3 Burner system features a 304 stainless steel chassis for ultimate durability and performance while allowing for gas to flow in from either side of the burner. With 1 elevated back burner that stretches across the entire rear of the burner, 1 middle burner that rolls over the front log, and 1 ember burner, this component is sure to create enough heat to give your living space a much more comfortable atmosphere while the burner tines can be raised or lowered depending on the size of your fireplace opening and preferred log style.

This burner package comes complete with metal bar stock and burner pipes, lava rock, necessary fittings, a flex line and the ember damper clamp. With (6) different burner size options and a propane or natural gas option, Grand Canyon has ensured a burner that will fit any style of indoor living space, allowing you to achieve an area that your friends and family will love for years to come.

Vented Burners - 100% American manufactured burners listed and tested to the ANSI standard. Indoor burners feature stainless steel pan construction with metal bar stock and burner pipes.

Use with logs: Arizona Weathered Oak (AWO), Arizona Weathered Oak Charred (AWOC), Arizona Juniper (AJ), Quaking Aspen (ASPEN), Driftwood, and Blue Pine Split (BPS).

Please Note: Logs Not Included.

Features:

  • Sizing: 18" – 42"
  • Style: Even distribution rear burner w/dual action middle burner & dedicated ember glow burner
  • Standards: ANSI Certified with Control Systems
  • Usage: Indoor
  • Materials: Stainless Steel Chassis
  • Warranty: Lifetime Warranty – When Installed Indoors
  • Piping: 1/2" Piping & ½" Bar Stock
  • Fittings: Gas Inlet Left or Right
  • Convertible to LP: NG Burner convertible to LP
  • Media: Includes Lava Rock, Embers, & Connection Fittings
  • Pilot: Concealed Pilot Mounting Brackets
  • Design: Fully Welded System with Sandless Design

Specifications

18-Inch
  • Front Width: 18"
  • Depth: 12"
  • Back Width: 11"
  • Height: 8"
  • BTU Rating NG: 46K
  • BTU Rating LP: 41K
21-Inch
  • Front Width: 21"
  • Depth: 12"
  • Back Width: 13"
  • Height: 8"
  • BTU Rating NG: 58K
  • BTU Rating LP: 58K
24-Inch
  • Front Width: 24"
  • Depth: 12"
  • Back Width: 16"
  • Height: 8"
  • BTU Rating NG: 74K
  • BTU Rating LP: 64K
30-Inch
  • Front Width: 30"
  • Depth: 14"
  • Back Width: 22"
  • Height: 8"
  • BTU Rating NG: 102K
  • BTU Rating LP: 91K
36-Inch
  • Front Width: 36"
  • Depth: 14"
  • Back Width: 27"
  • Height: 8"
  • BTU Rating NG: 111K
  • BTU Rating LP: 106K
42-Inch
  • Front Width: 42"
  • Depth: 14"
  • Back Width: 33"
  • Height: 8"
  • BTU Rating NG: 120K
  • BTU Rating LP: 121K

Options & Accessories

Click to see Control Valve Options


Manual Valve Kit (MA)

  • Manual On/Off w/ Knob or Wrench Operations ONLY
  • Low Profile Design
  • Max Inlet 14” W.C.
  • Valve Temp Rating 300°
  • 90,000 BTU’s (NG/LP)
  • For use with:
    • 2-Burner / Glass / Kiva
      18" - 42" (NG / LP)
    • 3-Burner
      18" - 30" (NG/LP)






    Safety Pilot Quick Mount Kit (SPQMKN / SPQMKLP)

    • Standing Pilot System
    • Manual On/Off Operations ONLY
    • Low Profile Design
    • Max Inlet 14” W.C.
    • Valve Temp Rating 300°
    • (NG) 90,000 BTU’s
    • (LP) 90,000 BTU’s
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 30" (NG)
        18"- 42" (LP)
      • 3-Burner
        18" - 24" (NG)
        18" - 36" (LP)








    High Capacity Safety Pilot Kit (HCSPK-N / HCSPK-LP)

    • Standing Pilot System
    • Manual On/Off Operations ONLY
    • Max Inlet 14” W.C.
    • Valve Temp Rating 250°
    • (NG) 124,000 BTU’s
    • (LP) 200,000 BTU’s
    • GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 42" (NG)
        18"- 60" (LP)
      • 3-Burner
        18" - 42" (NG)
        18" - 42" (LP)
      • Jumbo / Jumbo Slimline
        24" - 30" (NG)
        24"- 48" (LP)







    Millivolt Quick Mount Kit (MVQMKN / MVQMKLP)

    • Standing Pilot System
    • On/Off Operations ONLY
    • Low Profile Design
    • Max Inlet 14” W.C.
    • Valve Temp Rating 175°
    • (NG) 3”-5” W.C. 70,000 BTU’s
    • (LP) 8”-12” W.C. 110,000 BTU’s
    • GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 30" (NG)
        18" - 42" (LP)
      • 3-Burner
        18" - 24" (NG)
        18" - 36" (LP)
      • Jumbo / Jumbo Slimline
        24" - 30" (LP)







    Modulating Millivolt Valve Kit with Remote (MMVKR-NG / MMVKR-LP)

    • Standing Pilot System
    • Variable Flame Height
    • Low Profile Design
    • Max Inlet 14” W.C.
    • Valve Temp Rating 225°
    • (NG) 7” W.C. 120,000 BTU’s
    • (LP) 7”-14” W.C. 120,000 BTU’s
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 42" (NG)
        18" - 42" (LP)
      • 3-Burner
        18" - 42" (NG)
        18" - 42" (LP)
      • Jumbo / Jumbo Slimline
        24" - 30" (NG)
        24" - 30" (LP)



    High Capacity Millivolt Valve Kit (HCMVQMKN / HCMVQMKLP)

    • Standing Pilot System
    • High Volume Output Millivolt System
    • On/Off Operations ONLY
    • Max Inlet 14” W.C.
    • Valve Temp Rating 175°
    • (NG) 3”-5” W.C. 370,000 BTU’s
    • (LP) 8”-12” W.C. 560,000 BTU’s
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 60" (NG)
        18" - 42" (LP)
      • 3-Burner
        18" - 42" (NG)
        18" - 42" (LP)
      • Jumbo / Jumbo Slimline
        24" - 108" (NG)
        24" - 120" (LP)







    Battery Powered Electronic Ignition System (MVKEIKN / MVKEIKLP)

    • Non-Standing Pilot
    • 2-D Cell Battery Electronic Ignition
    • Pilot on Demand System
    • On/Off Operations ONLY
    • Max Inlet 14” W.C.
    • Valve Temp Rating 175°
    • (NG) 3”-7” W.C. 88,000 BTU’s
    • (LP) 8”-14” W.C. 110,000 BTU’s
    • GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 42" (NG)
        18" - 42" (LP)
      • 3-Burner
        18" - 30" (NG)
        18" - 36" (LP)
      • Jumbo / Jumbo Slimline
        24" - 30" (LP)









    110V Indoor Electronic Ignition System (EIS & EIS-LP)

    • Non-Standing Pilot
    • Pilot on Demand System
    • 24V Electronic Ignition
    • On/Off Operations ONLY
    • In-Wall Design
    • 6’-10’ Pilot Assembly
    • Max Inlet 14” W.C.
    • Valve Temp Rating 175°
    • (NG) 3”-7” W.C. 200,000 BTU’s
    • (LP) 8”-14” W.C. 320,000 BTU’s
    • GCRK (On/Off) remote / GCWS (On/Off) Wall Switch and WBPB-12/24 (Wifi / Blutooth Power Box) can be use with this kit (Not included - Sold separately)
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 60" (NG)
        18" - 42" (LP)
      • 3-Burner
        18" - 42" (NG)
        18" - 42" (LP)
      • Jumbo / Jumbo Slimline
        24" - 60" (NG)
        24" - 96" (LP)

      Click to see Wall Switch / Remote Control & Power Box





      Wall Switch (GCWS)

      • Basic wall switch kit
      • Basic on/off operations
      • For indoor or outdoor use
      • 15 foot 10-2 low voltage wire
      • Rocker switch and cover included
      • For Use With:
        • HCSPK-N & HCSPK-LP
        • MVQMKN & MVQMKLP
        • HCMVQMKN & HCMVQMKLP
        • MVKEIKN & MVKEIKLP
        • ALL EIS Configurations


      Remote Control Kit (GCRK)

      • Basic On/Off Operations
      • RF Transmitter & Receiver
      • LCD Temp Display
      • Includes Batteries & Wall Plate
      • For Use With:
        • HCSPK-N & HCSPK-LP
        • MVQMKN & MVQMKLP
        • HCMVQMKN & HCMVQMKLP
        • MVKEIKN & MVKEIKLP
        • ALL EIS Configurations


      Weather Beater Wifi/Bluetooth Power Box (WBPB-12/24)

      • Installs in-wall
      • 12V/24V system
      • Optional accessory
      • Connect with your home
      • Automation or weather smart app
      • Designed for all EIS configurations
      • Weather beater Wi-Fi and Bluetooth power box
