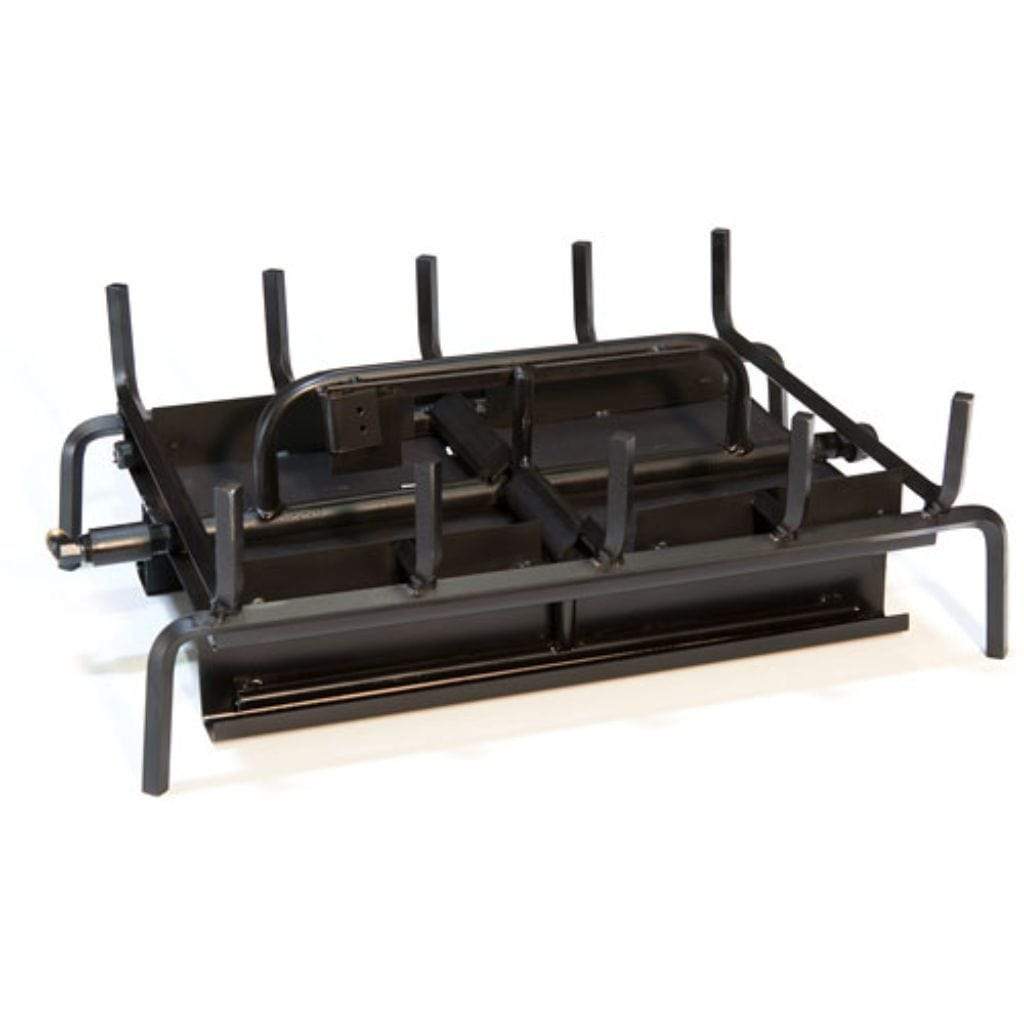

Grand Canyon 18" to 42" Indoor Vented See Through 3-Burner System

Grand Canyon Double Sided 3 Burner System provides a high quality double sided burner component to help complete your ideal see-through gas fireplace. Grand Canyon's Double Sided 3 Burner system features a durable 304 stainless steel chassis for ultimate durability and performance indoors while allowing for gas to flow in from either side of the burner. With 2 front burners on either side and an elevated middle burner tube, this component provides a substantial flame that is suitable for viewing from either side of your fireplace unit, adding a modern touch to your favorite space.

This burner package comes complete with metal bar stock and burner pipes, lava rock, necessary fittings, a flex line and the ember damper clamp. With (5) different burner size options and a propane or natural gas option, Grand Canyon has ensured a burner that will fit any style of indoor living space, allowing you to achieve an area that your friends and family will love for years to come.

See Through Burners - 100% American manufactured burners listed and tested to the ANSI standard. Indoor burners feature stainless steel pan construction with metal bar stock and burner pipes.

Use with logs: Arizona Weathered Oak (AWO), Arizona Weathered Oak Charred (AWOC), Arizona Juniper (AJ), Quaking Aspen (ASPEN), and Driftwood.

Please Note:

• Logs not included.

Features:

• Sizes 18" – 60"
• Main rear burner w/Dual action front ember burner
• ANSI Certified with Control Systems
• Fully Welded System w/Sandless Design
• Stainless Steel Chassis
• Lifetime Warranty when installed Indoors
• 1/2" Piping & ½" Bar Stock
• Gas Inlet Left or Right
• Concealed Pilot Mounting Brackets
• NG Burner convertible to LP
• Includes Lava Rock, Embers & Connection Fittings

Specifications

18-Inch Front Width: 18" Depth: 16" Back Width: 18" Height: 8" BTU Rating NG: 103K BTU Rating LP: 93K

24-Inch Front Width: 24" Depth: 16" Back Width: 24" Height: 8" BTU Rating NG: 118K BTU Rating LP: 100K

30-Inch Front Width: 30" Depth: 16" Back Width: 30" Height: 8" BTU Rating NG: 128K BTU Rating LP: 115K

36-Inch Front Width: 36" Depth: 16" Back Width: 36" Height: 8" BTU Rating NG: 135K BTU Rating LP: 125K

42-Inch Front Width: 42" Depth: 16" Back Width: 42" Height: 8" BTU Rating NG: 145K BTU Rating LP: 125K

Options & Accessories

Click to see Control Valve Options

	Manual Valve Kit (MA) Manual On/Off w/ Knob or Wrench Operations ONLY Low Profile Design Max Inlet 14” W.C. Valve Temp Rating 300° 90,000 BTU’s (NG/LP) For use with: 2-Burner / Glass / Kiva 18" - 42" (NG / LP) 3-Burner 18" - 30" (NG/LP)
	Safety Pilot Quick Mount Kit (SPQMKN / SPQMKLP) Standing Pilot System Manual On/Off Operations ONLY Low Profile Design Max Inlet 14” W.C. Valve Temp Rating 300° (NG) 90,000 BTU’s (LP) 90,000 BTU’s For use with: 2-Burner / Glass / Kiva 18" - 30" (NG) 18"- 42" (LP) 3-Burner 18" - 24" (NG) 18" - 36" (LP)
	High Capacity Safety Pilot Kit (HCSPK-N / HCSPK-LP) Standing Pilot System Manual On/Off Operations ONLY Max Inlet 14” W.C. Valve Temp Rating 250° (NG) 124,000 BTU’s (LP) 200,000 BTU’s GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately) For use with: 2-Burner / Glass / Kiva 18" - 42" (NG) 18"- 60" (LP) 3-Burner 18" - 42" (NG) 18" - 42" (LP) Jumbo / Jumbo Slimline 24" - 30" (NG) 24"- 48" (LP)
	Millivolt Quick Mount Kit (MVQMKN / MVQMKLP) Standing Pilot System On/Off Operations ONLY Low Profile Design Max Inlet 14” W.C. Valve Temp Rating 175° (NG) 3”-5” W.C. 70,000 BTU’s (LP) 8”-12” W.C. 110,000 BTU’s GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately) For use with: 2-Burner / Glass / Kiva 18" - 30" (NG) 18" - 42" (LP) 3-Burner 18" - 24" (NG) 18" - 36" (LP) Jumbo / Jumbo Slimline 24" - 30" (LP)
	Modulating Millivolt Valve Kit with Remote (MMVKR-NG / MMVKR-LP) Standing Pilot System Variable Flame Height Low Profile Design Max Inlet 14” W.C. Valve Temp Rating 225° (NG) 7” W.C. 120,000 BTU’s (LP) 7”-14” W.C. 120,000 BTU’s For use with: 2-Burner / Glass / Kiva 18" - 42" (NG) 18" - 42" (LP) 3-Burner 18" - 42" (NG) 18" - 42" (LP) Jumbo / Jumbo Slimline 24" - 30" (NG) 24" - 30" (LP)
	High Capacity Millivolt Valve Kit (HCMVQMKN / HCMVQMKLP) Standing Pilot System High Volume Output Millivolt System On/Off Operations ONLY Max Inlet 14” W.C. Valve Temp Rating 175° (NG) 3”-5” W.C. 370,000 BTU’s (LP) 8”-12” W.C. 560,000 BTU’s For use with: 2-Burner / Glass / Kiva 18" - 60" (NG) 18" - 42" (LP) 3-Burner 18" - 42" (NG) 18" - 42" (LP) Jumbo / Jumbo Slimline 24" - 108" (NG) 24" - 120" (LP)
	Battery Powered Electronic Ignition System (MVKEIKN / MVKEIKLP) Non-Standing Pilot 2-D Cell Battery Electronic Ignition Pilot on Demand System On/Off Operations ONLY Max Inlet 14” W.C. Valve Temp Rating 175° (NG) 3”-7” W.C. 88,000 BTU’s (LP) 8”-14” W.C. 110,000 BTU’s GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately) For use with: 2-Burner / Glass / Kiva 18" - 42" (NG) 18" - 42" (LP) 3-Burner 18" - 30" (NG) 18" - 36" (LP) Jumbo / Jumbo Slimline 24" - 30" (LP)
	110V Indoor Electronic Ignition System (EIS & EIS-LP) Non-Standing Pilot Pilot on Demand System 24V Electronic Ignition On/Off Operations ONLY In-Wall Design 6’-10’ Pilot Assembly Max Inlet 14” W.C. Valve Temp Rating 175° (NG) 3”-7” W.C. 200,000 BTU’s (LP) 8”-14” W.C. 320,000 BTU’s GCRK (On/Off) remote / GCWS (On/Off) Wall Switch and WBPB-12/24 (Wifi / Blutooth Power Box) can be use with this kit (Not included - Sold separately) For use with: 2-Burner / Glass / Kiva 18" - 60" (NG) 18" - 42" (LP) 3-Burner 18" - 42" (NG) 18" - 42" (LP) Jumbo / Jumbo Slimline 24" - 60" (NG) 24" - 96" (LP)

Click to see Wall Switch / Remote Control & Power Box

	Wall Switch (GCWS) Basic wall switch kit Basic on/off operations For indoor or outdoor use 15 foot 10-2 low voltage wire Rocker switch and cover included For Use With: HCSPK-N & HCSPK-LP MVQMKN & MVQMKLP HCMVQMKN & HCMVQMKLP MVKEIKN & MVKEIKLP ALL EIS Configurations
	Remote Control Kit (GCRK) Basic On/Off Operations RF Transmitter & Receiver LCD Temp Display Includes Batteries & Wall Plate For Use With: HCSPK-N & HCSPK-LP MVQMKN & MVQMKLP HCMVQMKN & HCMVQMKLP MVKEIKN & MVKEIKLP ALL EIS Configurations
	Weather Beater Wifi/Bluetooth Power Box (WBPB-12/24) Installs in-wall 12V/24V system Optional accessory Connect with your home Automation or weather smart app Designed for all EIS configurations Weather beater Wi-Fi and Bluetooth power box
