Grand Canyon 18" to 30" Kiva Burner System

Grand Canyon 18" to 30" Kiva Burner System

$324.00
$324.00
Sale Sold out
Shipping calculated at checkout.
Fuel Type
Material
Size
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

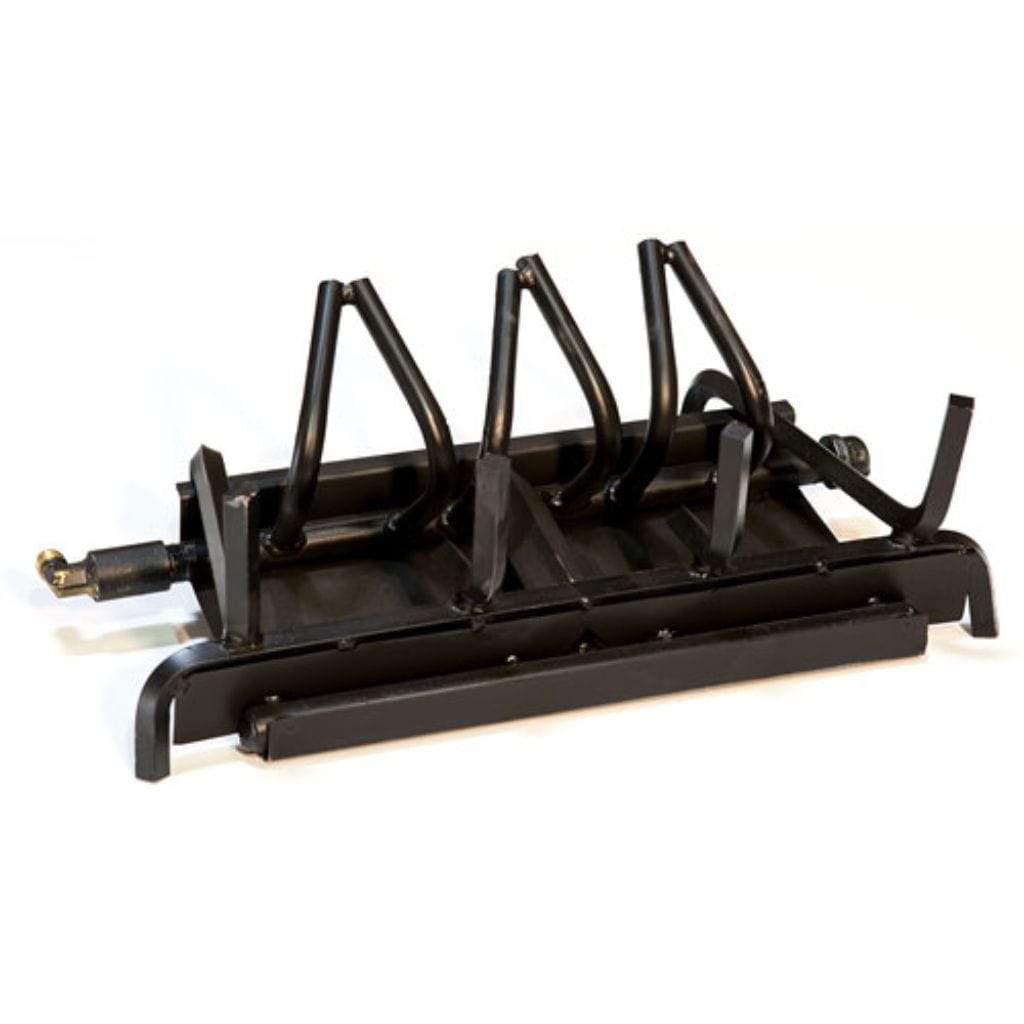

The Grand Canyon Kiva Burner was developed and is manufactured in the same factory as Grand Canyon ANSI certified 2 and 3 burners. This Kiva burner system was developed and designed to fit Adobelite Kiva fireplaces. These burners may be small however they put out the heat. The Kiva Burner is a true 7 burner featuring 6 vertical upright burners in the back and a single front burner that also acts as the ember bed.

Embers are littered across the front of the burner and the uprights to give a trailing glow effect behind the logs. 3 different log styles for these burners, Arizona Weathered Oak / Arizona Juniper and Aspen kiva log set.

Please Note: Logs not included.

Features:

  • Sizing 18 – 30
  • Specifically designed for Adobelite Kiva Fireplaces
  • A Frame rear burners for log support & exceptional flame height
  • Built to ANSI Standards
  • Fully Welded System w/Sandless Design
  • Stainless Steel Chassis
  • Lifetime Warranty when installed Indoors
  • ½” Piping & ½” Bar Stock
  • Gas Inlet Left or Right
  • Concealed Pilot Mounting Brackets
  • NG Burner convertible to LP
  • Includes Lava Rock, Embers & Connection Fittings

Specifications:

18-Inch
  • Front Width: 12"
  • Depth: 9"
  • Back Width: 6"
  • Height: 6"
  • BTU Rating NG: 45K
  • BTU Rating LP: 35K
24-Inch
  • Front Width: 18"
  • Depth: 9"
  • Back Width: 11"
  • Height: 6"
  • BTU Rating NG: 52K
  • BTU Rating LP: 49K
30-Inch
  • Front Width: 21"
  • Depth: 9"
  • Back Width: 14"
  • Height: 6"
  • BTU Rating NG: 65K
  • BTU Rating LP: 64K


Options & Accessories

Click to see Control Valve Options


Manual Valve Kit (MA)

  • Manual On/Off w/ Knob or Wrench Operations ONLY
  • Low Profile Design
  • Max Inlet 14” W.C.
  • Valve Temp Rating 300°
  • 90,000 BTU’s (NG/LP)
  • For use with:
    • 2-Burner / Glass / Kiva
      18" - 42" (NG / LP)
    • 3-Burner
      18" - 30" (NG/LP)






    Safety Pilot Quick Mount Kit (SPQMKN / SPQMKLP)

    • Standing Pilot System
    • Manual On/Off Operations ONLY
    • Low Profile Design
    • Max Inlet 14” W.C.
    • Valve Temp Rating 300°
    • (NG) 90,000 BTU’s
    • (LP) 90,000 BTU’s
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 30" (NG)
        18"- 42" (LP)
      • 3-Burner
        18" - 24" (NG)
        18" - 36" (LP)








    High Capacity Safety Pilot Kit (HCSPK-N / HCSPK-LP)

    • Standing Pilot System
    • Manual On/Off Operations ONLY
    • Max Inlet 14” W.C.
    • Valve Temp Rating 250°
    • (NG) 124,000 BTU’s
    • (LP) 200,000 BTU’s
    • GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 42" (NG)
        18"- 60" (LP)
      • 3-Burner
        18" - 42" (NG)
        18" - 42" (LP)
      • Jumbo / Jumbo Slimline
        24" - 30" (NG)
        24"- 48" (LP)







    Millivolt Quick Mount Kit (MVQMKN / MVQMKLP)

    • Standing Pilot System
    • On/Off Operations ONLY
    • Low Profile Design
    • Max Inlet 14” W.C.
    • Valve Temp Rating 175°
    • (NG) 3”-5” W.C. 70,000 BTU’s
    • (LP) 8”-12” W.C. 110,000 BTU’s
    • GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 30" (NG)
        18" - 42" (LP)
      • 3-Burner
        18" - 24" (NG)
        18" - 36" (LP)
      • Jumbo / Jumbo Slimline
        24" - 30" (LP)







    Modulating Millivolt Valve Kit with Remote (MMVKR-NG / MMVKR-LP)

    • Standing Pilot System
    • Variable Flame Height
    • Low Profile Design
    • Max Inlet 14” W.C.
    • Valve Temp Rating 225°
    • (NG) 7” W.C. 120,000 BTU’s
    • (LP) 7”-14” W.C. 120,000 BTU’s
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 42" (NG)
        18" - 42" (LP)
      • 3-Burner
        18" - 42" (NG)
        18" - 42" (LP)
      • Jumbo / Jumbo Slimline
        24" - 30" (NG)
        24" - 30" (LP)



    High Capacity Millivolt Valve Kit (HCMVQMKN / HCMVQMKLP)

    • Standing Pilot System
    • High Volume Output Millivolt System
    • On/Off Operations ONLY
    • Max Inlet 14” W.C.
    • Valve Temp Rating 175°
    • (NG) 3”-5” W.C. 370,000 BTU’s
    • (LP) 8”-12” W.C. 560,000 BTU’s
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 60" (NG)
        18" - 42" (LP)
      • 3-Burner
        18" - 42" (NG)
        18" - 42" (LP)
      • Jumbo / Jumbo Slimline
        24" - 108" (NG)
        24" - 120" (LP)







    Battery Powered Electronic Ignition System (MVKEIKN / MVKEIKLP)

    • Non-Standing Pilot
    • 2-D Cell Battery Electronic Ignition
    • Pilot on Demand System
    • On/Off Operations ONLY
    • Max Inlet 14” W.C.
    • Valve Temp Rating 175°
    • (NG) 3”-7” W.C. 88,000 BTU’s
    • (LP) 8”-14” W.C. 110,000 BTU’s
    • GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 42" (NG)
        18" - 42" (LP)
      • 3-Burner
        18" - 30" (NG)
        18" - 36" (LP)
      • Jumbo / Jumbo Slimline
        24" - 30" (LP)









    110V Indoor Electronic Ignition System (EIS & EIS-LP)

    • Non-Standing Pilot
    • Pilot on Demand System
    • 24V Electronic Ignition
    • On/Off Operations ONLY
    • In-Wall Design
    • 6’-10’ Pilot Assembly
    • Max Inlet 14” W.C.
    • Valve Temp Rating 175°
    • (NG) 3”-7” W.C. 200,000 BTU’s
    • (LP) 8”-14” W.C. 320,000 BTU’s
    • GCRK (On/Off) remote / GCWS (On/Off) Wall Switch and WBPB-12/24 (Wifi / Blutooth Power Box) can be use with this kit (Not included - Sold separately)
    • For use with:
      • 2-Burner / Glass / Kiva
        18" - 60" (NG)
        18" - 42" (LP)
      • 3-Burner
        18" - 42" (NG)
        18" - 42" (LP)
      • Jumbo / Jumbo Slimline
        24" - 60" (NG)
        24" - 96" (LP)

    Click to see Wall Switch / Remote Control & Power Box








    Wall Switch (GCWS)

    • Basic wall switch kit
    • Basic on/off operations
    • For indoor or outdoor use
    • 15 foot 10-2 low voltage wire
    • Rocker switch and cover included
    • For Use With:
      • HCSPK-N & HCSPK-LP
      • MVQMKN & MVQMKLP
      • HCMVQMKN & HCMVQMKLP
      • MVKEIKN & MVKEIKLP
      • ALL EIS Configurations


    Remote Control Kit (GCRK)


    • Basic On/Off Operations
    • RF Transmitter & Receiver
    • LCD Temp Display
    • Includes Batteries & Wall Plate
    • For Use With:
      • HCSPK-N & HCSPK-LP
      • MVQMKN & MVQMKLP
      • HCMVQMKN & HCMVQMKLP
      • MVKEIKN & MVKEIKLP
      • ALL EIS Configurations


      Weather Beater Wifi/Bluetooth Power Box (WBPB-12/24)

      • Installs in-wall
      • 12V/24V system
      • Optional accessory
      • Connect with your home
      • Automation or weather smart app
      • Designed for all EIS configurations
      • Weather beater Wi-Fi and Bluetooth power box
