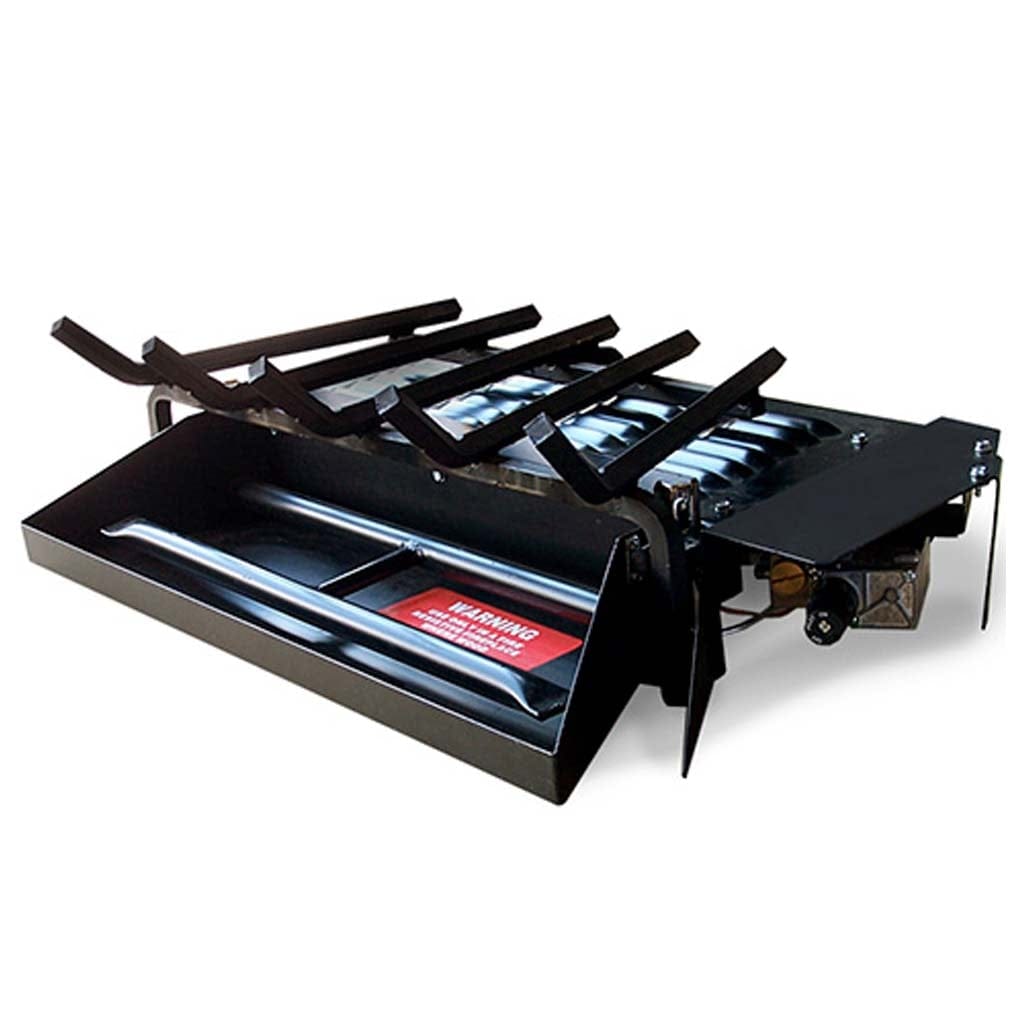

Fireside Tech 9000 18" High Performance Vented Natural Gas Burner System With VEI Control
Fireside Tech 9000 18" High Performance Vented Natural Gas Burner System With VEI Control
Regular price
$756.00
Regular price
Sale price
$756.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
Upgrade your fireplace with the Fireside 18" High-Performance Tech 9000 Vented Natural Gas Burner System, designed for superior flame presentation, efficiency, and convenience. Featuring Variable Electronic Ignition (VEI) Control, this burner system offers effortless ignition and flame adjustment at the touch of a button.
What's Included
- Black Embers
- Connector Kit
- Deluxe Black Glowing Embers
- Damper Clamp
- VEI Control
Not Included
- Gas Logs
Features
- Revolutionary Tech 9000 Burner System Create A Spectacular “On Fire” Appearance With Flames Burning Randomly Throughout The Logs - Each Log Appears To Be On Fire
- Up To 3 Times More Radiant Heat Than Standard Vented Pan Burners
- Burner Design Ensures Valve Is Hidden Providing The Ultimate Wood Fire Look
- Safety Pilot Burner Converts To An On/Off Or Variable Remote Control Burner With Optional Remote Control Kit
Specifications
| Model | FHP-CSP-18NA |
| Fuel Type | Natural Gas |
| Certifications | ANSI Z21.60 A-2000/CSA 2.26a-2000 For Installation In Woodburning Fireplaces. |
| BTUs | 70,000 |
| Control Type | VEI Control |
| Ignition Type | Battery Powered |
| log Size | 18" |
Minimum Fireplace Dimension
| Set Size | Center Width | Opening Width | Depth | Height |
| 18" | 20" | 22" | 14.75" | 18" |
| 24" | 25" | 27" | 14.75" | 18" |
| 30" | 31" | 33" | 14.75" | 18" |
Table II - Factory-Built Fireplaces
Free Opening Area of Chimney Damper for Venting Combustion Products from Decorative Appliances for Installation in Solid Fuel Burning Fireplaces
| Chimney Height (Feet) | 18" Set NG | 18" Set LP | 24" Set NG | 24" Set LP | 30" Set NG | 30" Set LP |
| 10 | 28.3 (6") | 22.1 (6") | 35.3 (7") | 28.3 (7") | 44.2 (8") | 44.2 (8") |
| 15 | 21.2 (6") | 17.3 (5") | 26.4 (6") | 21.2 (6") | 32.2 (7") | 32.2 (7") |
| 20 | 18.1 (5") | 14.5 (5") | 22.1 (6") | 18.1 (5") | 26.4 (6") | 26.4 (6") |
| 25 | 15.9 (5") | 12.6 (5") | 18.1 (5") | 15.9 (5") | 22.9 (6") | 22.9 (6") |
| 30 | 14.5 (5") | 11.3 (4") | 17.3 (5") | 14.5 (5") | 20.4 (6") | 20.4 (6") |
| 35 | 13.2 (5") | 10.8 (4") | 15.9 (5") | 13.2 (5") | 18.9 (5") | 18.9 (5") |
| 40 | 12.6 (5") | 10.2 (4") | 15.2 (5") | 12.6 (5") | 18.1 (5") | 18.1 (5") |
Table III - Masonry-Built Fireplaces
Free Opening Area of Chimney Damper for Venting Combustion Products from Decorative Appliances for Installation in Solid Fuel Burning Fireplaces
| Chimney Height (Feet) | 18" Set NG | 18" Set LP | 24" Set NG | 24" Set LP | 30" Set NG | 30" Set LP |
| 6 | 41.7 | 33.8 | 49.2 | 41.7 | 56.6 | 56.6 |
| 8 | 38.7 | 31.2 | 45.5 | 38.7 | 52.4 | 52.4 |
| 10 | 35.2 | 28.7 | 41.7 | 35.2 | 48.2 | 48.2 |
| 15 | 32.0 | 26.1 | 37.7 | 32.0 | 43.2 | 43.2 |
| 20 | 28.8 | 23.7 | 34.3 | 28.8 | 39.8 | 39.8 |
| 30 | 26.5 | 21.6 | 31.2 | 26.5 | 35.9 | 35.9 |
Warranty
| Refractory Logs | Fireside Collection gas logs carry a limited lifetime warranty against any manufactured defect or breakage. A replacement will be available from the dealer at which the appliance was purchased. This warranty does not cover breakage caused by excessive handling once installed and fired. |
| Burner & Grate | If the burner or grate fails due to deterioration within 5 years of the verified purchase date, a free replacement will be made available from the dealer at which the appliance was purchased. |
| All Other Parts |
If any assembled part should fail to operate or be found defective within two years of the verified purchase date, a replacement will be available from the dealer at which the appliance was purchased.
|
Click to see Complete Warranty Details
What is not covered
- Removal and reinstallation costs.
- Labor costs for replacement or repairs.
- Transportation or shipping costs.
- The cost of a service call to diagnose trouble.
- Painted surfaces.
- Damage or defect caused by improper installation, accident, misuse, abuse, or alteration.
- Replacement of rusted burner or combustion chamber resulting from improper storage of the appliance.
Limitations and Exclusions
- No one has authority to add to or vary this limited warranty, or to create for Hargrove Manufacturing Corporation any other obligation or liability in connection with this appliance.
- Any implied warranty applicable to this appliance is limited in duration to the same period of time as this written Warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
- HARGROVE MANUFACTURING CORPORATION WILL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, SPECIAL OR CONTINGENT DAMAGES you might suffer as a result of its breach of this written warranty or any implied warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusion may not apply to you.
- This warranty applies only to the original purchase and may not be transferred.
- If you cannot verify the purchase date of the appliance, the warranty period will begin on the date on which the appliance was manufactured.
- Replacement or repair parts are warranted for the remaining period of the original part warranty. Warranty parts must be obtained through authorized dealers of this product who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty.
- Purchaser or user agrees to hold Hargrove Mfg Corp. harmless from any and all claims by the buyer as a result of injury or damage to an ultimate user or other person caused by the product sold herein by the seller to the buyer, whether the injury or damage results from the assembly, installation, operation, shipment, storage, or manufacture of this product. Hargrove Mfg Corp. makes no warranties, expressed or implied, other than those expressly stated herein.
Your Duties
This appliance must be installed by a qualified installer, operated, and maintained in accordance with all applicable codes and the instructions furnished with the appliance. You must provide a receipt verifying the purchase date of the appliance when making a warranty claim with the dealer from which the appliance was purchased.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
